Eagle 21202030 - Chrysler RB 4.250in Crank 7.100in H-Beam -8cc Flat Top 4.350in Pistons Rotating Assembly
Eagle 21202030 - Chrysler RB 4.250in Crank 7.100in H-Beam -8cc Flat Top 4.350in Pistons Rotating Assembly
SKU: CFQW-21202030
Regular price
$2,425.99 USD
Regular price
$2,932.99 USD
Sale price
$2,425.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
Eagle 21202030 - Chrysler RB 4.250in Crank 7.100in H-Beam -8cc Flat Top 4.350in Pistons Rotating Assembly

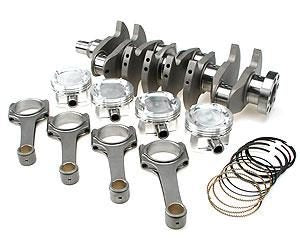

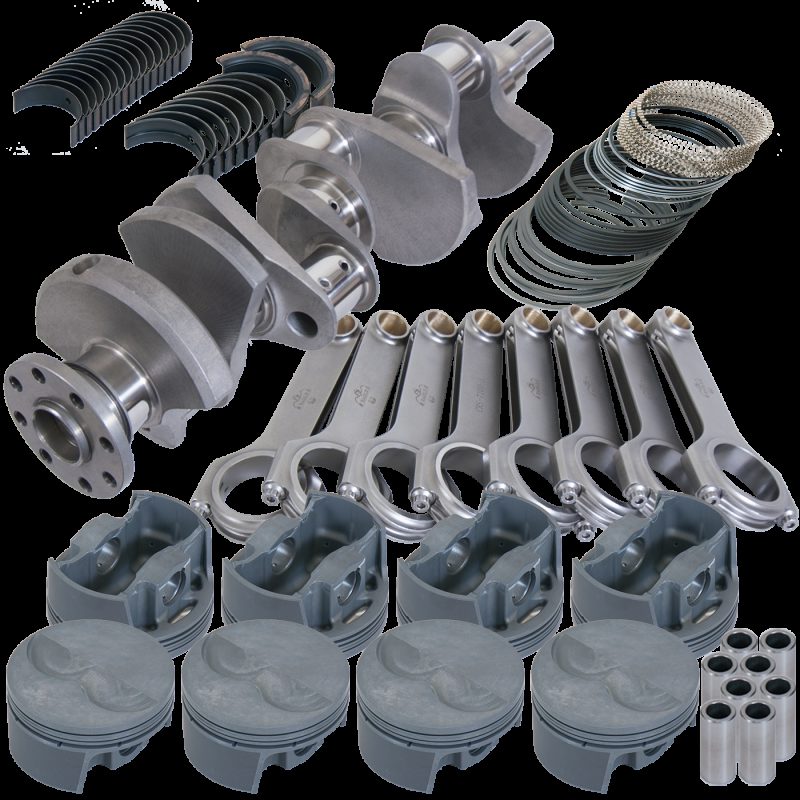

Rotating Assembly - 505 CID - Forged Crank - Forged Pistons - 4.250 in Stroke - 4.350 in Bore - 7.100 in H Beam Rods - Mopar RB-Series - Kit
4.250" Forged 4340 Crank,7.100" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -8CC FLAT TOP 4.350" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.
Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.35
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 7.100 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 8
Crankshaft Main Journal Diameter: 2.750 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.375 in
Crankshaft Stroke: 4.250 in
Cylinder Bore Diameter: 4.350 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, narrowed or chamfered
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: -8cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .990 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Flat Top Forged
Product Line: Competition
Rod Bearing Type: hardened, narrowed or chamfered
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
