Eagle - 2034655900B7
4340 CRANK MITSUBISHI 88MM

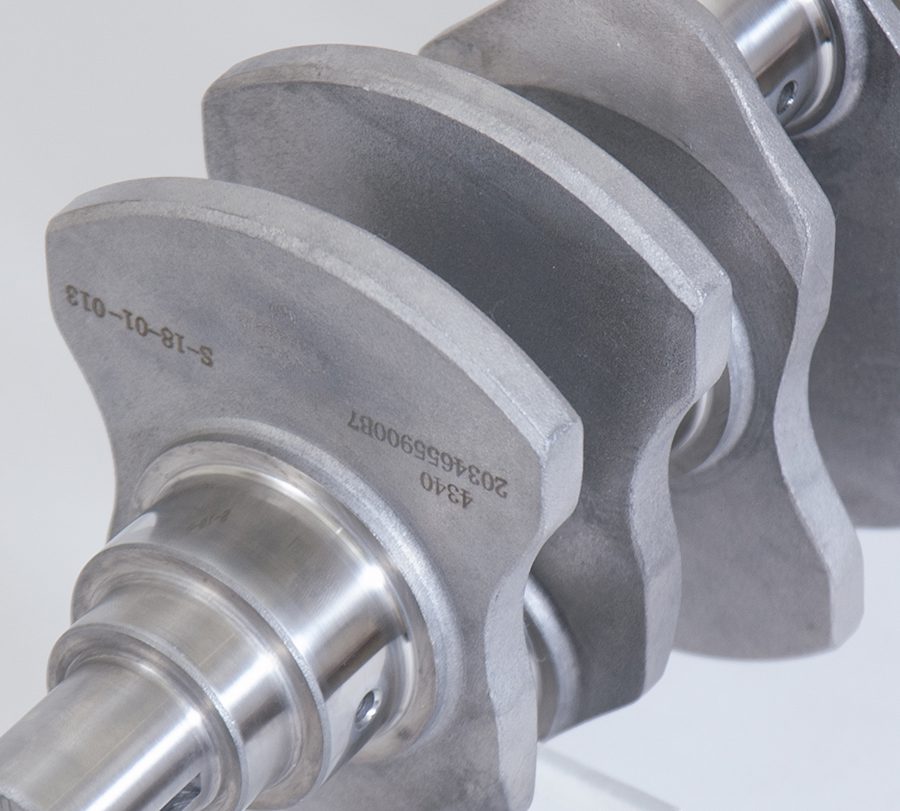

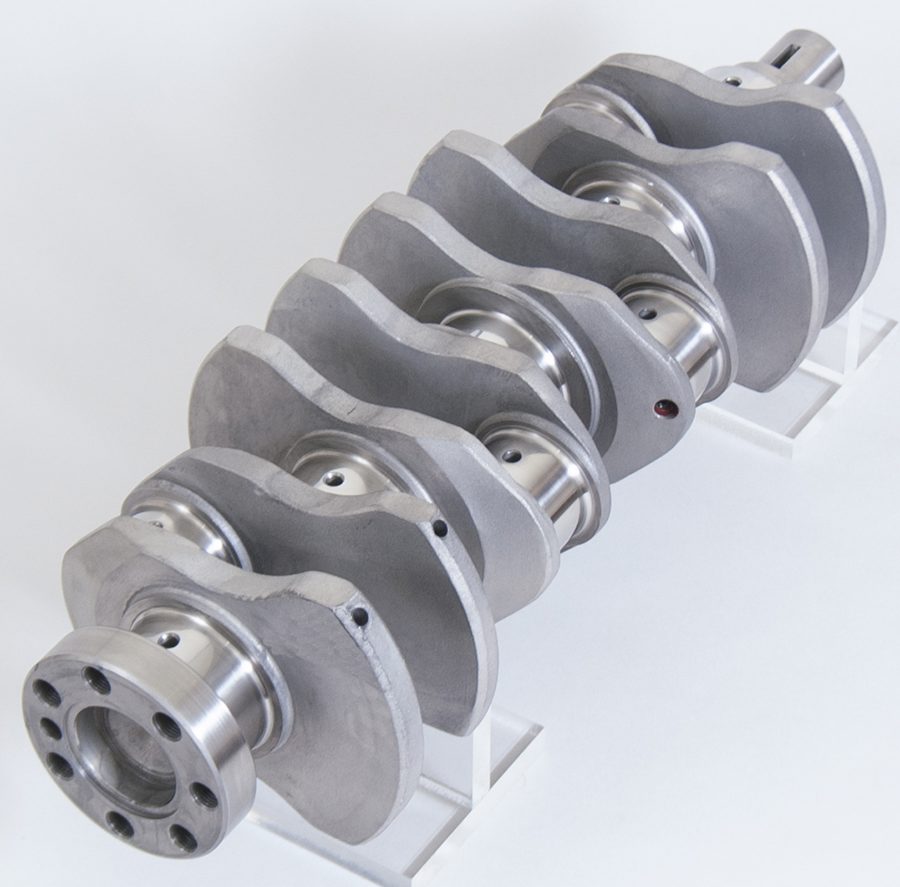

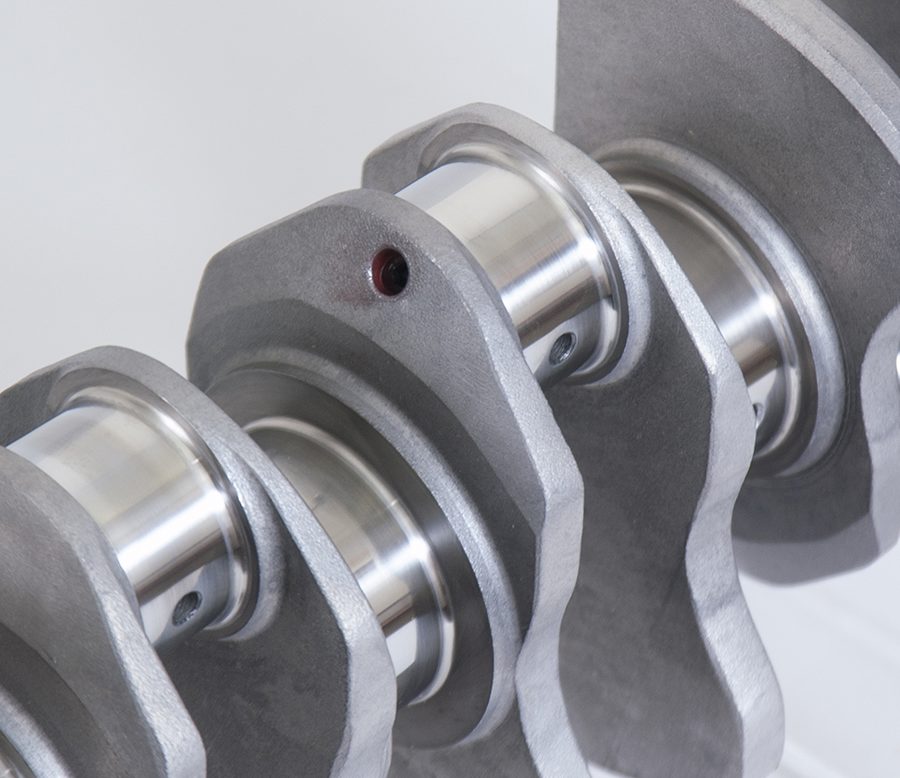

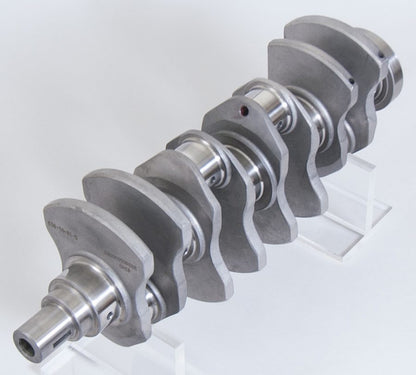

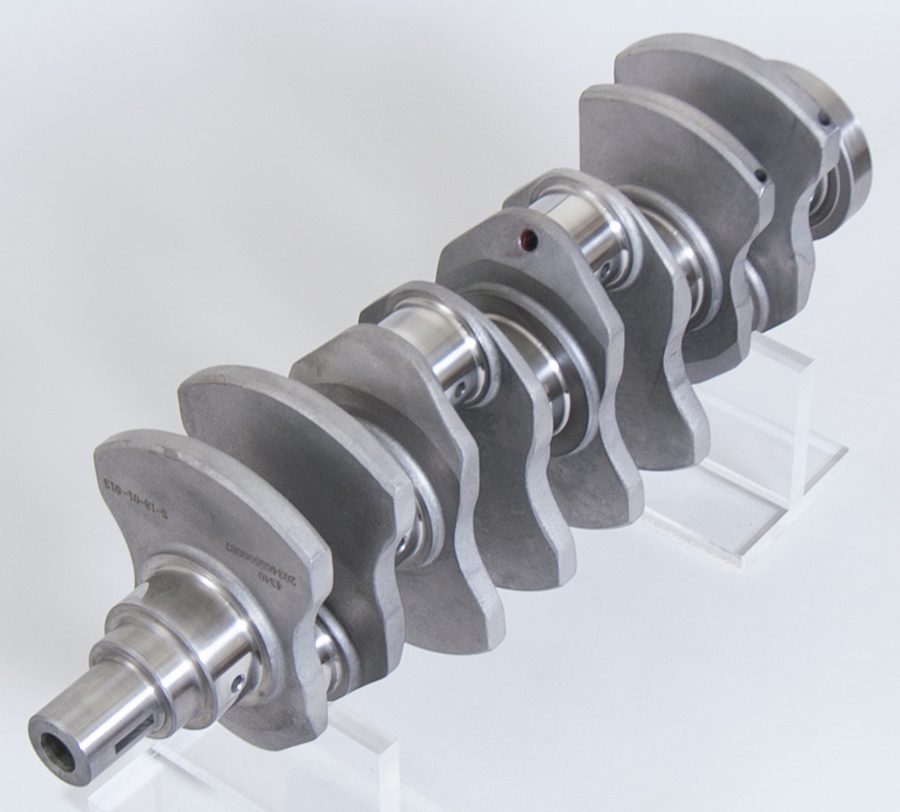

Forged 4340 Steel Crank - MITSUBISHI 4G63, 7 BOLT REAR FLANGE.
Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 3.465 in
Engine Stroke: 3.465
Flywheel Bolt Count: 7
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.244 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.900 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 1.05 in
Rod Journal: 1.771 in
Snout Diameter: 1.26 in
