Eagle 129123905 - Chevrolet LS Rotating Assembly (24 tooth reluctor)

Eagle 129123905 - Chevrolet LS Rotating Assembly (24 tooth reluctor)

Eagle | 129123905
SKU: CFQW-129123905
$2,699.99 USD
$2,917.99 USD $2,699.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 129123905 - Chevrolet LS Rotating Assembly (24 tooth reluctor)

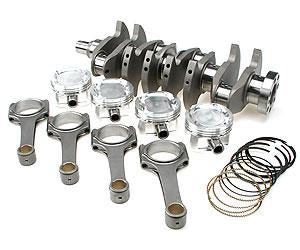

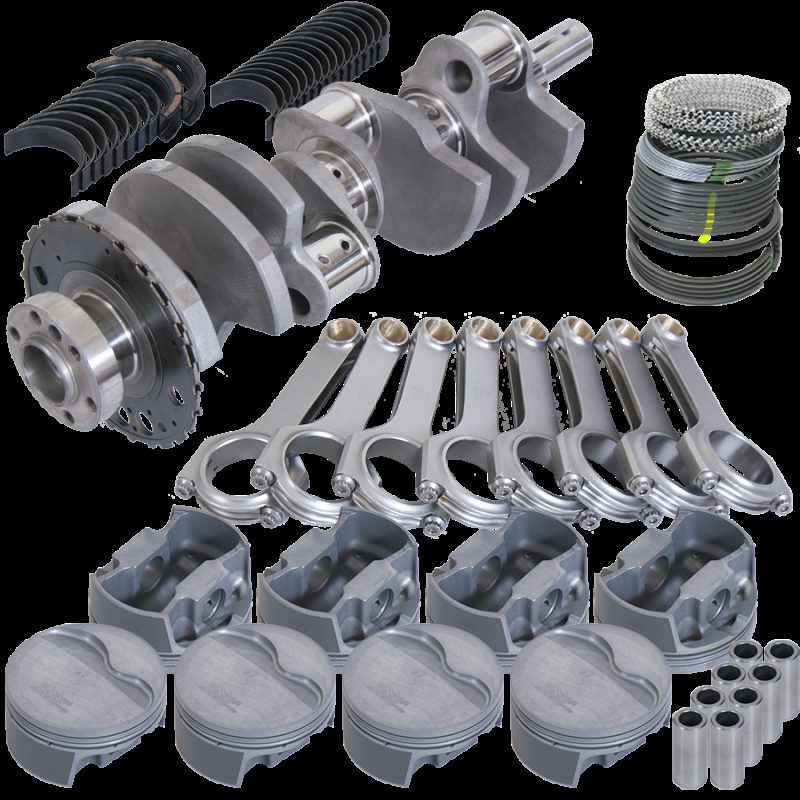

Rotating Assembly - 383 CID - Forged Crank - Forged Pistons - 4.000 in Stroke - 3.905 in Bore - 6.125 in H Beam Rods - GM LS-Series - Kit

4.000" Forged 4340 Crank, 24 TOOTH RELUCTOR,6.125" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -6CC FLAT TOP 3.905" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -6cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Flat Top Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 3.905
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.125 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.559 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: 24 tooth
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 4.000 in
Cylinder Bore Diameter: 3.905 in
Damper Included: No
Flexplate/Flywheel Included: No
