Eagle 12110060 - Chevy LT1 350 1Pc 3.750in Crank 6.000in H-Beam -16cc Inv Dome 4.060in Piston Rotating Assembly

Eagle 12110060 - Chevy LT1 350 1Pc 3.750in Crank 6.000in H-Beam -16cc Inv Dome 4.060in Piston Rotating Assembly

Eagle | 12110060
SKU: CFQW-12110060
$2,522.99 USD
$2,724.99 USD $2,522.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 12110060 - Chevy LT1 350 1Pc 3.750in Crank 6.000in H-Beam -16cc Inv Dome 4.060in Piston Rotating Assembly

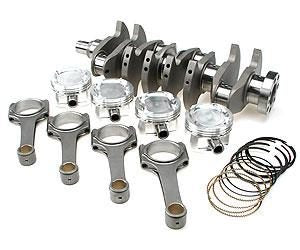

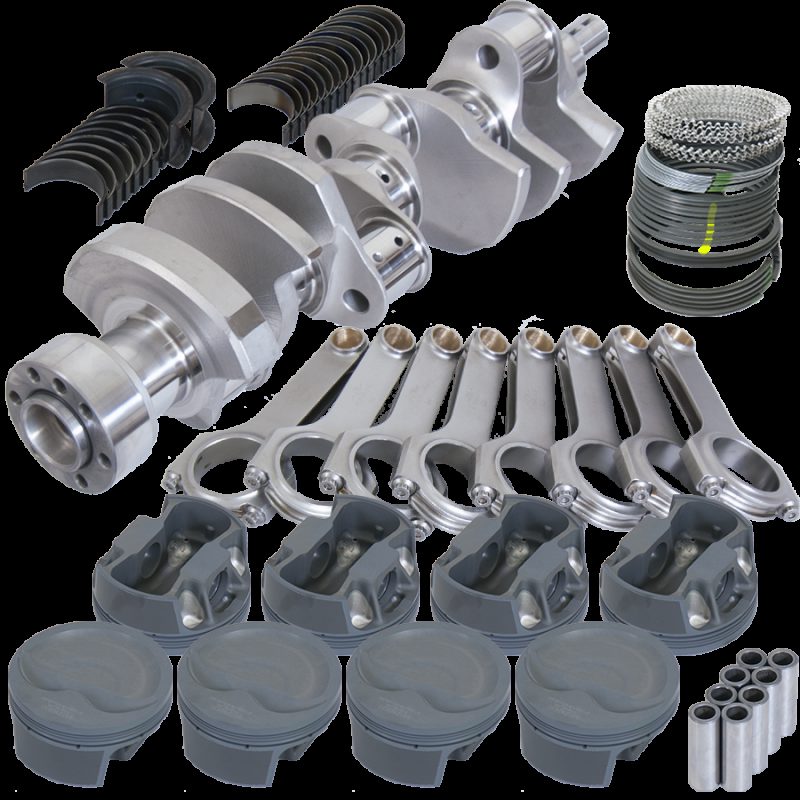

Competition Assembly Chevy LT1, 350 1PC

3.750" Forged 4340 Crank,6.000" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -16CC INV. DOME 4.060" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING XP Rod/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.06
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.000 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.060 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, narrowed or chamfered
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: -16cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file-fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Inverted Dome Forged 4032
Product Line: Competition
Rod Bearing Type: hardened, narrowed or chamfered
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
