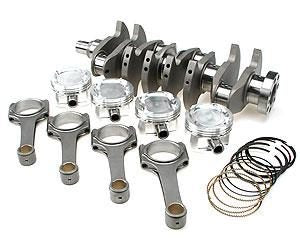

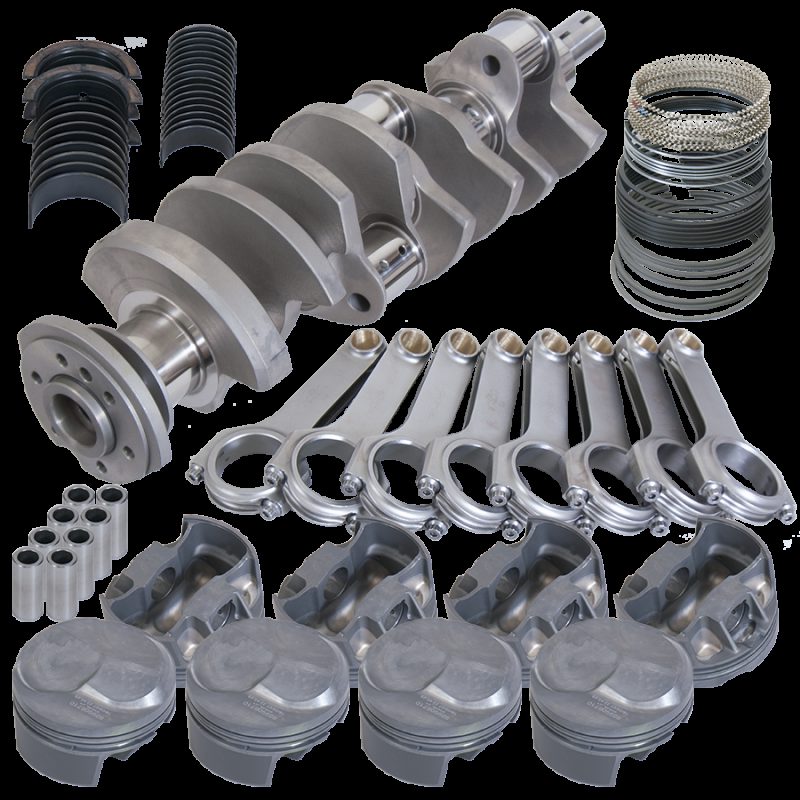

Eagle 11013030 - Chevy 454 4.250in Crank 6.385in H-Beam 43cc Dome 4.280in Pistons Rotating Assembly

Eagle 11013030 - Chevy 454 4.250in Crank 6.385in H-Beam 43cc Dome 4.280in Pistons Rotating Assembly

Eagle | 11013030
SKU: CFQW-11013030
$2,813.99 USD
$3,041.99 USD $2,813.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 11013030 - Chevy 454 4.250in Crank 6.385in H-Beam 43cc Dome 4.280in Pistons Rotating Assembly

Rotating Assembly - 489 CID - Forged Crank - Forged Pistons - 4.250 in Stroke - 4.280 in Bore - 6.385 in H Beam Rods - Big Block Chevy - Kit

4.250" Forged 4340 Crank,6.385" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 2618 MAHLE 43CC DOME 4.280" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING XP Rod/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.28
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.385 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: Yes
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.749 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.200 in
Crankshaft Stroke: 4.250 in
Cylinder Bore Diameter: 4.280 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, narrowed or chamfered
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: 43cc
Piston Face Type: dome
Piston Material: Forged 2618 Aluminum
Piston Pin Diameter: .990 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Dome Forged
Product Line: Competition
Rod Bearing Type: hardened, narrowed or chamfered
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
