E3 Spark Plugs - E3.101
Premium Racing Spark Plug; Non-Resistor; 5/8 in. Hex Size; 0.750 in Thread Reach; 14mm Thread Diameter; Gasket Seat; DiamondFIRE Tip w/Fixed Gap;
E3.101 is a 14mm, 0.750 in. reach plug with a 5/8 in. hex and a gasket seat. It is built to have a cold heat range, non-resistor, and is used in a variety of racing applications. E3 racing plugs are fitted with its patented DiamondFIRE ground electrode, which is secured with two legs to the shell. This allows for excellent heat transfer and provides additional stability to the side wire in these high compression engines. The unique DiamondFIRE ground electrode is proven to increase power, reduce fuel consumption, and improve hydrocarbon emissions in long-term use. The E3 ground electrode and full-size center electrode also provides optimal performance over an extended product life.
- Patented DiamondFIRE Ground Electrode
- Edge-To-Edge Ground Electrode Out Performs Other Plug Designs
- E3 Equipped Engines Can Minimize Venting Of Unburned Fuel
- Burn Fuel More Efficiently By Burning Fuel More Completely
- Provide A Like-New Performance For The Life Of The Plug
- The Most Environmentally-Friendly Plug Available
Application Specific or Non-Application: Non-Application
Brand Name: E3 Spark Plugs
Bullet: Primary cross reference: NGK R5671A-10 & Autolite AR3932

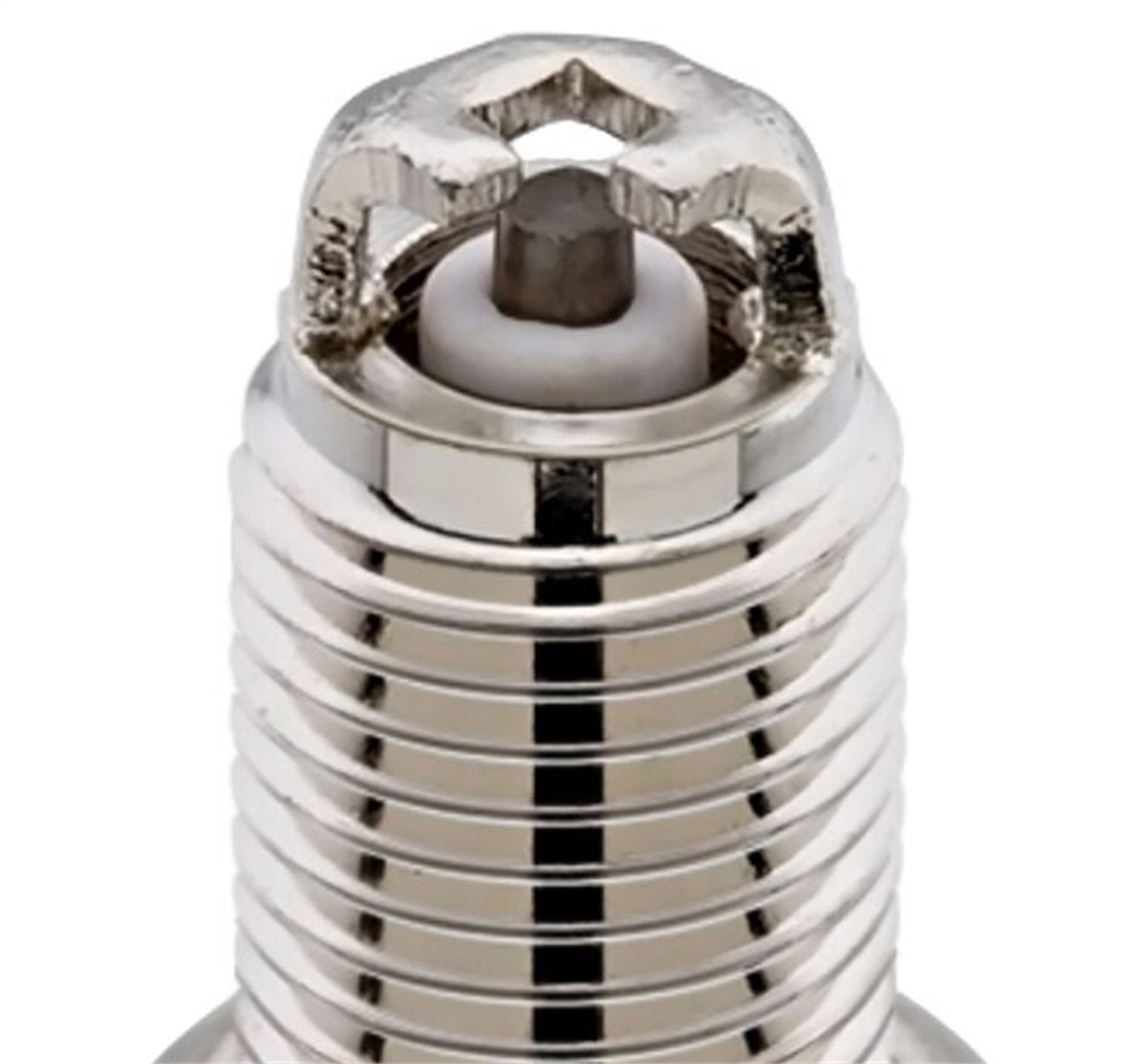

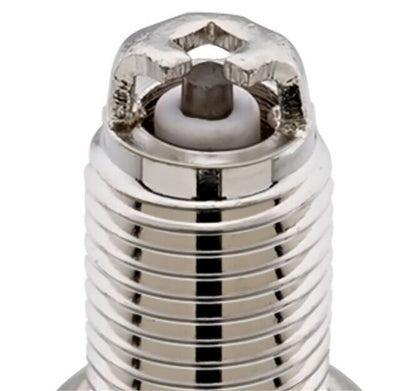

Bullet: Two welded "legs" hold the DiamondFire ground electrode over the center electrode. This provides excellent heat transfer, and additional stability to the ground electrode in high compression engines.
Bullet: Typical applications: Aluminum Chevy/Ford Heads with 14.0-15.0 Compression Ratios
Center Electrode Core Material: Copper
Center Electrode Tip Material: Nickel
Electrical Terminal Type: Solid
Electrode Core: Copper
Electrode Tip: Nickel
Features & Benefits: E3 Spark Plugs are the product of years of fundamental research in the combustion field. The unique patented ground electrode configuration increases the amount of combustion pressure created during each power stroke of the engine, which results in a marked increase in power output, fuel economy, and reduced emissions in all gasoline engines. E3's DiamondFire edge to edge ground electrode provides maximum performance with increased efficiency and a faster more complete burn.
Gap: Pregapped to approximately 0.020" - Gap cannot be adjusted.
Ground Electrode Tip Design: Diamond Fire
Ground Electrode Tip Material: Nickel
Hex Size: 5/8
Part Type Name: Race Spark Plug
Pre-Gap Size: .020
Reach: 3/4
Resistor: Non-Resistor
Seat Style: Gasket
Thread Size: 14
