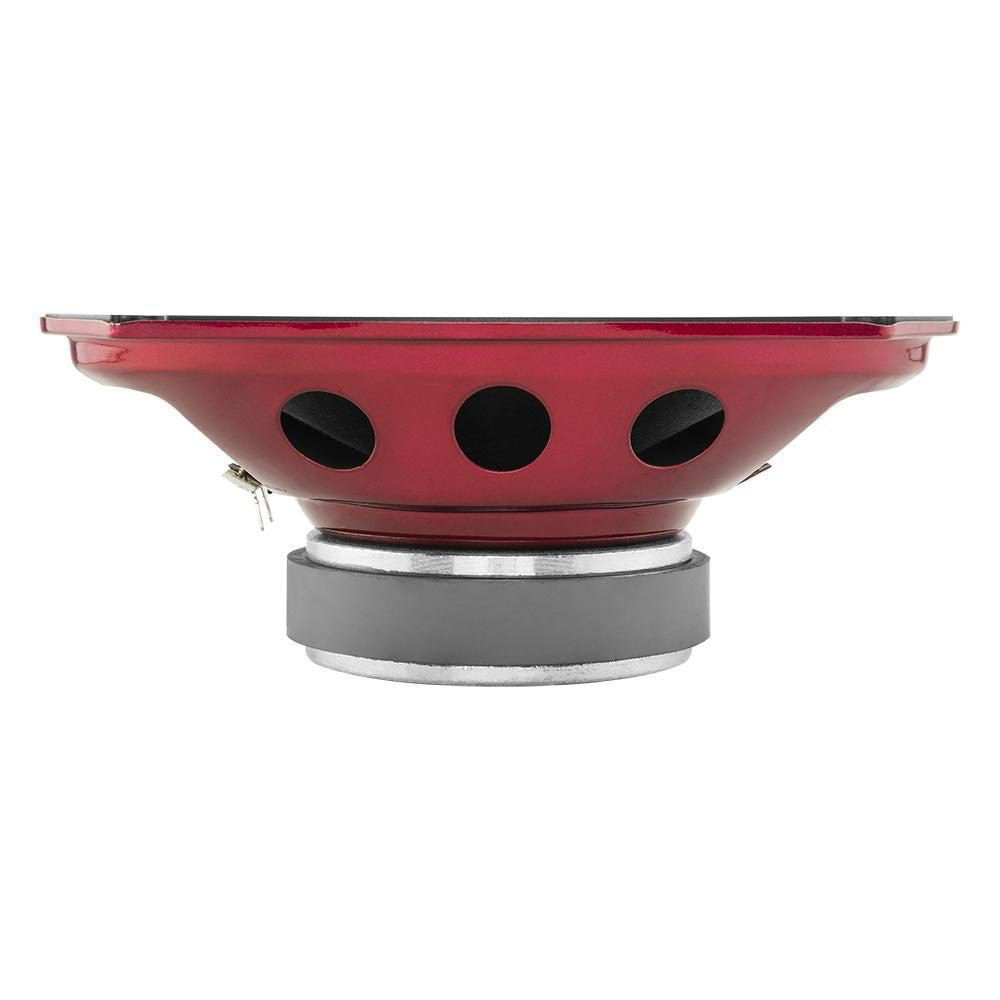

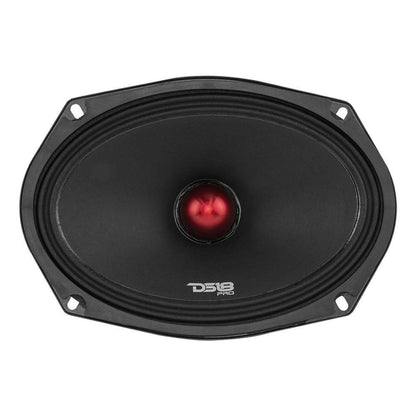

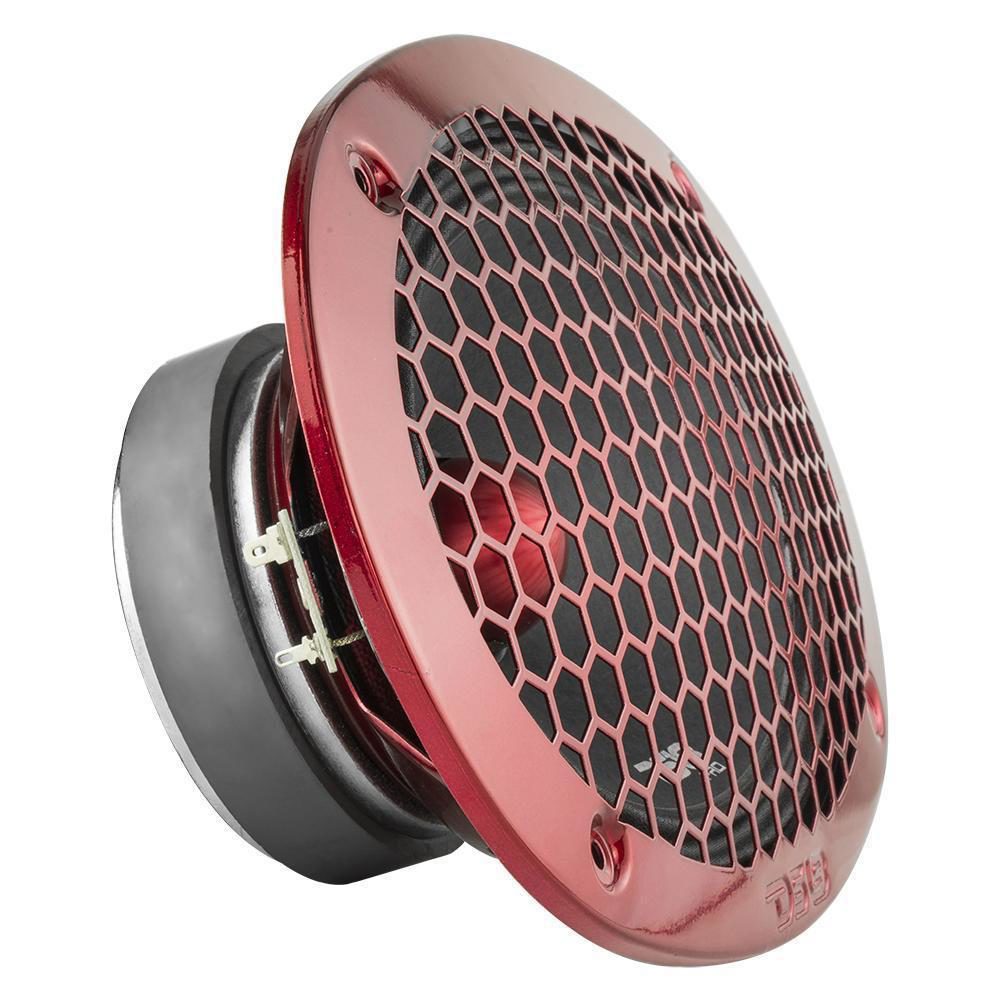

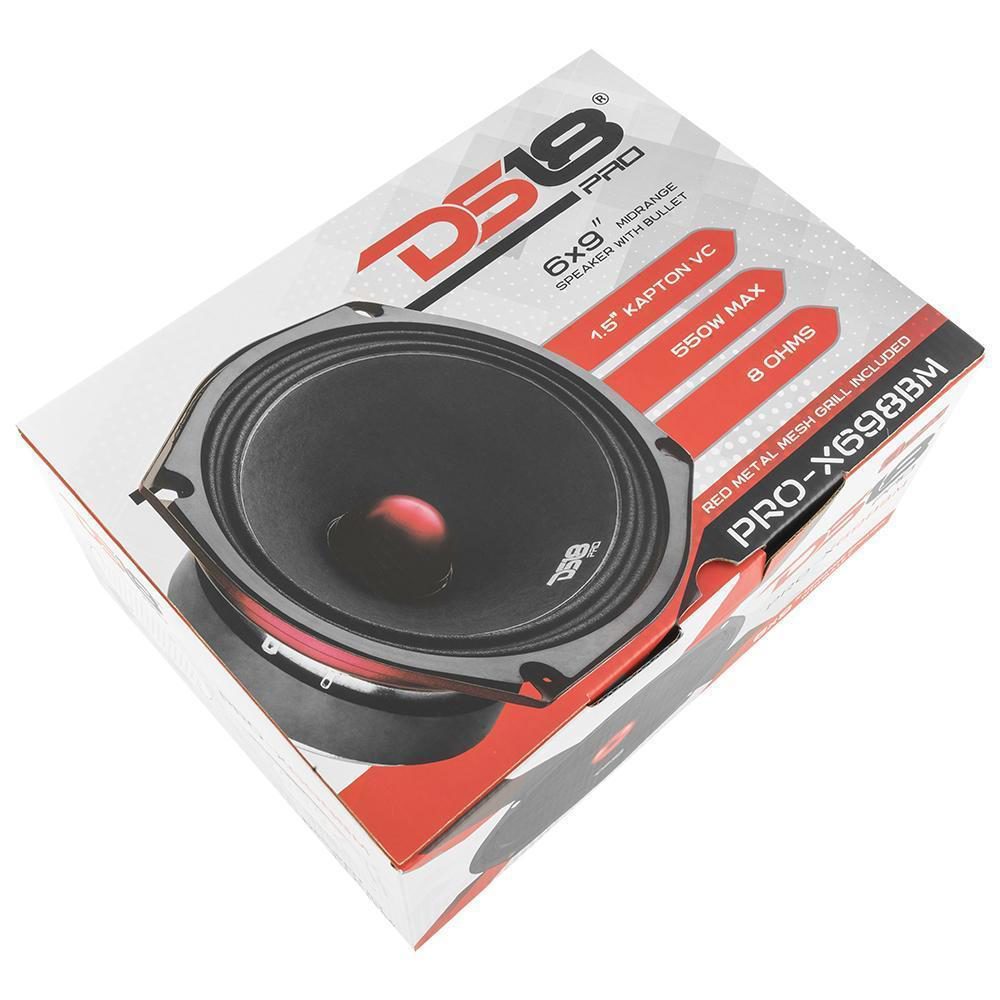

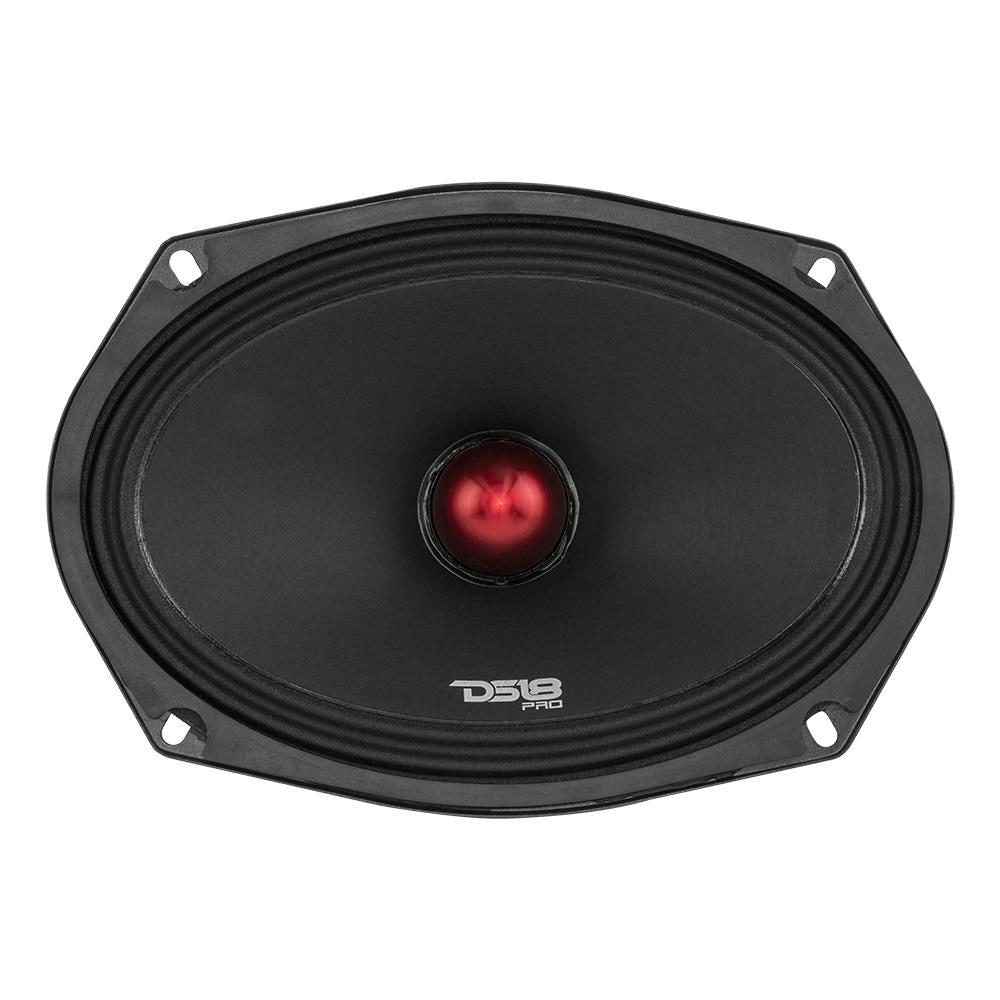

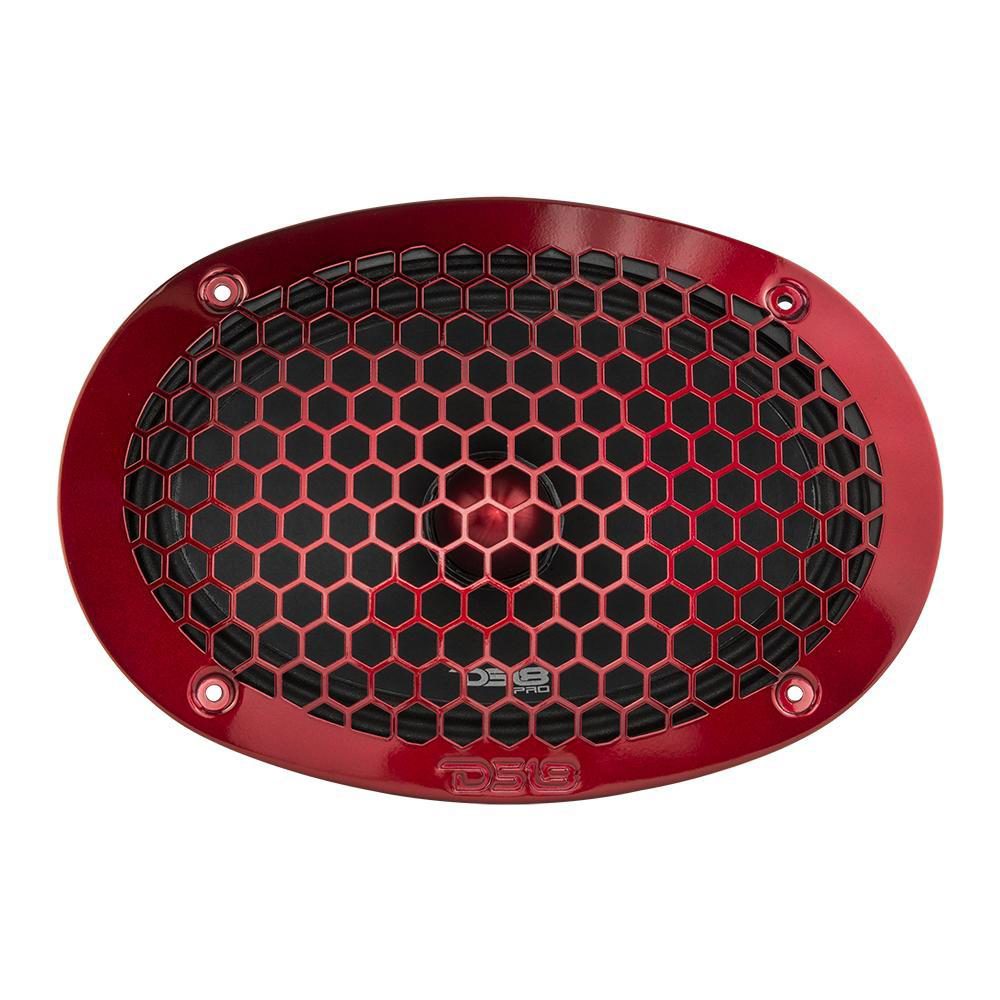

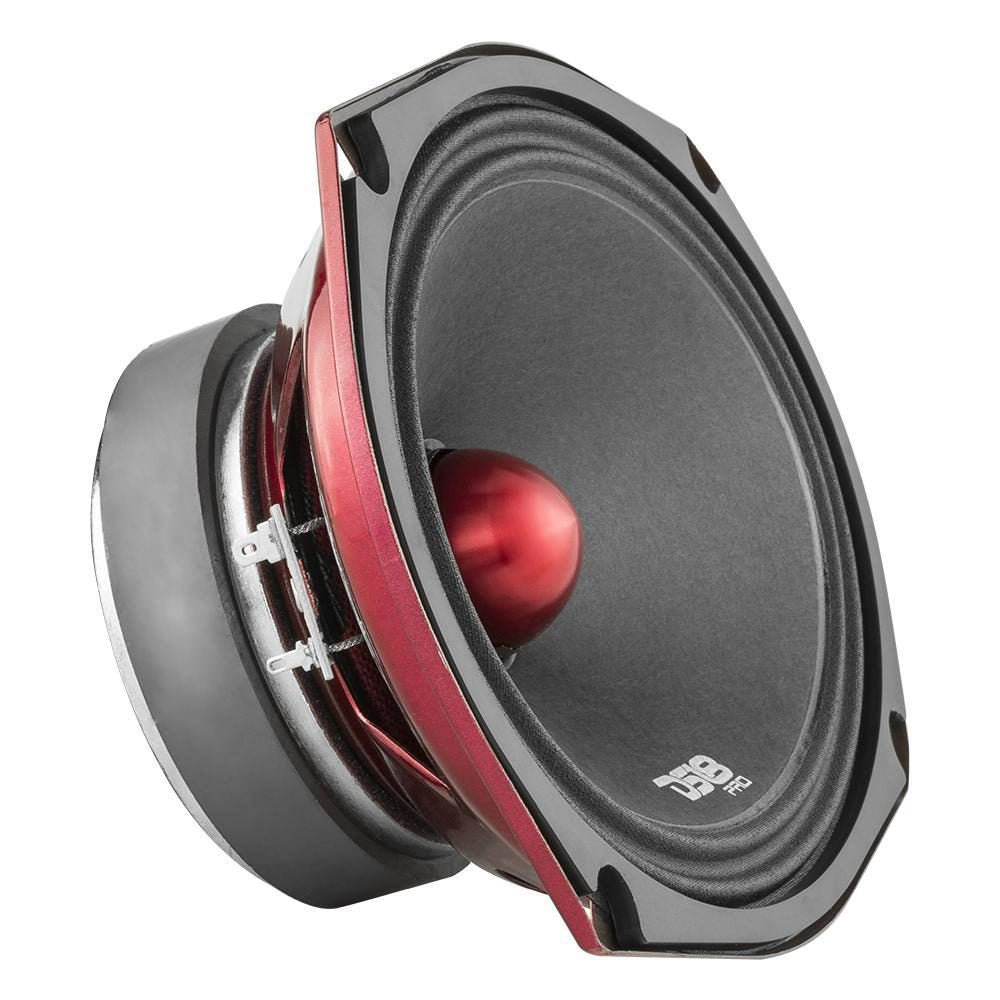

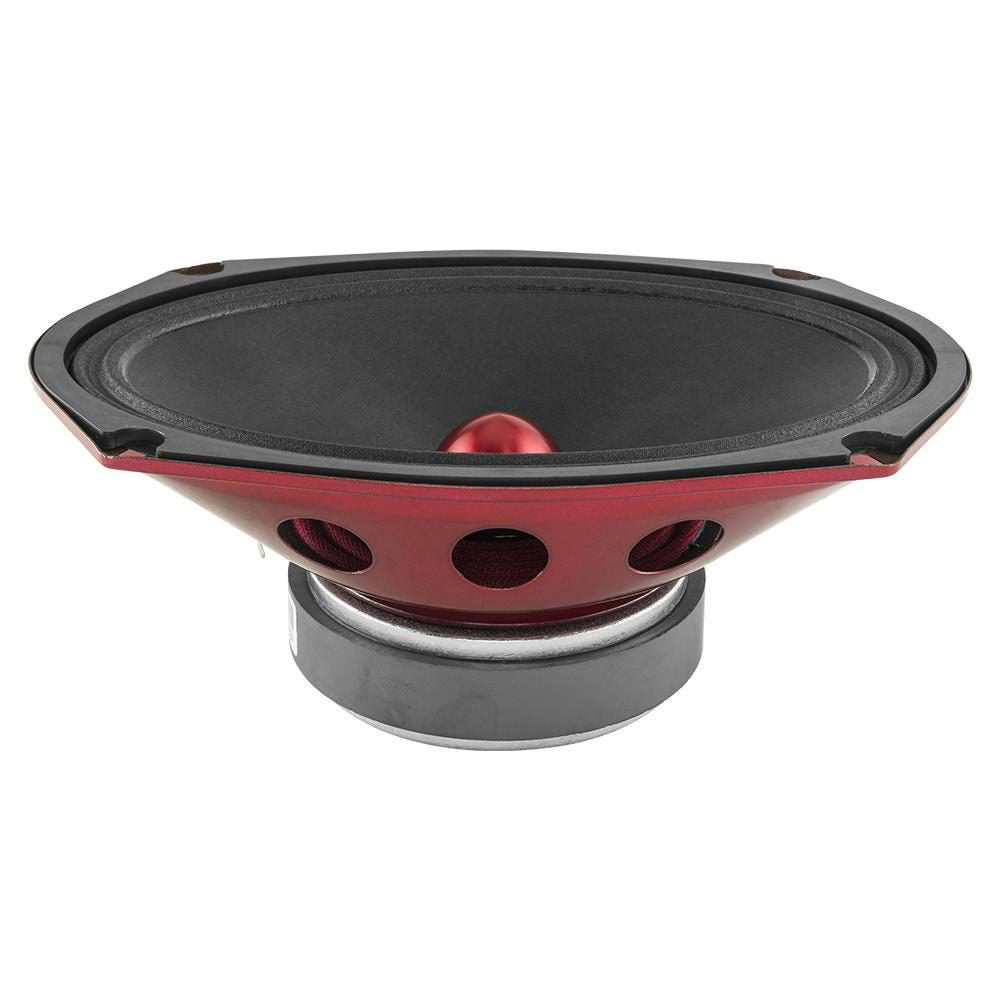

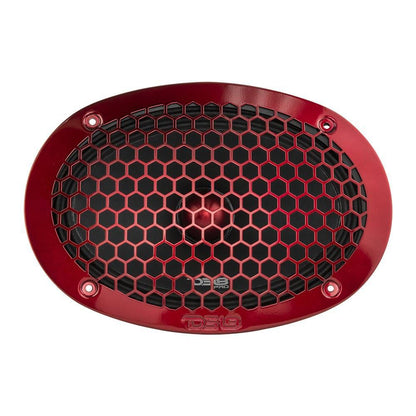

DS18 PRO-X698BM - PRO-X 6X9 Inch Mid-Range Loudspeaker W/ Bullet and Grill 700 Watts 8-Ohm

DS18 PRO-X698BM - PRO-X 6X9 Inch Mid-Range Loudspeaker W/ Bullet and Grill 700 Watts 8-Ohm

During the focused RnD period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/voceteo audiophiles.

Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you

Specifications

• Model: PRO-X694
• Type: Midrange Loudspeaker
• Size: 6X9 inch
• RMS Power: 275W
• MAX Power: 550W
• Frequency Response: 106-17KHz
• Impedance: 8 ohm
• Sensitivity: 98dB

Materials

• Surround: Cloth Edge
• Frame: Red Steel Basket
• Cone: Non-Pressed Paper Cone
• Magnet: Ferrite
• Voice Coil Wire: CCAW

Diameters

• Voice Coil Size: 1.5 inch
• Magnet Size: 27 oz
• Mounting Depth: 3.35 inch
• Cut-Out Dimension: 8.62 x 5.91 inch

Parameters

• Vas 14.69 LTR
• Xmax 9.2 mm
• Fs 100 Hz
• Qms 7.223
• Qes 1.118
• Qts 0.968
• Re 5.2ohms
