Dinan - D780-0003
Dinan High Performance Heat Exchanger - 2020-2025 Toyota GR Supra
G20/G22/G23/G26/G29/G42/A90/A91

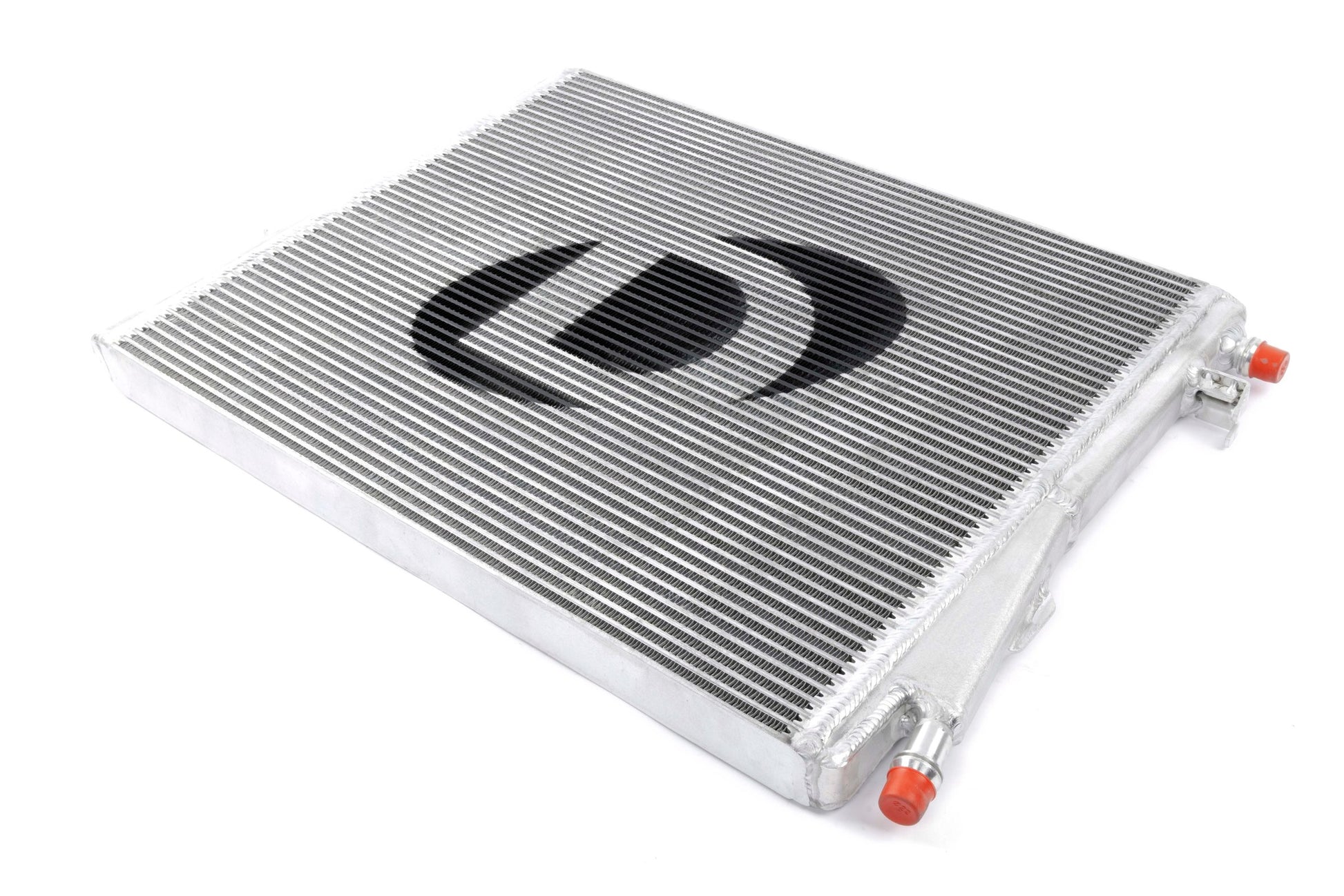

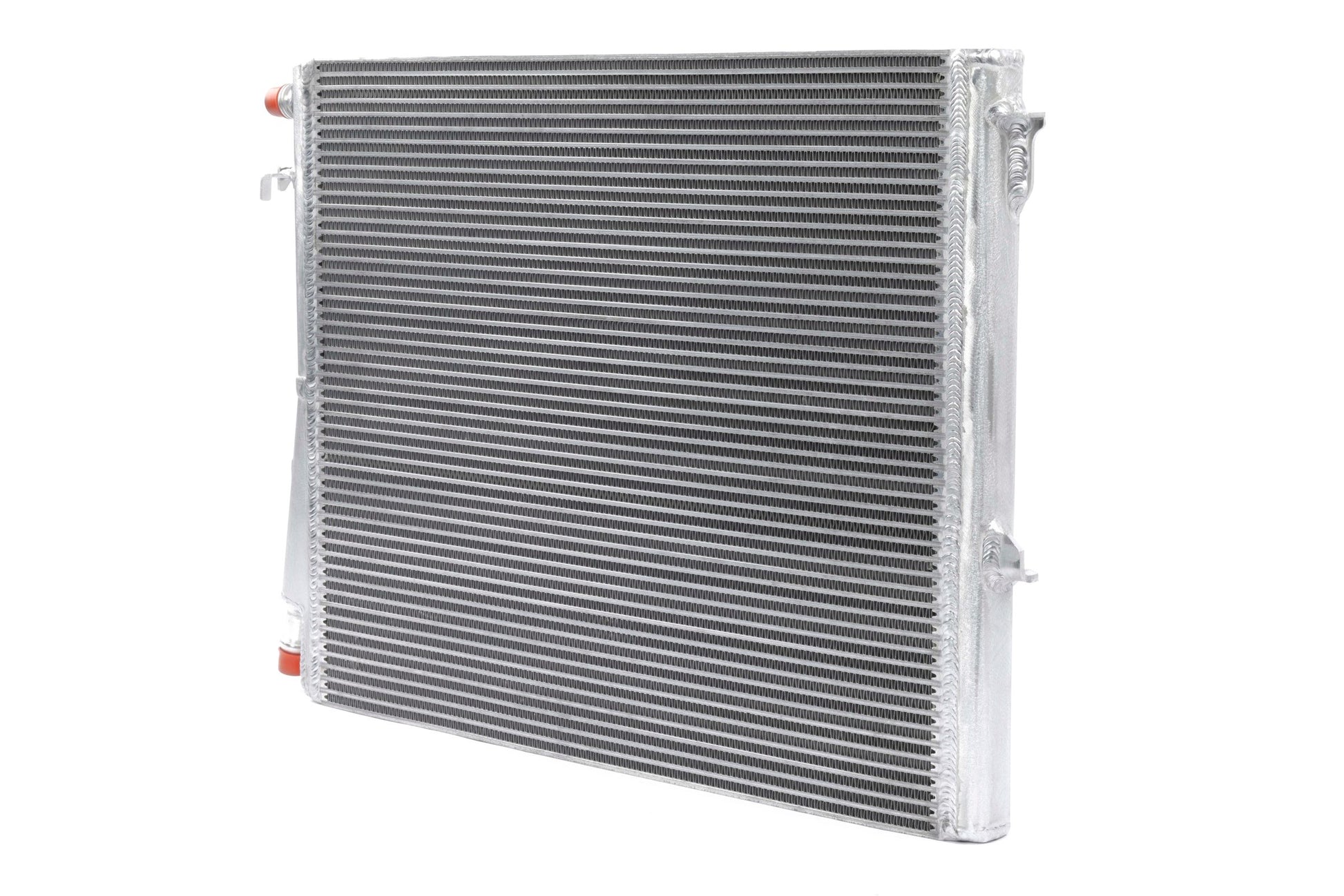

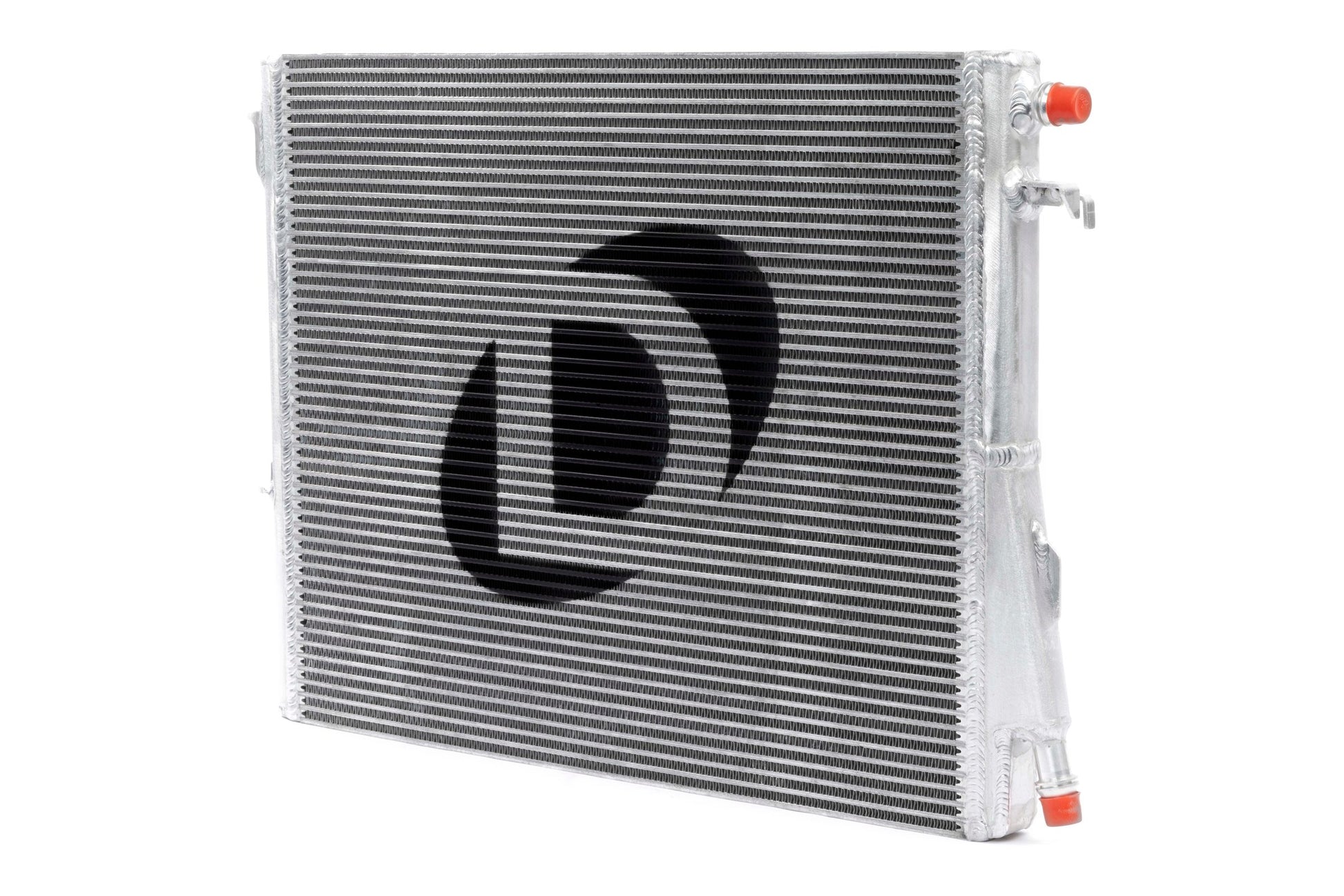

The Dinan B4x/B58 heat exchanger for the BMW G2x/G4x and Toyota A9x Supra assists in improving overall charge cooling using a more robust core (45mm thick Dinan core vs. 26.75mm thick OEM core) that wields 68% more heat transfer surface area for improved cooling capacity. The significant increase in core thickness and full-size end tanks contribute to the overall thermal mass (ability to absorb, store, and release heat) improvement beyond the OEM setup. With up to a nearly 12º reduction in charge air temps recorded over stock the Dinan heat exchanger is ready, and able, to assist in extending your vehicles ability to deliver maximum performance time and time again for your driving enjoyment!
- Average of 8.7º C reduction in charge air temps with a maximum reduction of nearly 12º C over 30 successive WOT pulls
- General improvement to the efficiency of the thermal management system, inclusive of engine cooling
- 45mm thick Dinan core vs. 26.75mm thick stock cooler core
- 68% more cooling surface area and volume than stock
- Reduces the tendency to heat soak / go in to limp mode

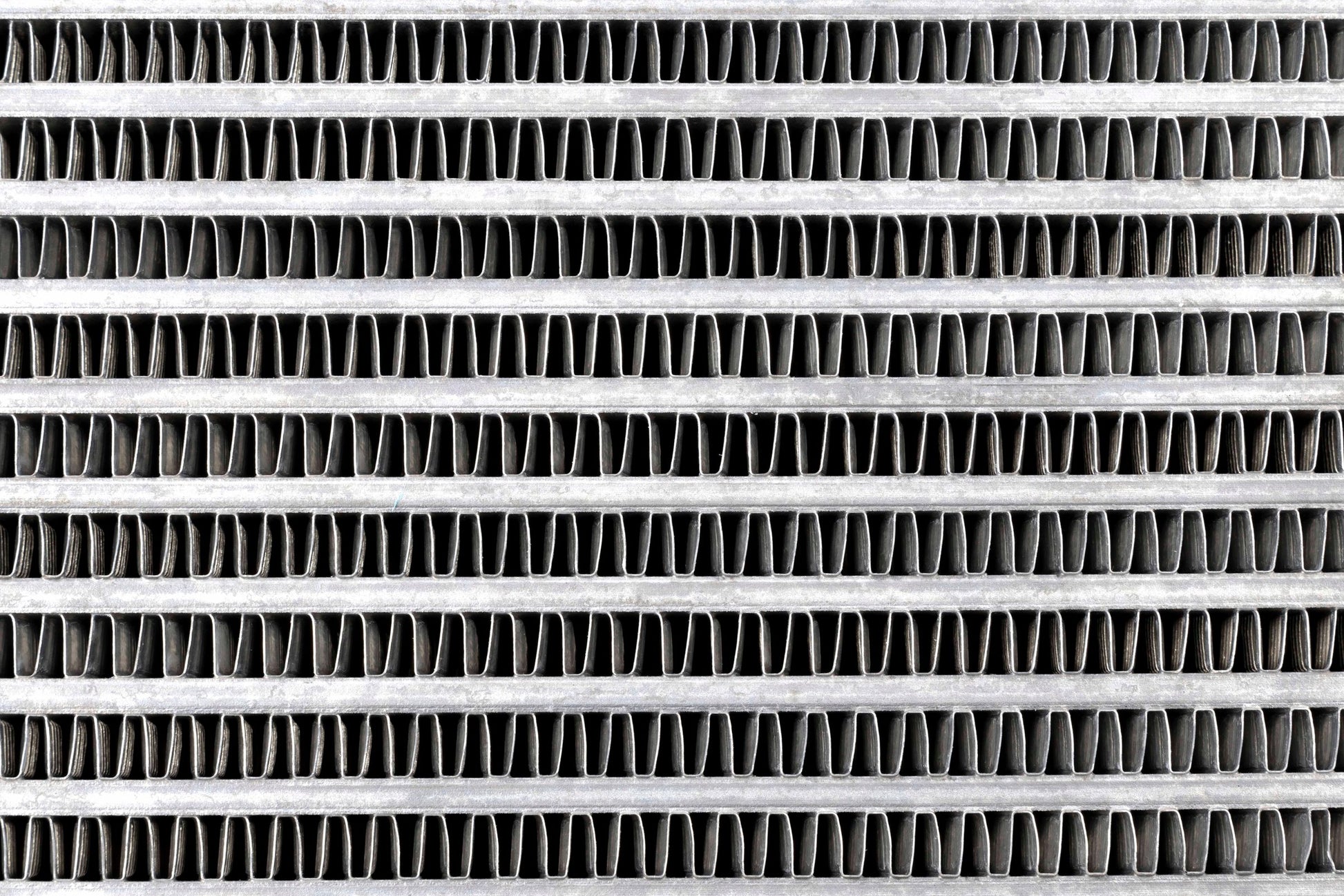

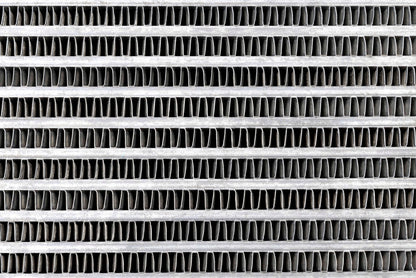

- Durable bar and plate design that is less susceptible to damage from road debris

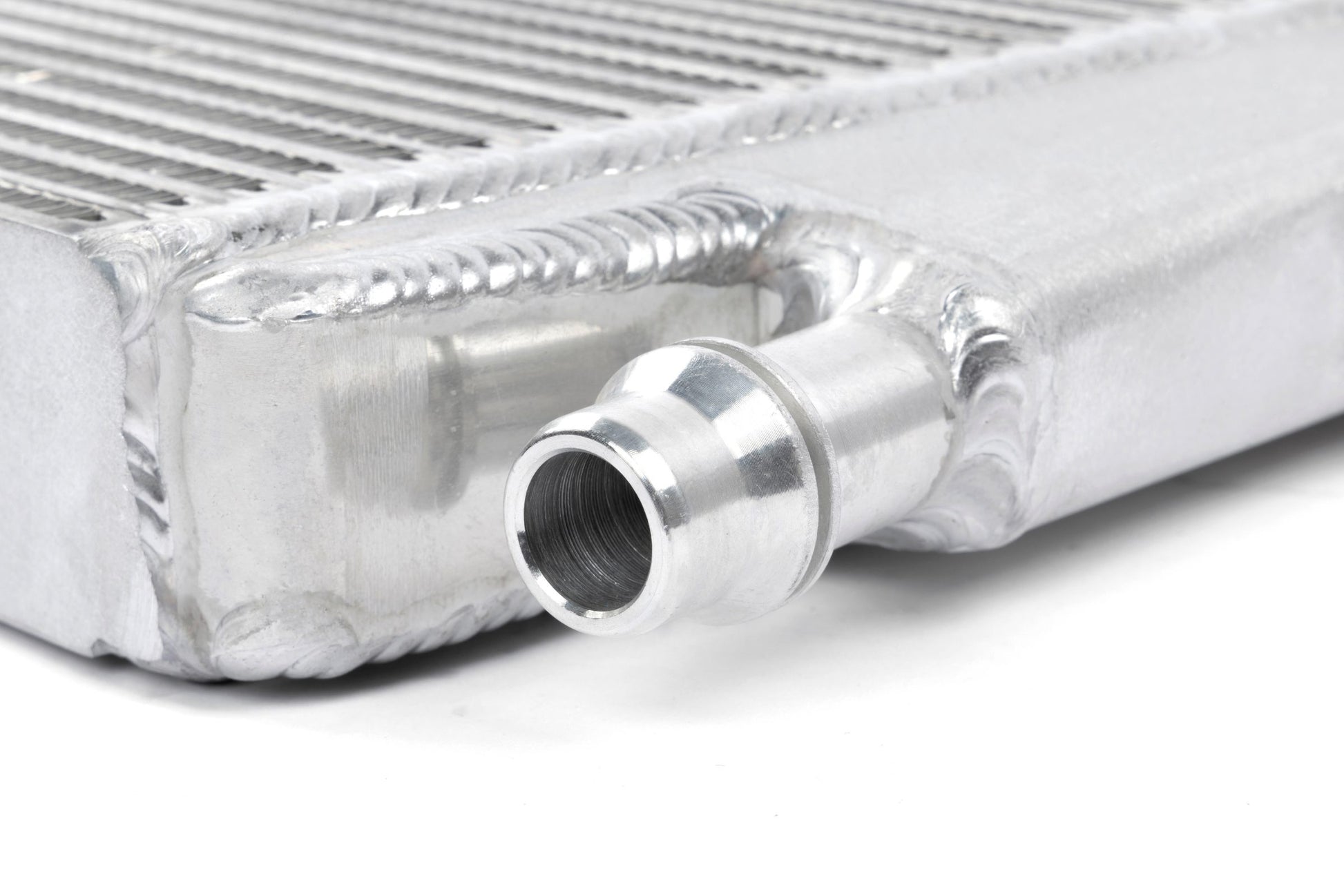

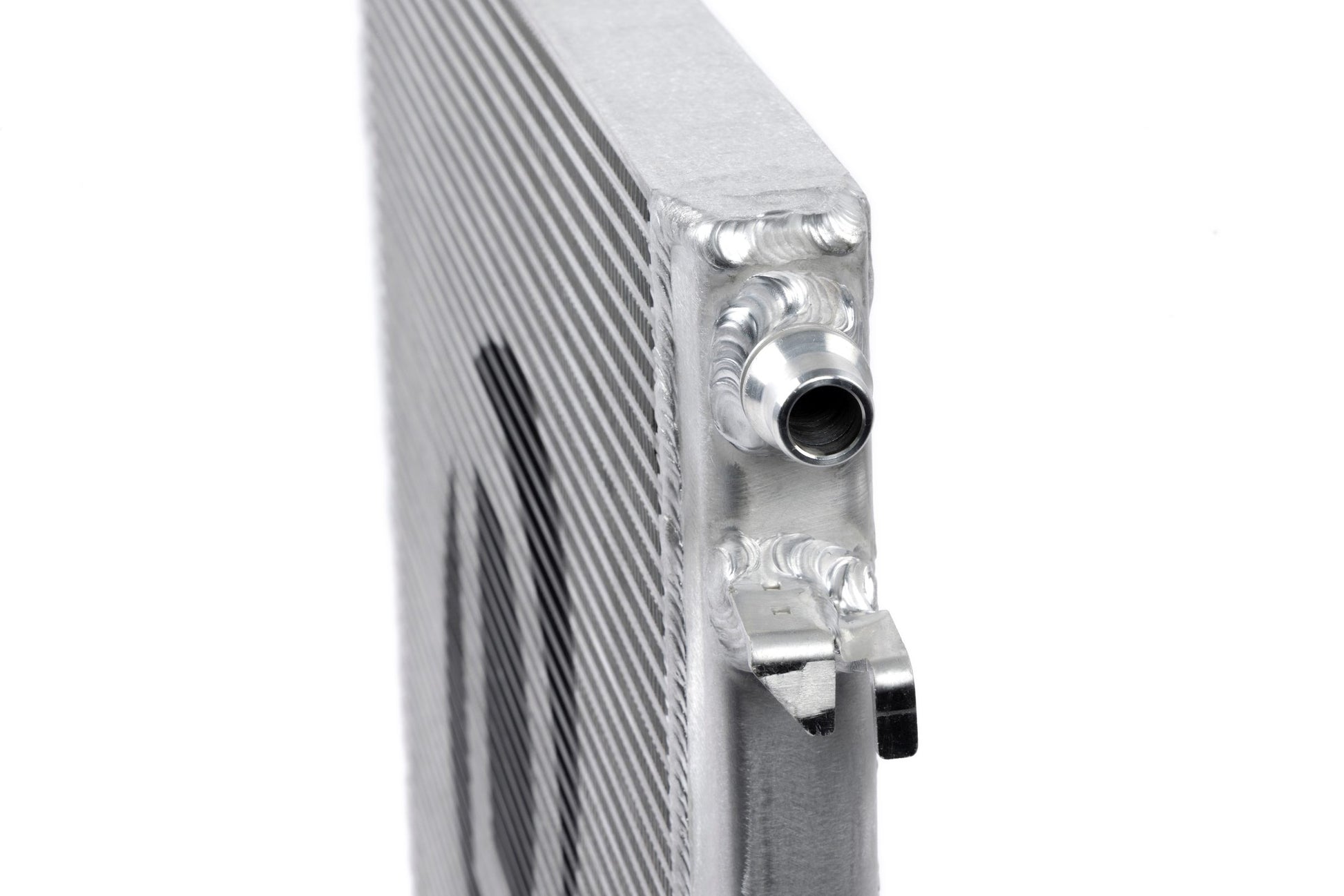

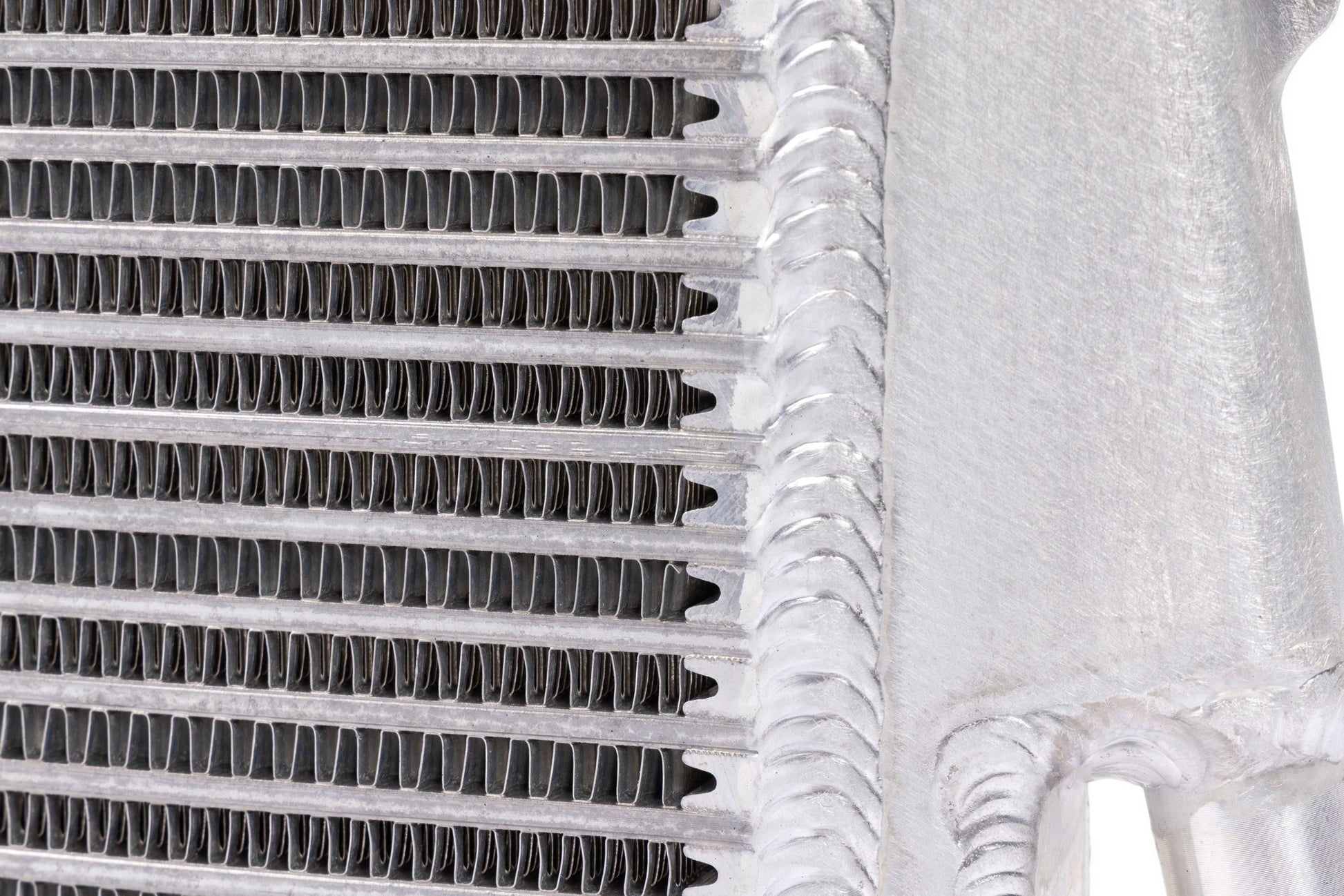

- Pressure tested, 100% TIG welded, Aluminum construction
- Direct fit replacement with no modifications required
