Dinan - D330-0021

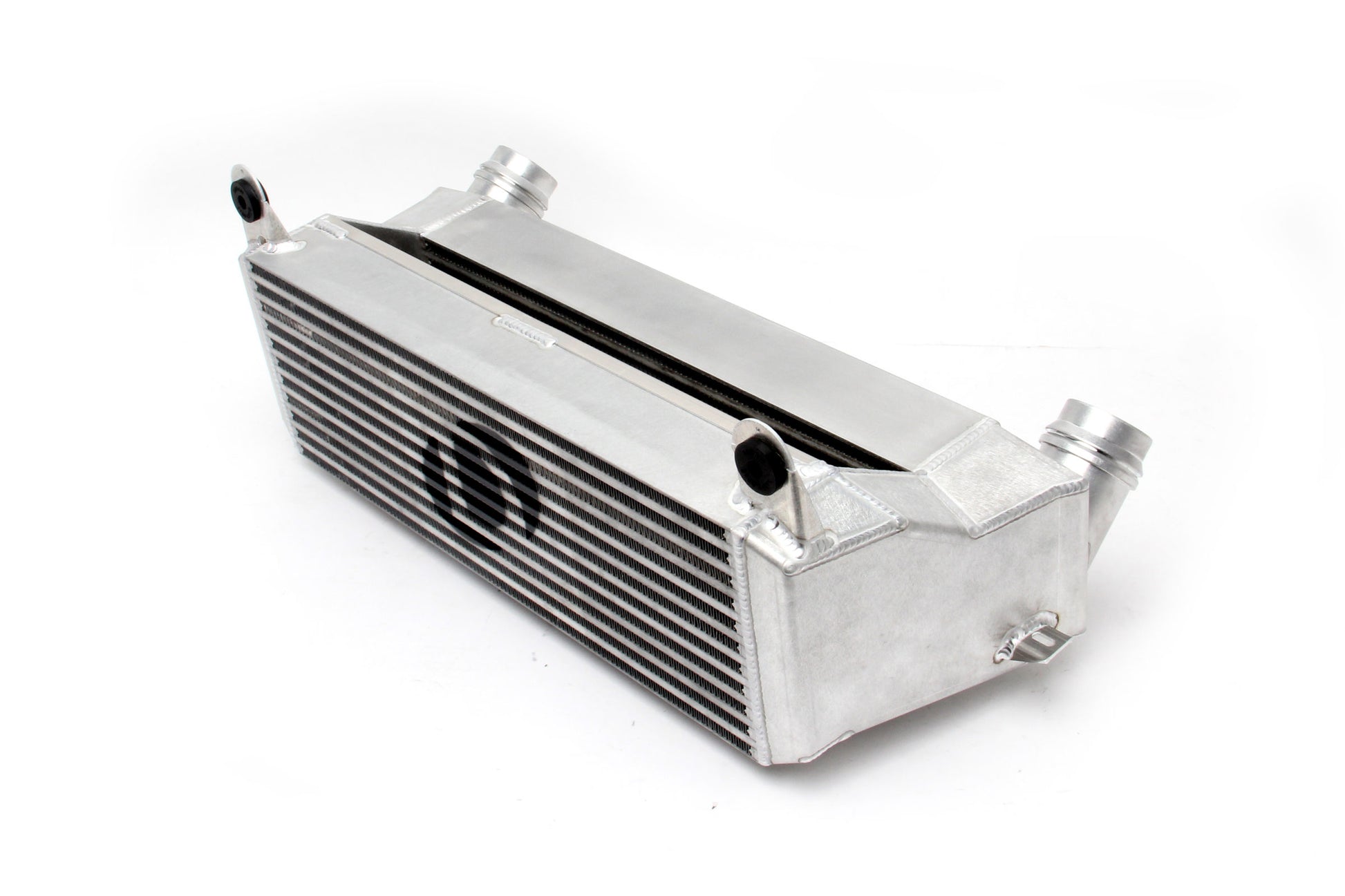

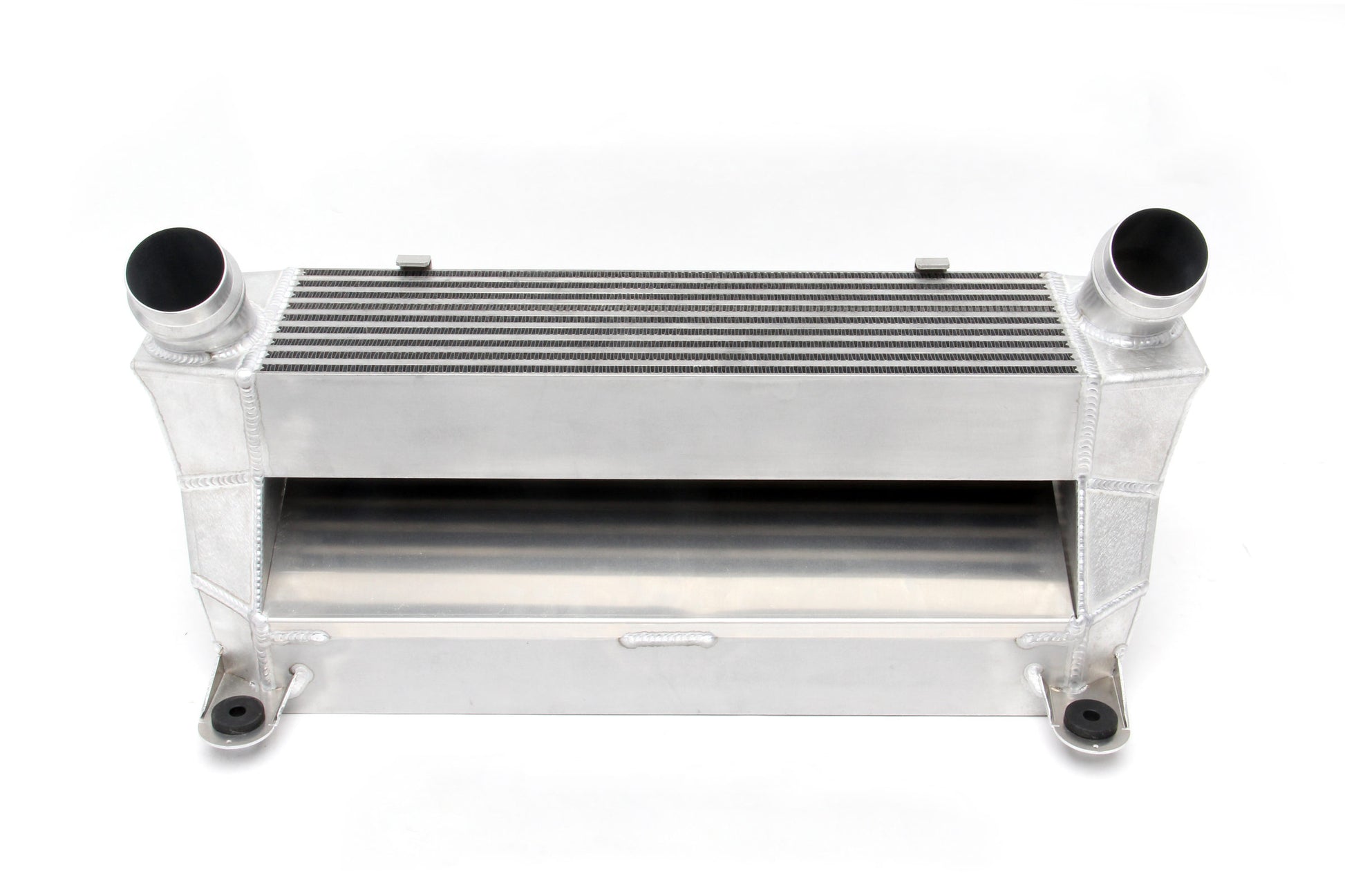

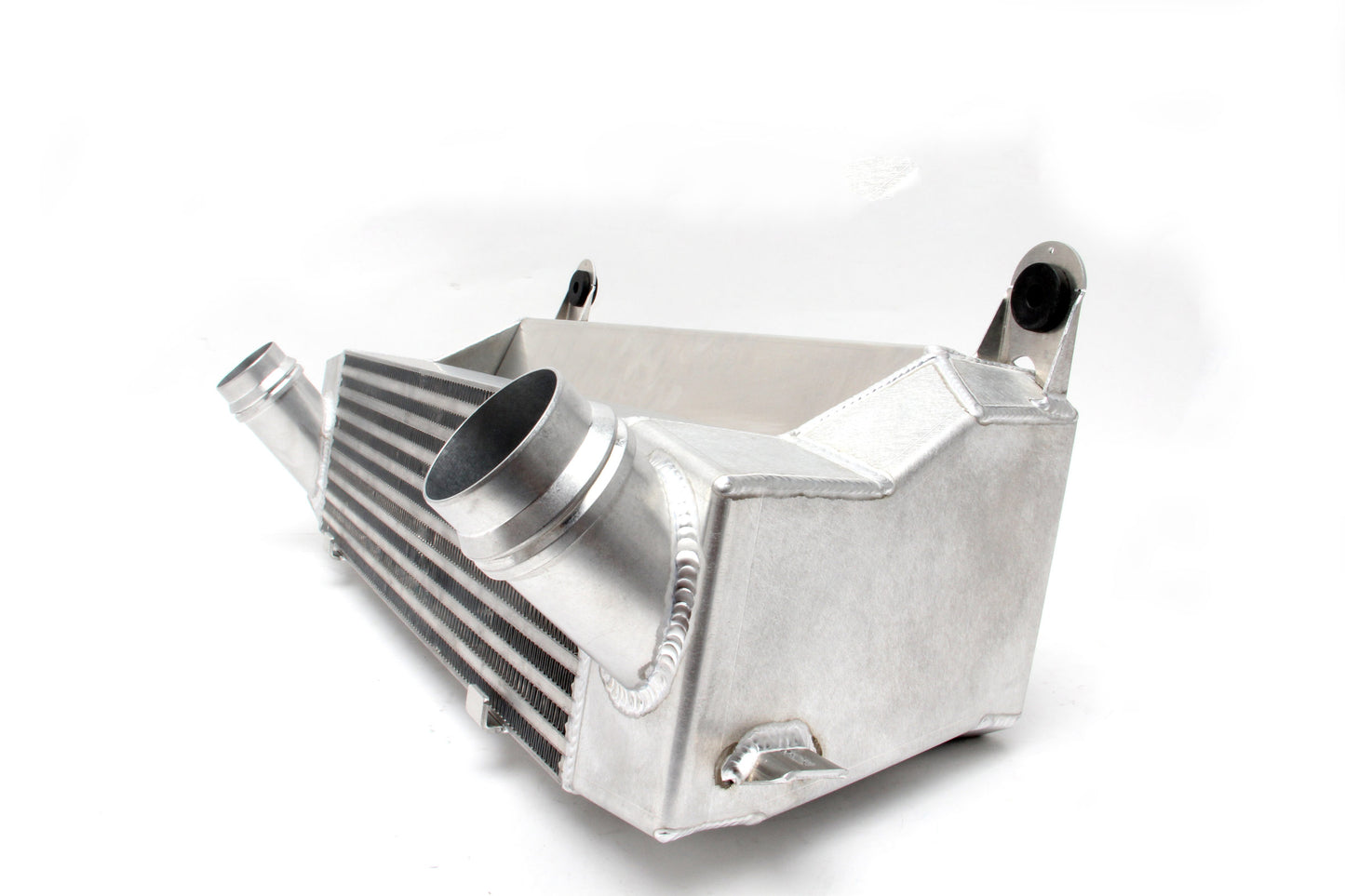

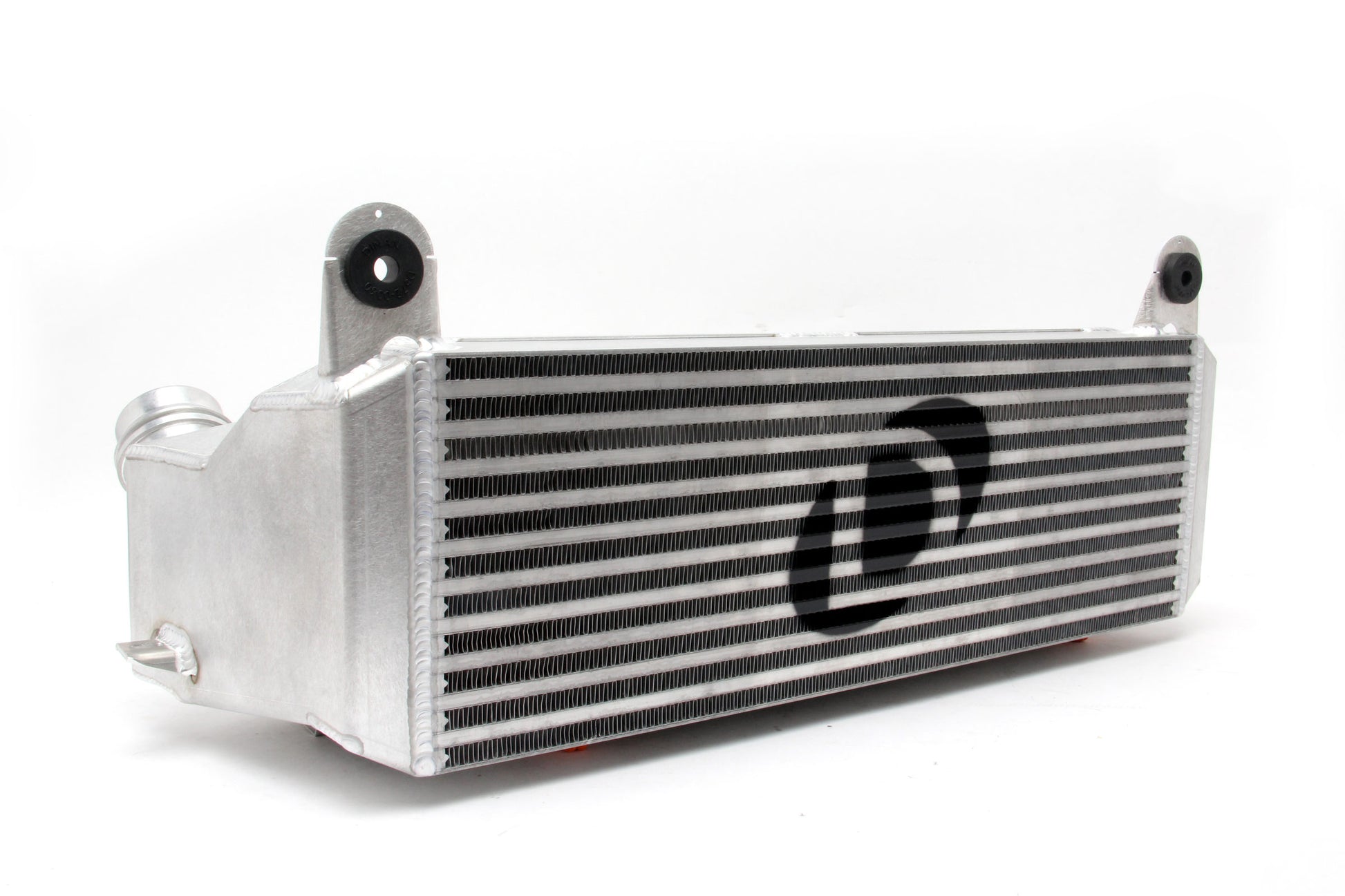

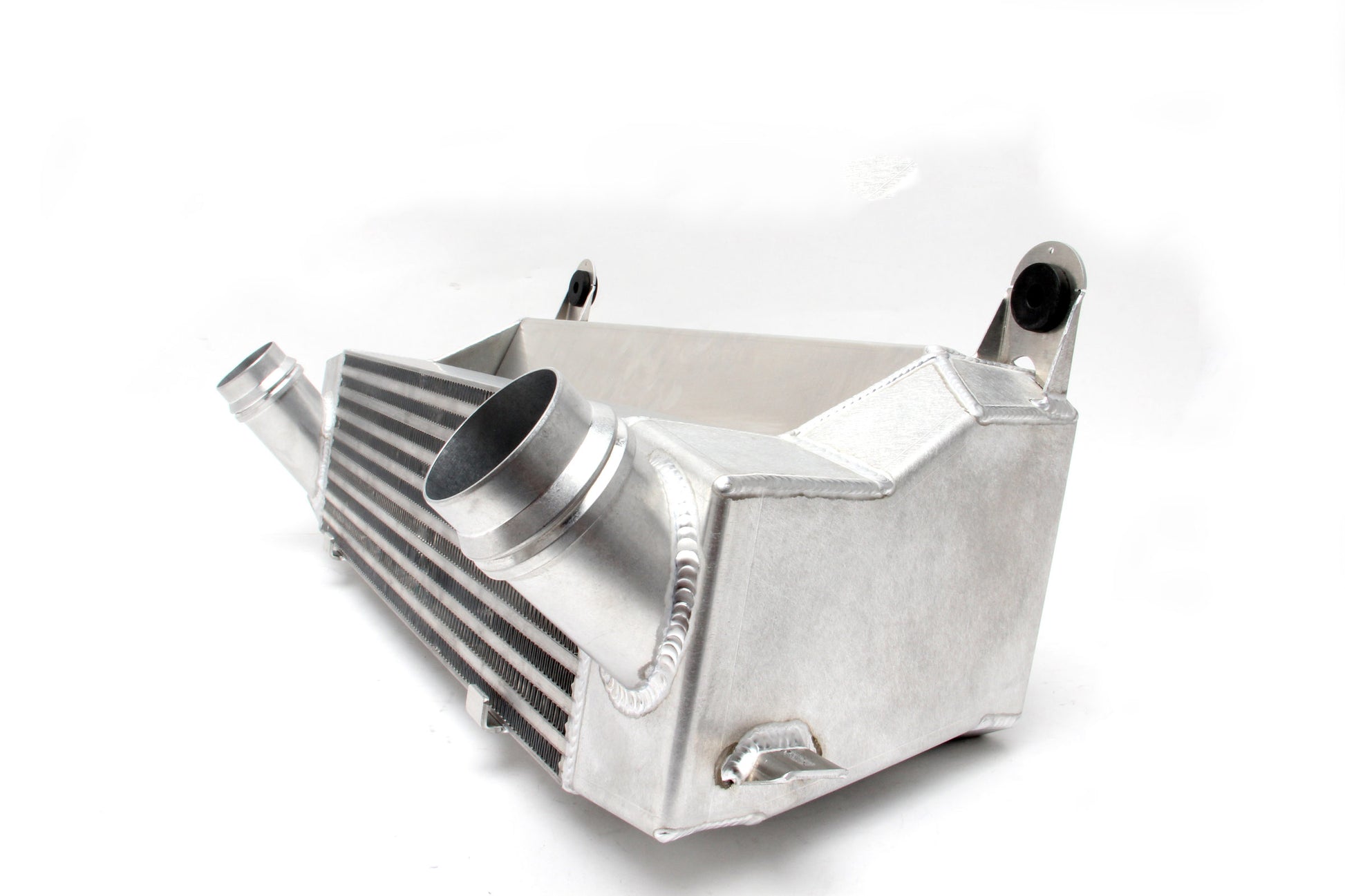

Dinan High Performance Dual Core Intercooler - 2012-2016 BMW 2/3/4-Series
Intercooler; Dual Core Design; High Performance; 15 Max Horsepower Gain At 6250 RPM; 13 lbs.-ft. Max Torque Gain At 6250 RPM;
Greater power gains are achieved with a larger high performance intercooler. The Dinan dual core intercooler provides a 240% increase in face area along with an equally impressive increase in volume, substantially reducing the pressure drop to 0.8 PSI, as well as providing for more efficient heat exchange and more consistent output power. Dinan unique dual core design allows 2 separate cores to be working in conjunction with one another at all times. This doubling of resources is directly responsible for a 60% improvement in the delta from charge air temperature to ambient temperature. Cool down time is also reduced, enabling the cars to produce full power under varying driving conditions such as stop and go traffic. This leaves the chances of being susceptible to heat soak nearly a thing of the past. The system has been engineered to be as direct a replacement as possible
- Elicits Impressive Power Gains And Wider Power Band
- Astounding Cooling Characteristics That Nearly Ensure Heat Soak
- Face Area 240 Pct. Larger Than The Stock Intercooler Setup

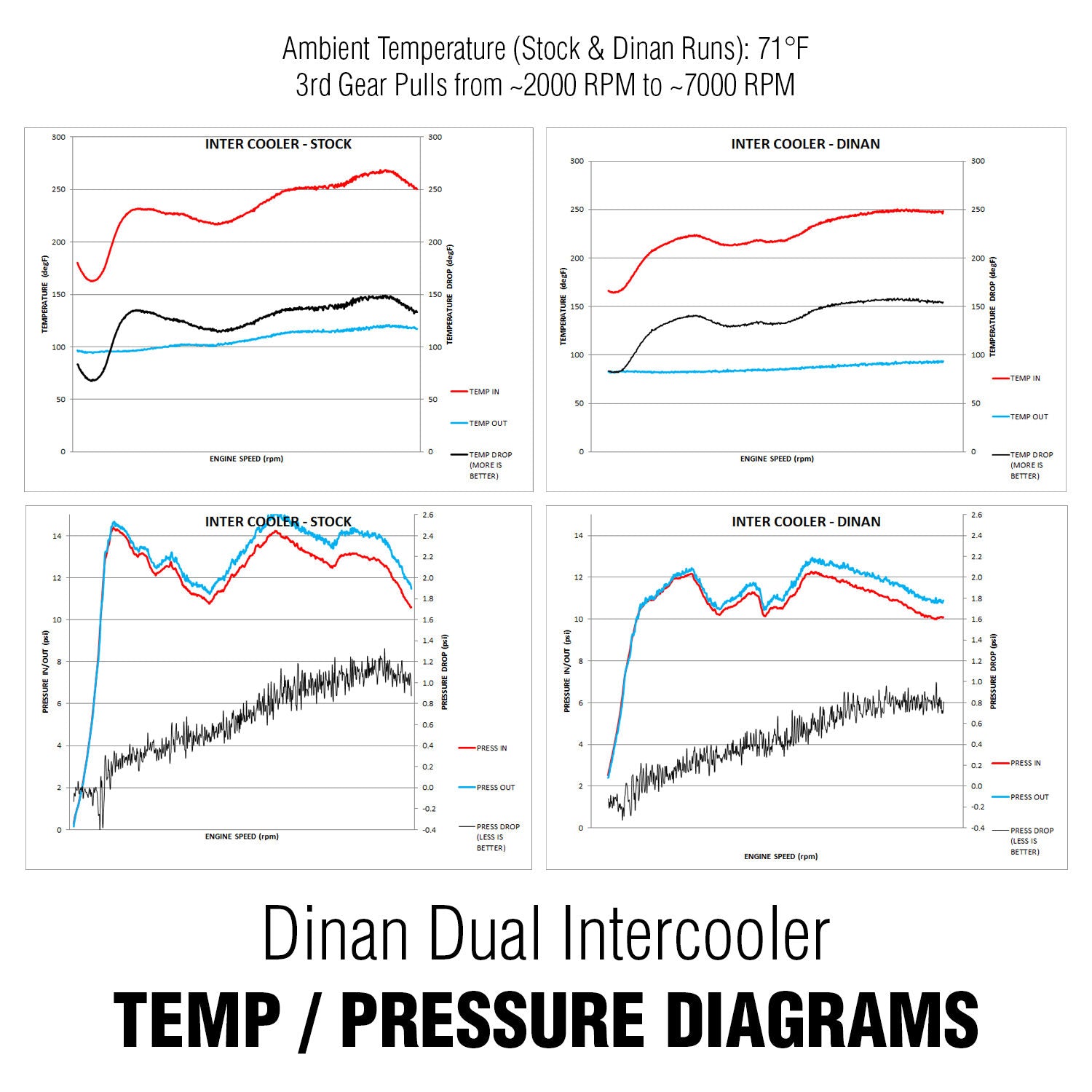

- 0.80 PSI Charge Air Pressure Drop
- 155 Degrees Fahrenheit Charge Air Temperature Drop
- 18 Degrees Fahrenheit Ambient Temperature Delta

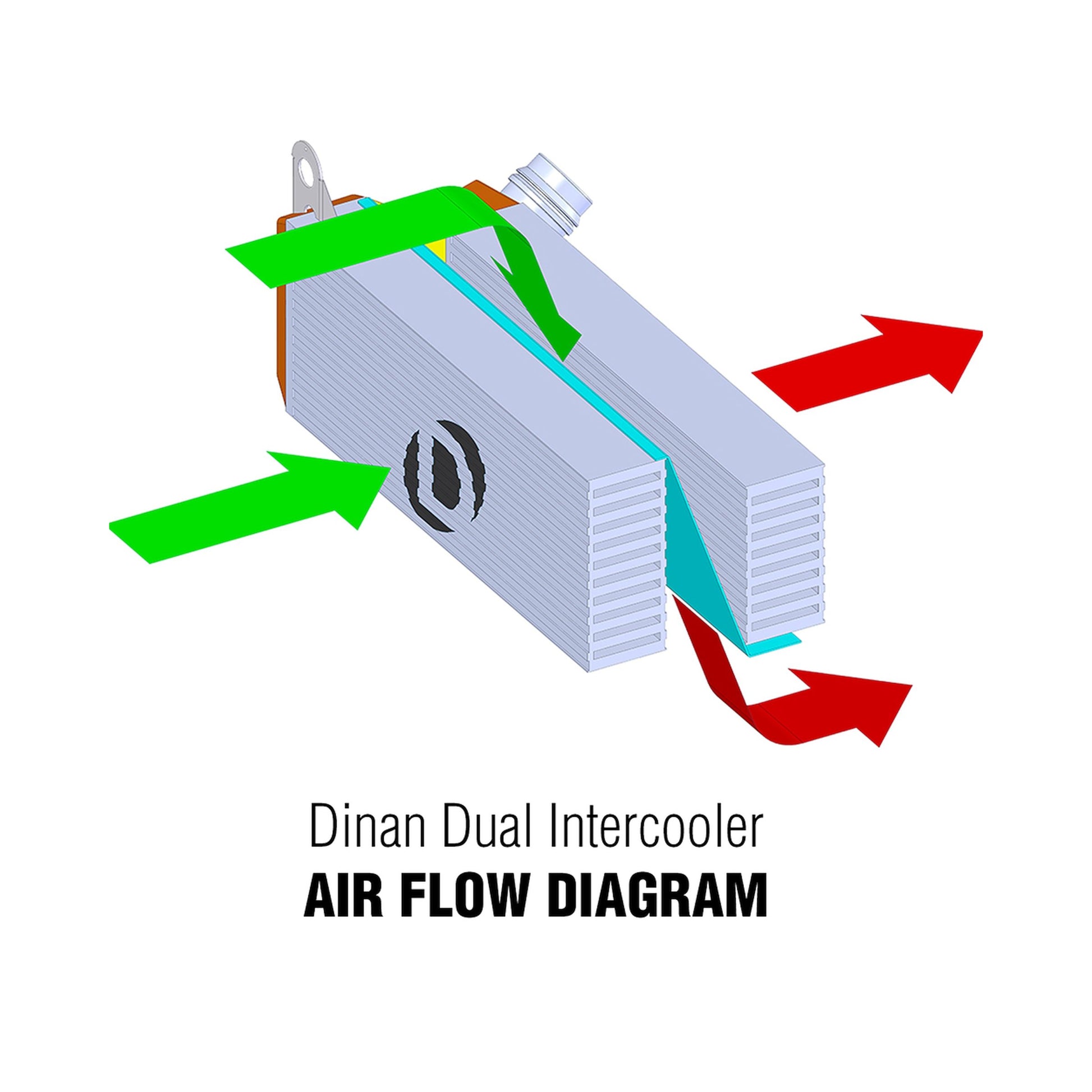

- 2 Separate Cores Could Be Working In Conjunction w/One Another
- Enhances Turbocharger Reliability In Addition To Overall Power
- 60 Pct. Improvement In The Delta
