Dinan - D190-8210

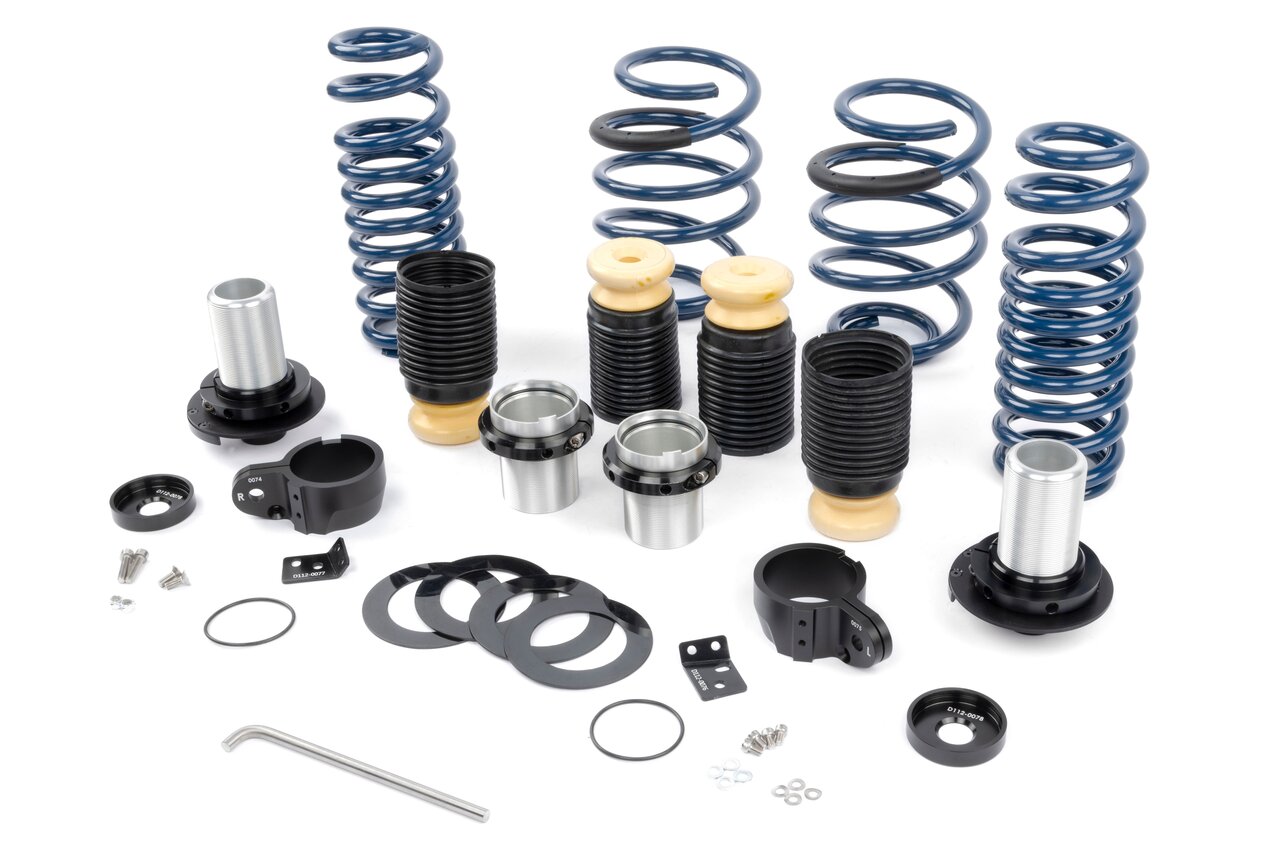

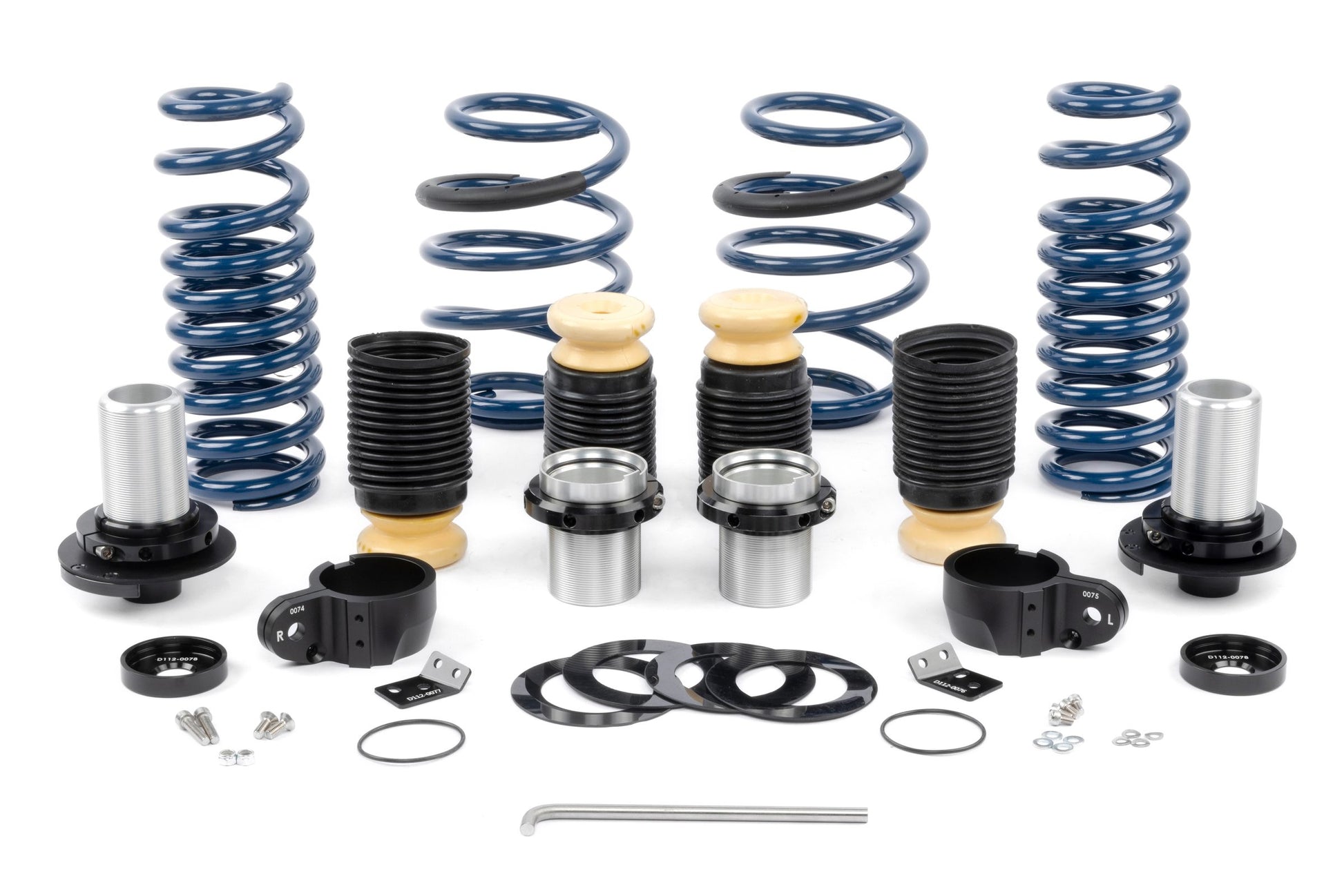

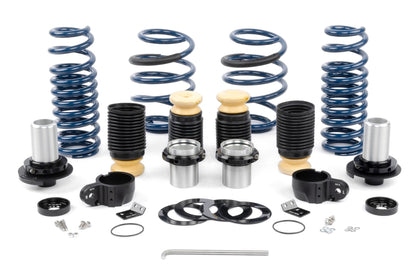

Dinan High Performance Adjustable Coil-Over Suspension - 2021-2025 BMW M3/M4
G80/G82/G83
NOTE: Due to the extensive lowering possible and the increased suspension travel, the installer must carefully evaluate tire clearance under all situations. Safety will be compromised if all precautions are not taken. Dinan is not responsible for any property damage or injury.

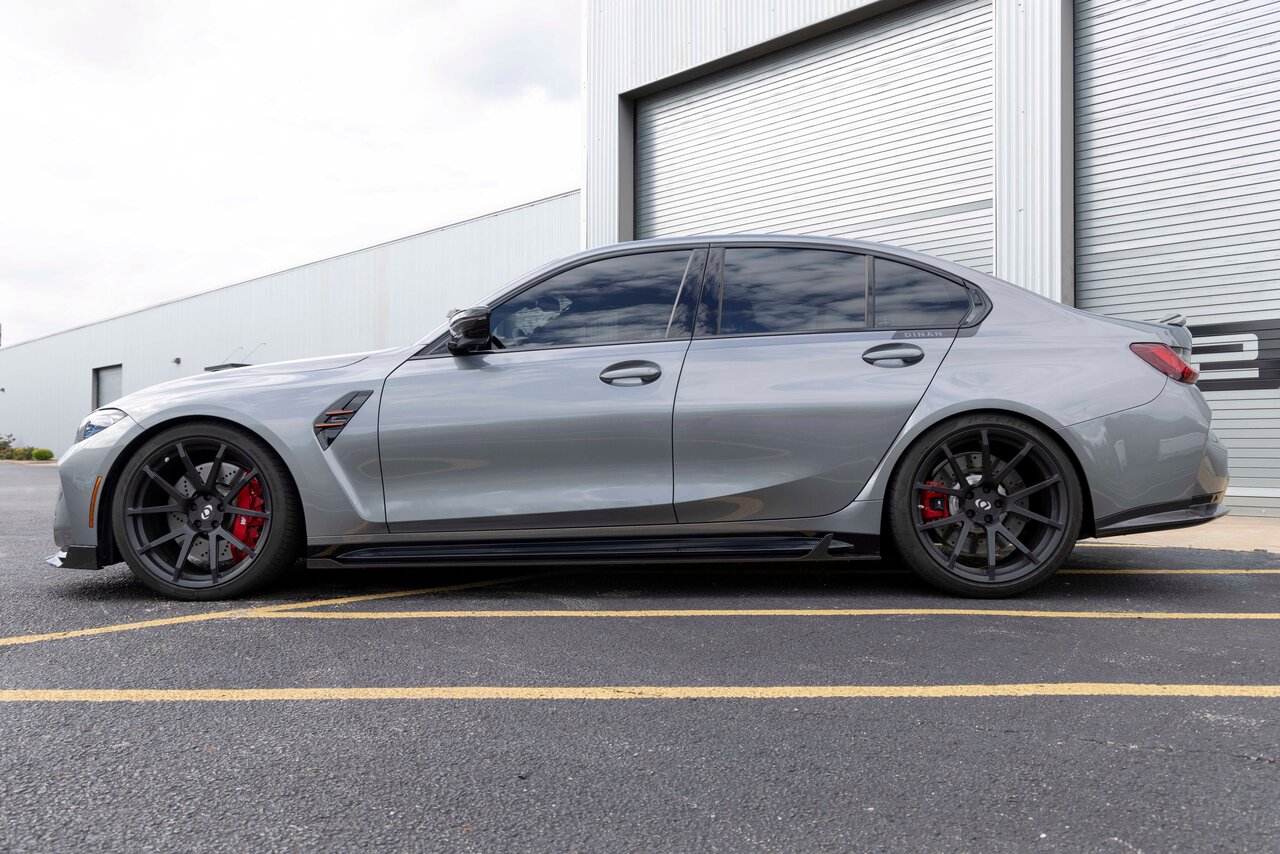

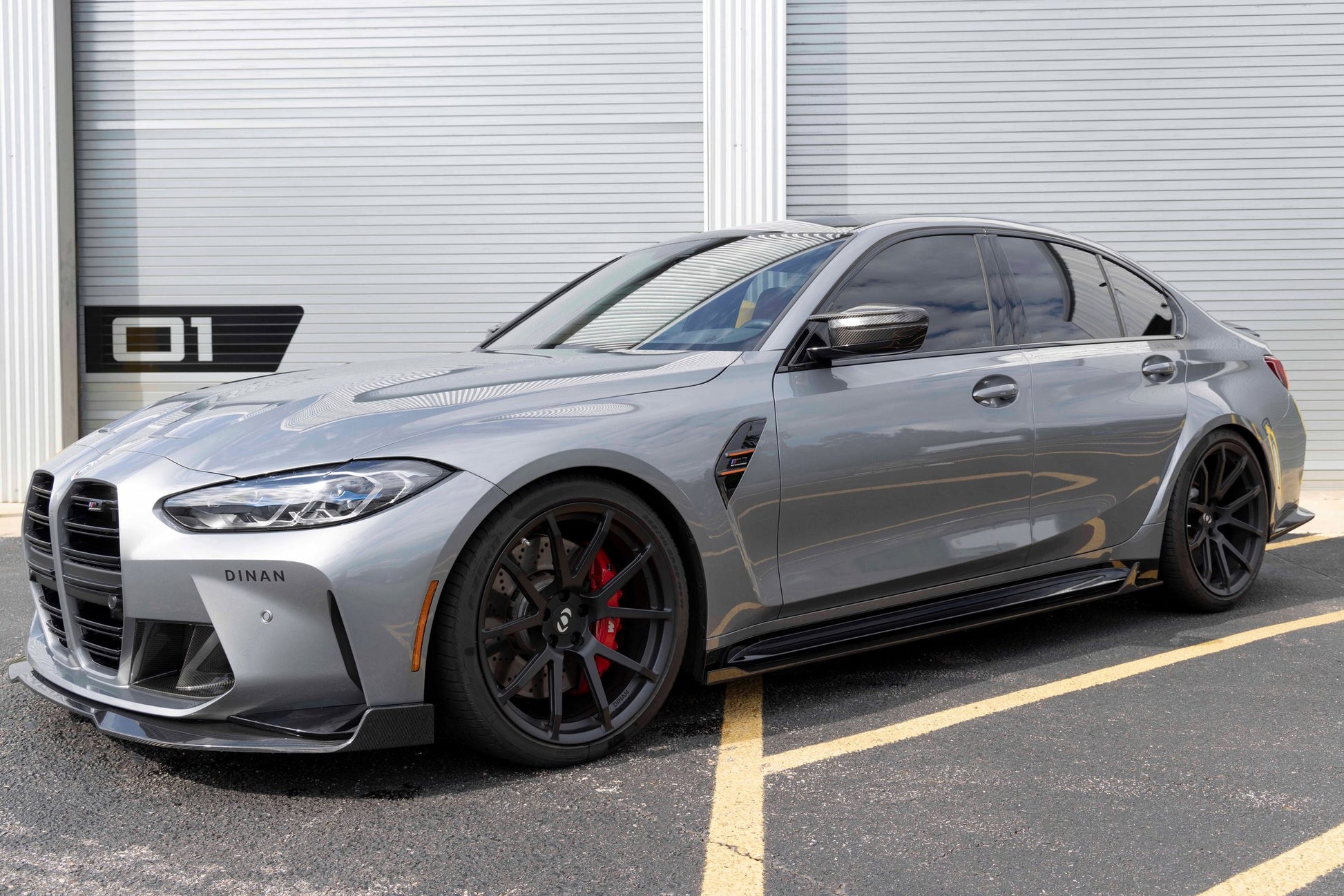

- Up to 1" of lowering in front and 2-1/4" of lowering in back are possible depending on tire clearance but with diminished ride quality
- Dinan recommends a 3/4" (M4) to 7/8" (M3) drop in front and a 3/4" drop in the rear to maintain a civilized ride
- Up to 1/2" of lift in front and 1-1/4" in back over stock is also possible

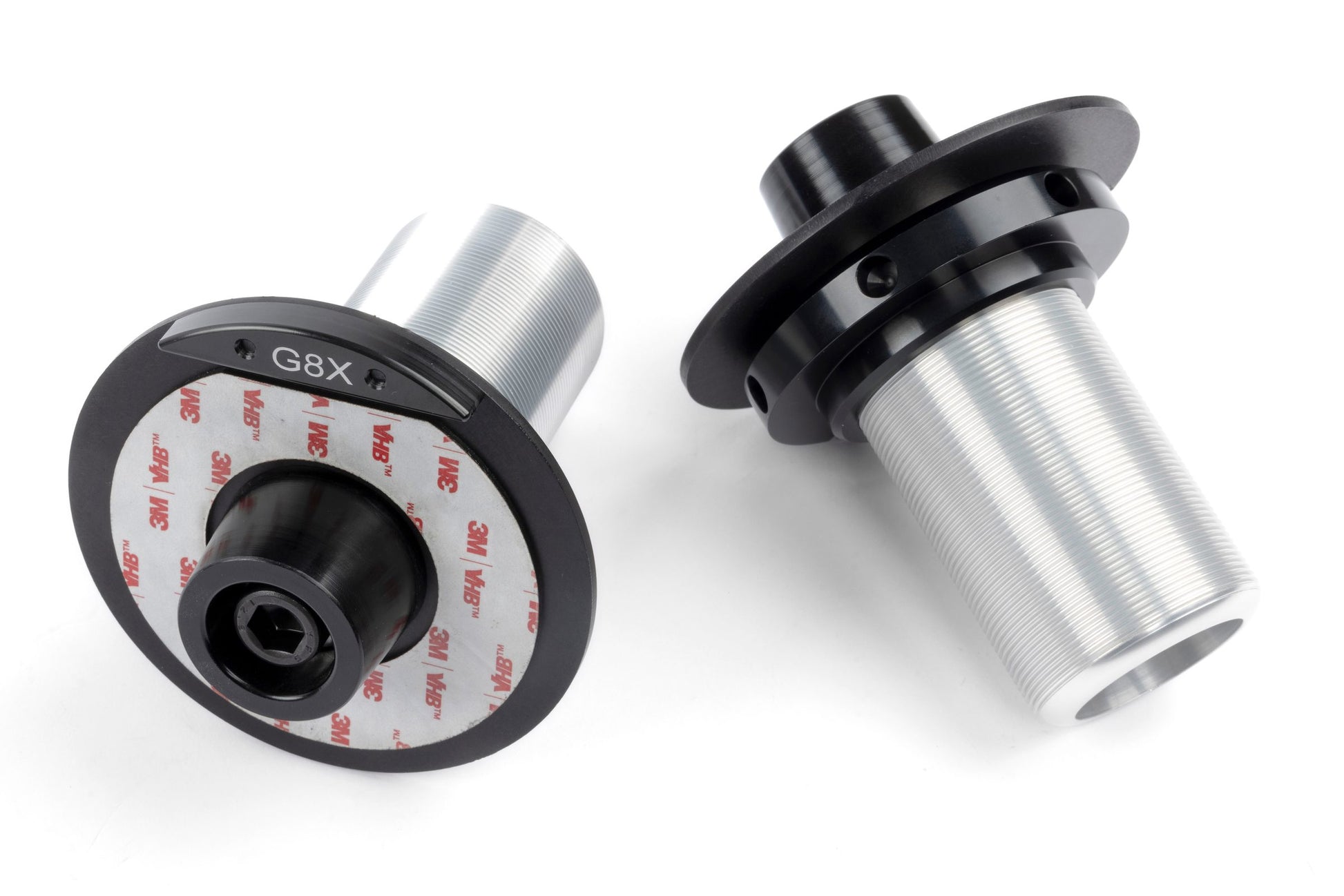

- Threaded collars allow easy and precise front & rear vehicle height adjustments

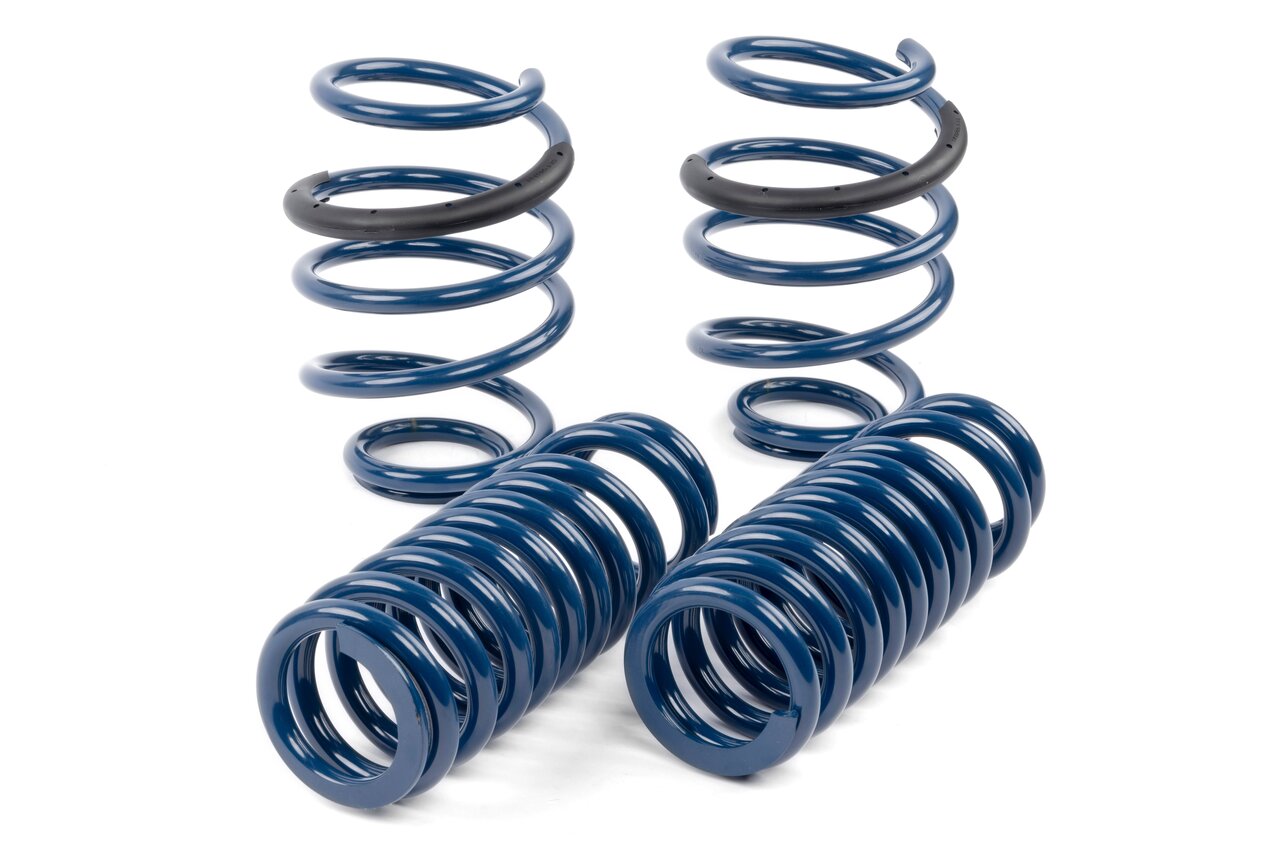

- Spring rates are 15% stiffer in front and 10% softer in the rear for increased predictability and compliancy
- Substantial reduction in body roll

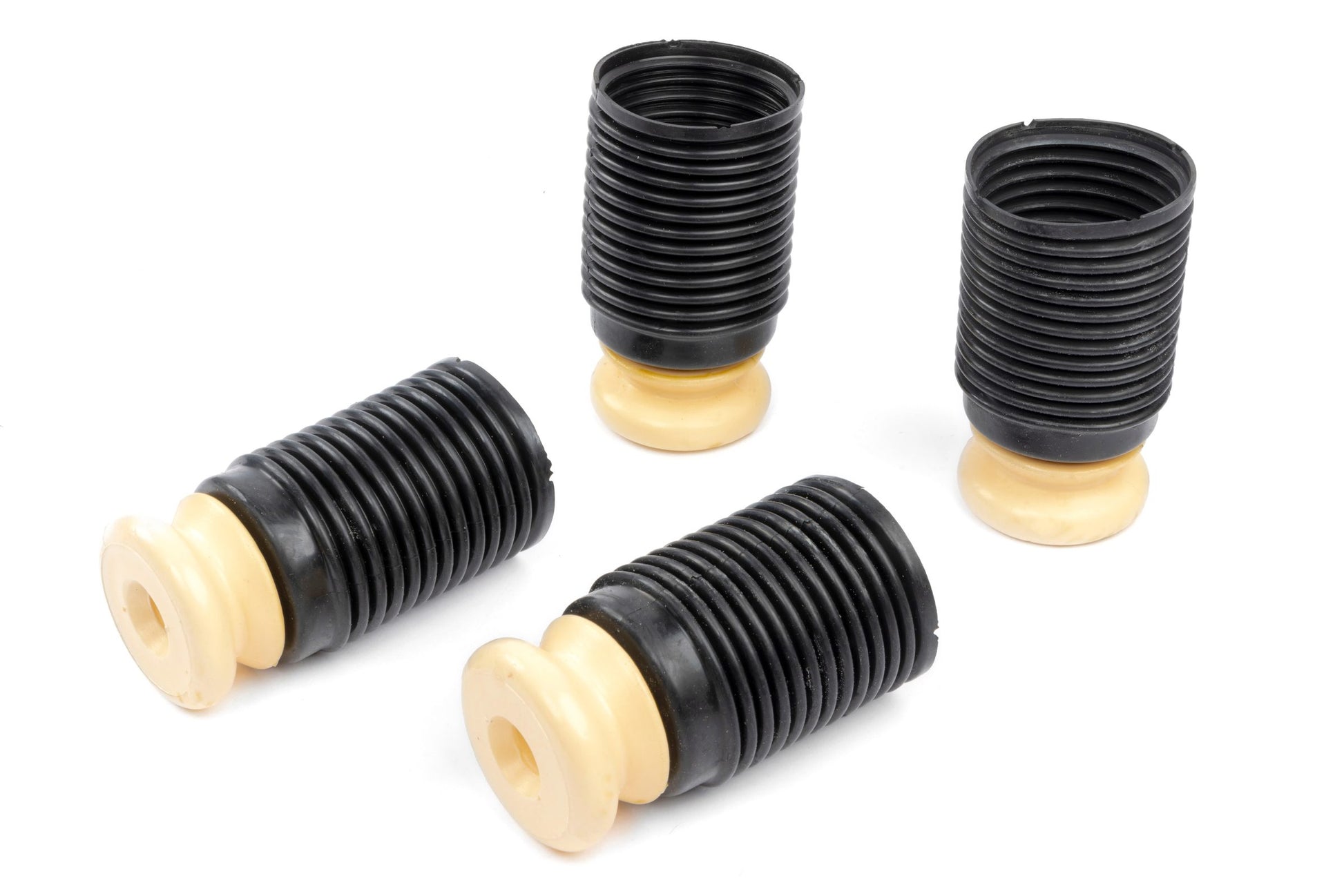

- Dinan-spec progressive bump stops improve ride quality at lowered ride heights

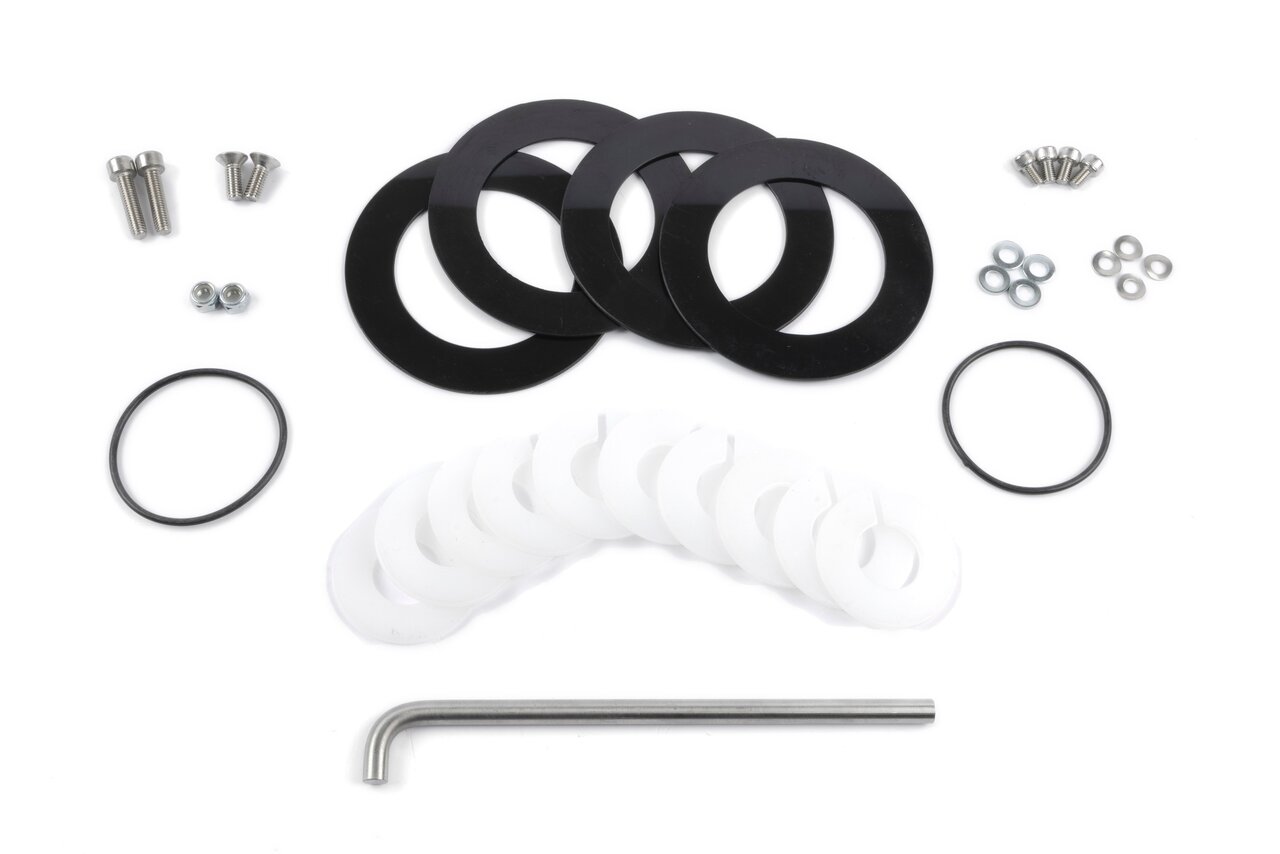

- Included suspension packers allow adjustment of bump-stop clearance to fine-tune handling and comfort

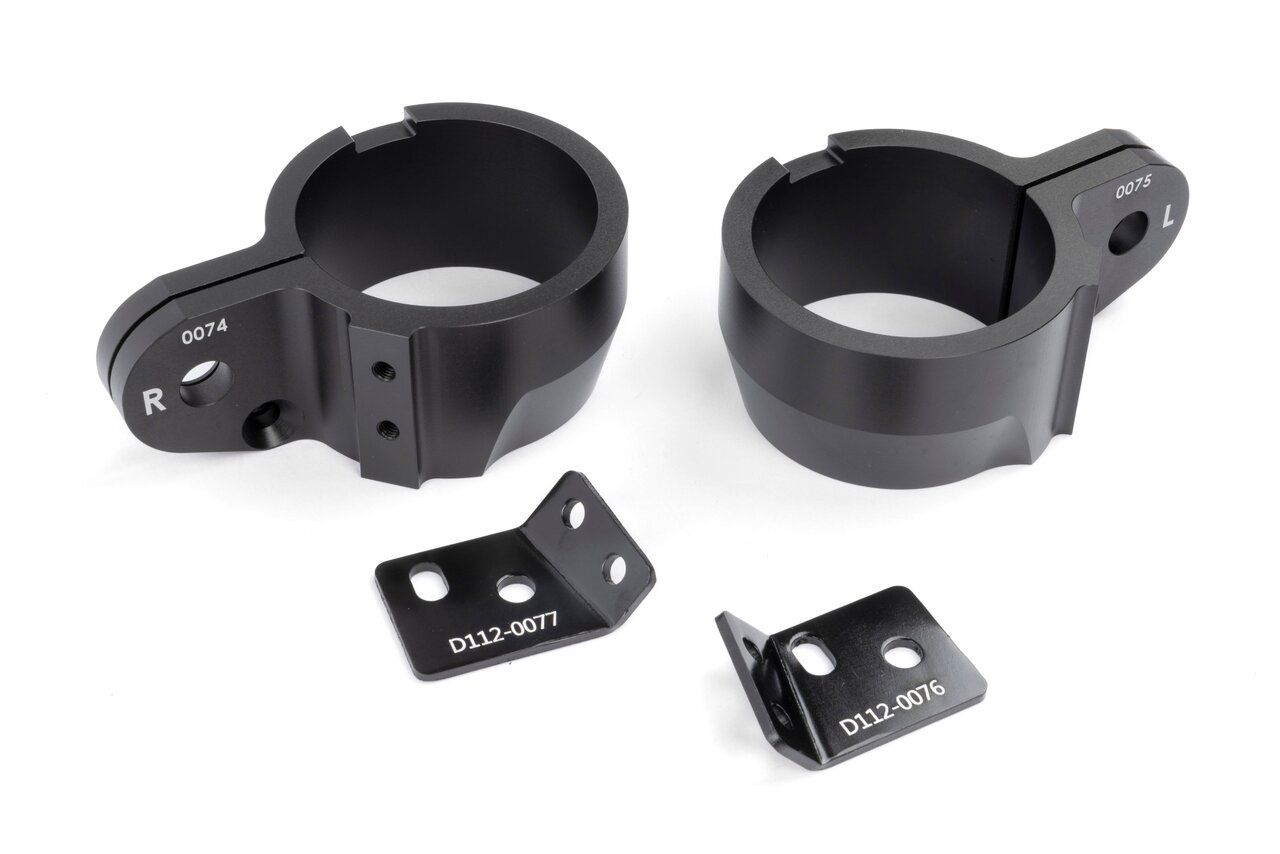

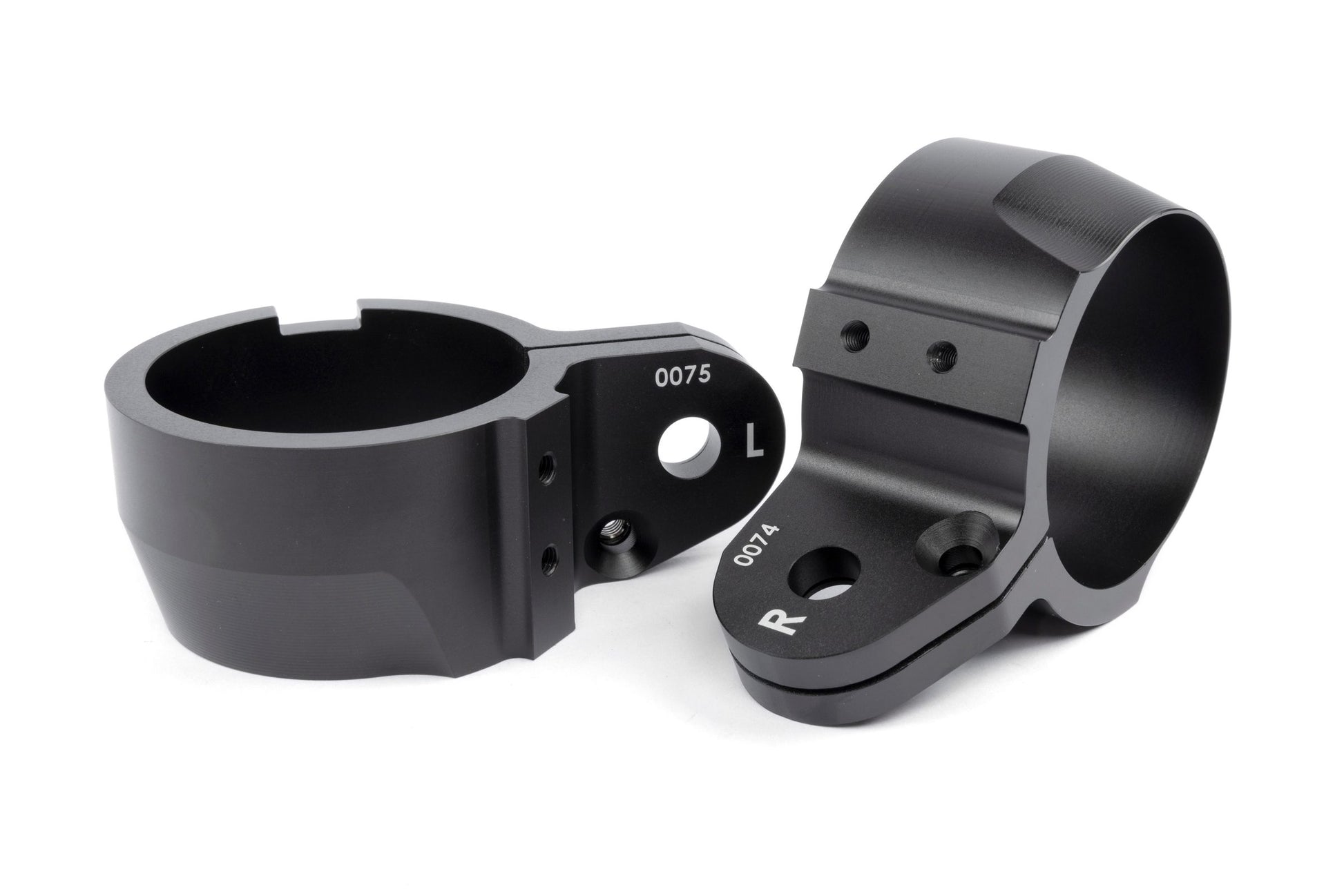

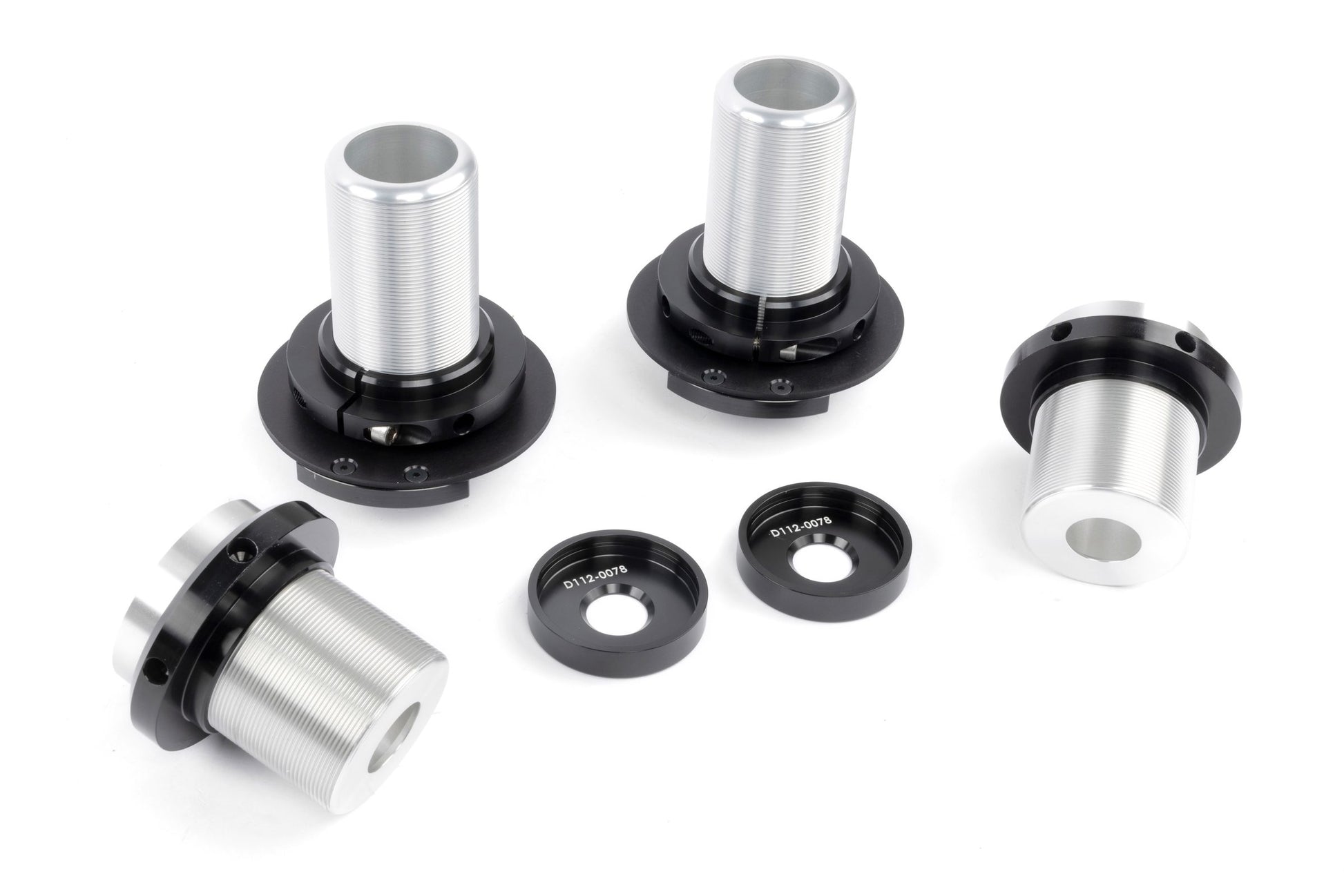

- Components are machined from 6061-T6 aluminum and black anodized for a sporty appearance as well as corrosion protection

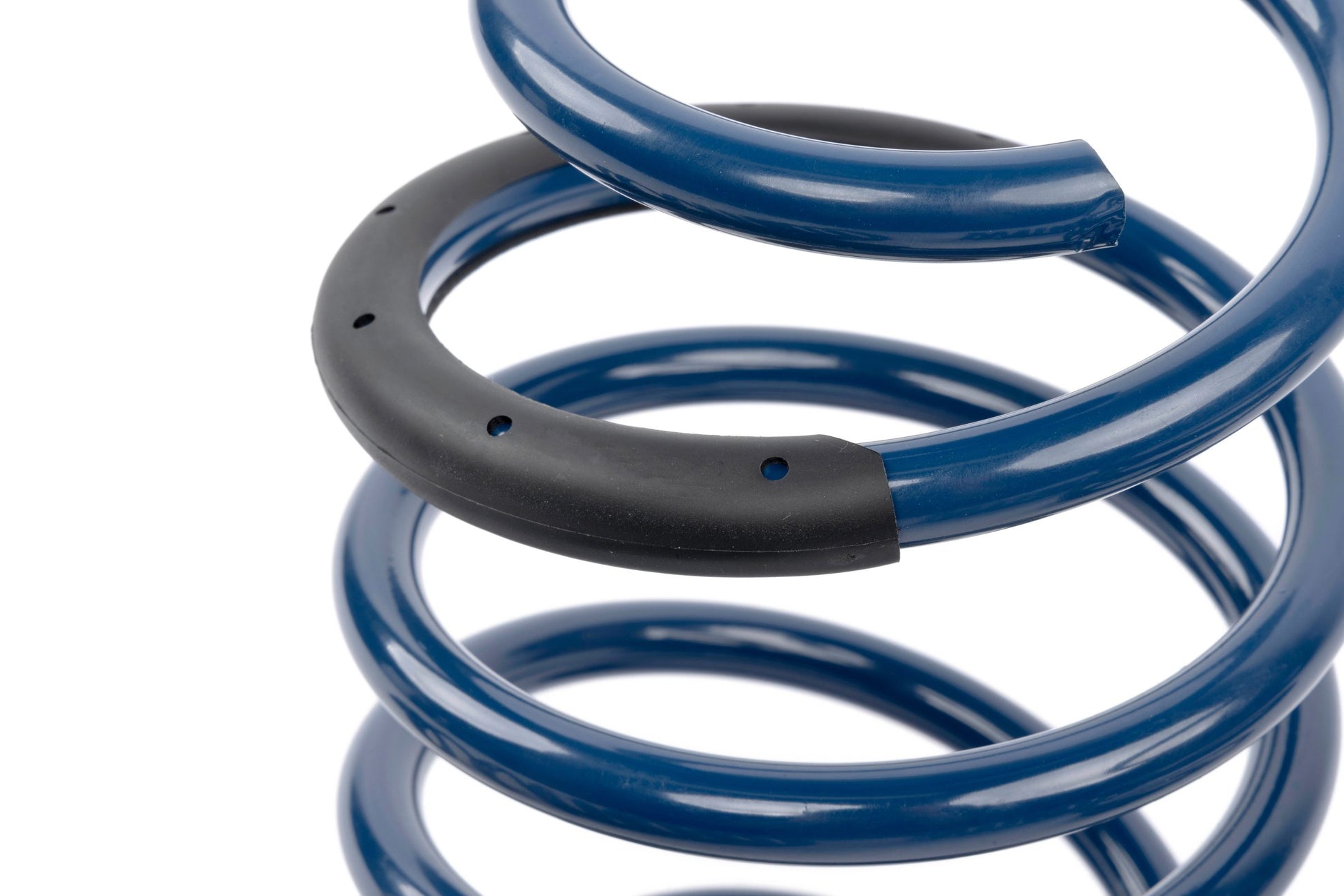

- Stock upper spring mounts are utilized as well as spring isolators for quiet operation
Brand: Dinan
Category: Suspension
Dinan Point Value: 3
Emission Code: 5
Labor Time (Hours): 9.2
part type: Coilover Adjustable Spring Lowering Kit
Product Type: HAS Kit
Sub Category: Suspension, Springs and Related Components
Warning: California Proposition 65
