Dinan - D190-0001

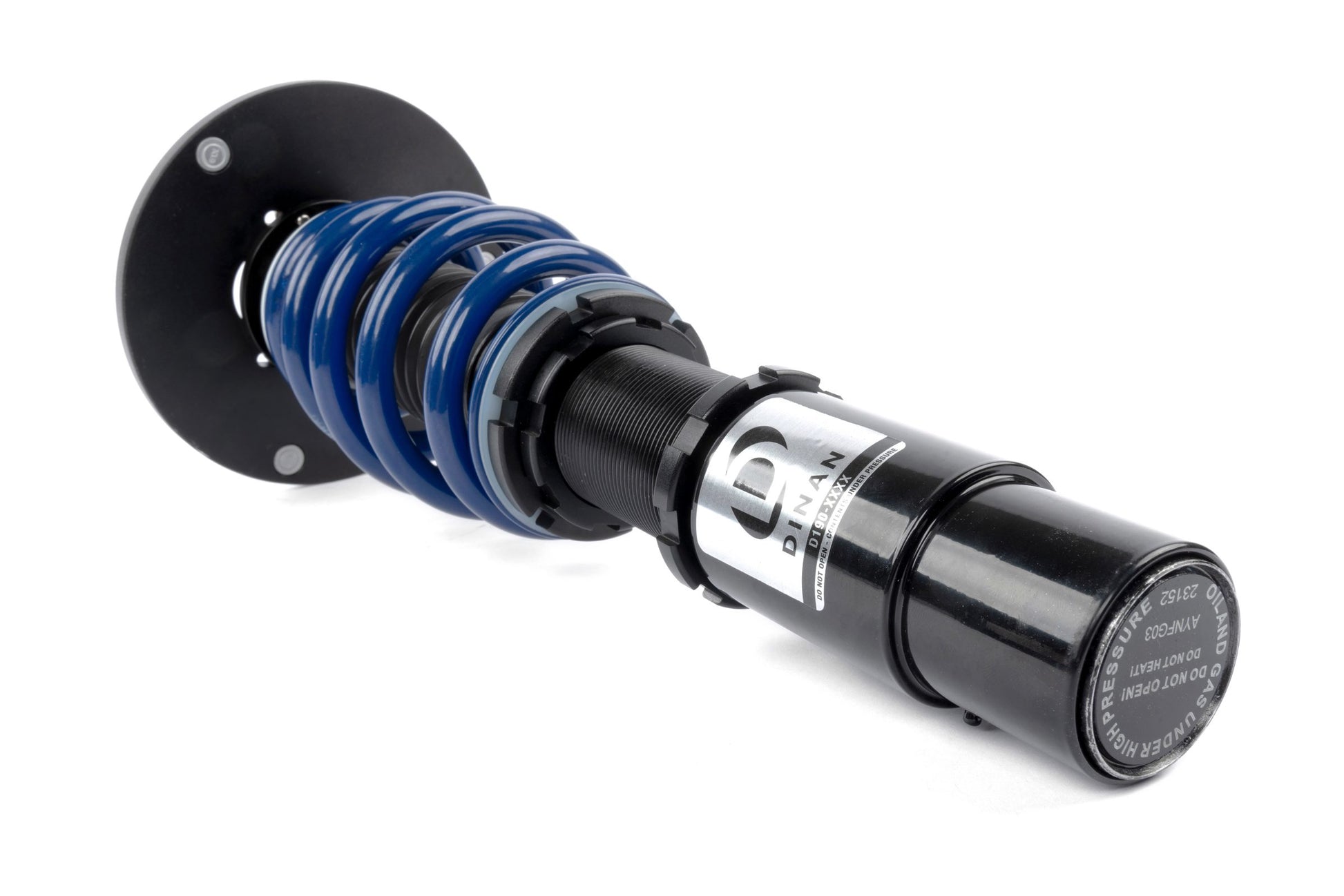

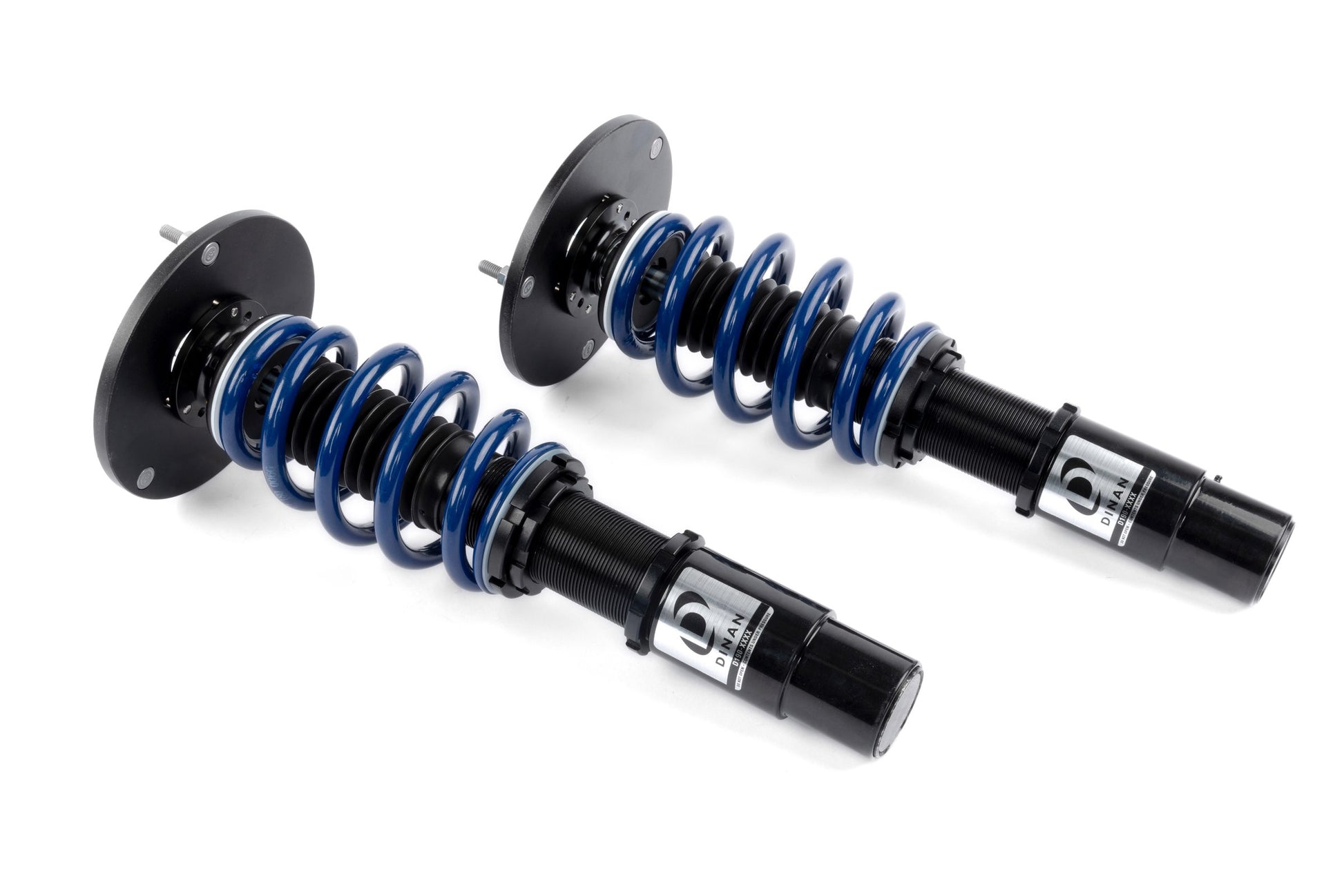

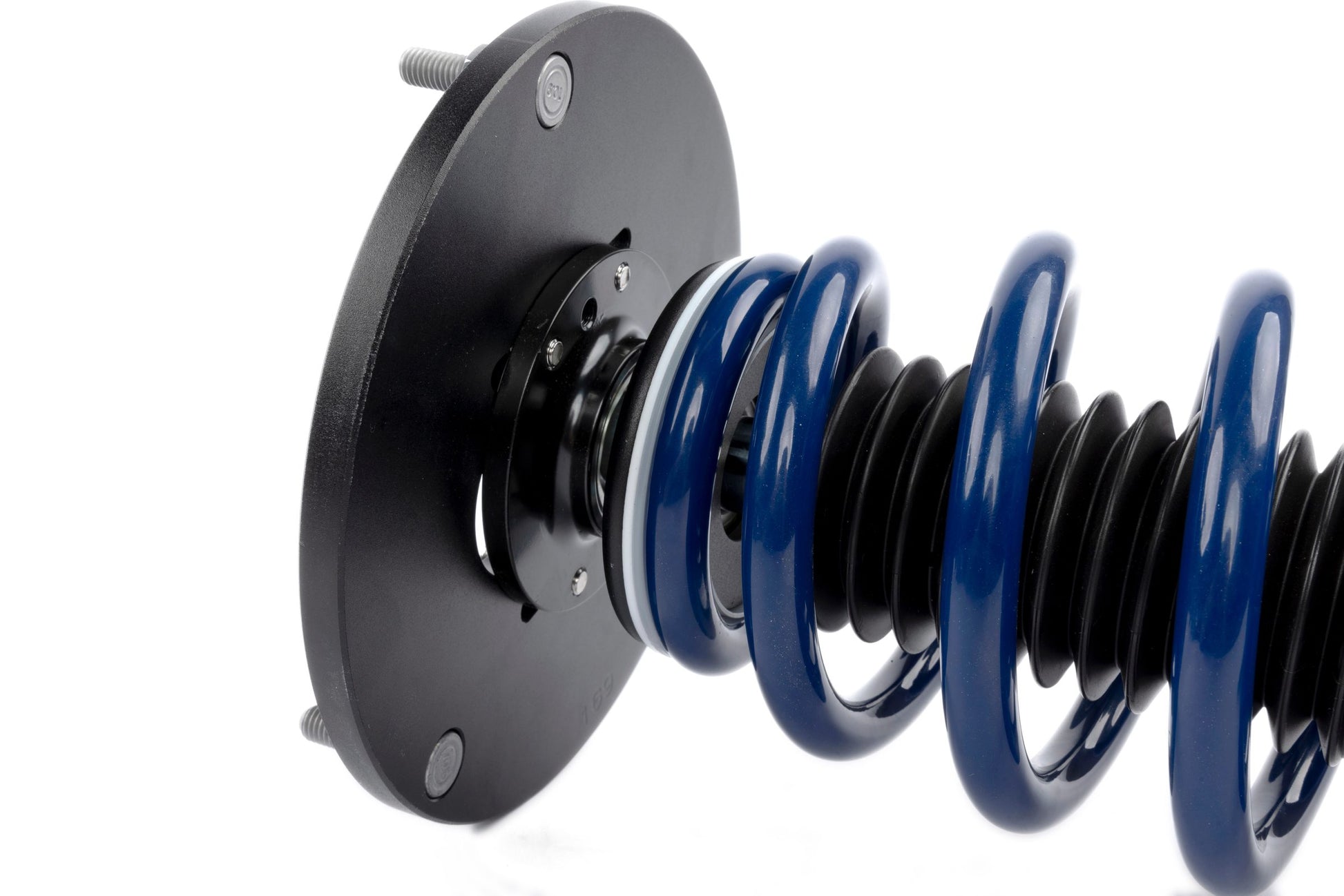

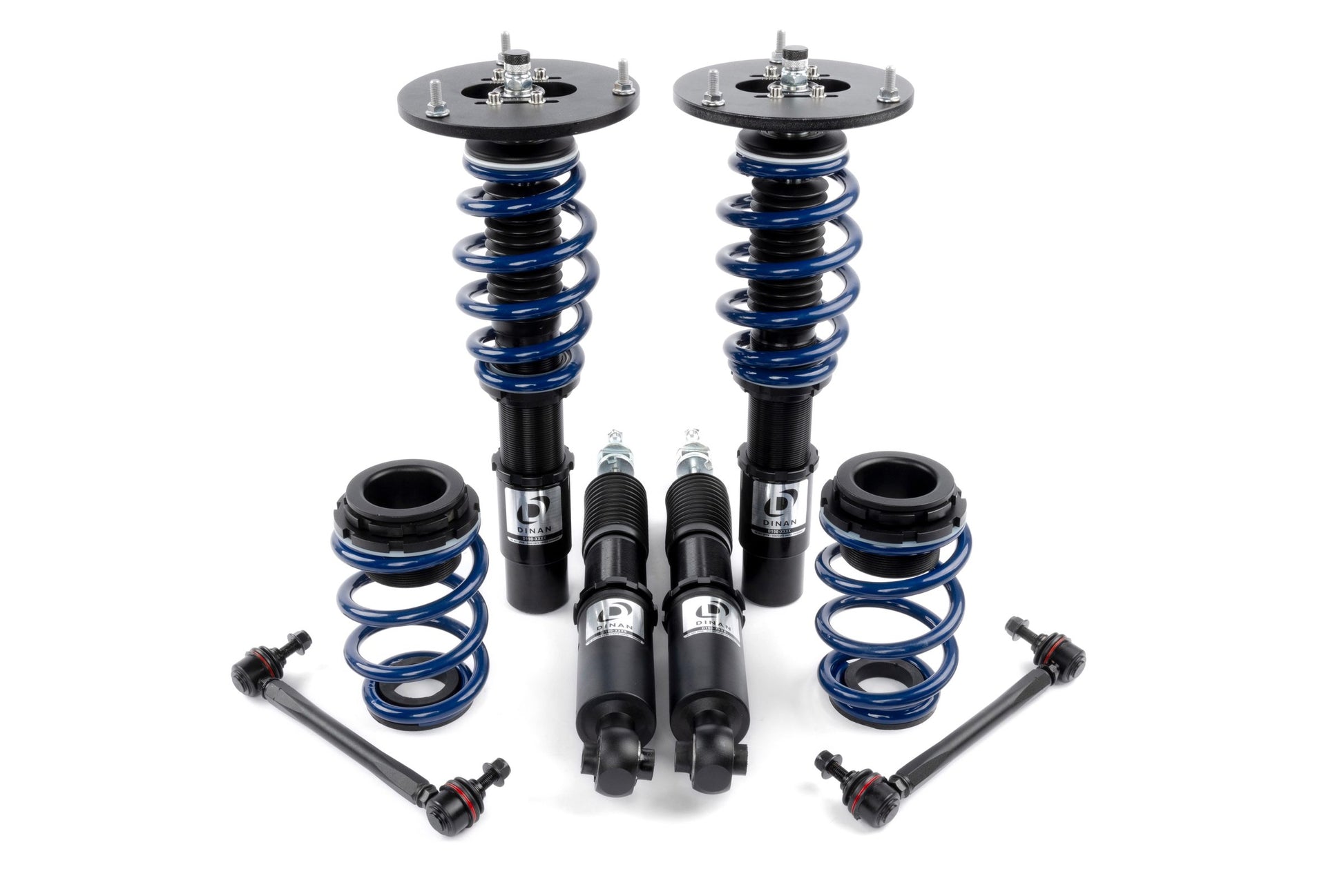

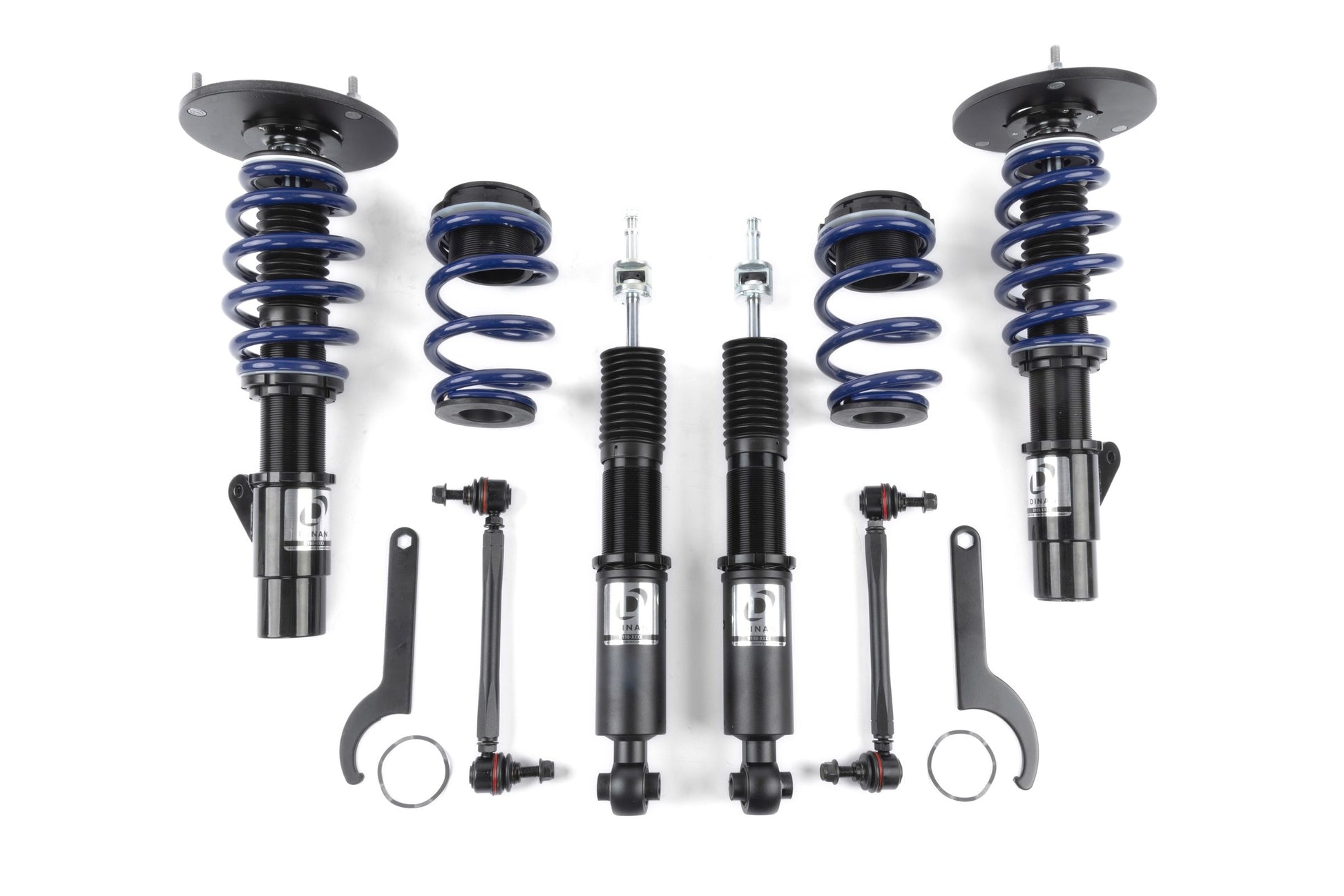

Dinan High Performance Adjustable Coil-Over Suspension - 2015-2024 MINI Coop JCW
Compatible w/ non-DDC vehicles - F55/F56
NOTE: Due to the extensive lowering possible and the increased suspension travel, the installer must carefully evaluate tire clearance under all situations. Safety will be compromised if all precautions are not taken. Dinan is not responsible for any property damage or injury.
- Up to 1.7" of lowering in front and 1.1" of lowering in back are possible depending on tire clearance but with diminished ride quality
- Dinan recommends a 0.75" (20mm) in front and back to maintain a civilized ride
- Up to 0.5" of lift in front and 1.0" in back over stock is also possible
- Spring rates are 93% stiffer in front (336 lbs/in vs. 174 lbs/in) and 58% stiffer in the rear (336 lbs/in vs. 213 lbs/in)
- Utilizes linear rate springs for increased predictability and compliancy

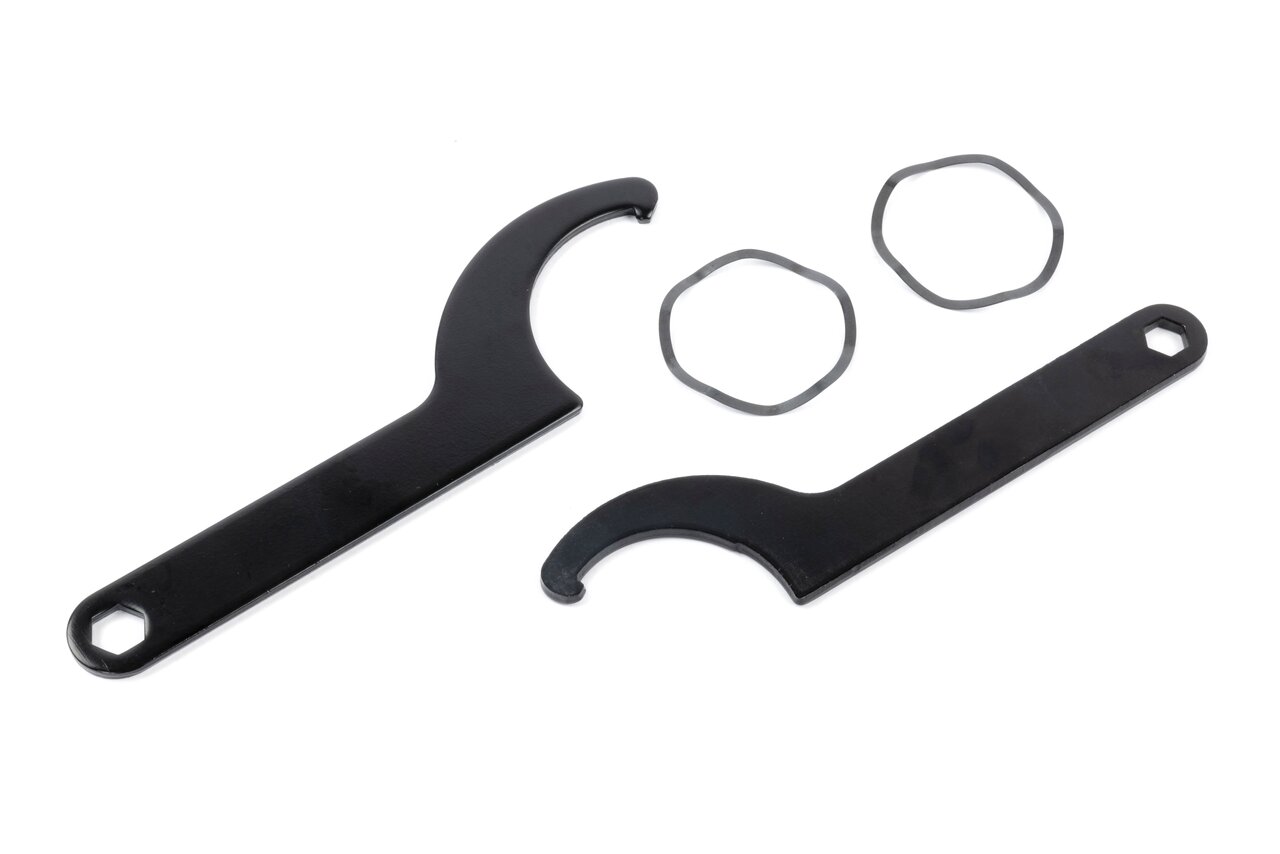

- Threaded collars allow easy and precise front & rear vehicle height adjustments
- Integrated bumpstops to ensure minimal jarring when on less than ideal road surfaces

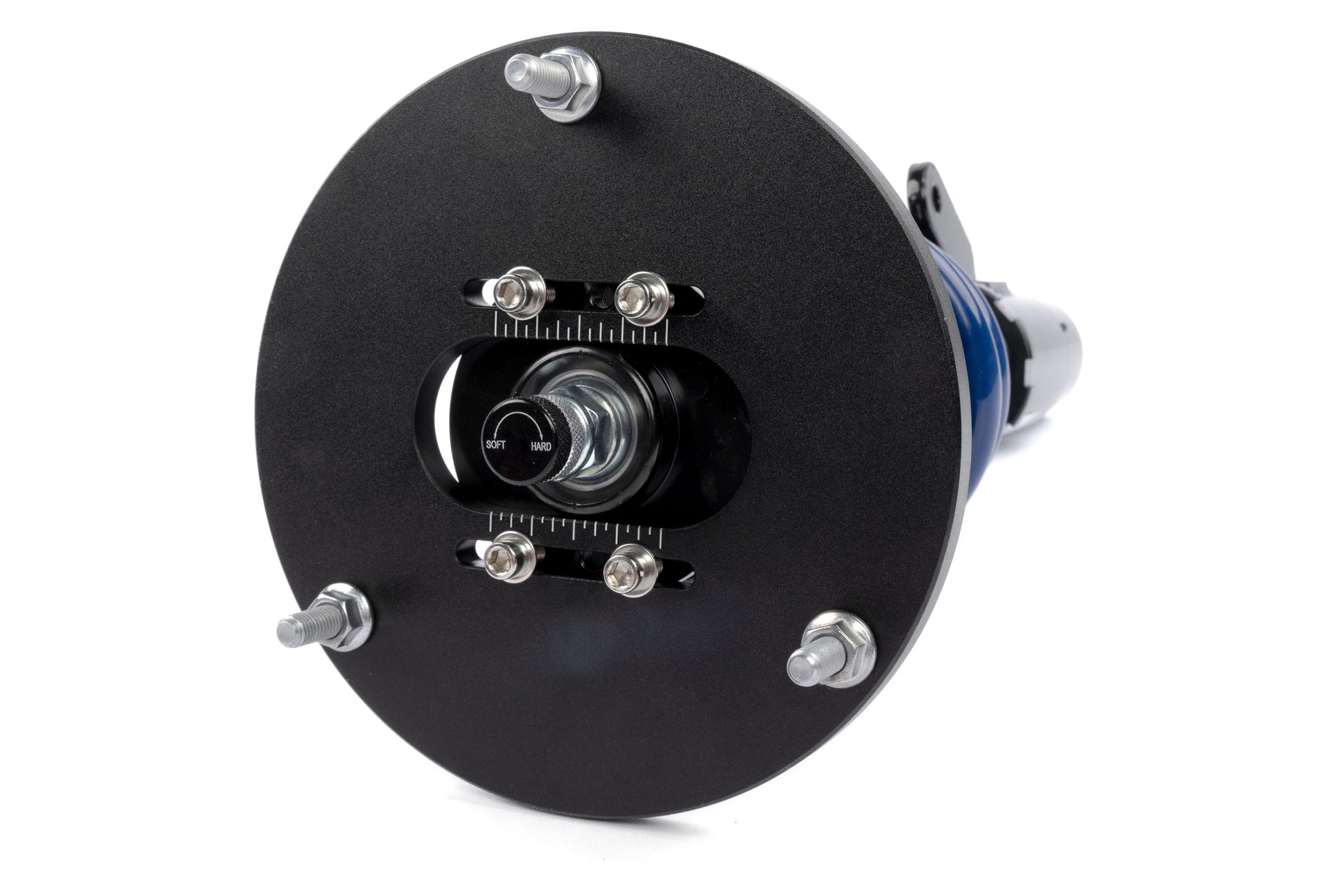

- 32 levels of rebound damping adjustment
- Substantial reduction in body roll
- Improved handling and grip
- Corrosion resistant materials and finishes used throughout for maximum durability and longevity
Brand: Dinan
Category: Suspension
Dinan Point Value: 3
Emission Code: 5
Grade Type: Performance
Labor Time (Hours): 8
part type: Coilover Adjustable Spring Lowering Kit
Product Type: Coil Over Kit
Sub Category: Suspension, Springs and Related Components
Warning: California Proposition 65
