Detroit Speed - 090215DS

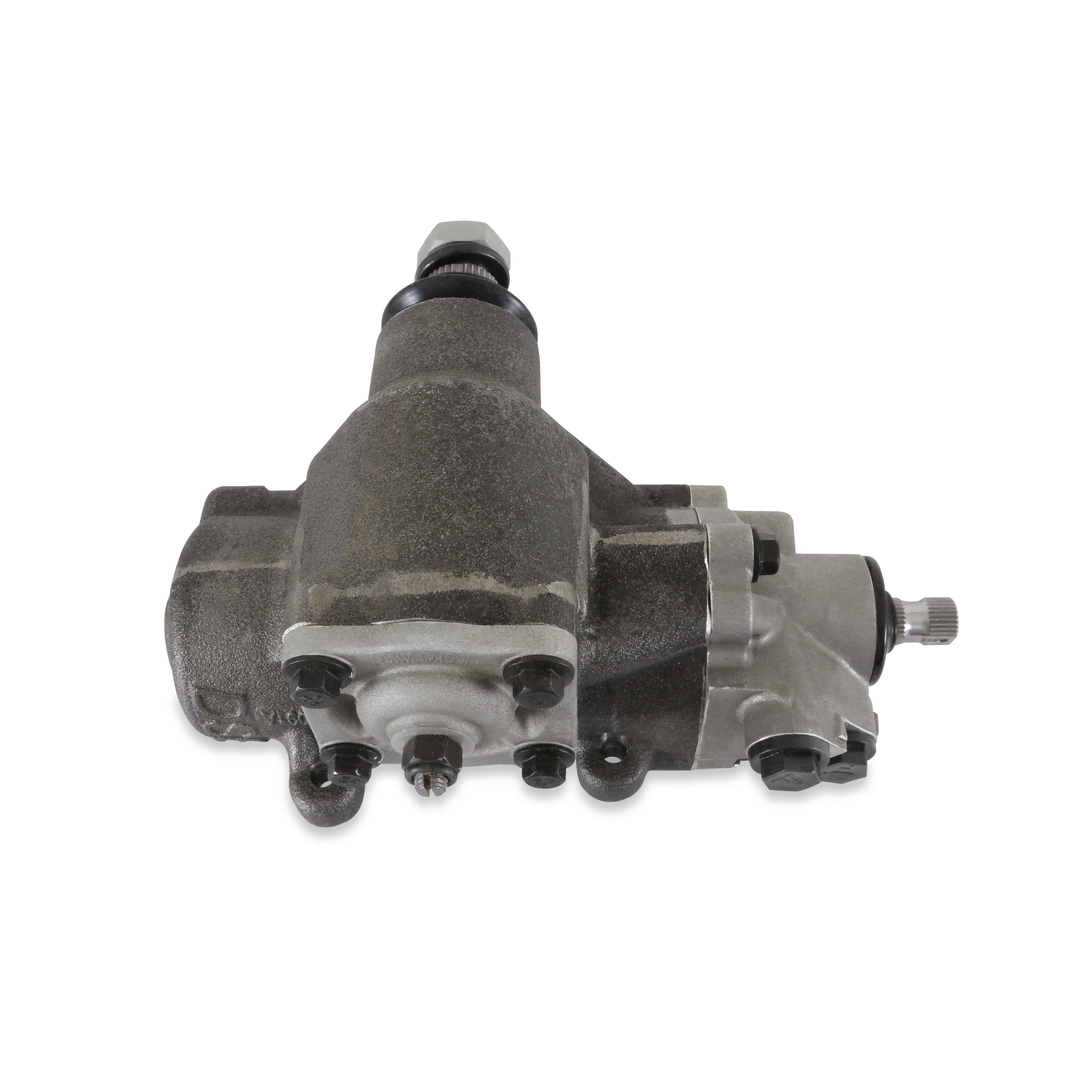

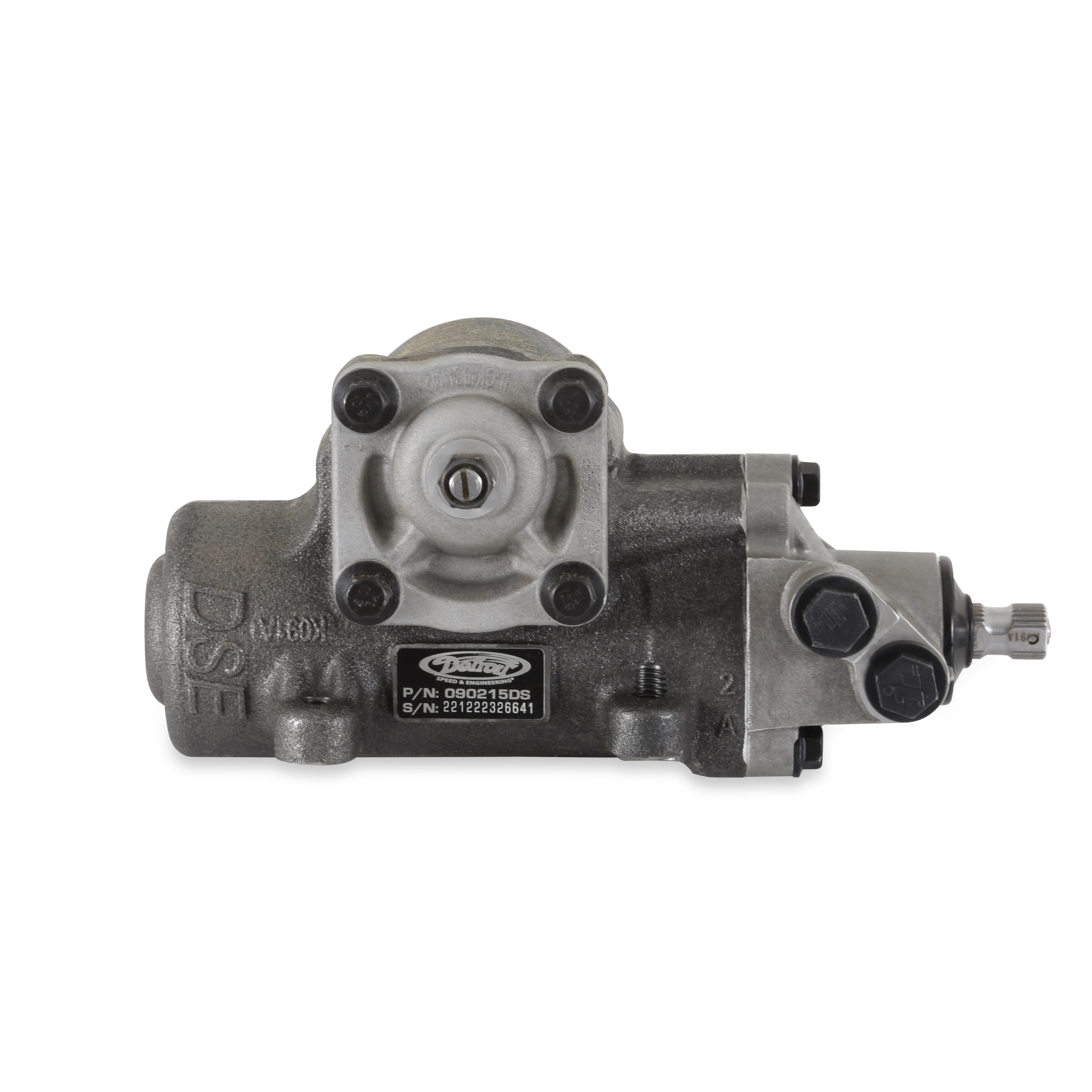

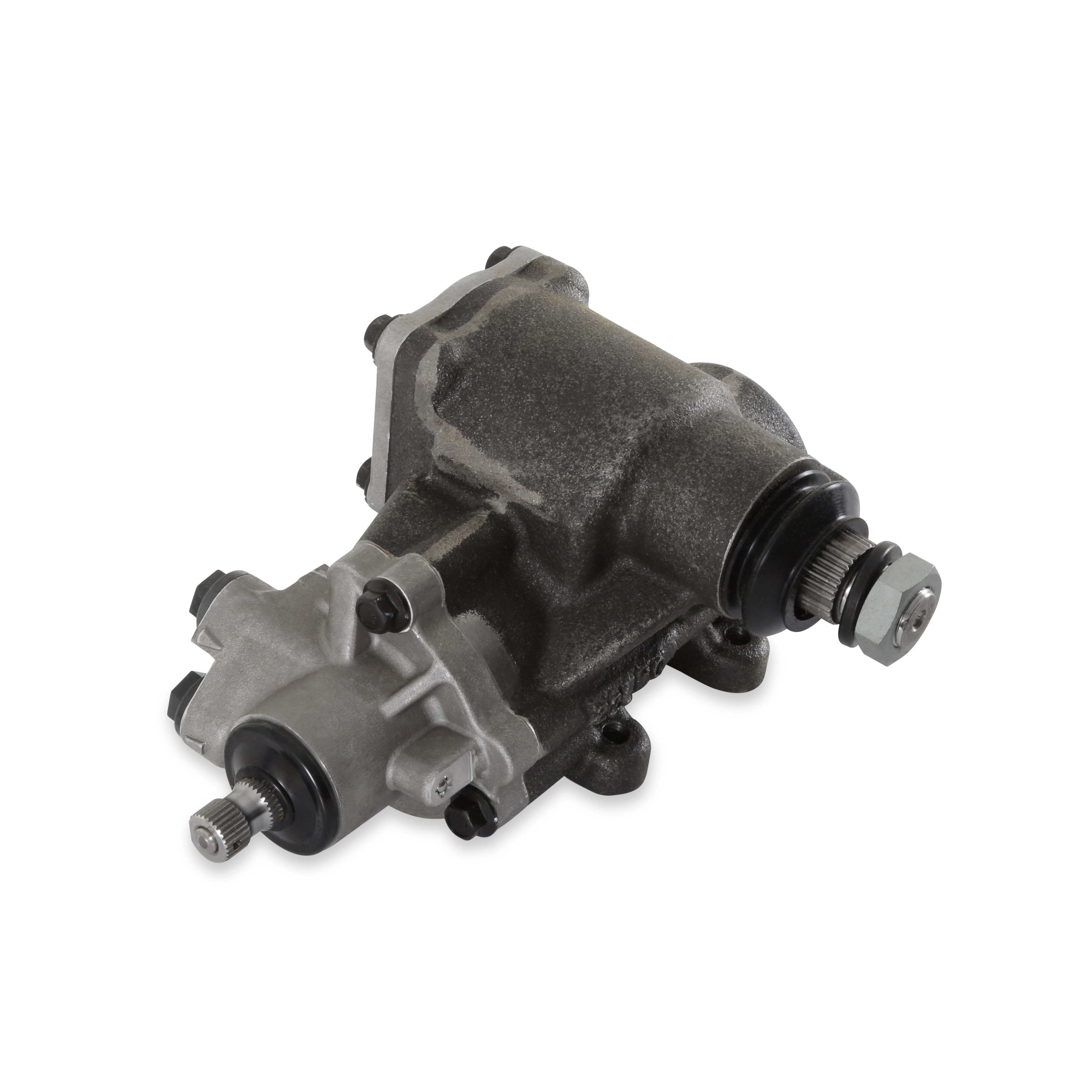

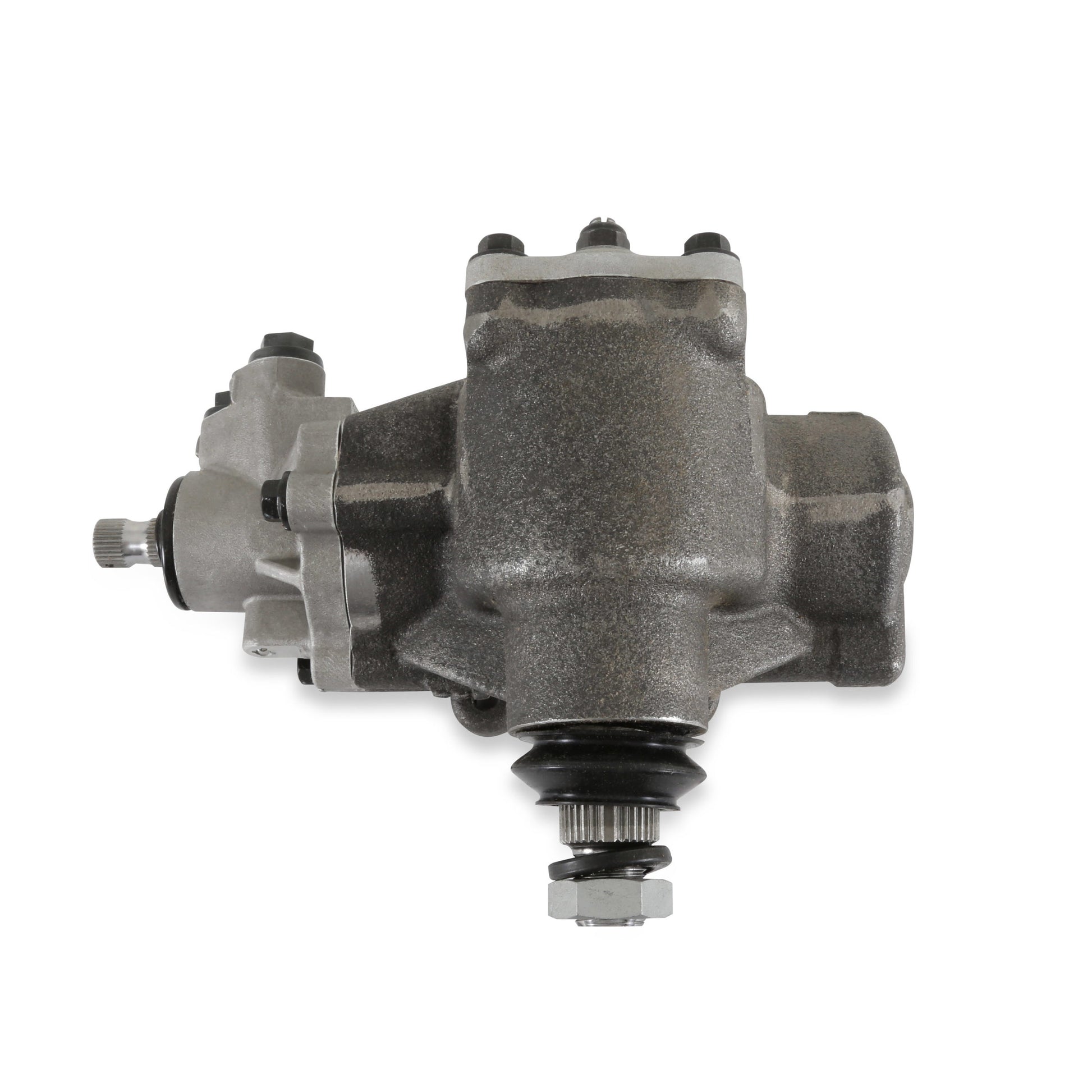

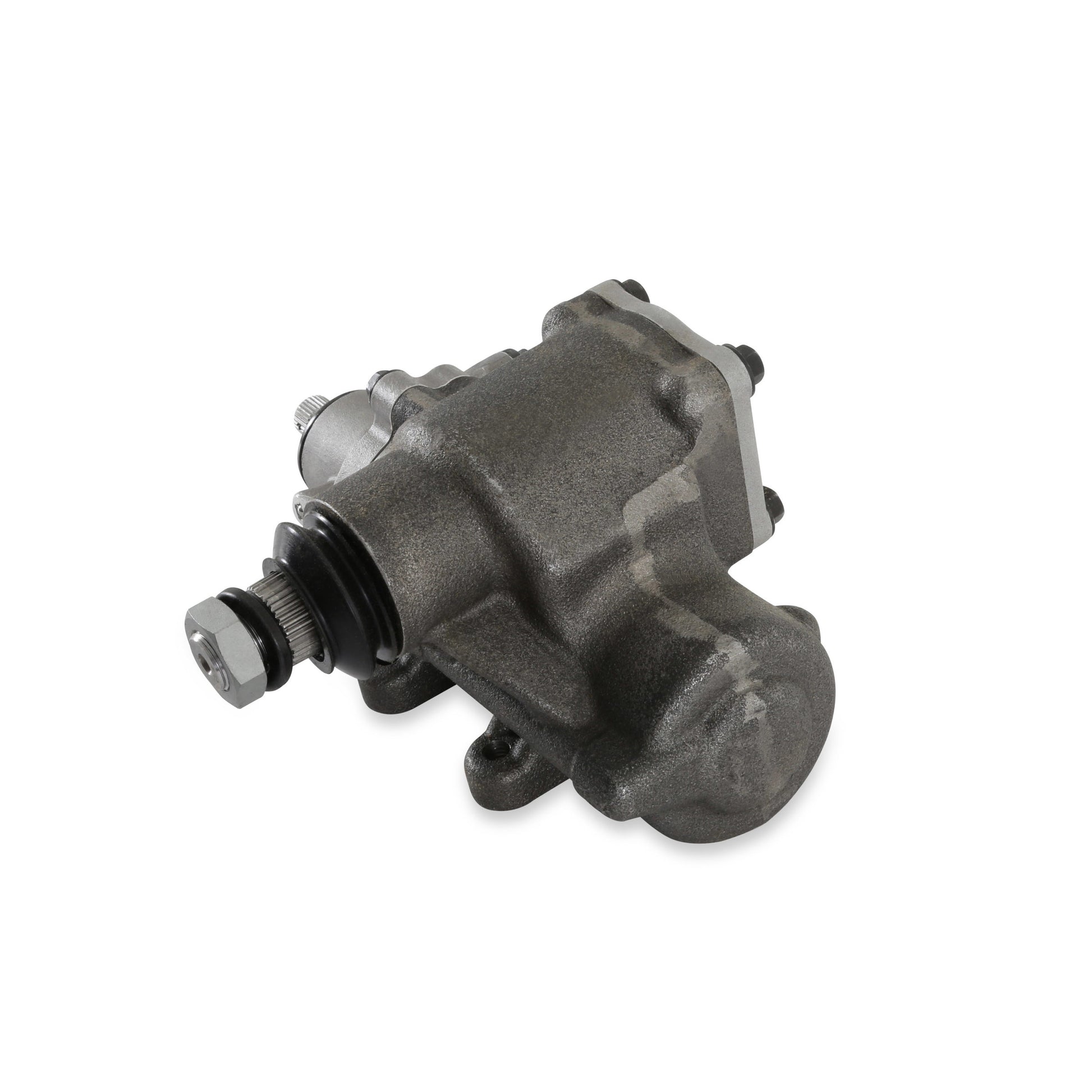

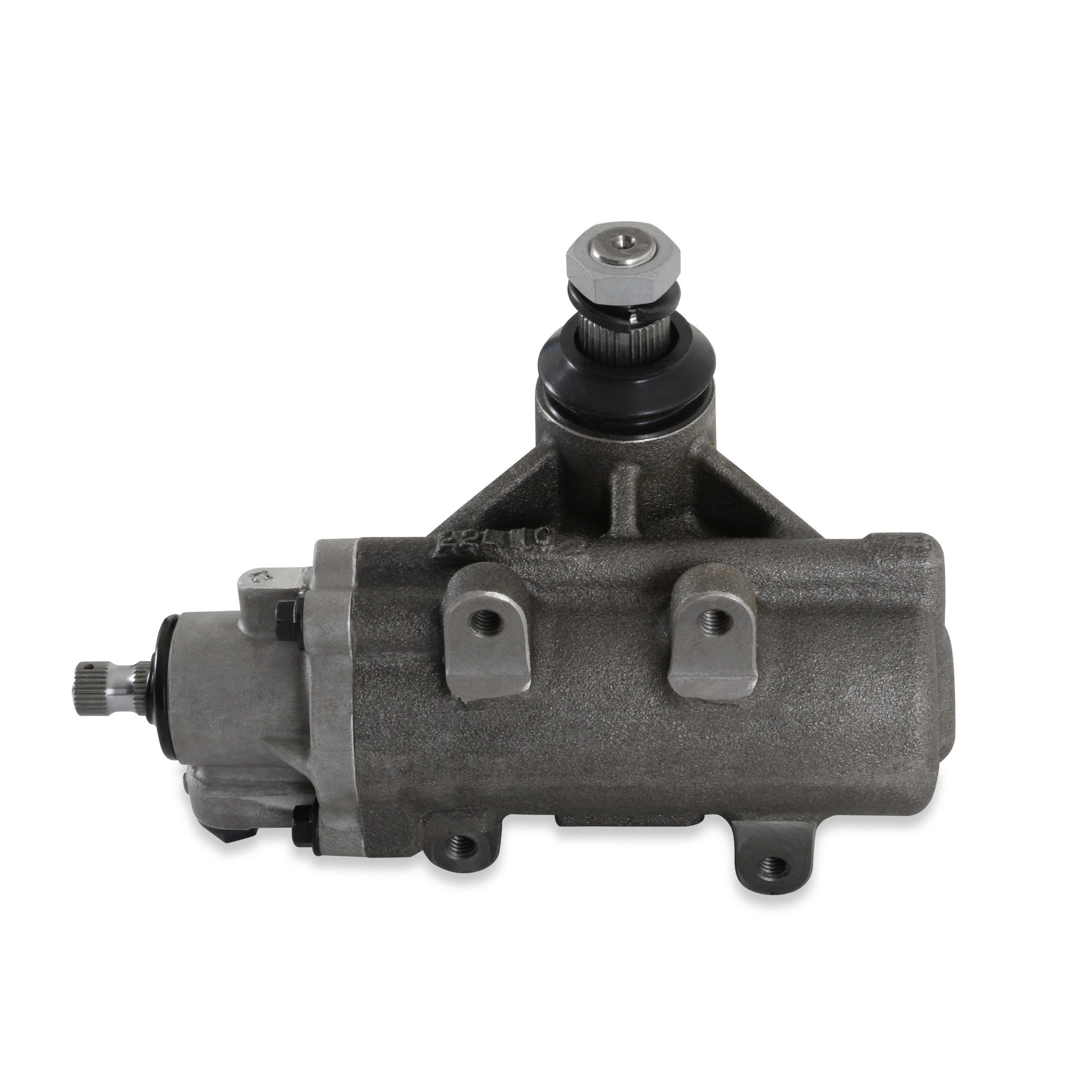

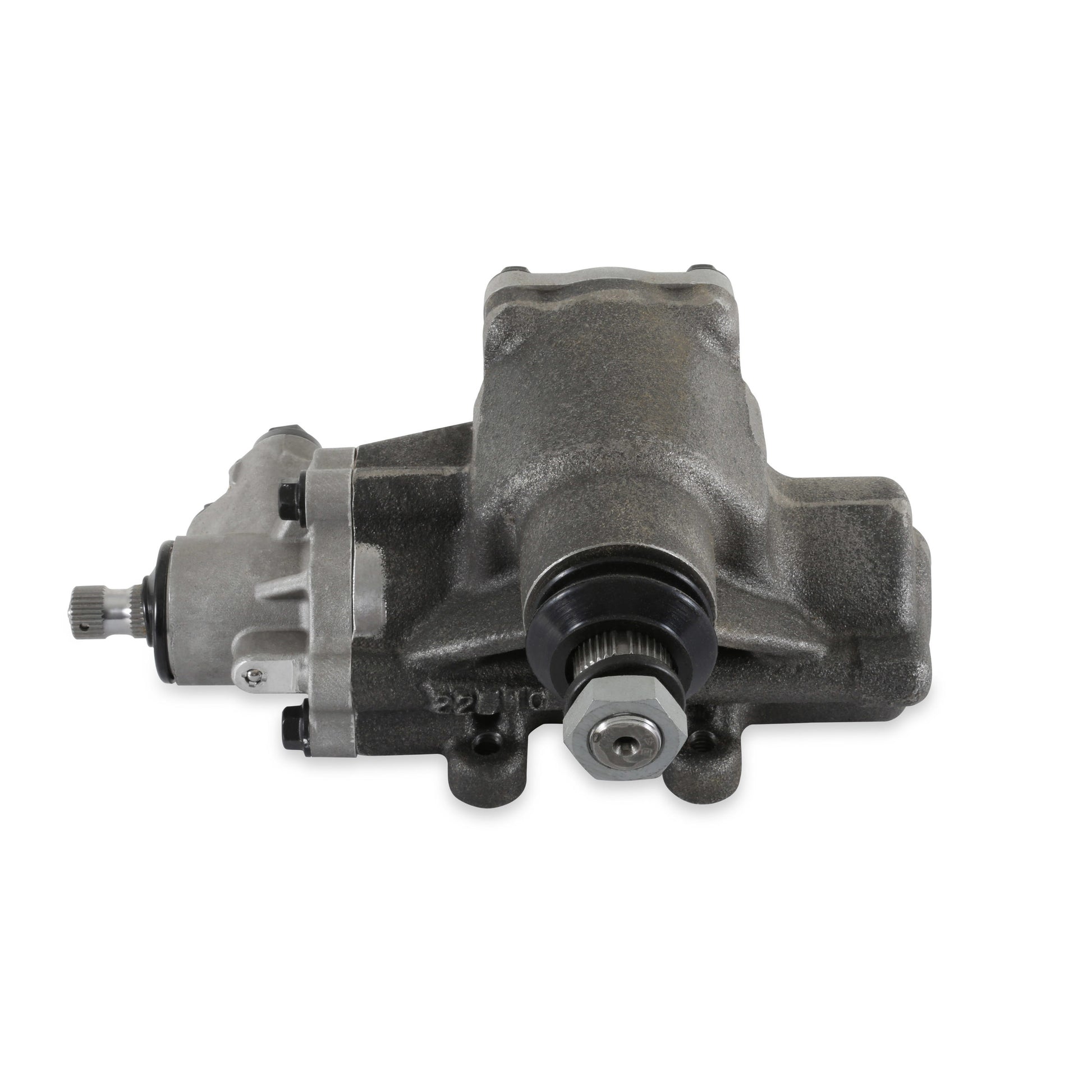

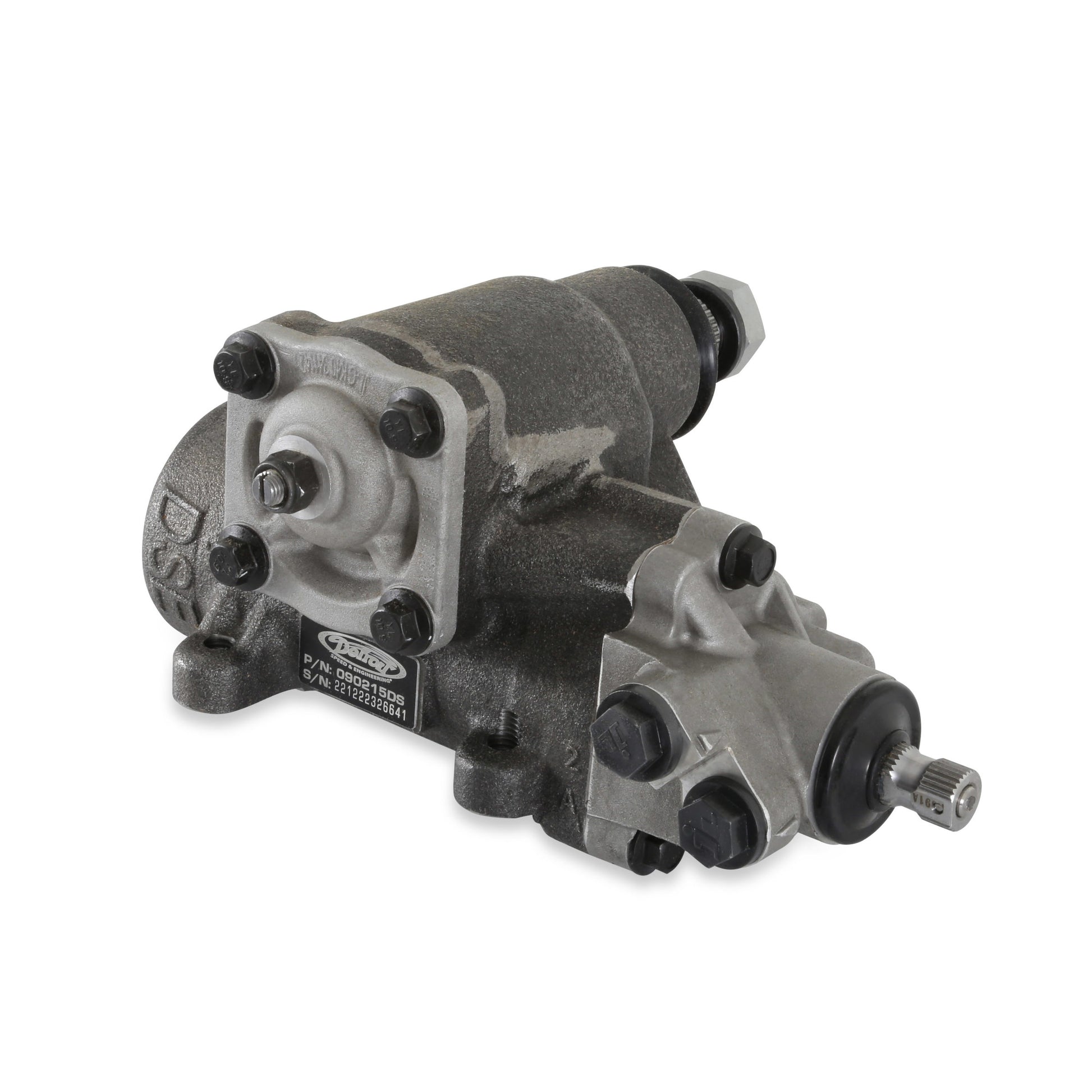

Steering Box - Power - Delphi 600 - 12.7 to 1 Ratio - Iron - Black Paint - GM 1964-2004 - Each
Fits 1967-1992 F-Body, 1964-1981 A-Body, 1968-1979 X-Body, 1978-1988 G-Body, 1982-2004 S10 Pickup
• 1982-2004 S10/S15/Sonoma
- All new steering gear unit, not rebuilt
- Fits 1982-92 Camaro/Firebird with no modification to the steering box or the frame.
- Improved steering feel due to low friction gear design
- “Detroit Tuned” precision rack and pinion valve technology
- Late model performance car feel
- Quick Ratio 12.7:1 (3 turns lock-to-lock) – desirable quick ratio that is hard to find in a stock OEM steering box
- Original power pitman arm may be used – or PN 092301DS (for 1967-1969 Camaro & 1968-1972 Nova).
- A 3/4-inch x 30-spline rag joint is required with this steering box and is available through Detroit Speed - PN 090205DS
- New O-ring style power steering hoses are needed – PN 091202DS recommended
- Steering Gear Pressure and Return Fittings not included – PN 090206LDS (pressure) & 090206SDS (return) recommended
- Raw unpainted finish
- Recommended Pump Flow = 2.48 GPM
- Maximum Operated Pressure = 1500 psi.
Brand: Detroit Speed
Emission Code: 6
Finish: Raw
Input Shaft: 3/4 in. x 30-Spline
Number of Turns Lock to Lock: 3
Pressure Fitting: M18 x 1.5 O-Ring
Product Type: Steering Box
Return Fitting: M16 x 1.5 O-Ring
Sale Category: Suspension and Chassis
Warning: California Proposition 65
Weight: 25.1
