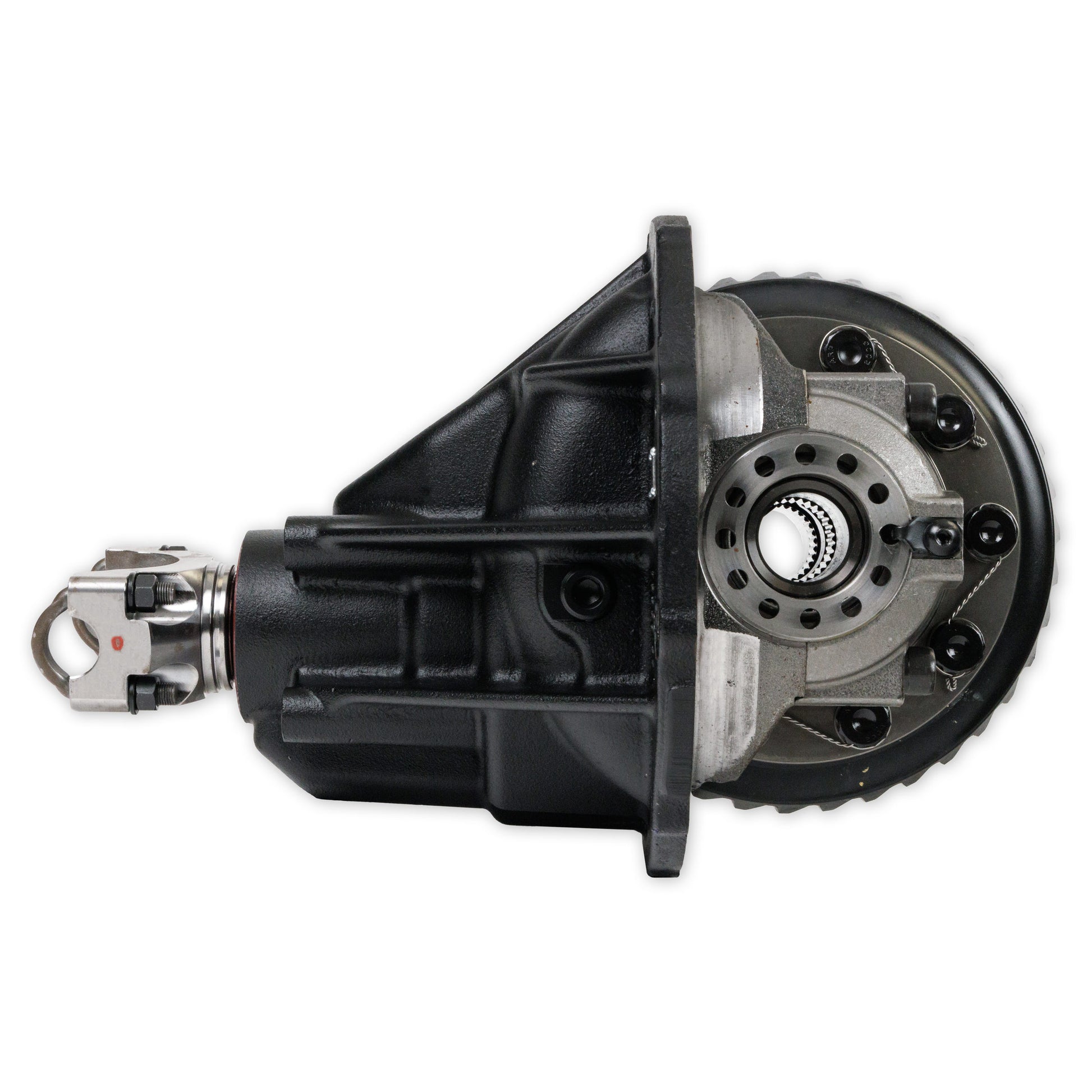

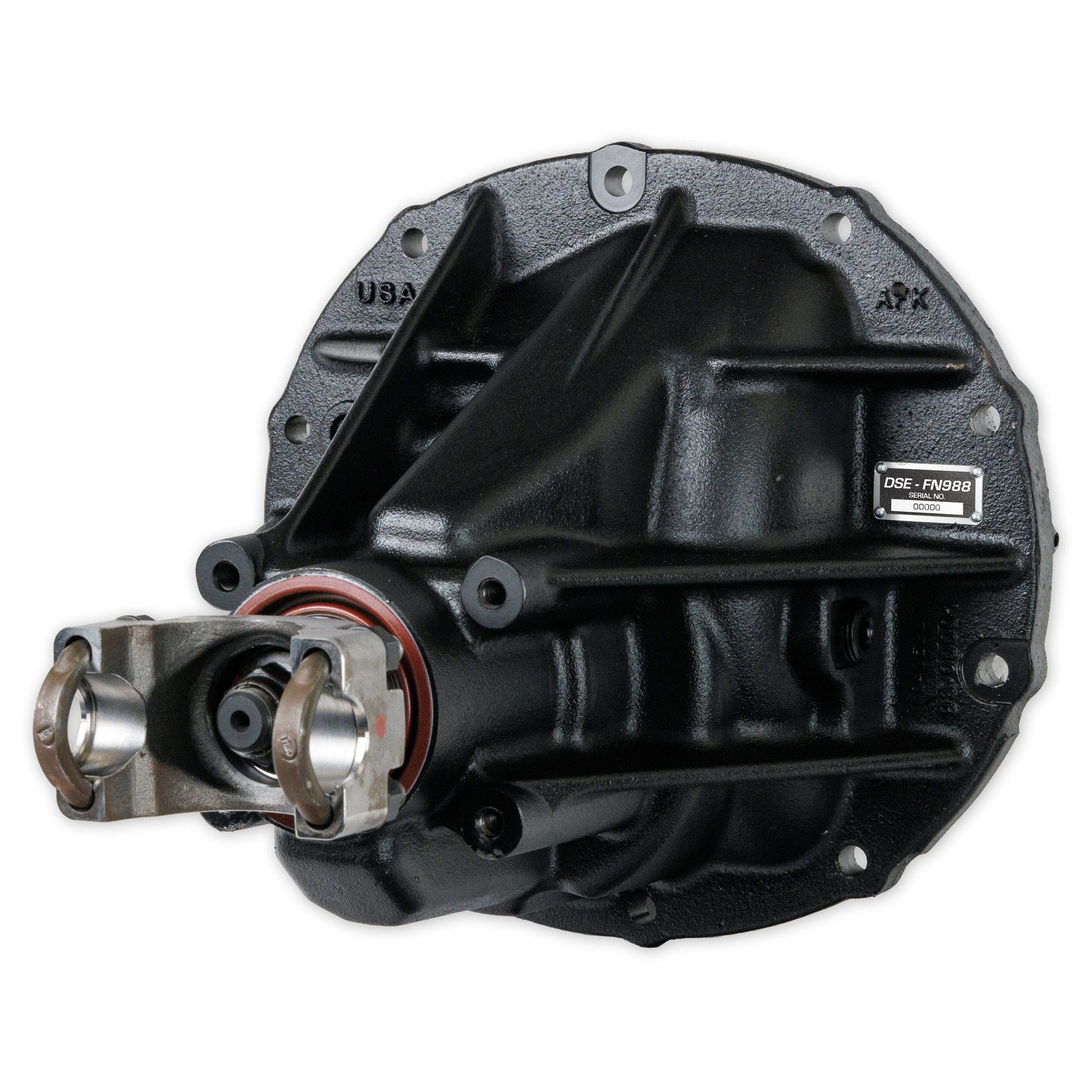

Detroit Speed Assembled Center Section FN988 Ford 8.8in Gears in a 9in Housing

31 Spline Truetrac - 3.55 Ratio - 1350 Yoke with U-Bolts

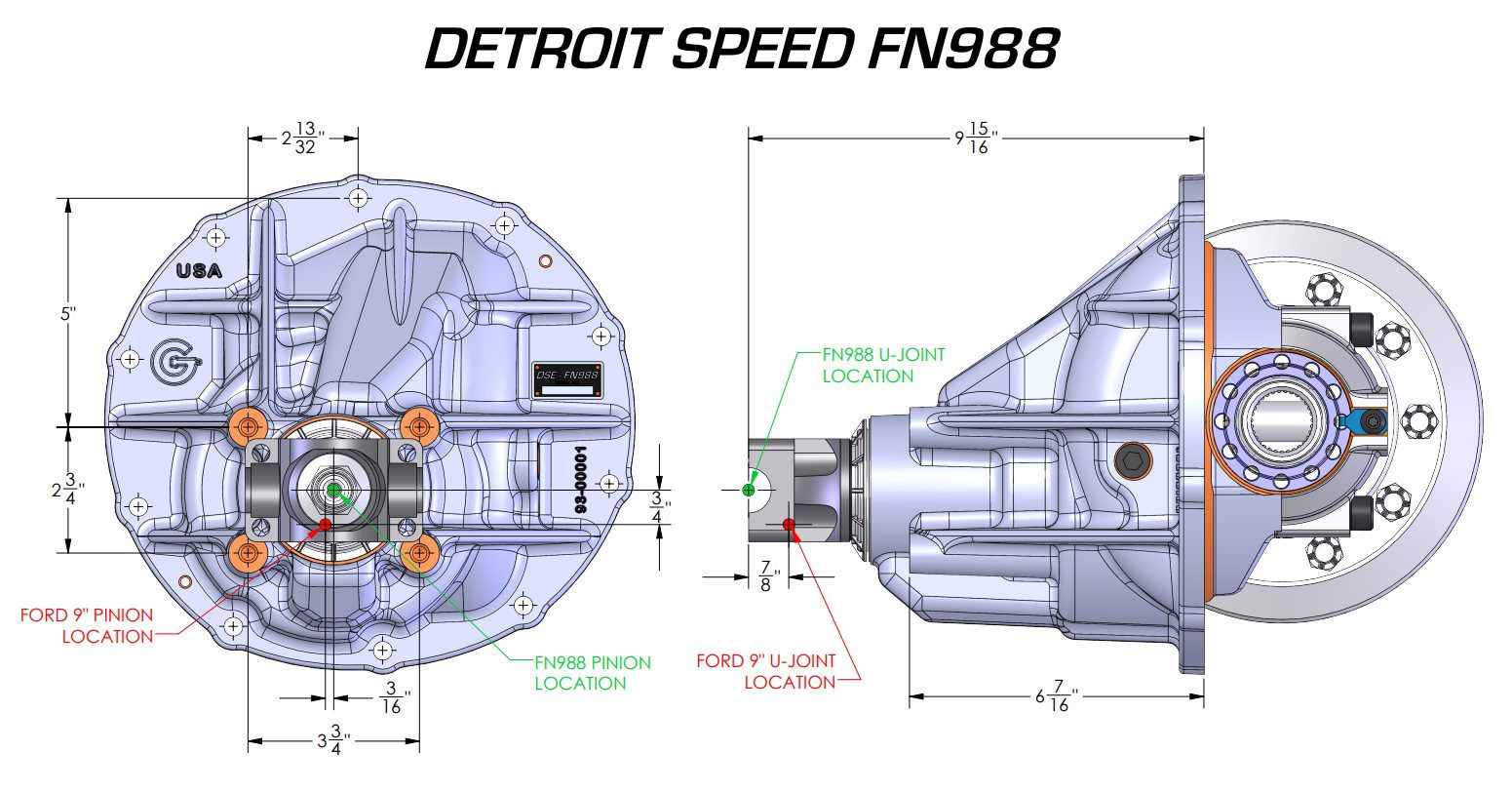

*FN988 specific axles will be necessary and driveshaft will need to be shortened.

• Patent-pending design utilizes an 8.8 gear set, which is quieter and more efficient than standard 9-inch components

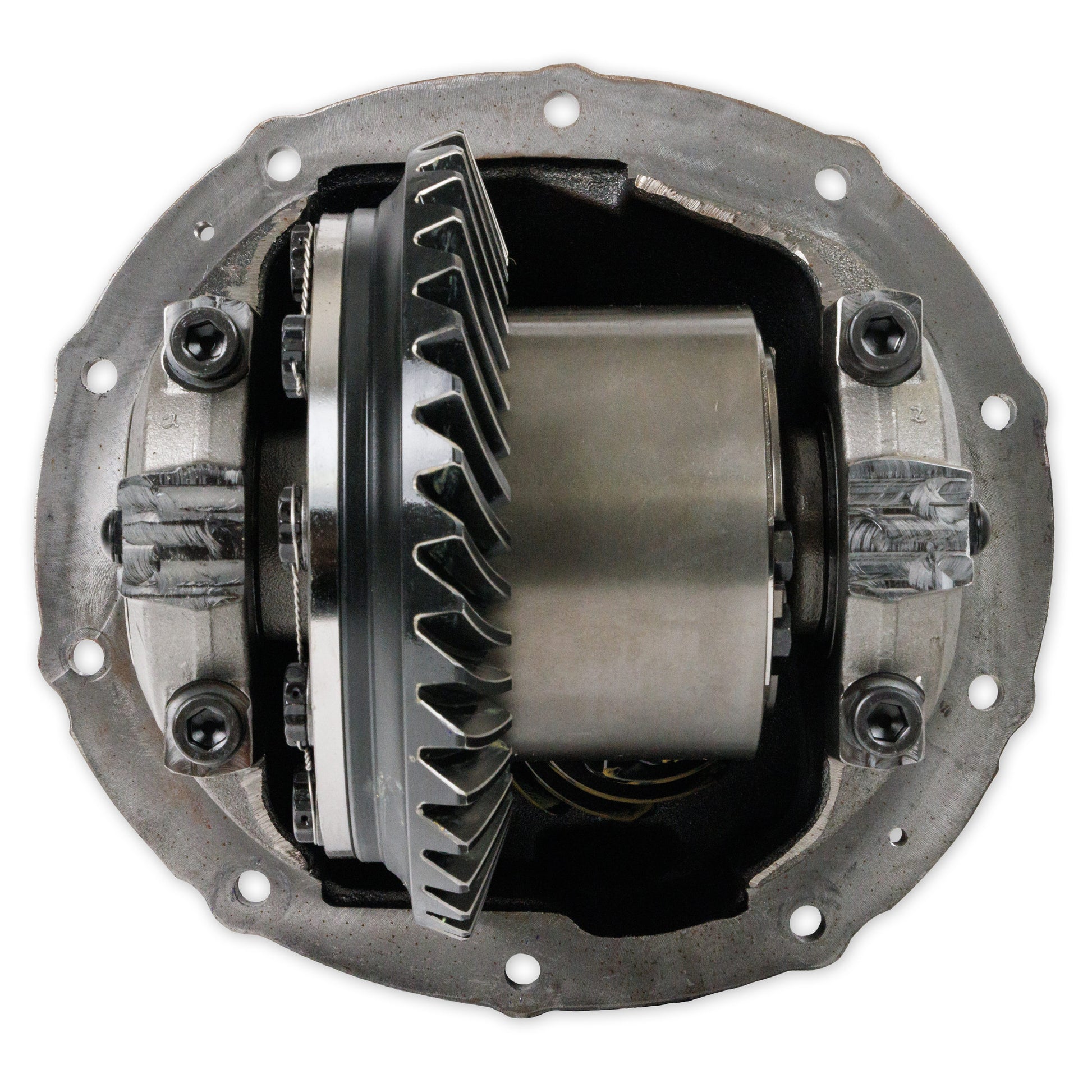

• 31-spline Eaton Truetrac 8.8-inch differential
• Available in the following gear ratios: 3.08, 3.27, 3.55, 3.73, and 4.10
• Continous lubrication of pinion bearings provided by internal oil channels

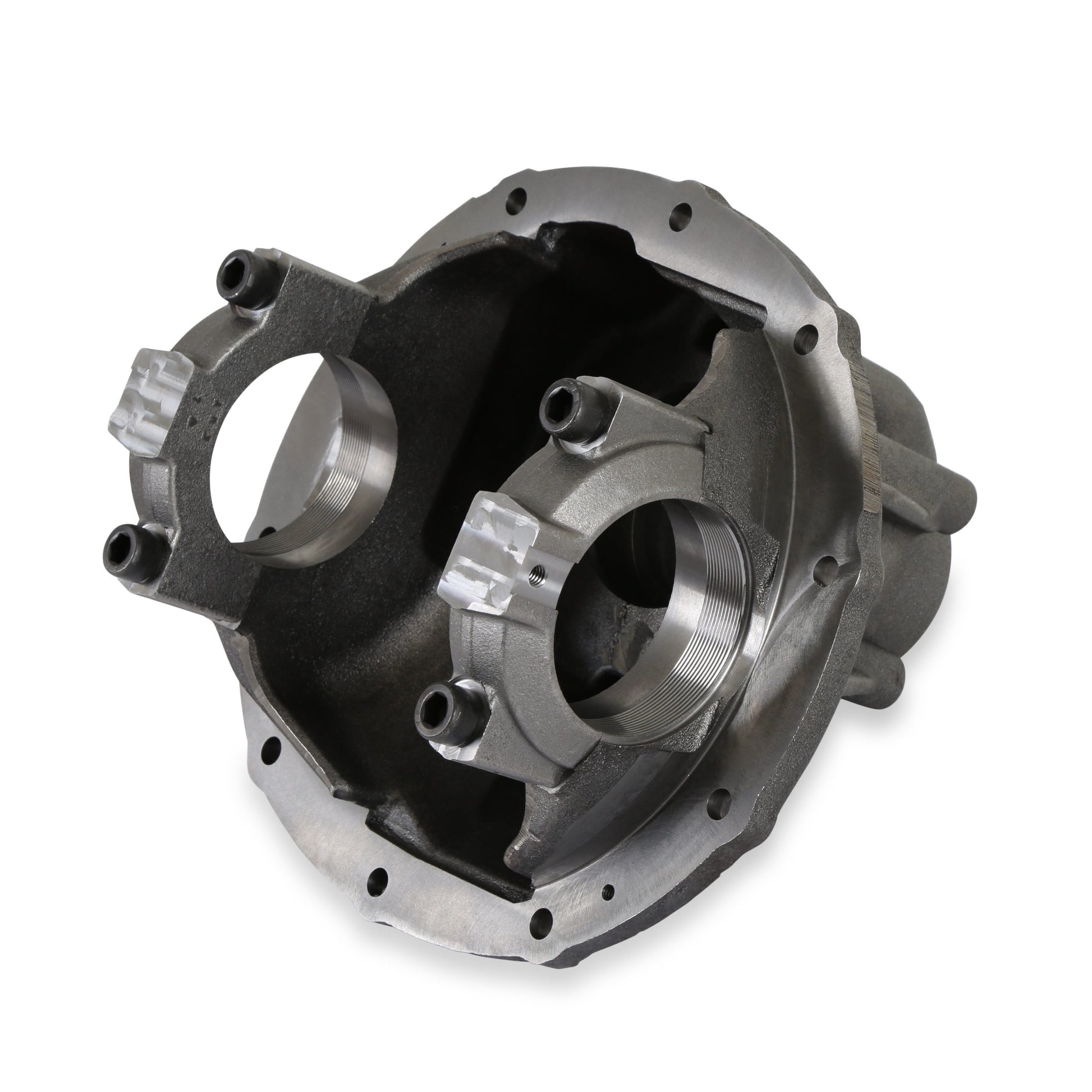

• High-strength nodular cast iron case

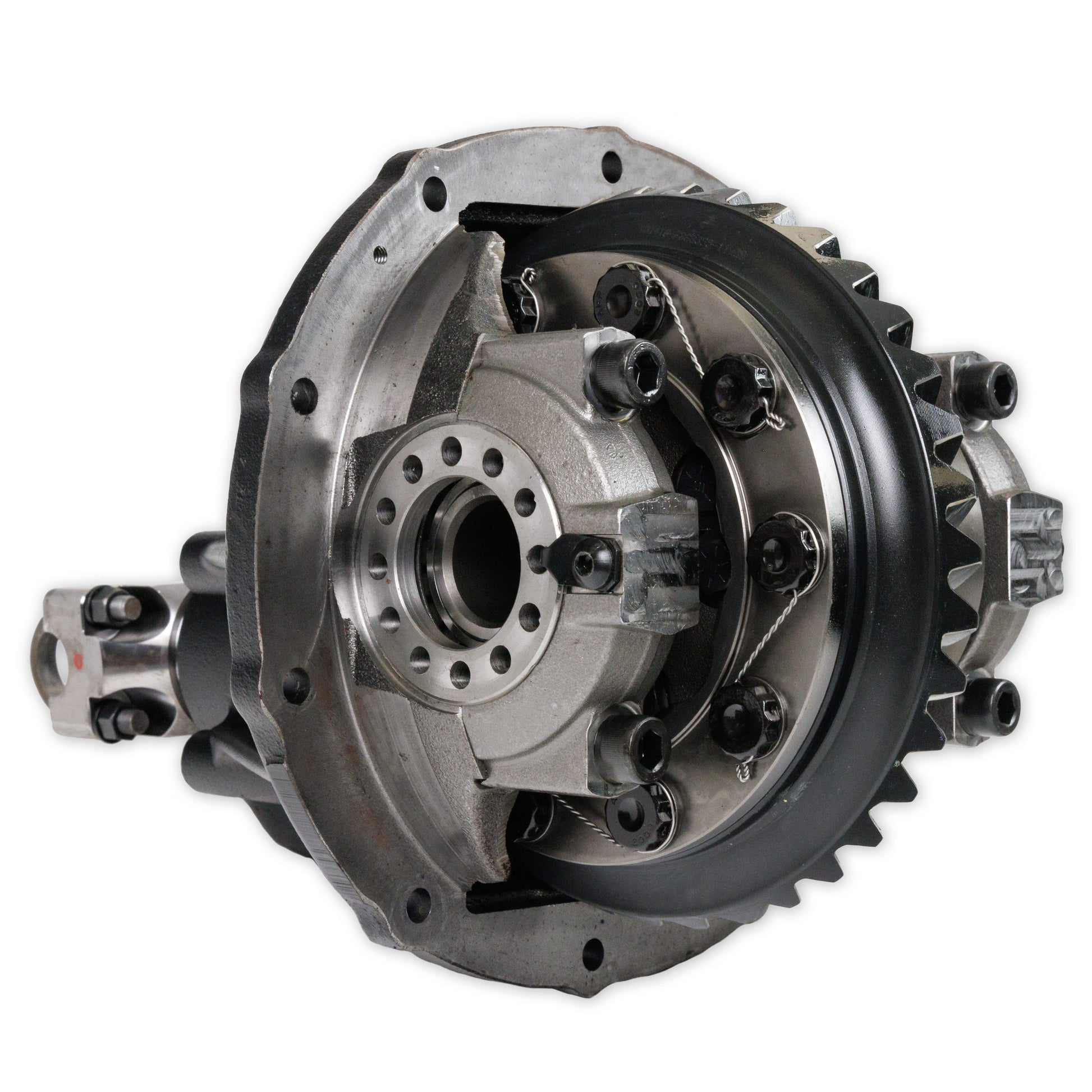

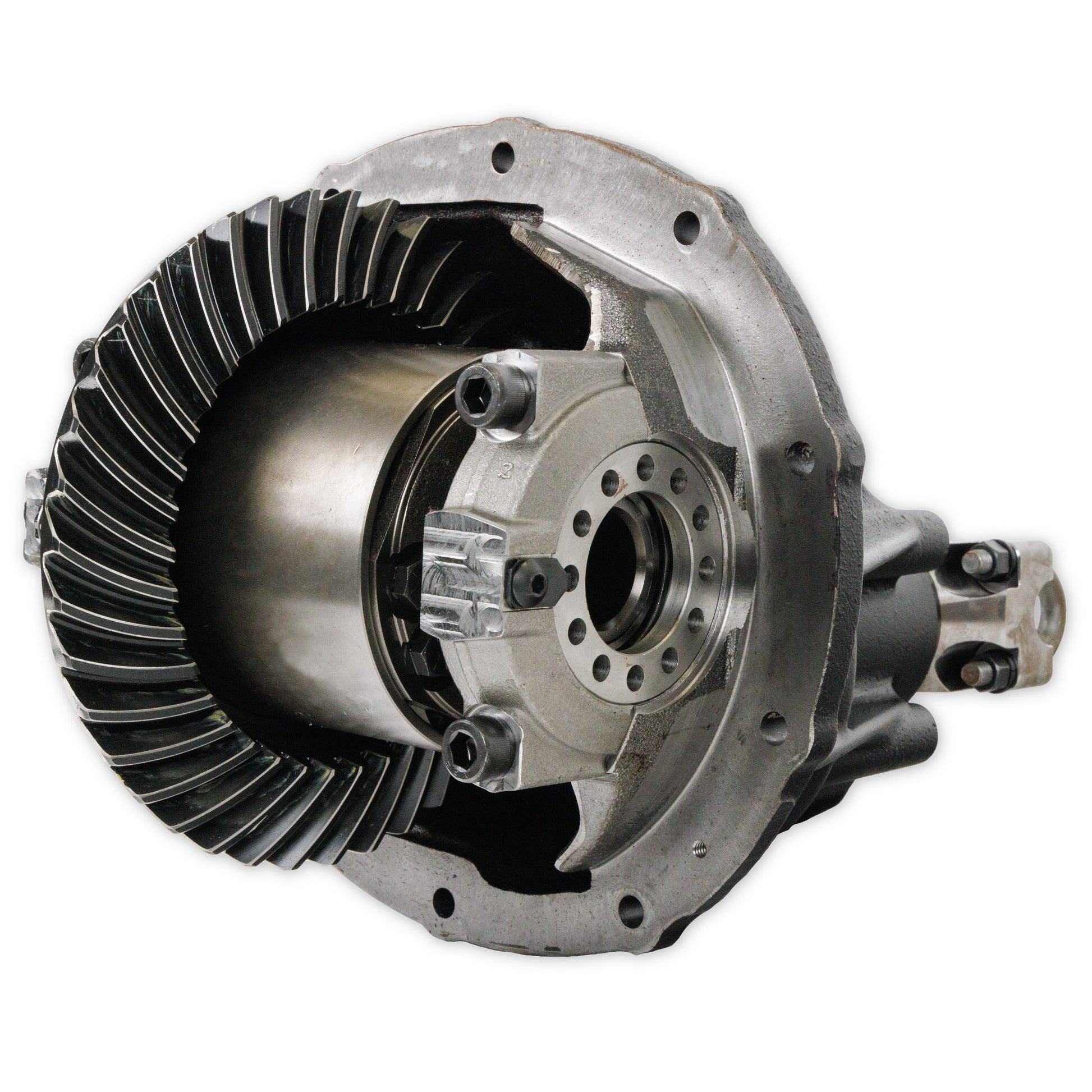

• Premium ring & pinion utilizing ARP ring bolts with safety wire
• Solid Pinion Preload Spacer
• Forged alloy steel carrier bearing caps

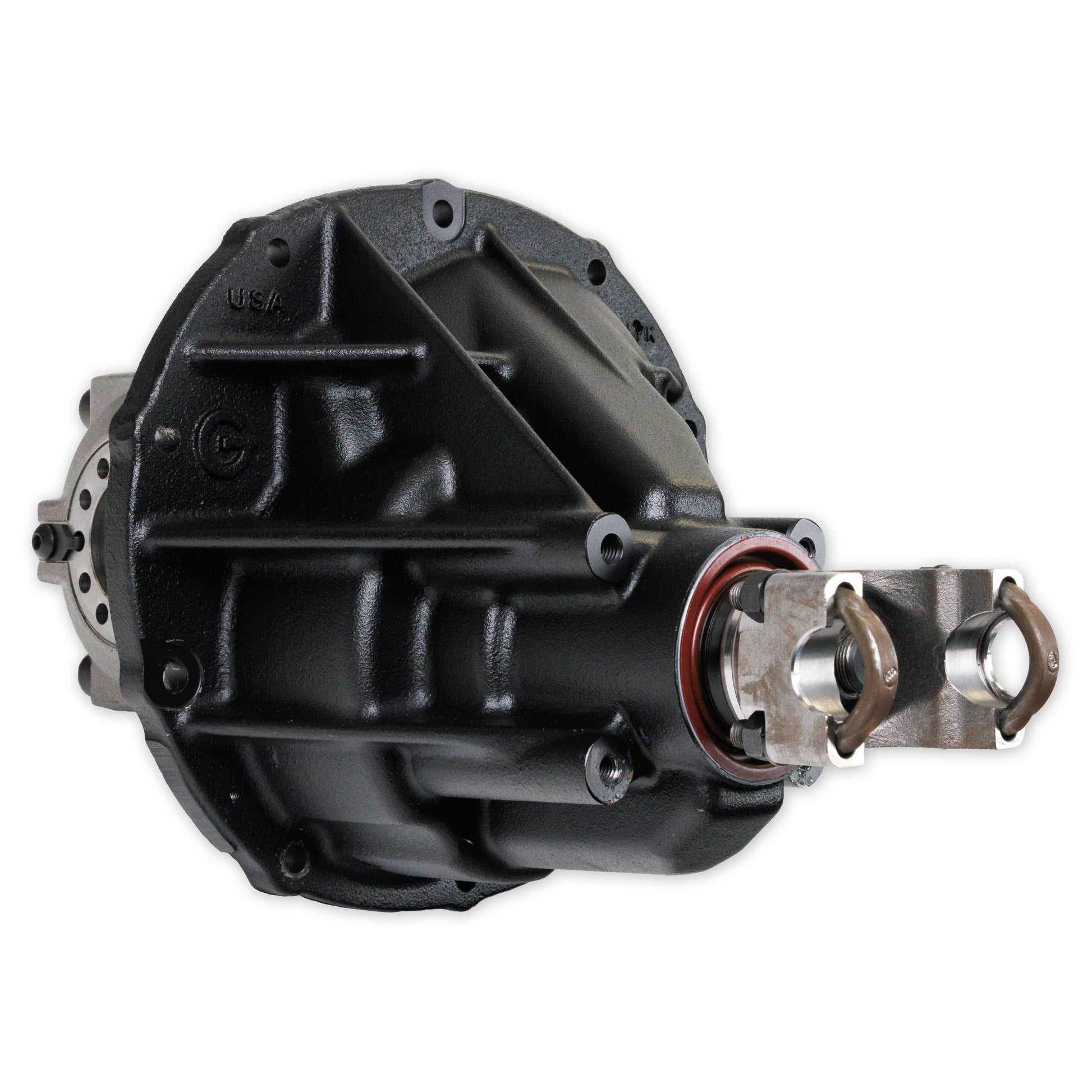

• 1350 forged steel pinion yoke with U-bolt kit

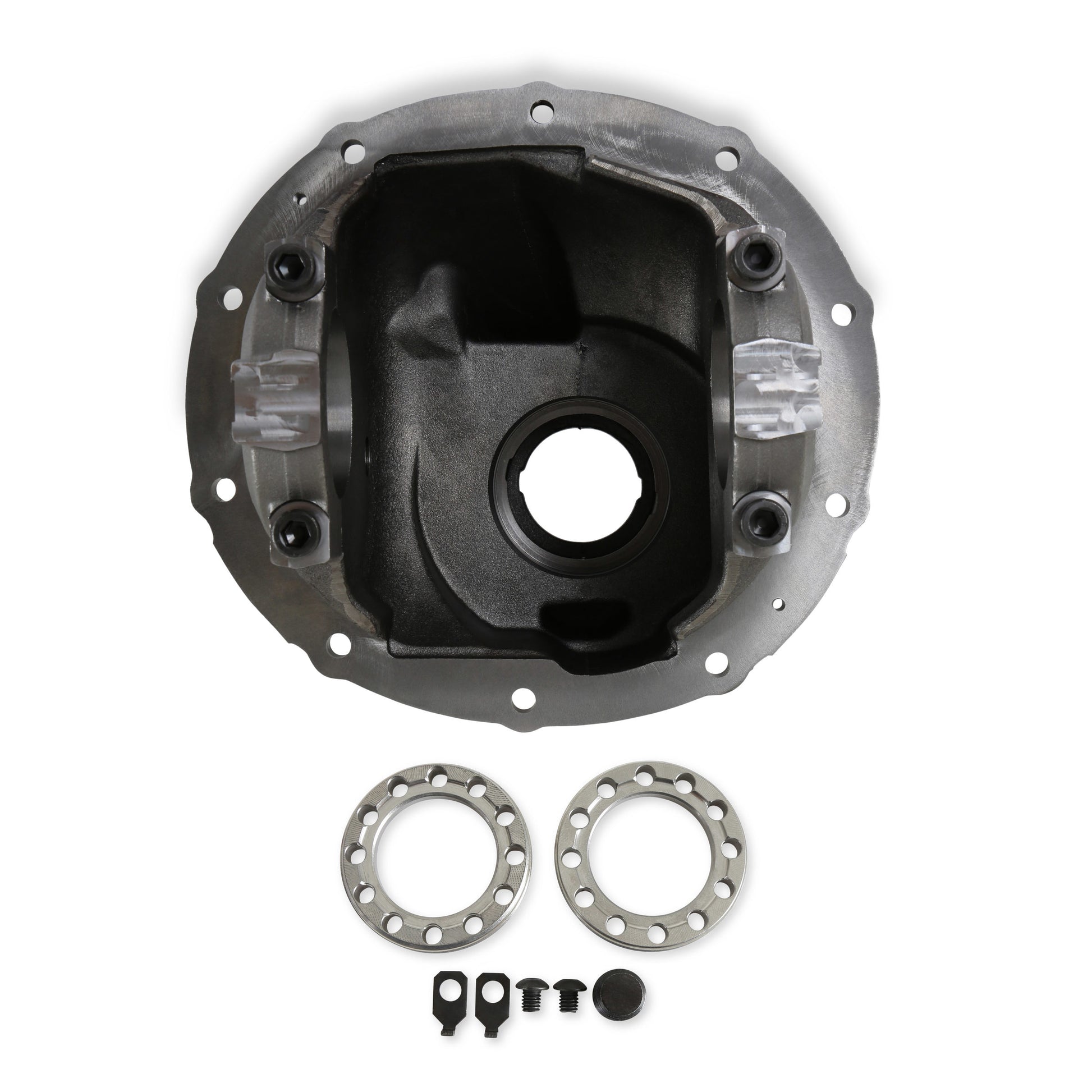

• Threaded jack bolt holes in mounting flange ease case removal from axle housing
• Case includes mounting holes for bolt-on accessories
• Designed and engineered at DSE and made in USA
