DECKED - DCG1000-6348
Full-size truck or cargo van - 1,000 LB capacity
CargoGlide Truck Bed Slide; 63 x 48 in.; 70 Percent Extension; 1000 lbs. Capacity;
The toughest and most durable bed slide on the market. Built from heavy gauge, powder coated American steel and industrial grade marine plywood (coated with a thermoplastic top sheet), the CargoGlide truck bed slide can take all of the use and abuse of the jobsite and the environment. Load it up with compressors, welders, tool boxes, you name it. All of your work items slide right out to you every time.
- All-new DECKED design and badging.

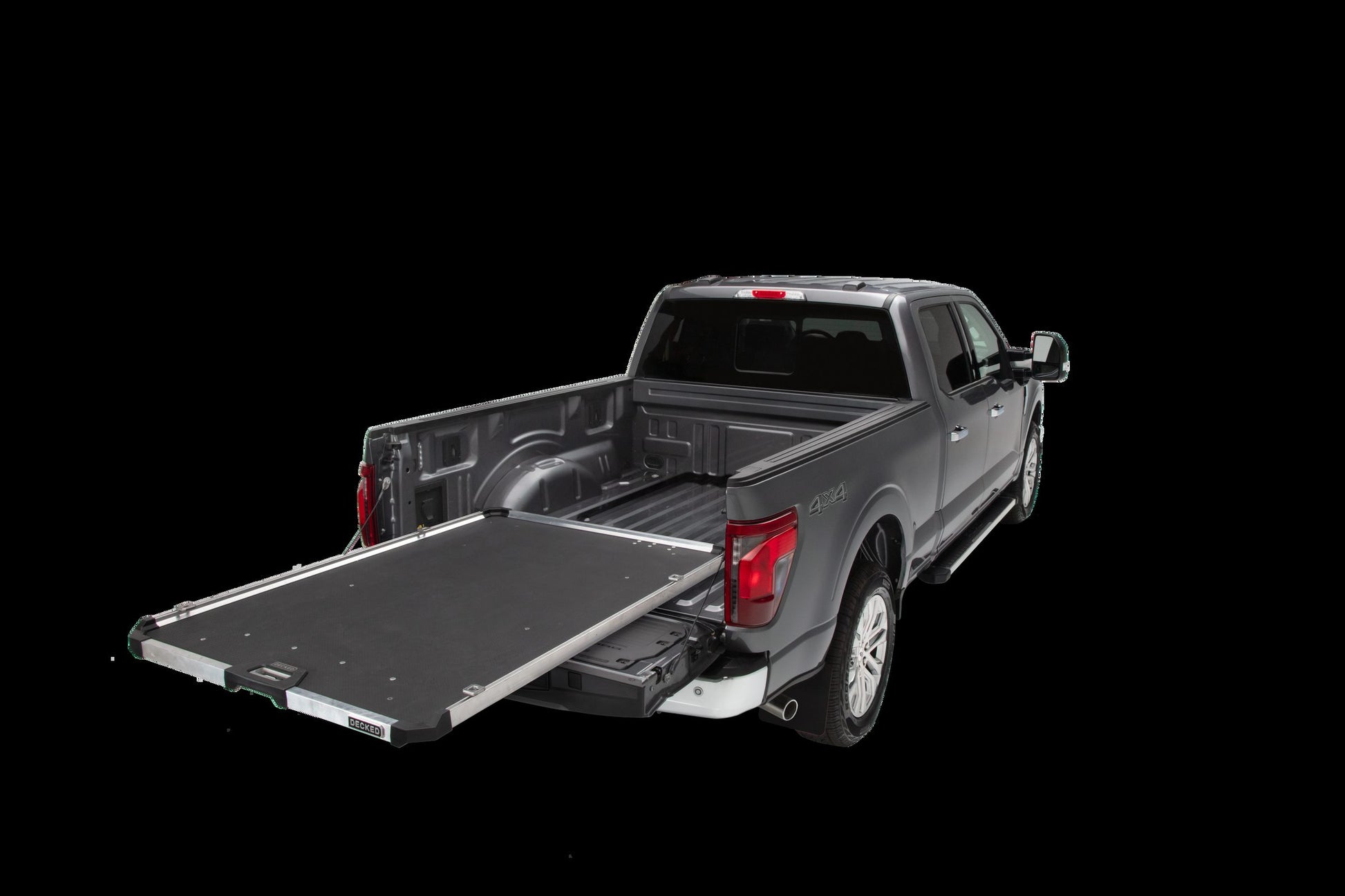

- 75% extension for up to 13" over Legacy's 70%.

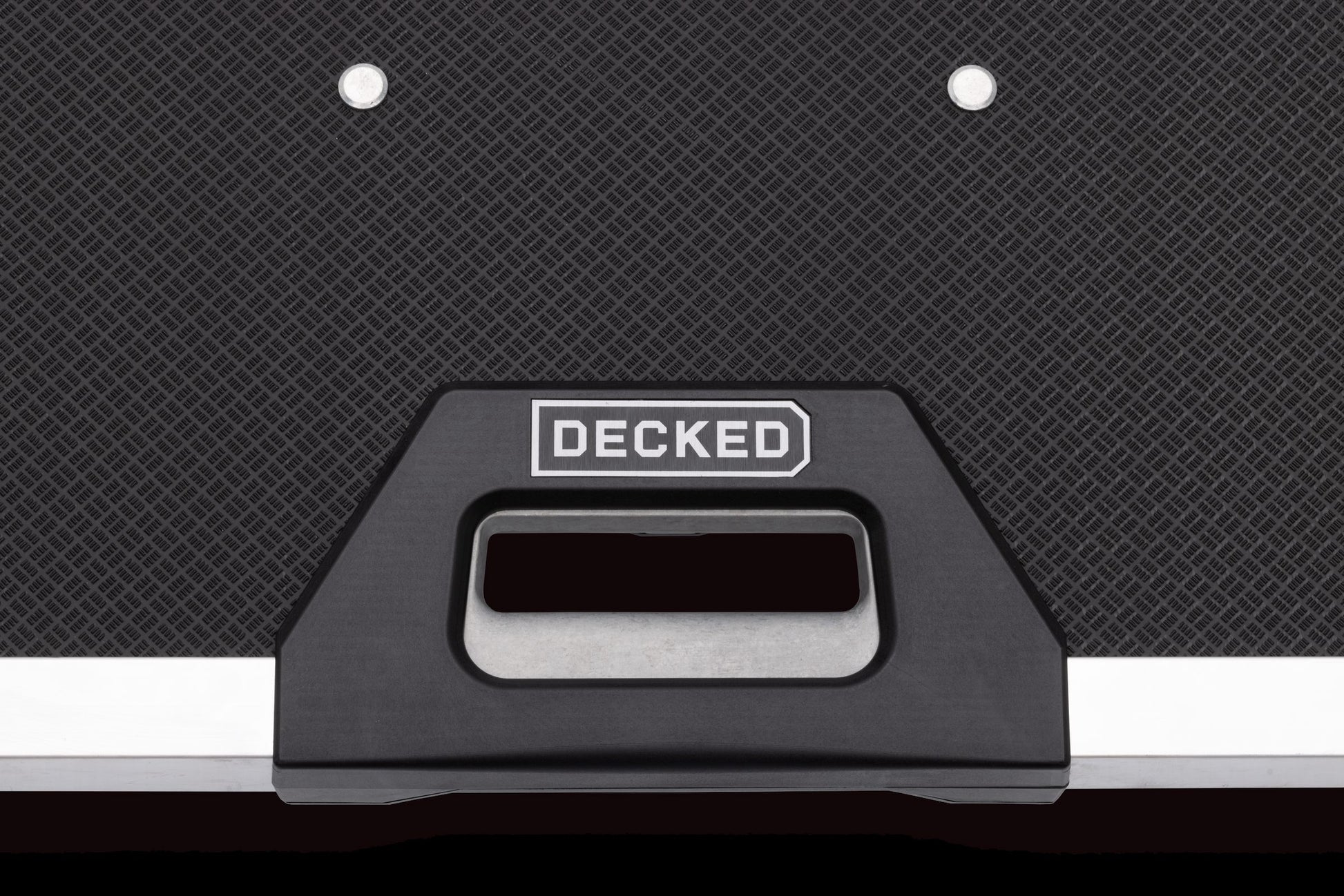

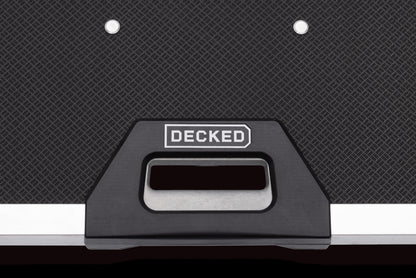

- New grab-and-pull handle for intuitive operation.
- Lower deck height at 3.9", lower overall height at 5.1".

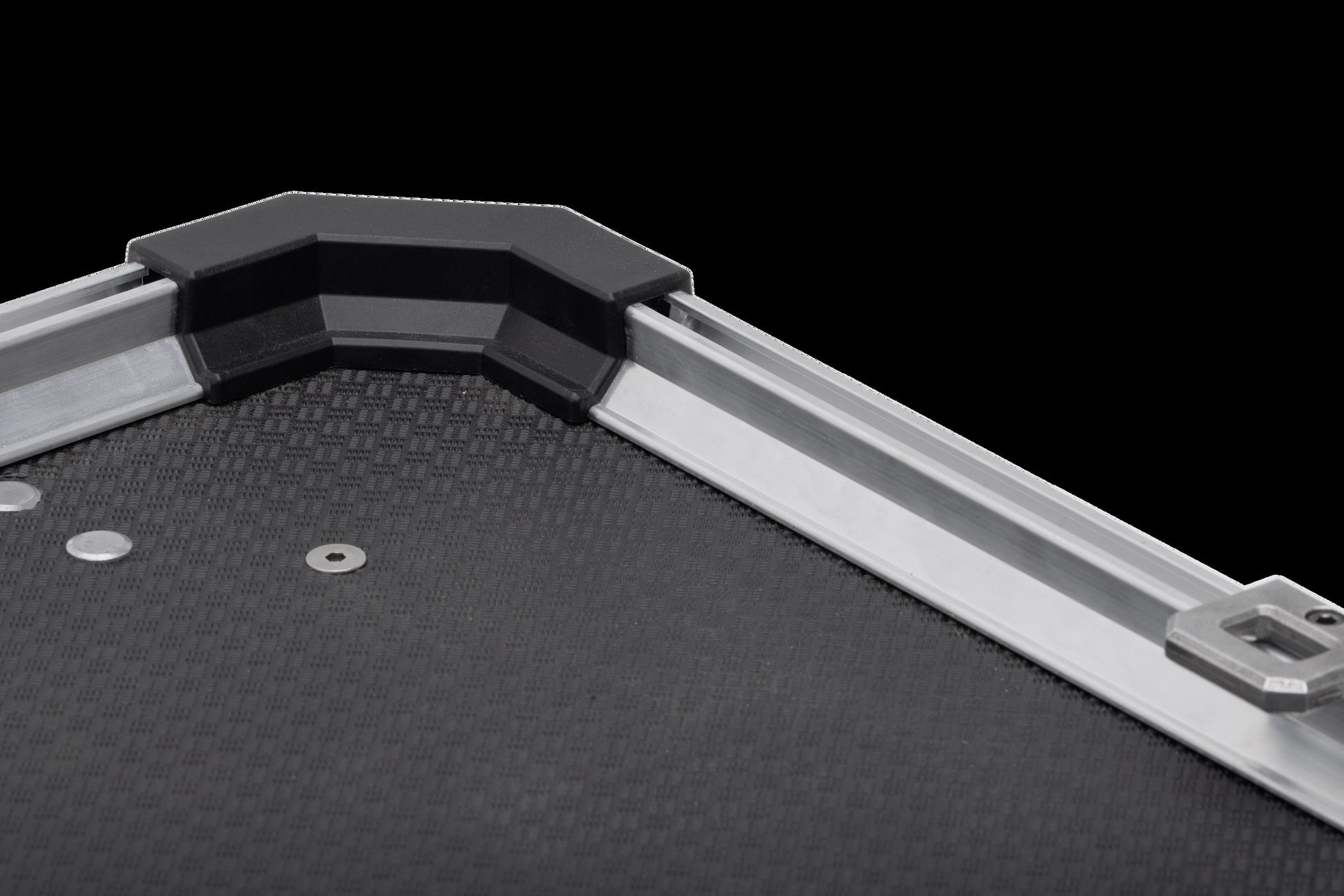

- Molded corners eliminate snag points.
- Easy pull stays flat across full travel, compared to ramp-up on competition.
- Upward facing T-slot accessory channels for unobstructed access.
- Available for Maverick; midsize short and long; full-size short, standard, and long.

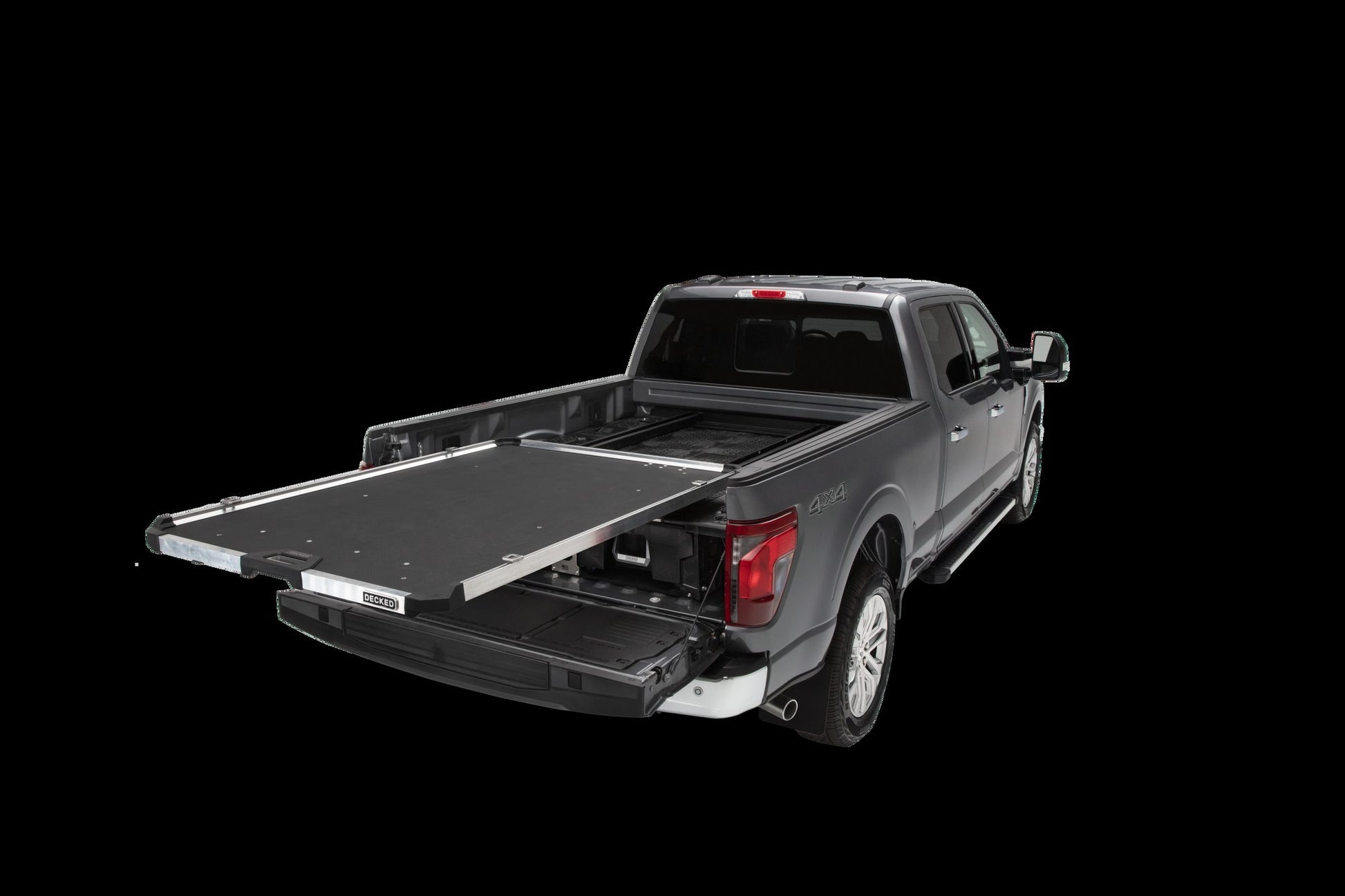

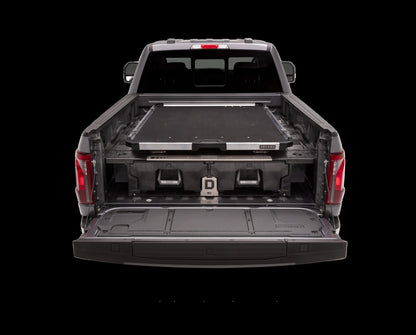

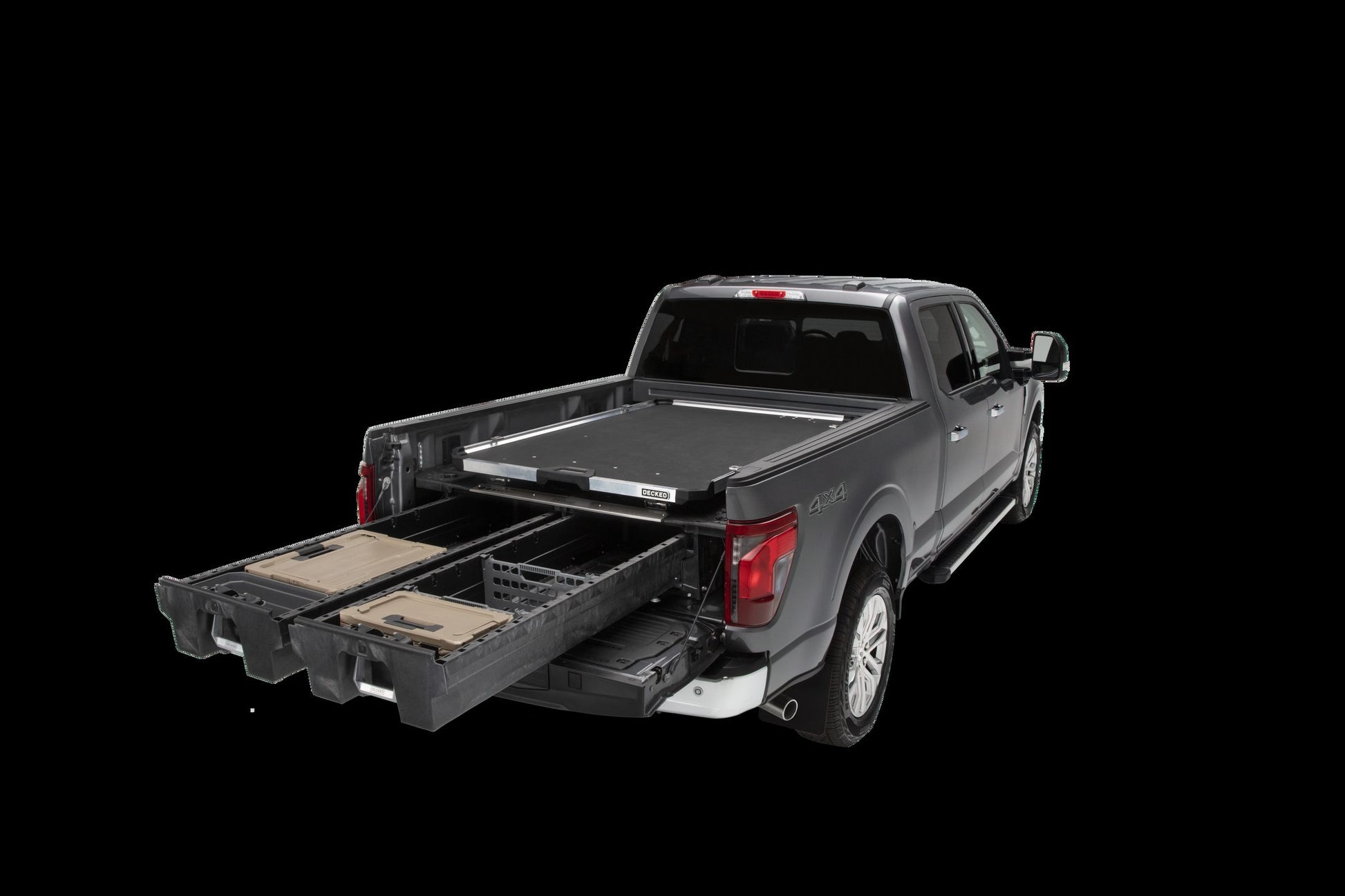

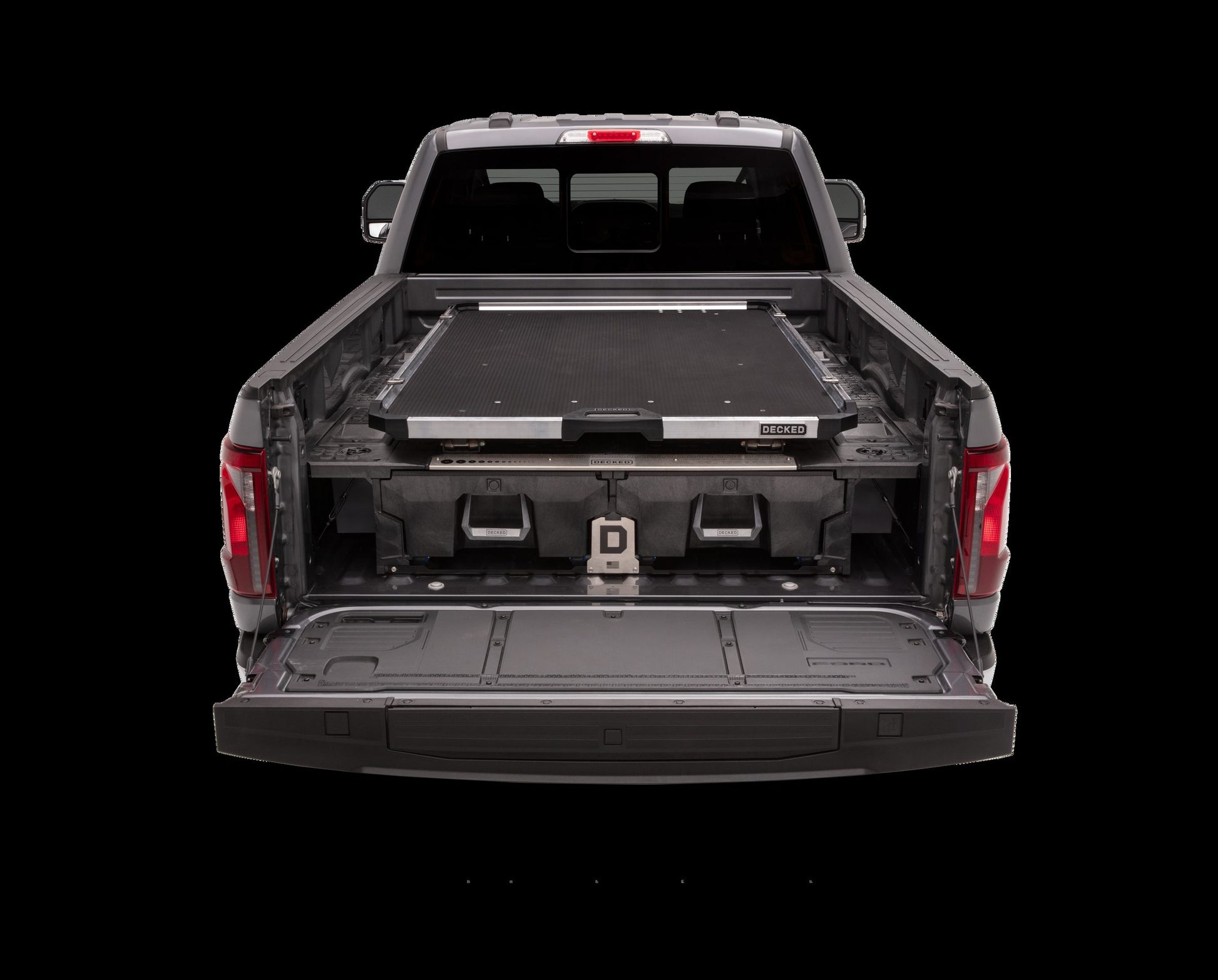

- Seamless DECKED Drawer System integration with simple bracket kit.
Add-On: CGSL-1; CGSL-2; CGCTTD-4; CGCLTD-4; CGCD-6-48; CGBikeRail-1;
Bearings: 6
Color: Black
Compatible Bolt-Through Install Kit: CGIK-ALUM4
Compatible Deck Coating Options: CGPCDECK; CGSPRAYDECK
Compatible Deck Material Options: CGALMD-1; CGSTLD-1; CGALMD-1-DIAMOND; CGSTLD-1-DIAMOND
Compatible Plus Nut Install Kit: CGIK-SB
Compatible Whale Tail Deck Option: CGWT-2
Deck Height: 3.9 in.
Depth: 63 in.
LTL Class: 125
Material: Steel
NMFC: 18260-05
Payload - MAX: 2392 lbs
Payload - MIN: 1764 lbs
Product Height: 5.2 in.
Product Length: 62.7 in.
Product Weight: 128 lbs.
Product Width: 48.7 in.
Spacer Kit: CGHTADJ
Style: Slide Out Cargo Tray
Total Height: 5.2 in.
Type: Cargo Carrier
