Dart 41616010 - Big Block Chevy 8.1 Liter Manifolds
Dart 41616010 - Big Block Chevy 8.1 Liter Manifolds
SKU: BGWK-41616010
Regular price
$814.95 USD
Regular price
$857.84 USD
Sale price
$814.95 USD
Shipping calculated at checkout.
5 in stock
Quantity
Couldn't load pickup availability

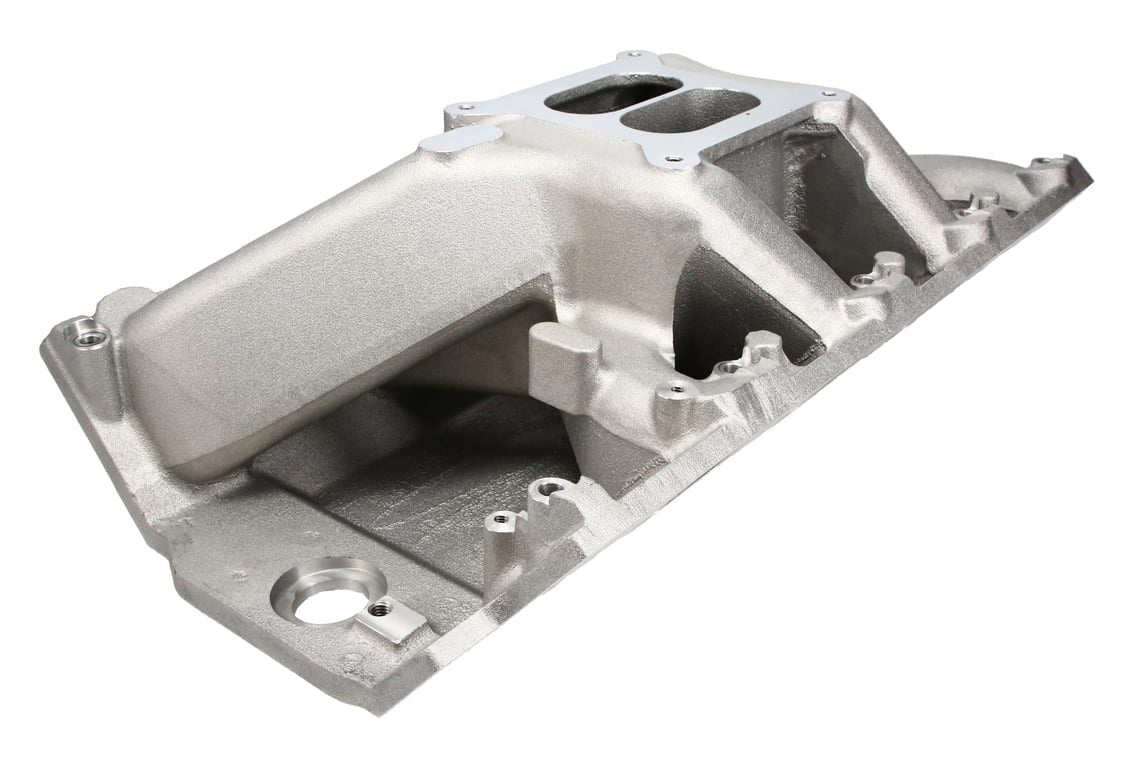

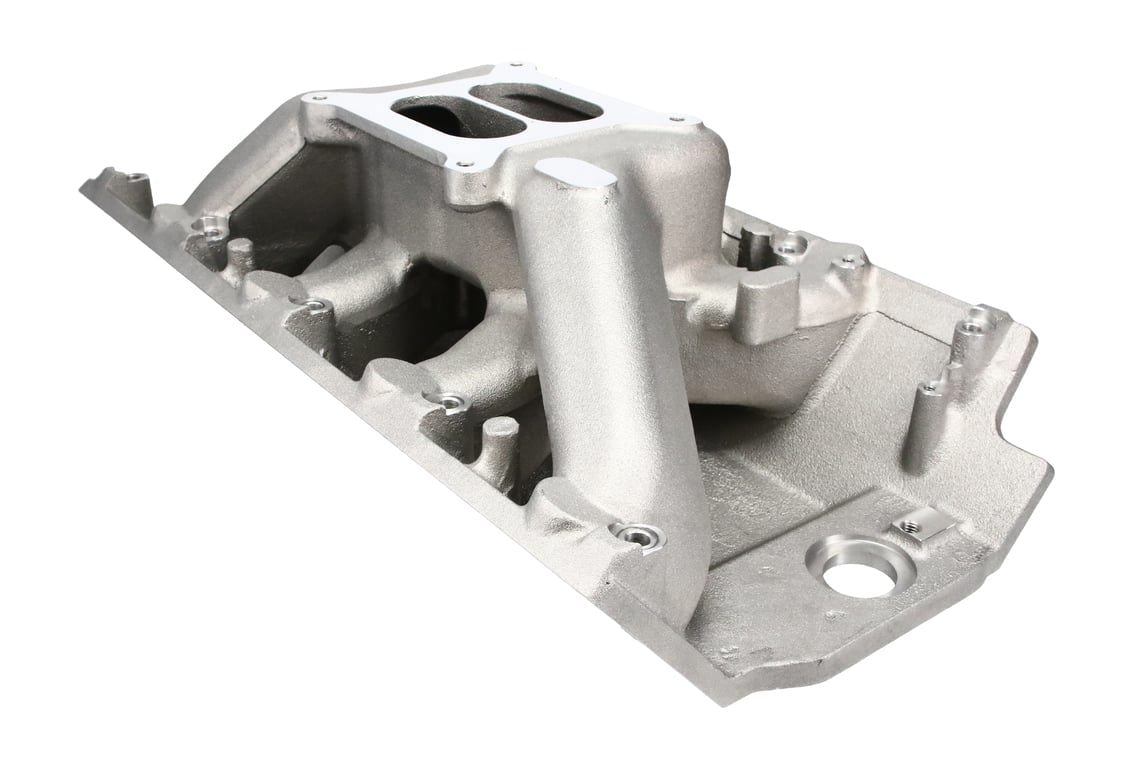

Dart 41616010 - Big Block Chevy 8.1 Liter Manifolds
Intake Manifold - Square Bore - Dual Plane - Cathedral Port - Aluminum - Natural - Standard Deck - 8.1 L - Big Block Chevy - Each
Dart Big Block Chevy 8.1 Liter Manifolds
An engine's cylinder heads and intake manifold must work together as an integrated system to produce maximum performance. The intake charge should make a seamless transition from the manifold runners to the cylinder head ports. Dart has accomplished this in every intake manifold we make.
Industry: Automotive
Carburetor Flange: 4150
Deck Height: 10.236
Manifold Flange Thickness: 0.435
Material: Aluminum
Port Height: 3.190
Port Style: Cathedral
Port Width: 1.420
Single Or Dual Plane Type: Dual Plane
Engine Type: ICE
Product Type: Engine Intake Manifold
Make: Chevrolet
Engine: Big Block
Cylinder Head Port Shape: Cathedral
Manifold Port Shape: Cathedral
Intake Manifold Material: Aluminum
Mounting Flange Thickness: 0.435
