Dart 19200116 - Pro1 Aluminum Big Block Chevy Cylinder Heads

Dart 19200116 - Pro1 Aluminum Big Block Chevy Cylinder Heads

Dart | 19200116
SKU: BGWK-19200116
Regular price $2,337.08 USD
Regular price $2,460.08 USD Sale price $2,337.08 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

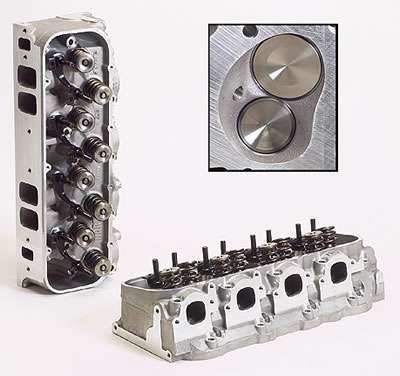

Dart 19200116 - Pro1 Aluminum Big Block Chevy Cylinder Heads

Cylinder Head - Pro 1 - Assembled - 2.250 / 1.880 in Valves - 325 cc Intake - 121 cc Chamber - 1.625 in Springs - Straight Plug - Aluminum - Big Block Chevy - Each

Dart Pro1 Aluminum Big Block Chevy Cylinder Heads

Serious street performance, mild bracket racing, and marine. Over 7,000 RPM, 525+ cubic inches. Can be used on smaller engines with a tight converter. The PRO1 24 Deg 325cc delivers increased airflow at high valve lift for high RPM, big cubic inch engines, and still remains compatible with off the shelf pistons, valve train components, and intake manifolds. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Best of all, our precision cast ports produce outstanding airflow without time consuming porting. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.

  • Heads are sold individually
Industry: Automotive
CNC Ported: Yes
Combustion Chamber Volume: 121.00
Exhaust Valve Diameter: 1.880
Intake Valve Diameter: 2.250
Material: RMR Cast Aluminum Alloy
Port Volume: 325.00
Valve Angle: 24
Valve Spring Diameter: 1.625
Valve Spring Maximum Lift: 0.850
Engine Type: ICE
Valve Spring Type: Double
Product Type: Engine Cylinder Head
Make: Chevrolet
Engine: Big Block
Cylinder Head Series: Pro1
Cylinder Head Material: RMR Cast Aluminum Alloy
Intake Runner Volume: 325.00
