Dart 128221 - SBF SHP 175cc Cylinder Head - 1.250 Assembled
Dart 128221 - SBF SHP 175cc Cylinder Head - 1.250 Assembled
SKU: BGWK-128221
Regular price
$599.99 USD
Regular price
$631.57 USD
Sale price
$599.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Dart 128221 - SBF SHP 175cc Cylinder Head - 1.250 Assembled

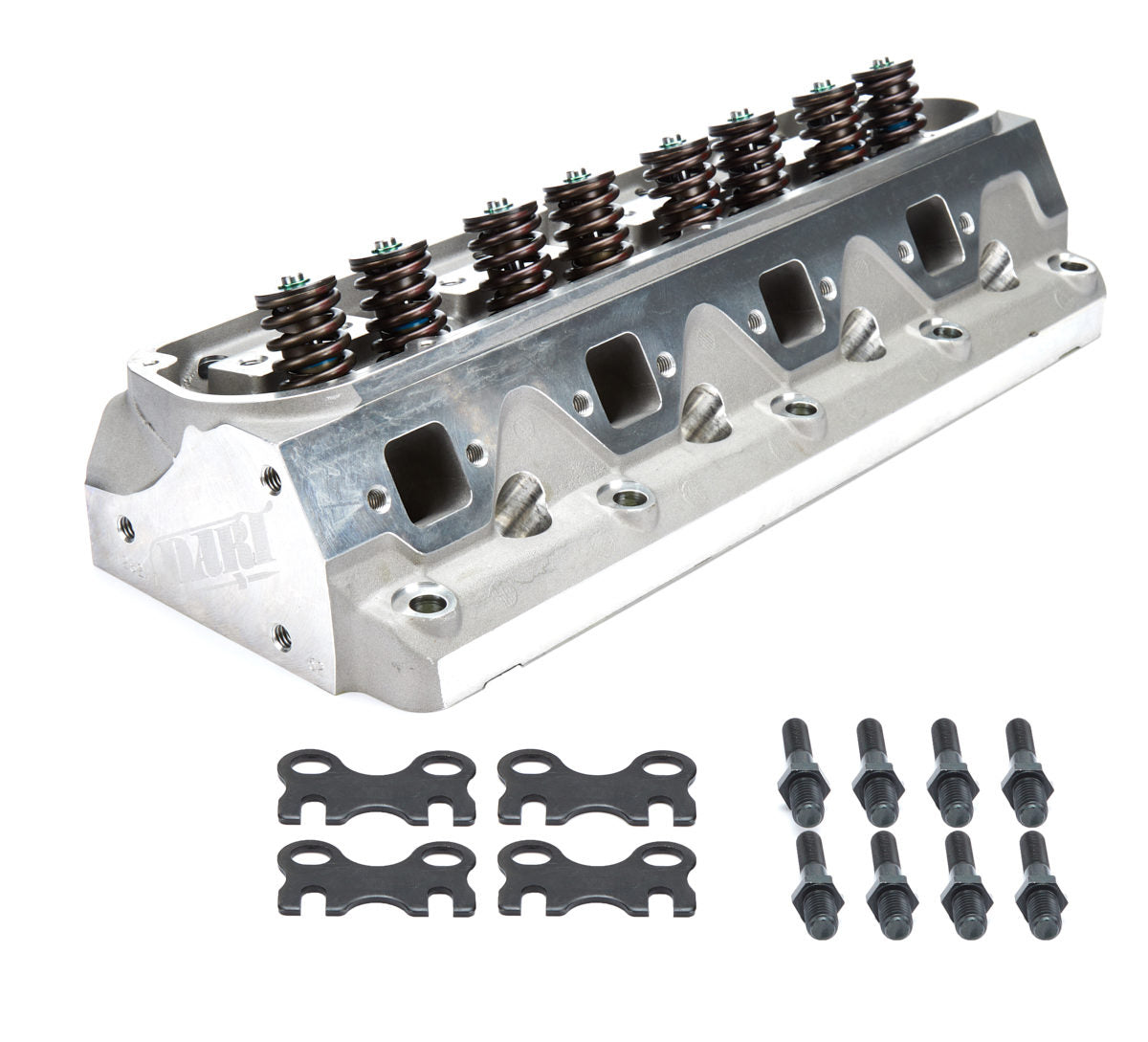

Cylinder Head - SHP - Assembled - 2.020 in / 1.600 in Valves - 175 cc Intake - 62 cc Chamber - 1.250 in Springs - Angle Plug - Aluminum - Small Block Ford - Each
SBF SHP 175cc Cylinder Head - 1.250 Assembled
Excellent street, strip, oval track, truck or marine performance upgrade. Maximum torque and throttle response from idle to 6,000 RPM. Best for 302-427 cubic inch engines. Works with most standard components.
Industry: Automotive
CNC Ported: No
Combustion Chamber Volume: 62.00
Exhaust Valve Diameter: 1.600
Intake Valve Diameter: 2.020
Material: Cast Aluminum
Port Height: Standard
Port Location: Standard
Port Style: Rectangle
Port Volume: 175.00
Valve Angle: 20
Valve Spring Diameter: 1.250
Valve Spring Maximum Lift: 0.510
Engine Type: ICE
Valve Spring Type: Single
Product Type: Engine Cylinder Head
Make: Ford
Engine: 302/351
Make - Web: Ford
Engine - Web: 302/351
Cylinder Head Series: SHP
Title - Web: SBF SHP 175cc Cylinder Head - 1.250 Assembled
Category Hierarchy: Heads>Small Block Ford>SHP
Product Market: Domestic
Engine Family: Small Block
Intake Runner Volume: 175.00
EBAY Category ID: 33617
