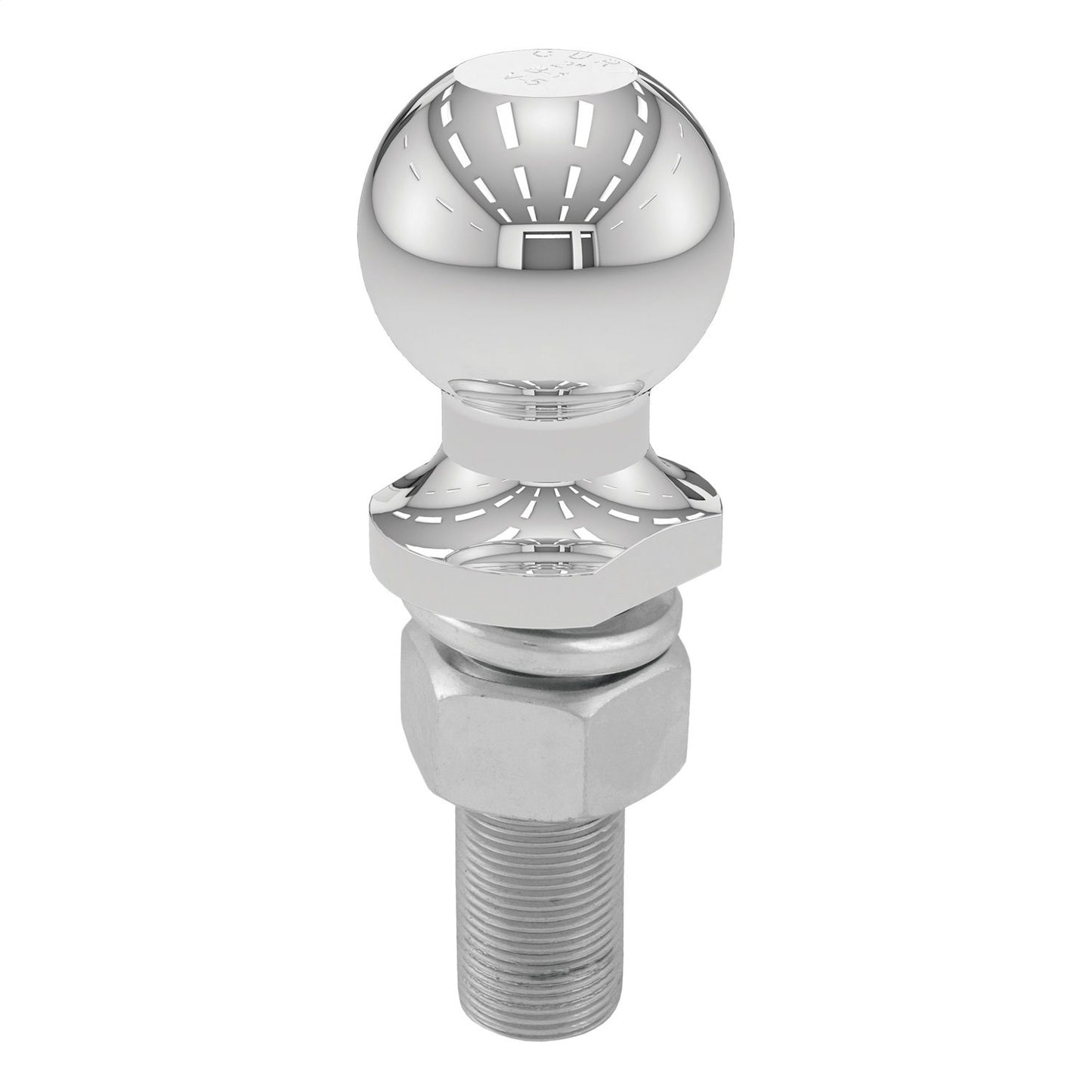

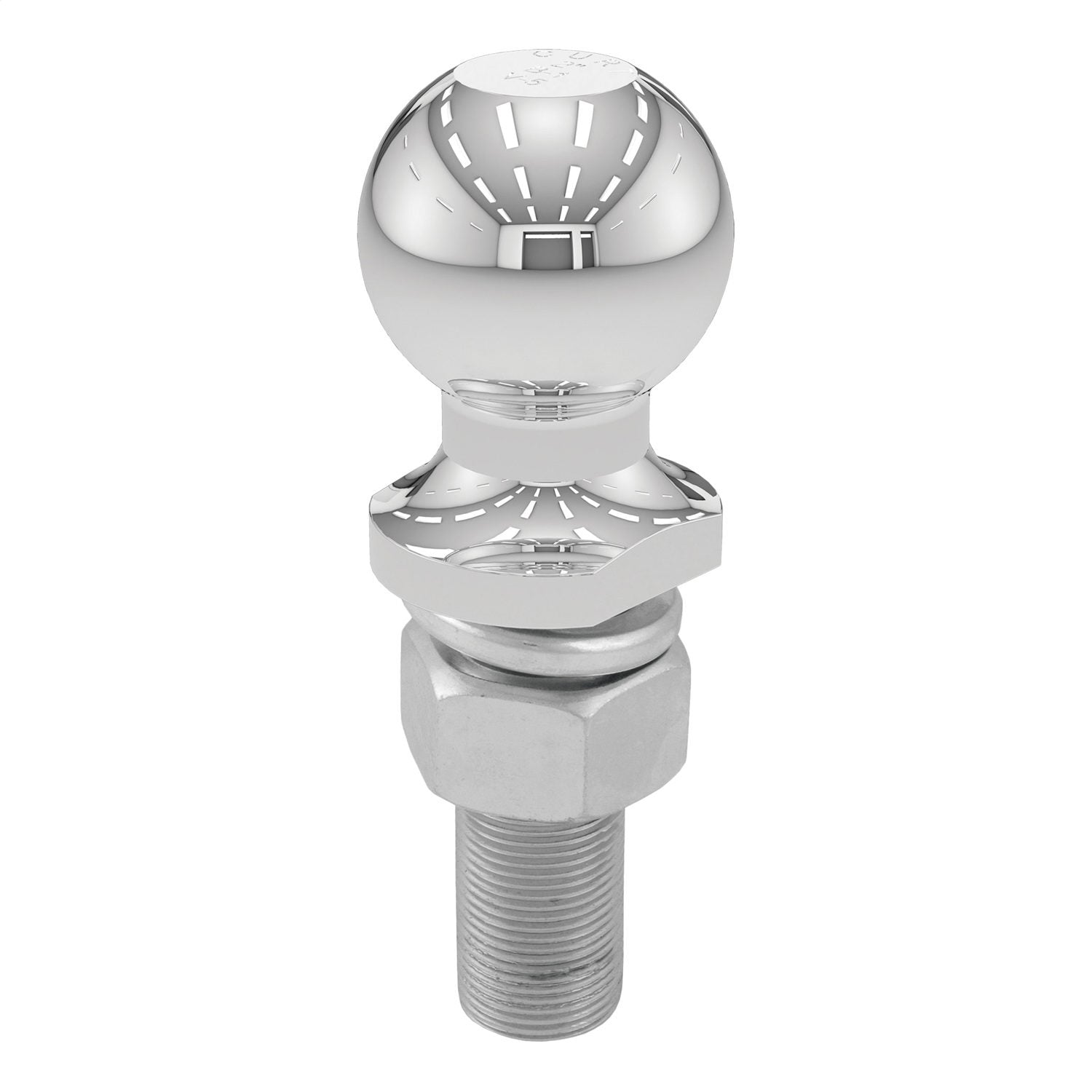

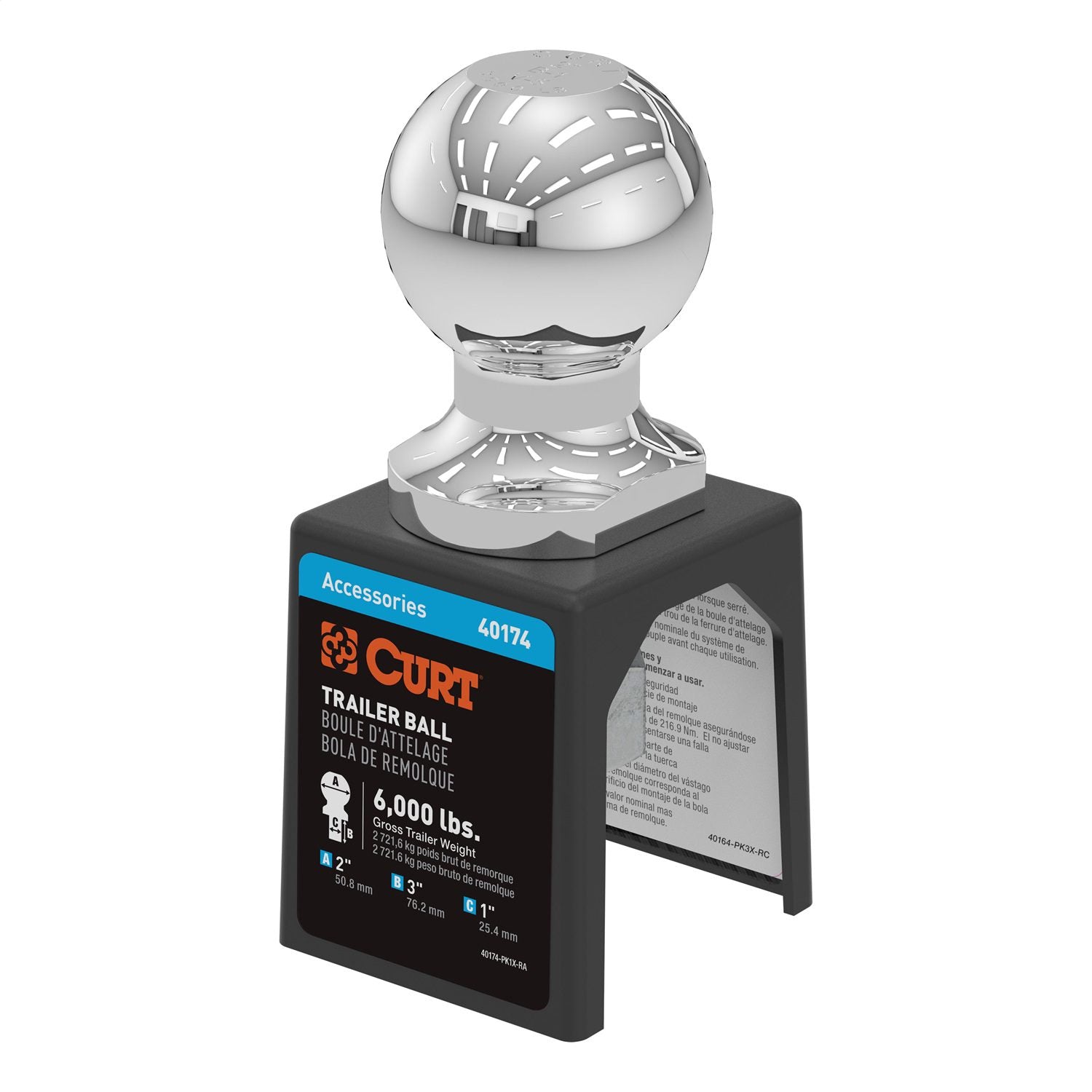

CURT 40174 - 2" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged)

CURT 40174 - 2" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged)

CURT | 40174
SKU: CURT-40174
Regular price $31.99 USD
Regular price $35.19 USD Sale price $31.99 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

Quantity

CURT 40174 - 2" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged)

2in. Trailer Ball (1in. x 3in. Shank; 6;000 lbs.; Chrome; Packaged)

CURT 40174 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 3-Inch Shank

Out of the monotony comes one name that rises above all others. CURT trailer balls are designed for strength, ease of use and, ultimately, to get you to your destination without hassle. CURT 2 in. trailer hitch balls are constructed from quality steel and are made with precision to fit your 2 in. trailer coupler like a hand in a glove. They are able to tow most standard-duty and heavy-duty trailers such as utility trailers, boat trailers, campers, livestock trailers and recreational vehicle trailers for hauling ATVs, snowmobiles, personal watercraft and more. These tow balls are an excellent extension of your class 3 or class 4 trailer hitch and ball mount, and are the ideal choice for most pickup trucks and SUVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular 2 in. trailer ball offers a ball capacity of 6,000 lbs. It features a 1 in. shank diameter, a 3 in. shank length, 0 in. of rise and a nickel-chrome finish to protect against rust and scratches. With its fine-threaded shank, this 2 in. trailer ball also offers an added measure of holding strength and provides smooth installation and torqueing. To give you peace of mind while towing to that next destination, we also carefully test our trailer balls and ensure that each one meets U.S. VESC specifications.

  • Fits 2 in. Couplers And Accepts Up To 6000 Lbs. GTW
  • Constructed From High Strength Hot Forged Steel
  • Protected By A Durable Chrome Plated Finish
  • Zinc Plated Hex Nut And Helical Lock Washer For Secure Mounting
  • Features Fine Threads For Superior Holding Strength
  • Tested For Safety To Meet US VESC V5 Specifications
  • Limited Lifetime Warranty
  • The Mounting Platform Must Be At Least 3/8 in. Thick
  • The Hole Size Must Not Be More Than 1/16 in. Larger In Diameter Than The Threaded Shank
Rate Class - XA: 60.0
Retail Height - XA: 3.000
Retail Length - XA: 8.000
Retail Width - XA: 4.000
Sales Family Code - XA: ACCES
Sales Family Description - XA: ACCESSORIES
Sales Group Description - XA: TRAILER BALLS
Shank Diameter: 2 IN
Shank Length: 3 IN
Shipping Weight - XA: 2.200
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Ball Capacity: 6,000 LBS
Ball Diameter: 2 IN
Ball Finish: Chrome
Ball Material: Stainless Steel
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
Color: Chrome
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: Blank
Finish - XA: Blank
Heat Hardened: Yes
Interchangeable Ball: No
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Load Rating Class: III
Lock Washer Included: No
Master Case Height Inches - XA: 7.480
Master Case Inner Pack Qty - XA: 0
Master Case ITF14: 0
Master Case ITF14 - XA: 20612314058055
Master Case Length Inches - XA: 12.600
Master Case Qty - XA: 12
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 31.400
Master Case Width Inches - XA: 8.660
Material - XA: Carbon Steel
Mount Type Description - XA: Blank
Nut Included: No
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 48
Pallet Cases Per Layer - XA: 12
Pallet Layer of Cases - XA: 4
Pallet Qty - XA: 240.000
Pallet Total Height Inches - XA: 43.310
Pallet Total Weight Per - XA: 1562.200
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
