CURT - 16116

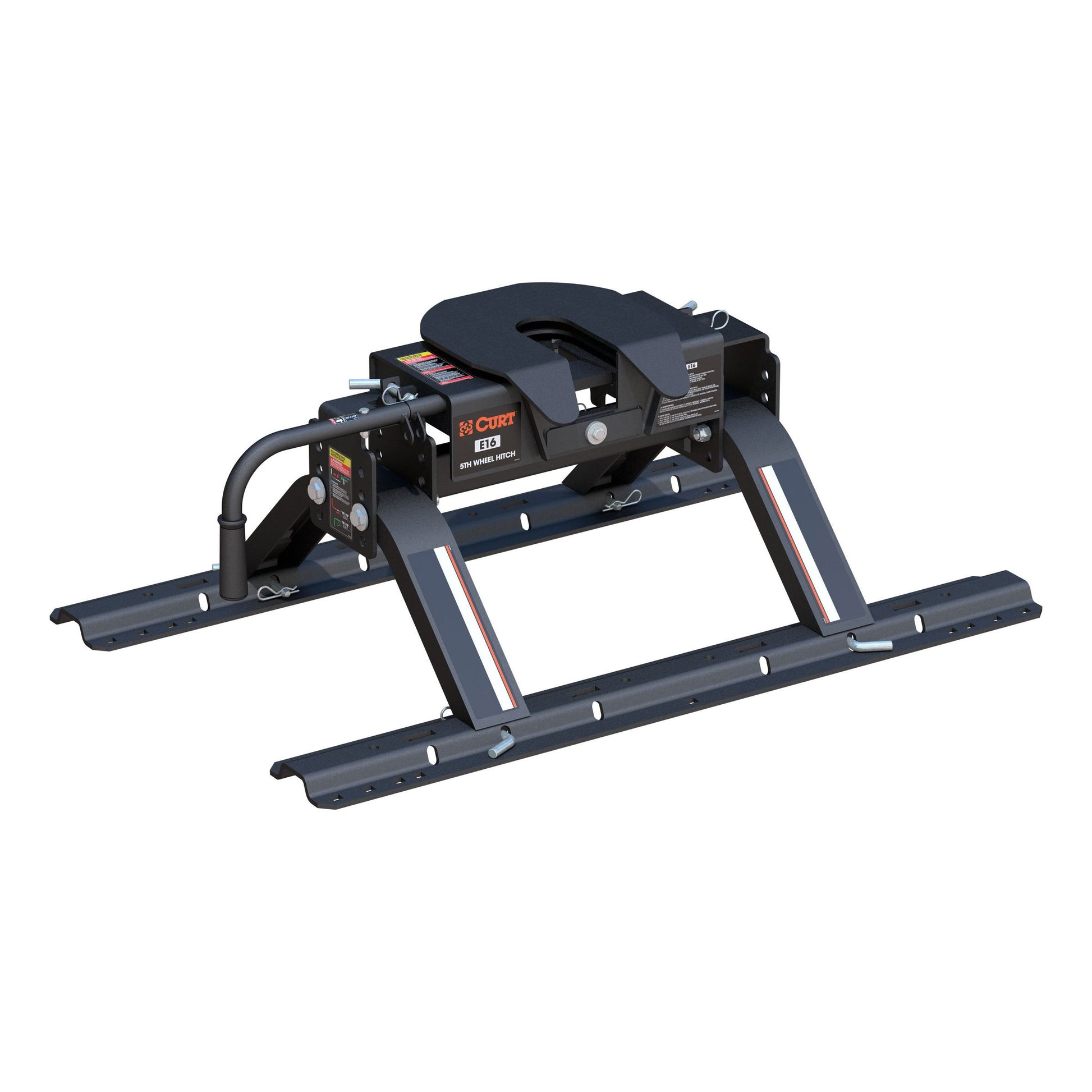

CURT 16116 E16 5th Wheel Hitch with Base Rails; 16;000 lbs

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch comes with a set of standard 5th wheel legs and 5th wheel rails to be mounted in your truck bed with a 5th wheel bracket kit (brackets sold separately).

  • Pivots on dual axes for 10 degrees of lateral movement
  • Automatically locks for easy, secure coupling
  • Operates using a single handle
  • Features an anti-rattle skid plate to help reduce noise
  • Compatible with kingpin extension boxes, including common pivoting pin boxes
  • Offers four height adjustment positions to adapt to each unique truck bed
  • Tested for safety in accordance with SAE J2638
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Item Height - XA: 12.000
Item Length - XA: 49.000
Item Width - XA: 17.000
Master Case Height Inches - XA: 12.000
Master Case Inner Pack Qty - XA: 0
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Length Inches - XA: 49.000
Master Case Qty - XA: 1
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 149.050
Master Case Width Inches - XA: 25.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 1
Pallet Cases Per Layer - XA: 1
Pallet Layer of Cases - XA: 1
Pallet Qty - XA: 1.000
Pallet Total Height Inches - XA: 17.000
Pallet Total Weight Per - XA: 174.050
Parcel Allowed - XA: No
Product Weight - XA: 148.050
Rate Class - XA: 65.0
Retail Height - XA: 12.000
Retail Length - XA: 49.000
Retail Width - XA: 17.000
Sales Family Code - XA: FIFTH
Sales Family Description - XA: FIFTH WHEEL
Sales Group Description - XA: 16K FIFTH WHEEL
Shipping Weight - XA: 148.050
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Truckload Cases Qty - XA: 20
Truckload Pallets Qty - XA: 20
Truckload Units Qty - XA: 20
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 3481
Vertical Load: 4,000 LB
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW): 16,000 LB
Item Class - XA: OBS
