CSF 8321 - BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator - Single Radiator

CSF 8321 - BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator - Single Radiator

CSF | 8321
SKU: CSF-8321
Regular price $485.00 USD
Regular price $519.00 USD Sale price $485.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

CSF 8321 - BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator - Single Radiator

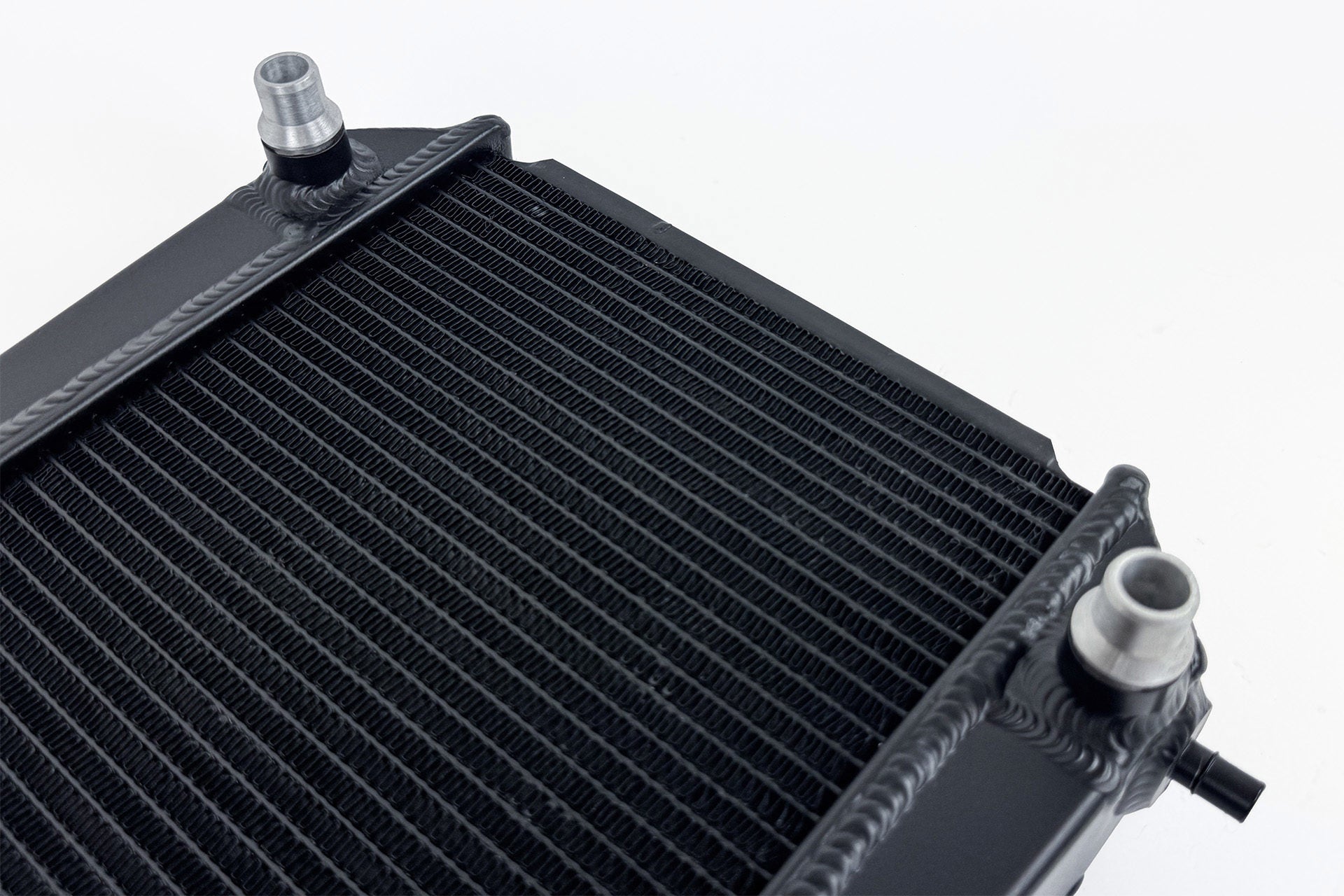

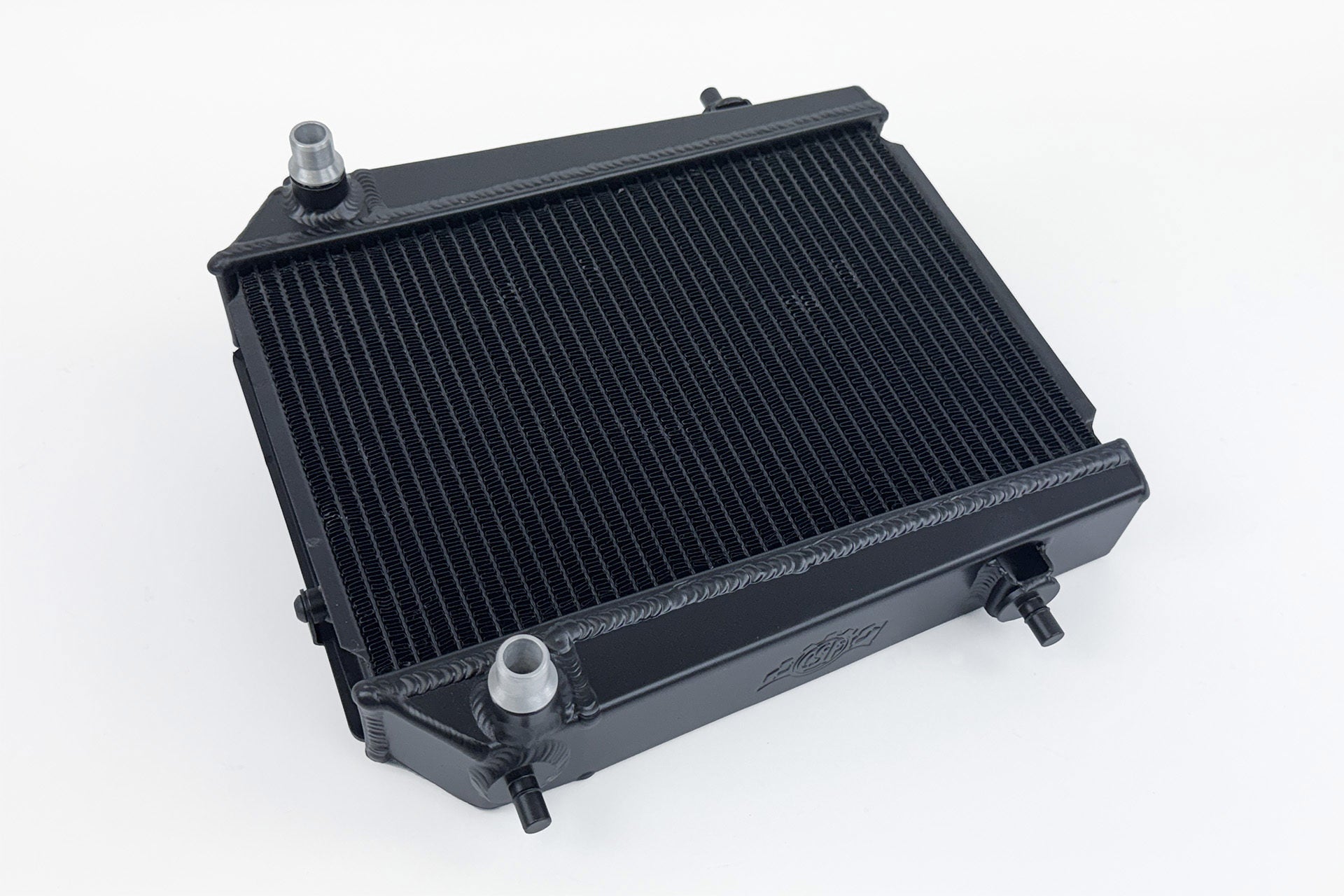

BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator

CSF manufactures the most advanced and efficient auxiliary radiator in the industry for your BMW G8X M3/M4/M2. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Compared to the OEM G8X coolers, the CSF units are a significant upgrade. The TIG welded aluminum tanks are much larger than the OE plastic tanks offering superior strength and fluid volume. A larger 2-row 42mm core increases cooling efficiency and capacity. This high efficiency core uses CSF's Exclusive B-Tube Technology and latest 5mm fin technology, maximizing airflow and heat dissipation. These 5mm fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow.

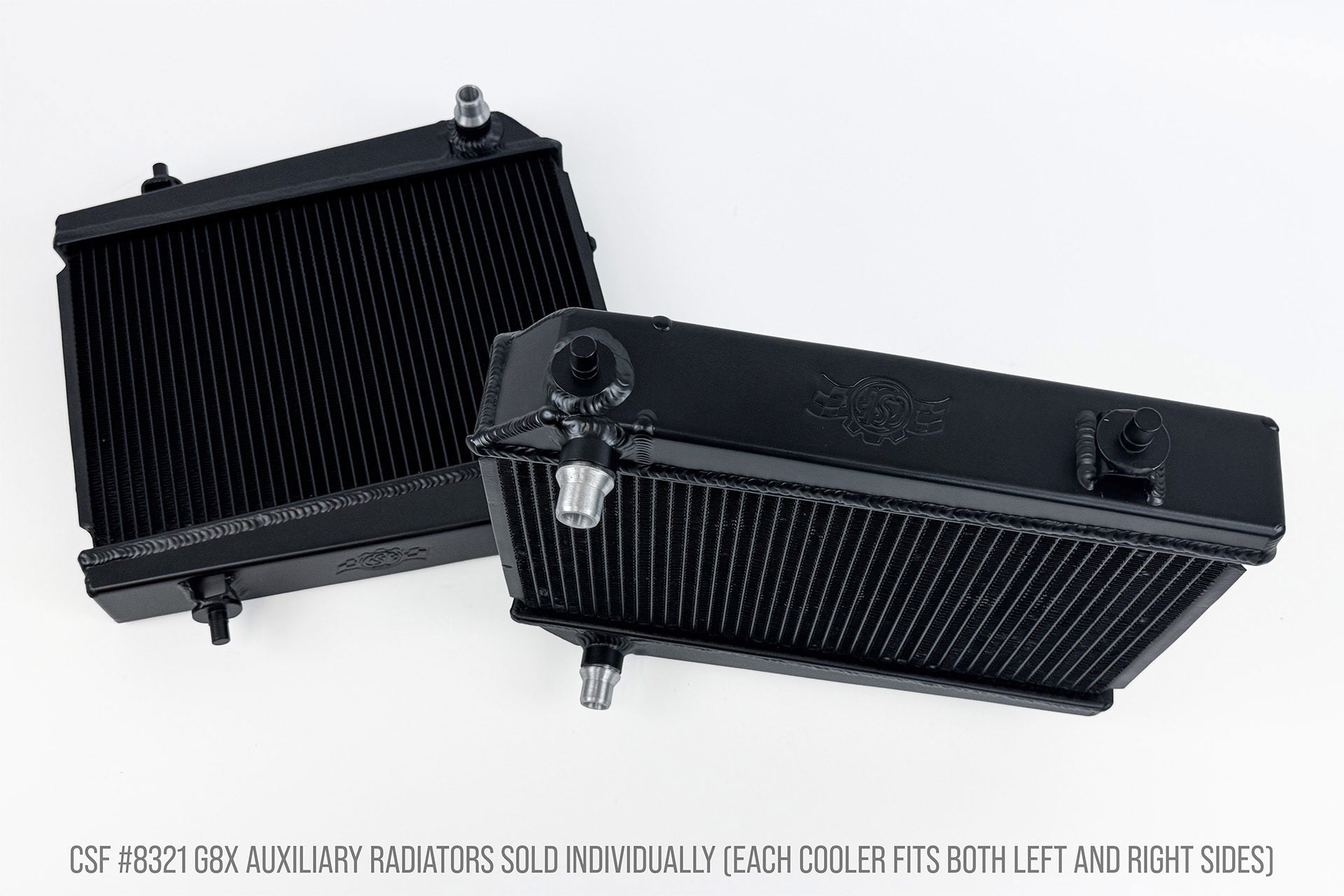

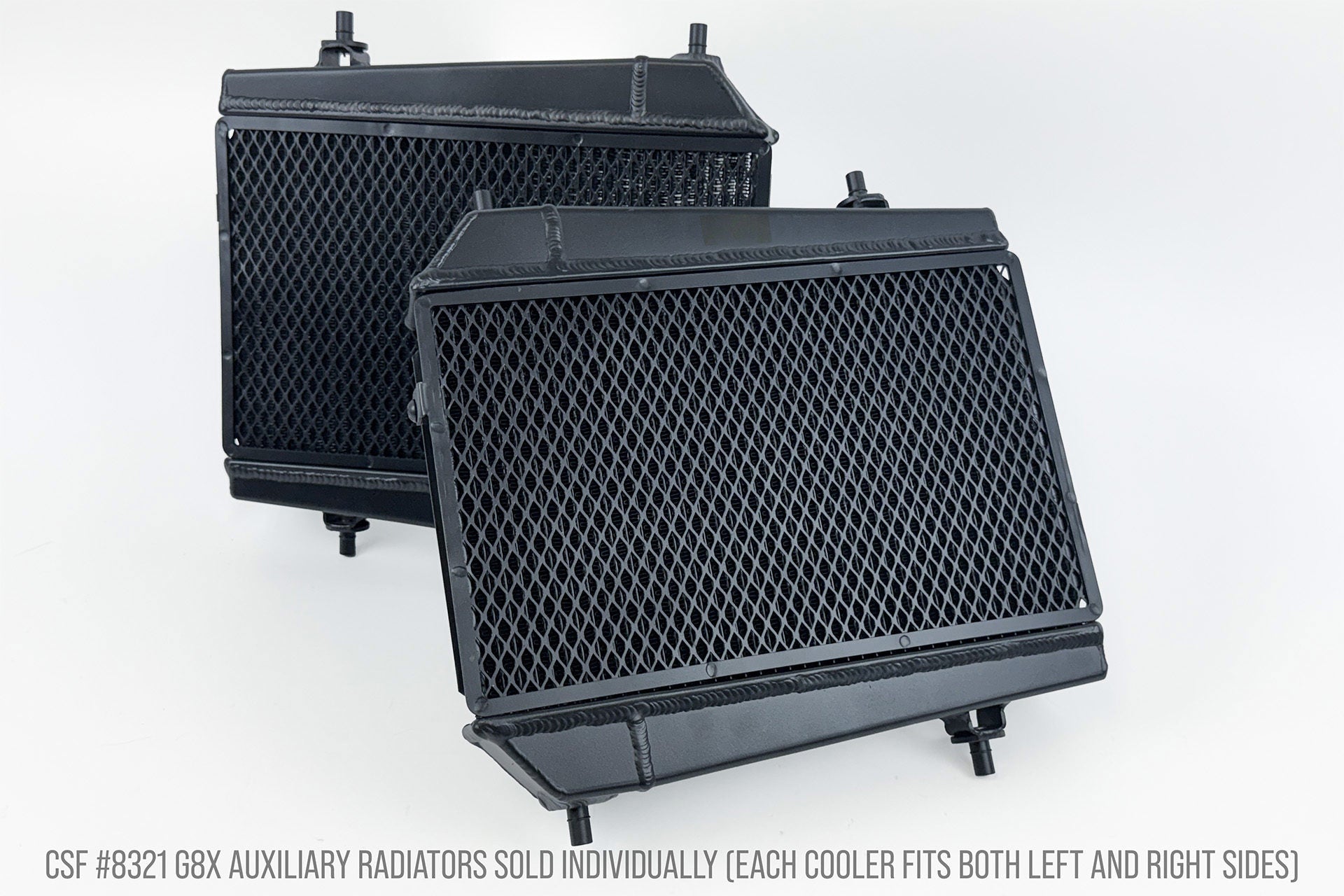

  • Sold Individually - all applications use 2 auxiliary radiators
  • Multi-Fit - Fits Both Left & Right Side
  • 2-Row - 42mm High-Performance Core Featuring CSF's Exclusive B-tube Technology
  • New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
  • Tank Volume and Core Size Increased

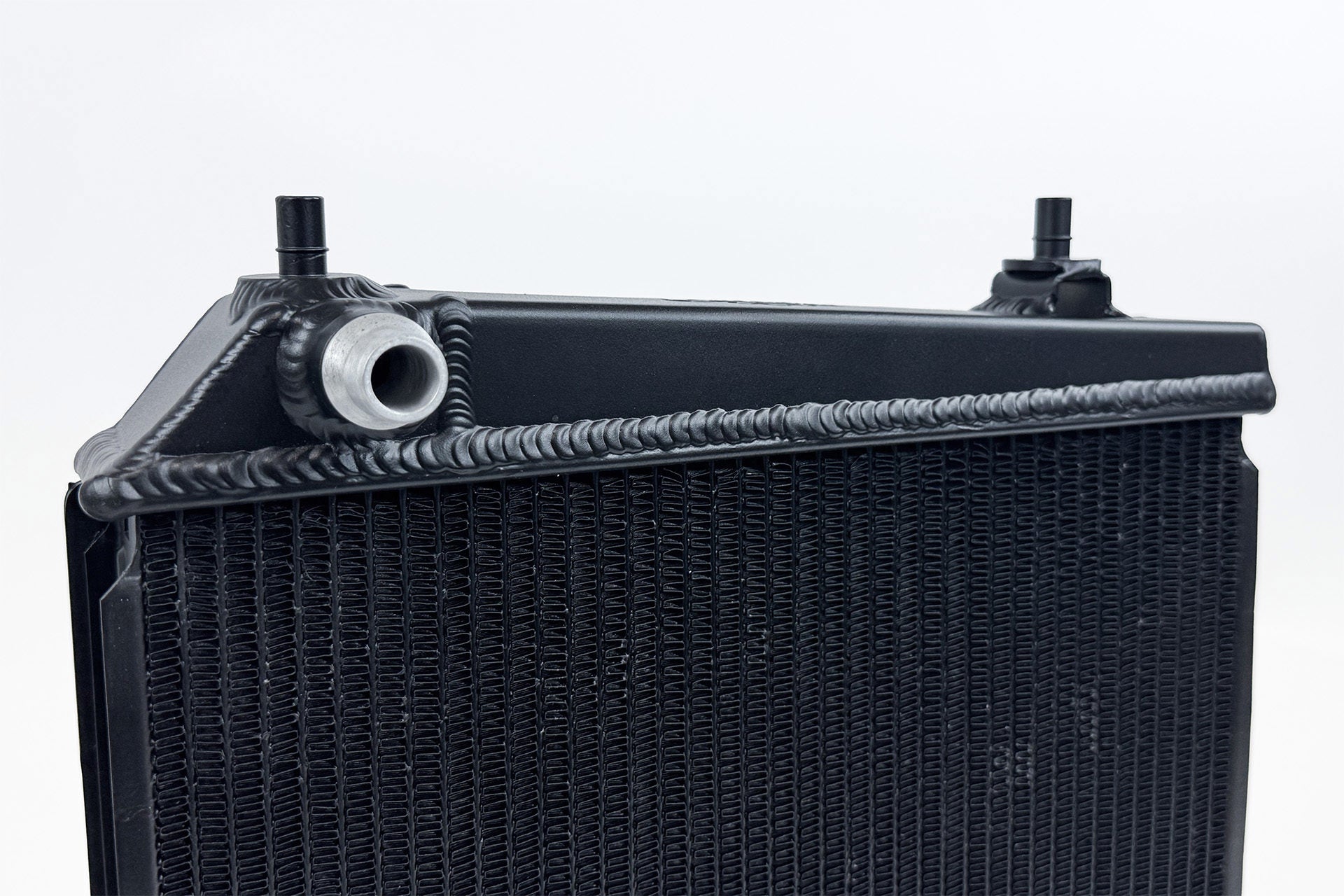

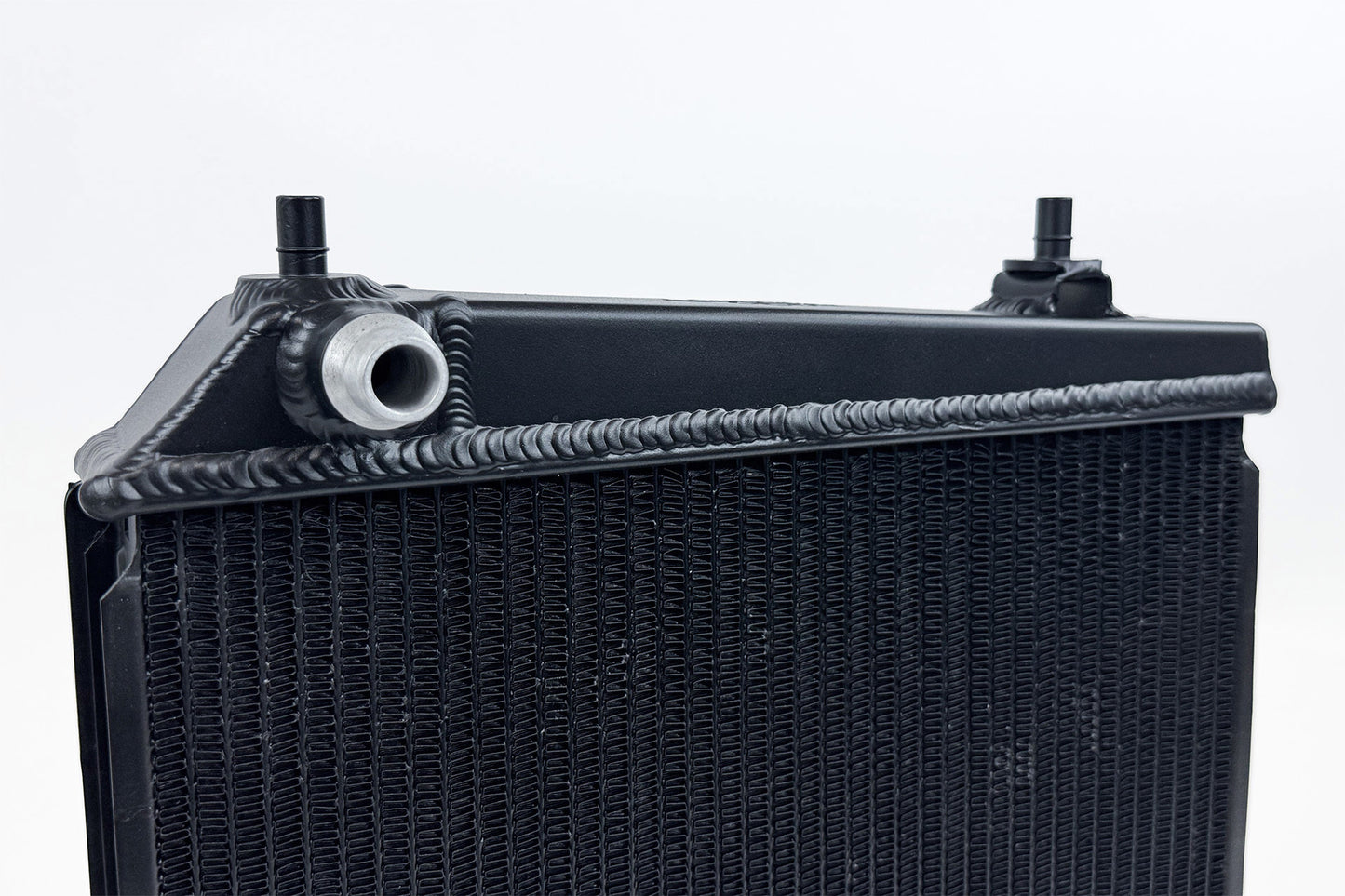

  • 100% All-Aluminum TIG-Welded Construction
  • OEM Style "Quick Connect" Inlet/Outlet

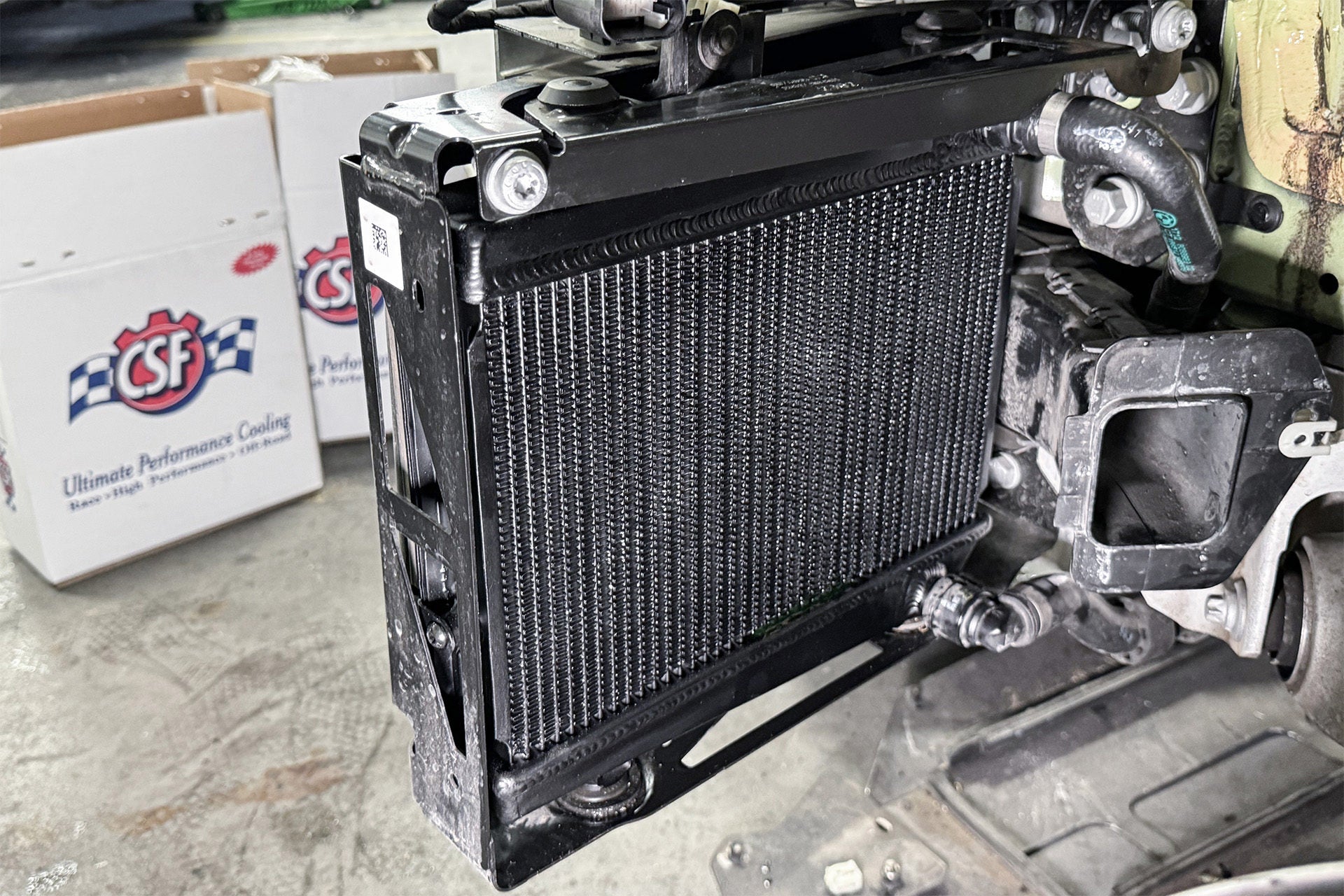

  • True "Drop-in Fit" Requires No Modifications to Install

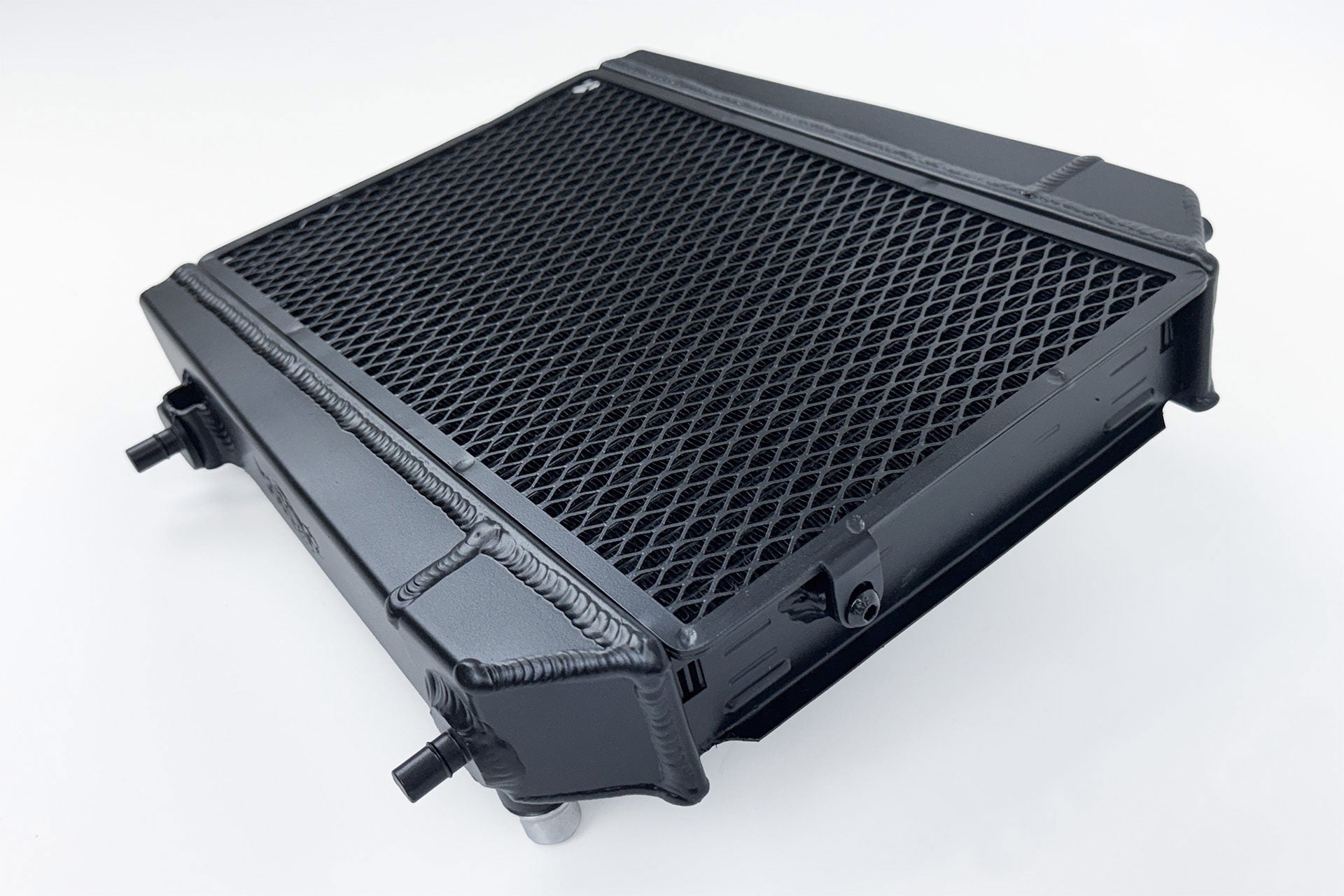

  • Includes Detachable Rock Guard
  • Individually Leak and Pressure Tested
  • High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
  • Satin Black Finish for OEM+ Look
  • 2 Year Limited Warranty
Core Row Quantity: 2
Grade Type: Performance
Radiator Cap Included: No
Outlet Connector Type: Slip On
Inlet Connector Type: Slip On
Down Flow Or Cross Flow Type: Down Flow
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Outlet Location: Bottom Right
Inlet Location: Top Right
Outlet Diameter: 16.3mm
Inlet Diameter: 16.3mm
Core Width: 282mm
Core Material: Aluminum
Core Thickness: 42mm
Core Height: 190mm
Mounting Hardware Included: No
Thermostat Included: No
Tank Material: Aluminum
Mounting Type: Mounts with OE Hardware
Frame Included: No
Coolant Hose Outlet Connection Type: OE Type Connection
Coolant Hose Inlet Connection Type: OE Type Connection
Installation Type: Drop-In Fit Installation
Finish/Color: Black
ADD-ON: 8233
