CSF - 8300B

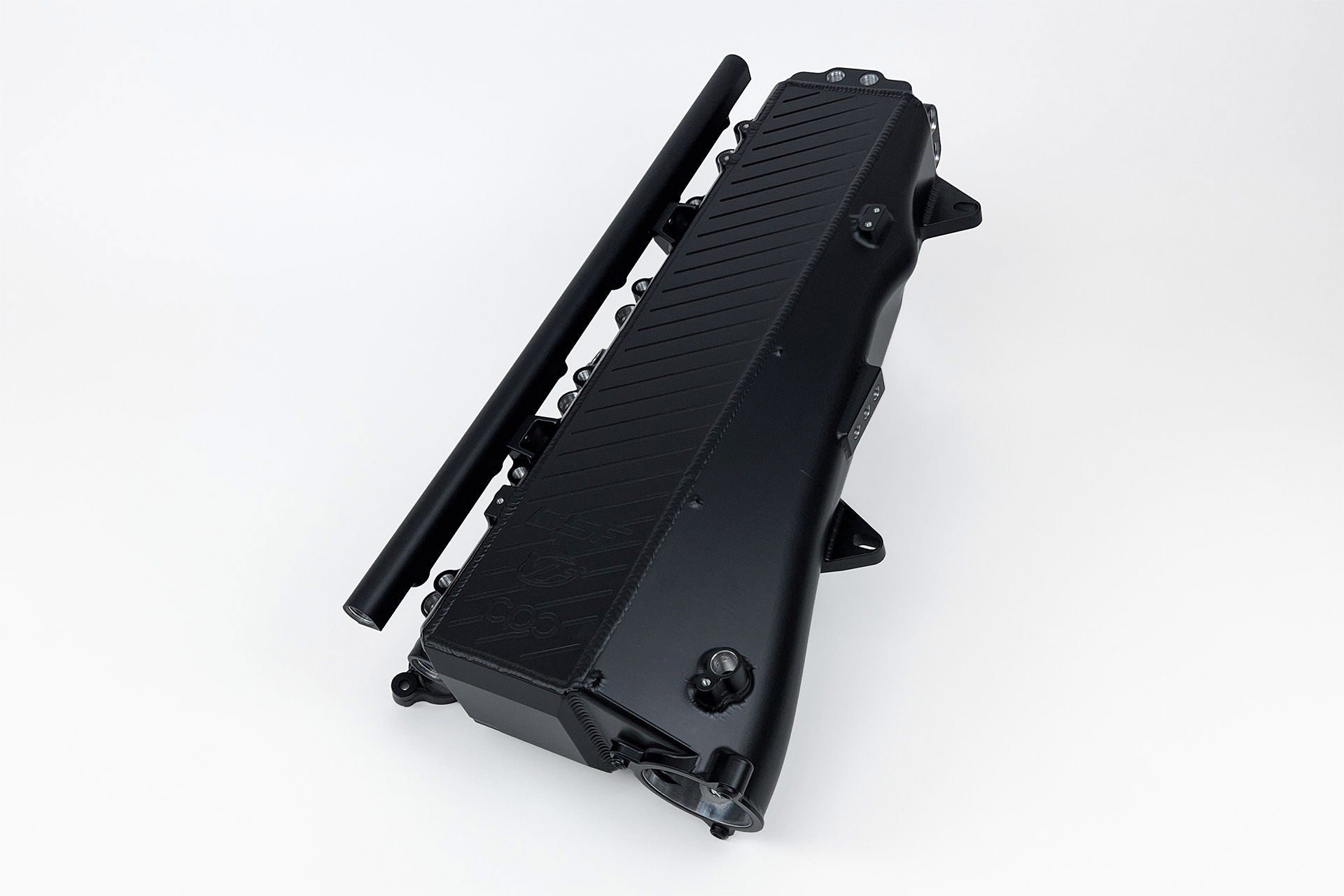

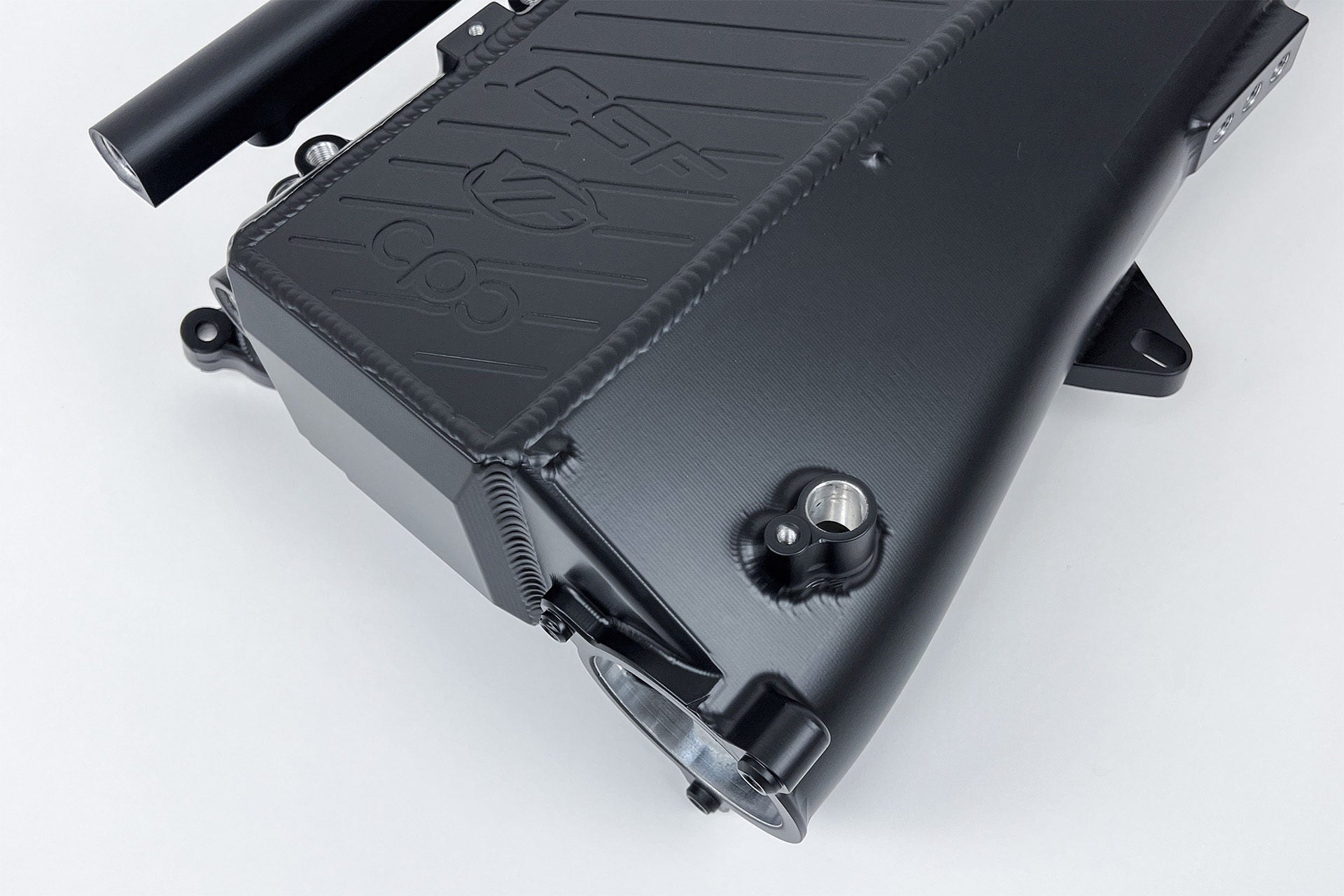

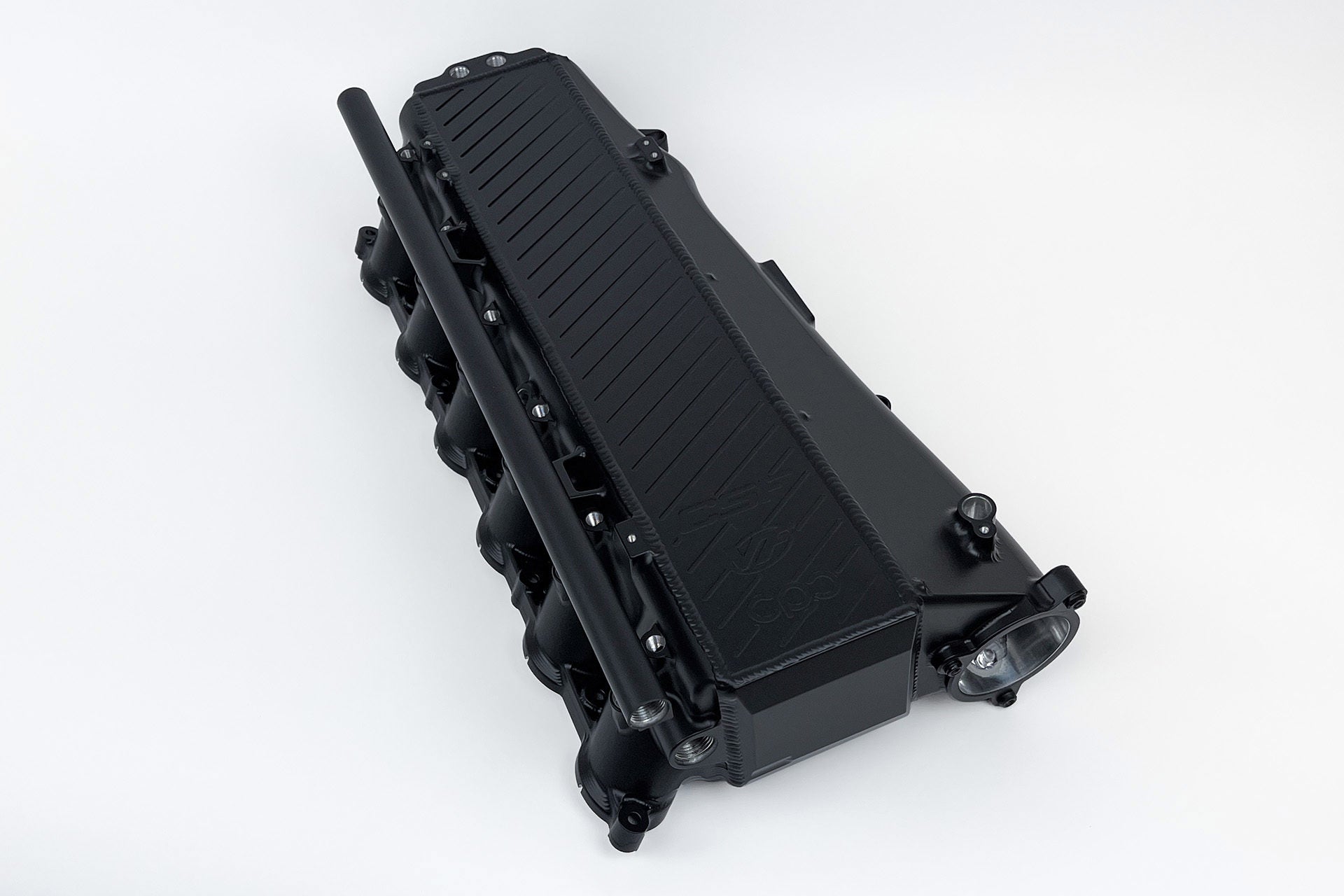

BMW Gen 1 B58 Charge Air Cooler Manifold - Thermal Dispersion Black
With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Manifold allows Gen 1 B58 owners to maximize performance.
The OEM charge-air-cooler manifold for the B58 engine is adequate in cars with little or no modifications. However, it starts to really its weaknesses in cars that have bolt-on modifications, turbo upgrades, increased fueling (such as port injection), and performance tuning. In addition, the OEM intercooler system has been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, and drifting, as well as spirited driving on the street. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs). This can send the car into "limp mode" once temperatures reach a certain threshold. In high boost applications the OEM manifold is also prone to failing at the crimp on gasket joining of the core and tanks.
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)

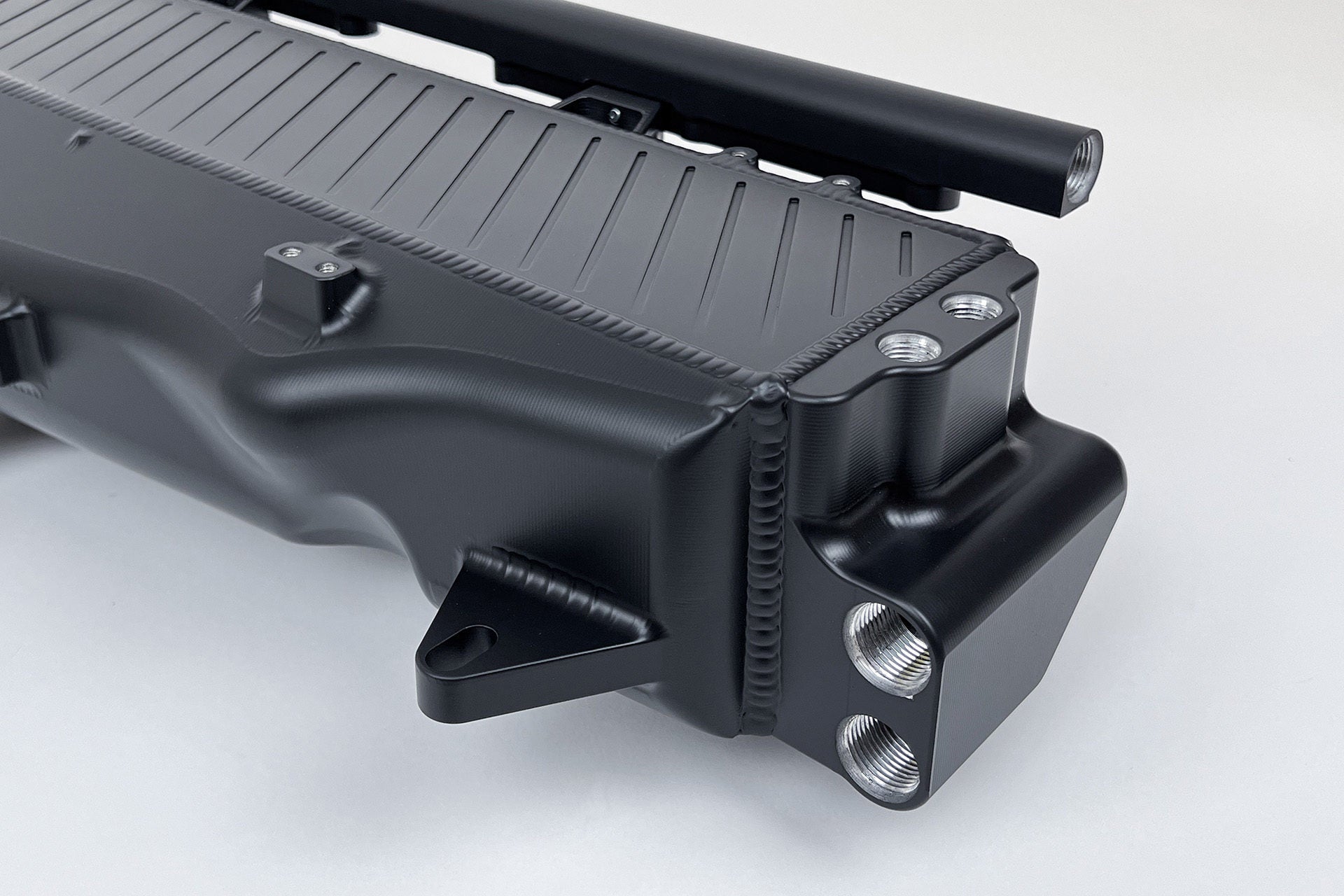

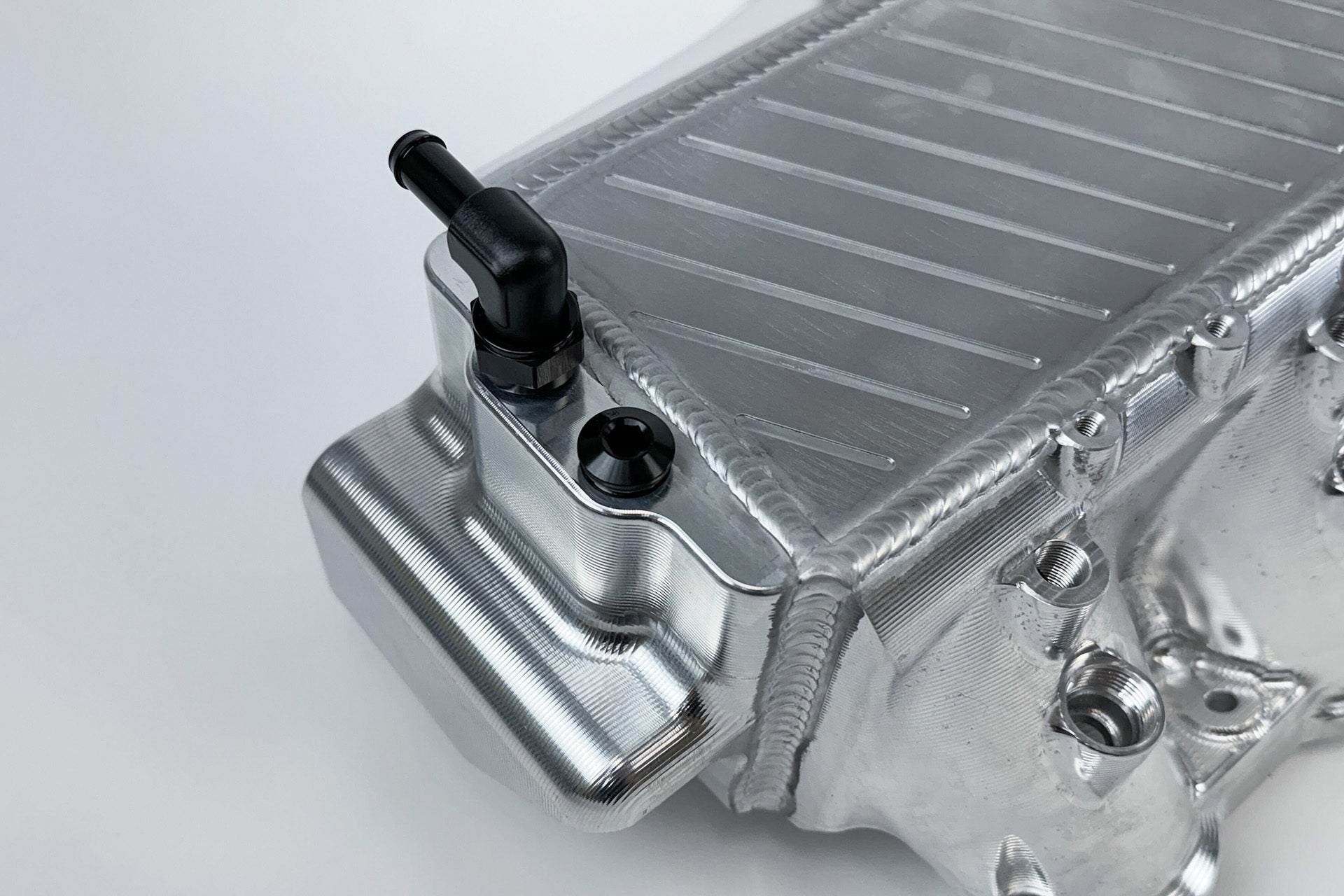

- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
- Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
- Plug-and-Play design, Requiring No Modifications to Install
- Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation
- Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet - CSF #8300 or Custom Finishes - CSF #8300C)
- Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Significantly Lower Pressure Drop Across the Core Compared to OEM
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD) - Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation.
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change - Counter Balanced Design for Optimized Airflow

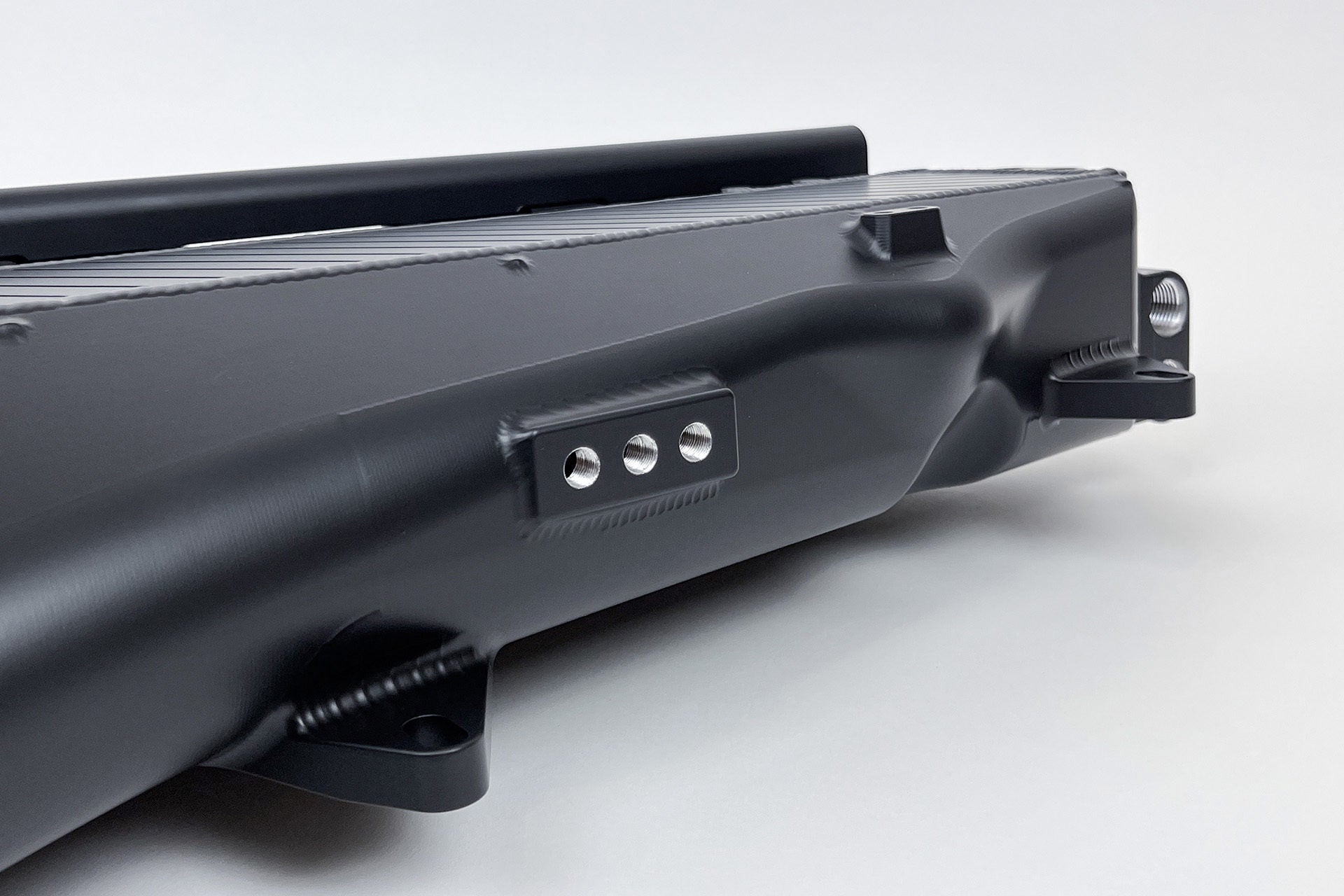

- Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters

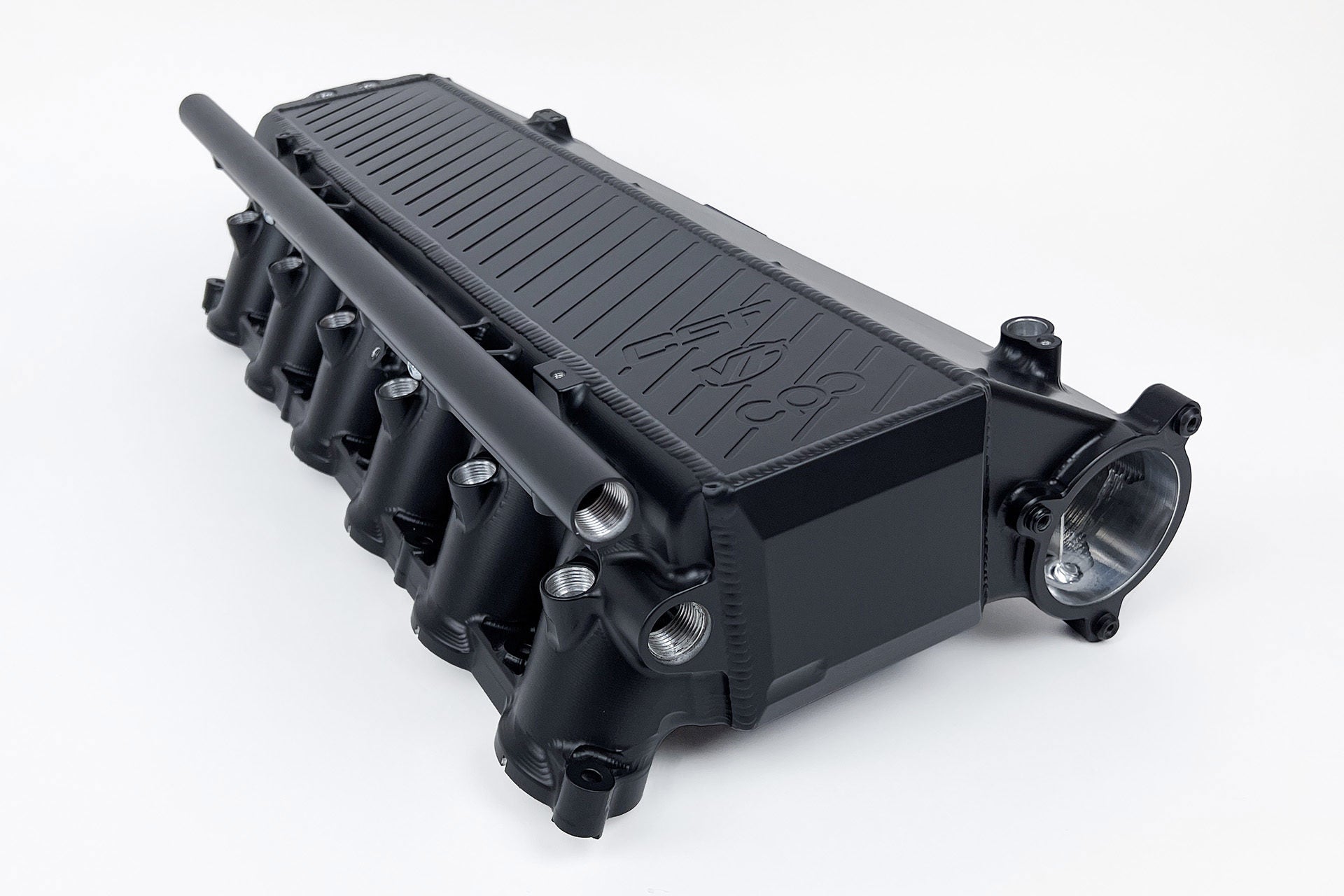

- Included Optional Fuel Rail for Top Feed Port Injection

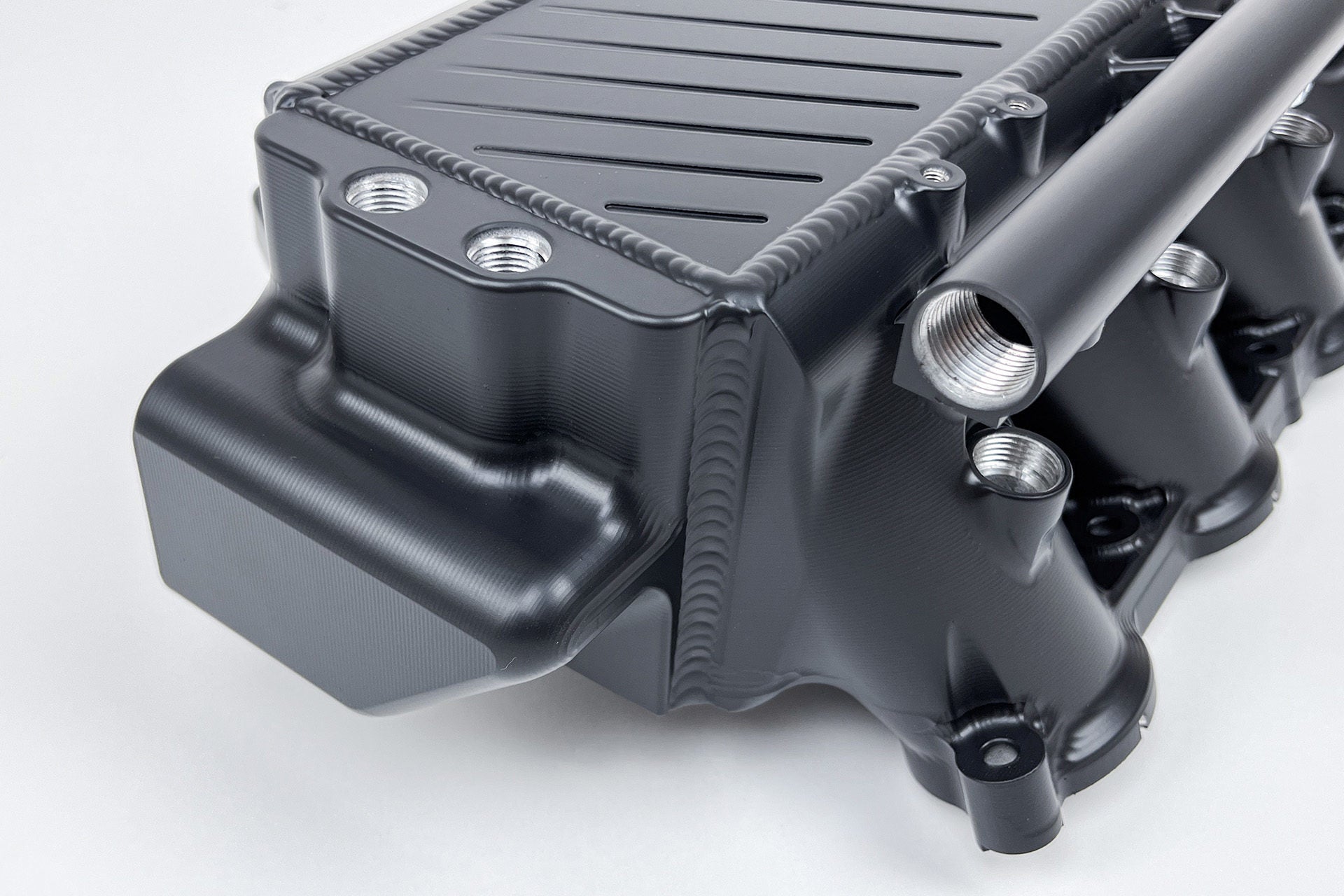

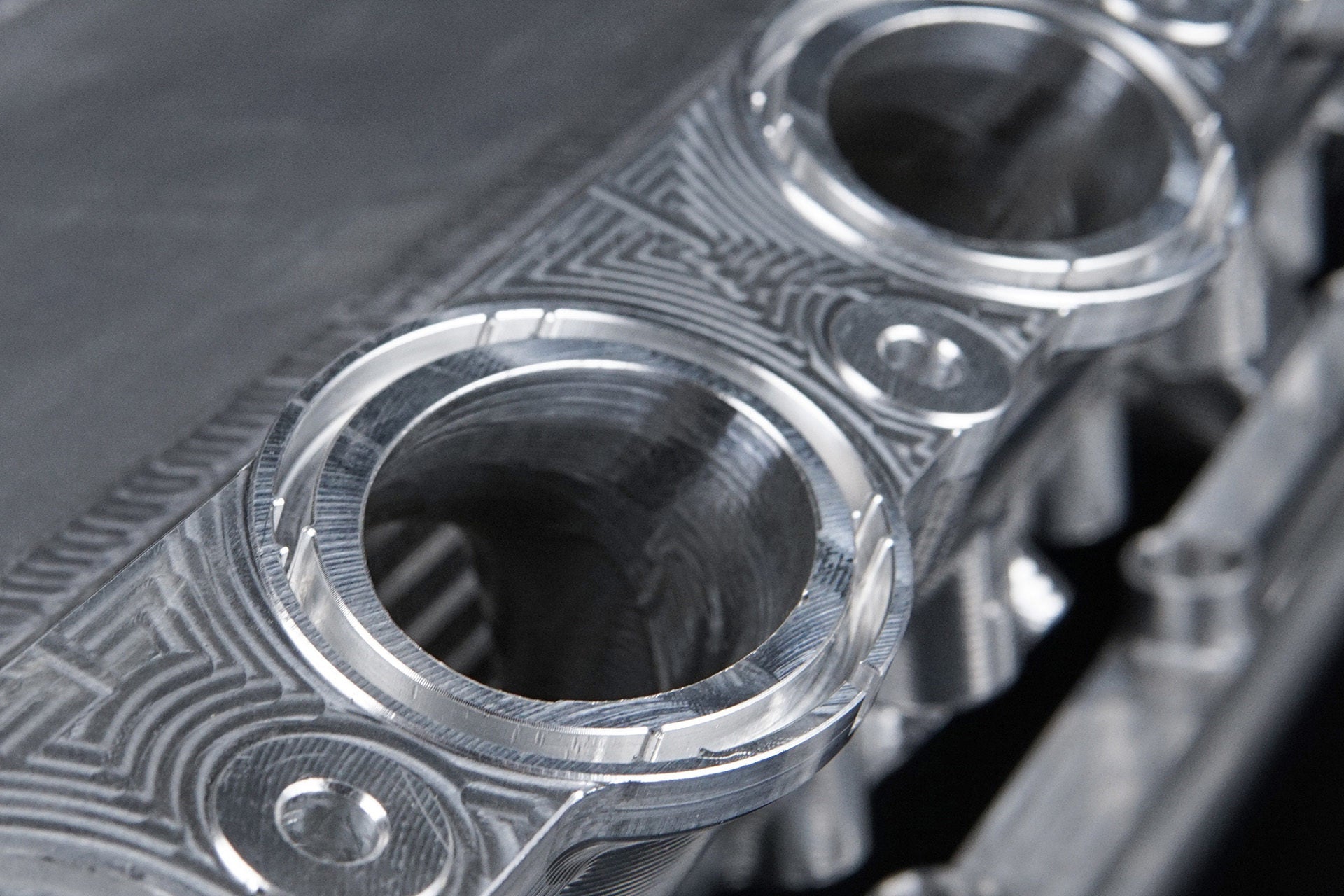

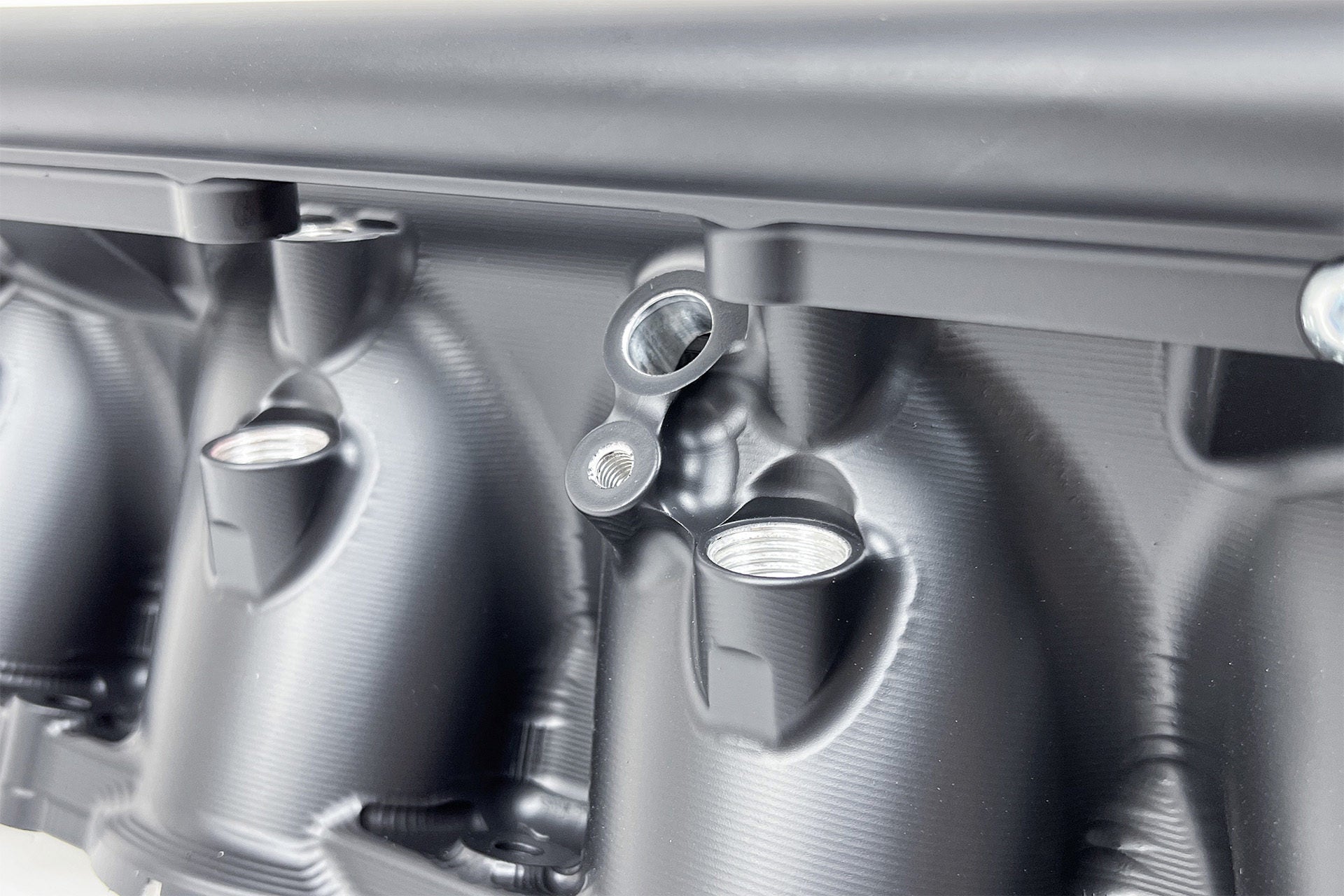

- Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
- Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
