CSF - 8200S
A90 Supra / BMW B58 Thermal Rejection Competition Charge-Air Manifold Spacer

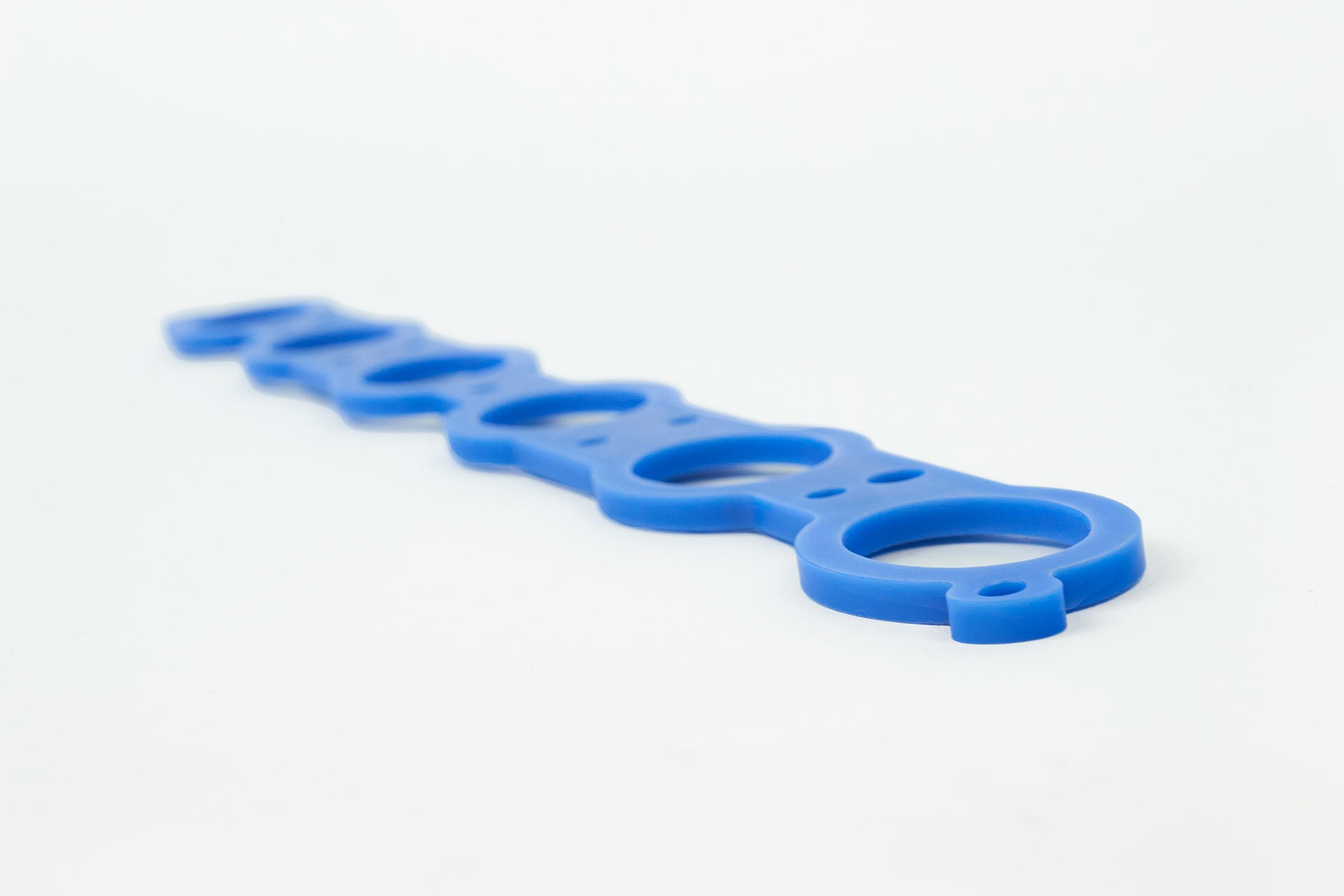

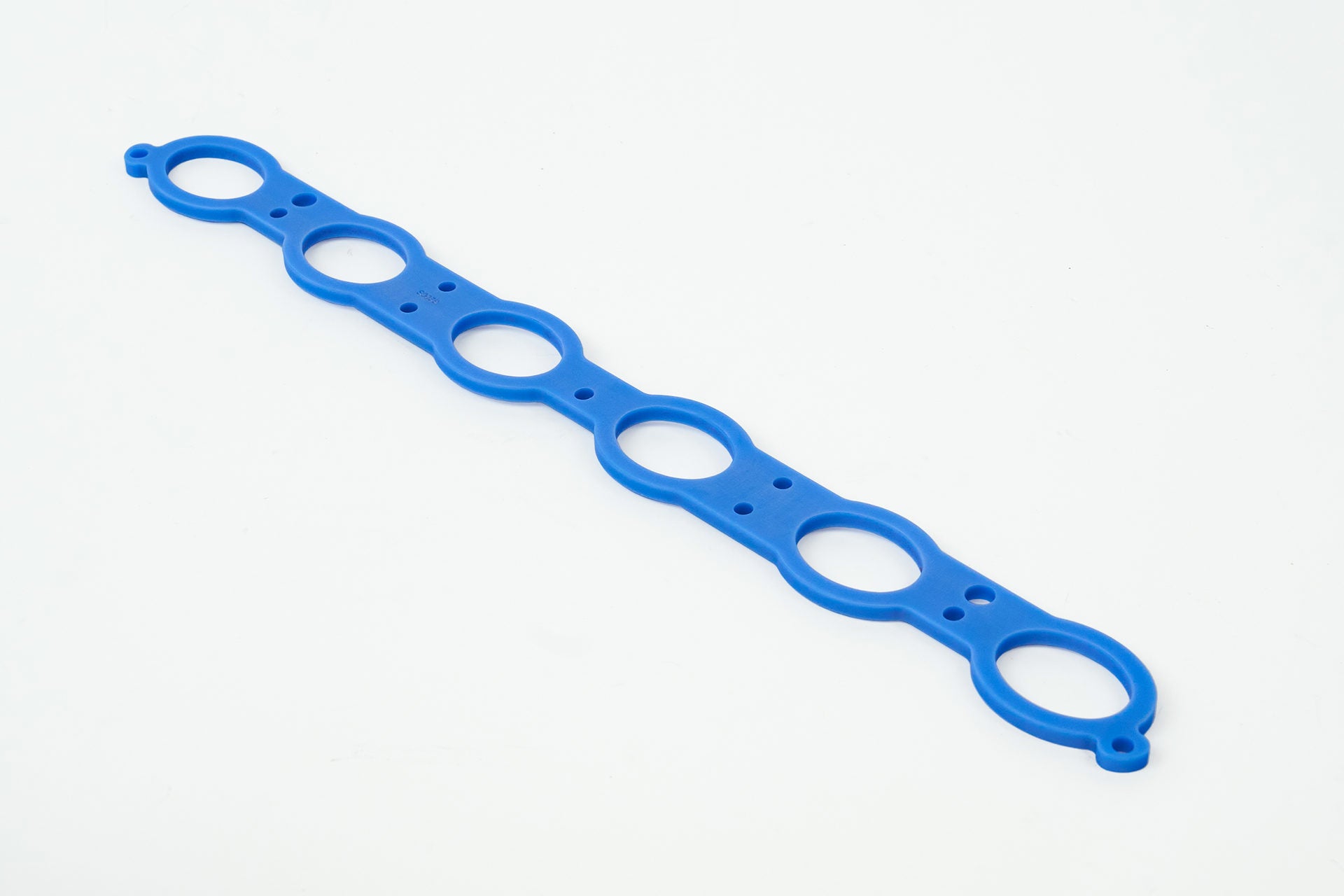

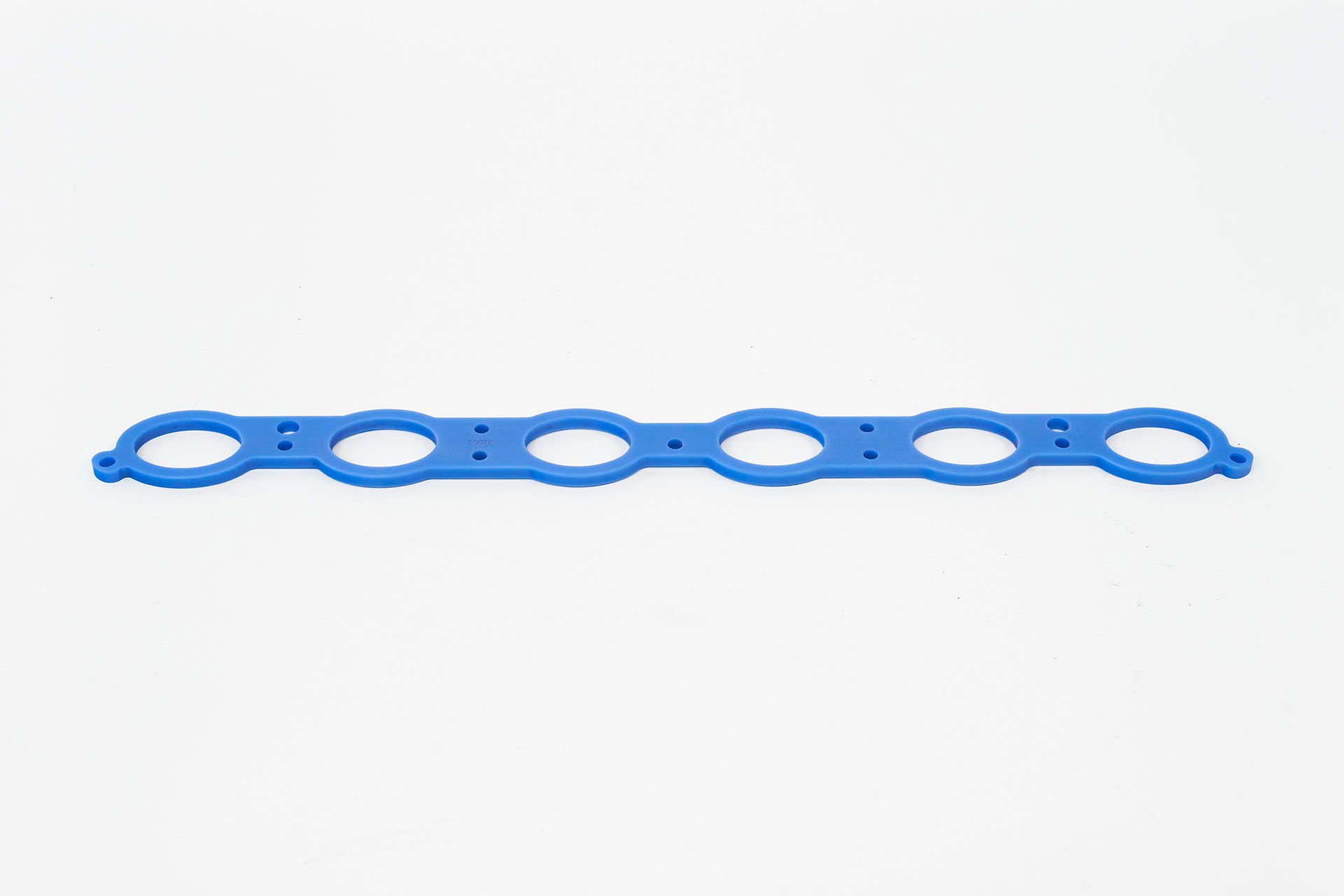

The CSF B58 Thermal Rejection Competition Spacer is the next level upgrade for the B58 Super Manifold (CSF #8200). Made from KIYLEX, a patented revolutionary high-performance final stage polymer. KIYLEX is as strong as aluminum and can withstand temperatures up to 1100'F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX Intake Manifold Spacer for the B58 Motor.
- Made from KIYLEX - A patented revolutionary high-performance final stage polymer
- Spacer Height = 6.5mm
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Can withstand temps up to 1100'F and is as strong as Aluminum
- Self-Sealing and do NOT require gaskets, silicon products, or sealing agents of any kind.
- Tested on @peppa_aka_skull's A90 Supra by Visconti Tuning
- Includes installation hardware and instructions
- Limited Lifetime Warranty
- Will not work with the OEM Manifold
Color: Blue
Finish/Color: Blue
Grade Type: Performance
Installation Type: Drop-In Fit Installation
Material: KIYLEX
Mounting Hole Quantity: 2
Width: 50.8mm
