CSF - 8173

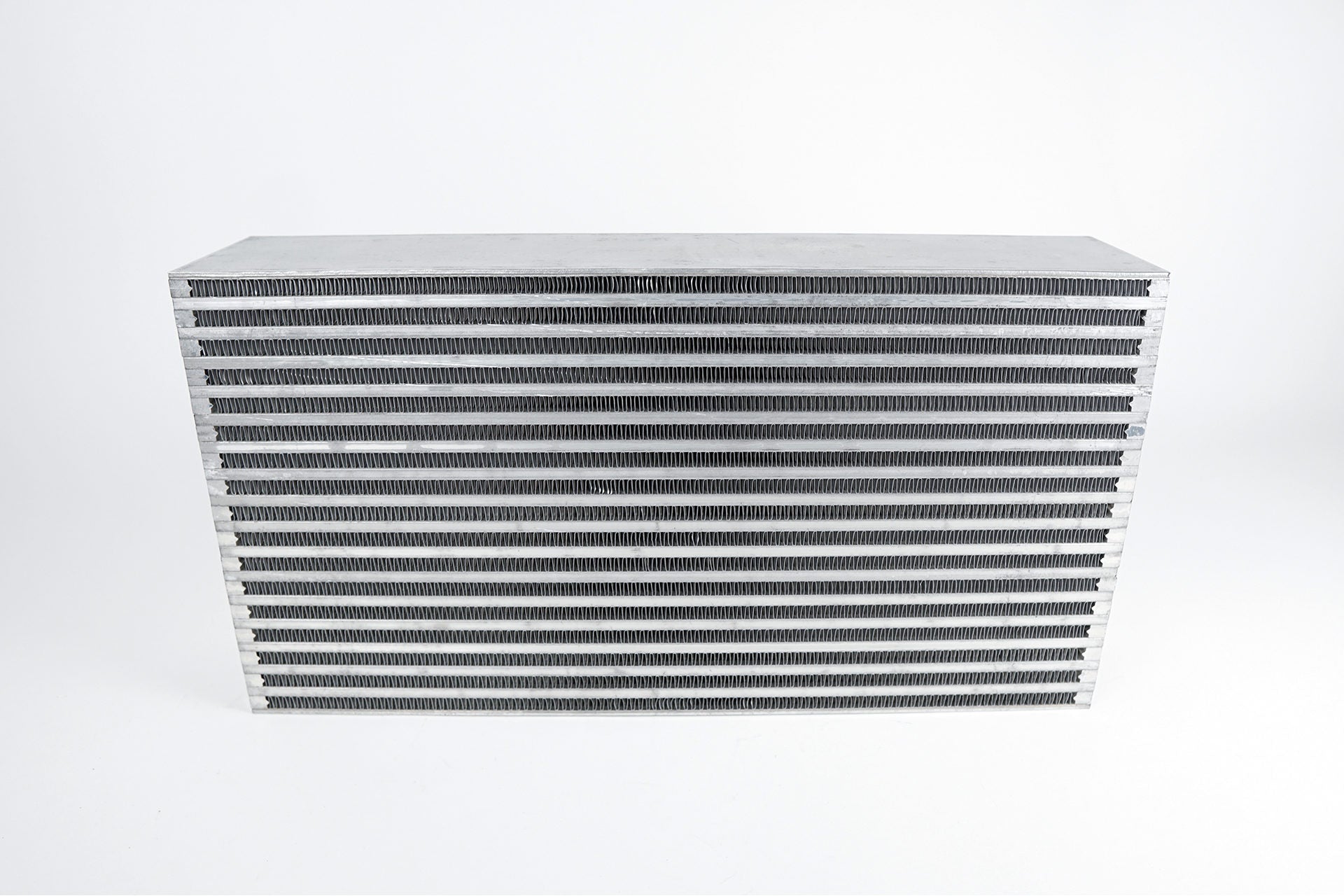

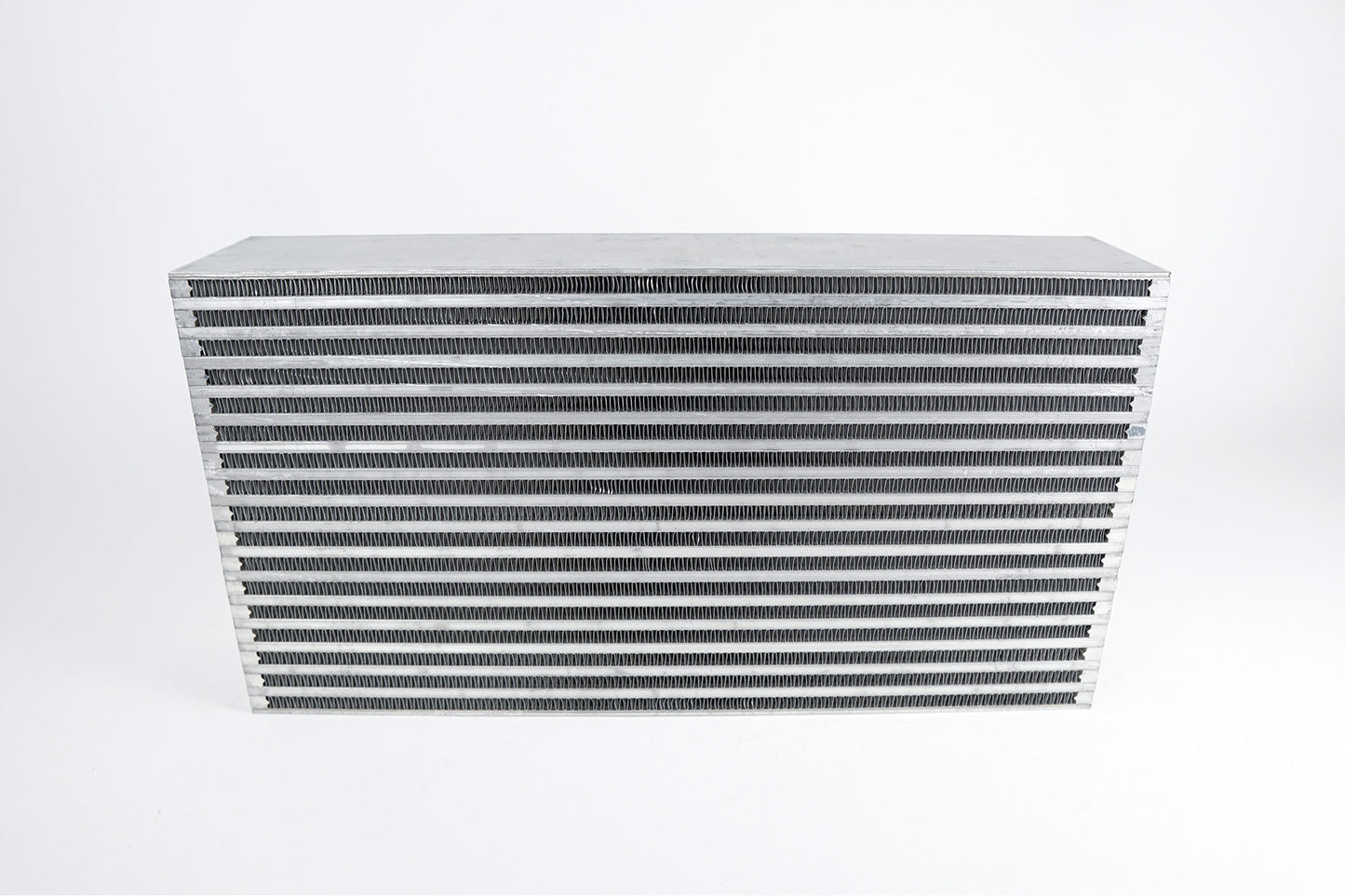

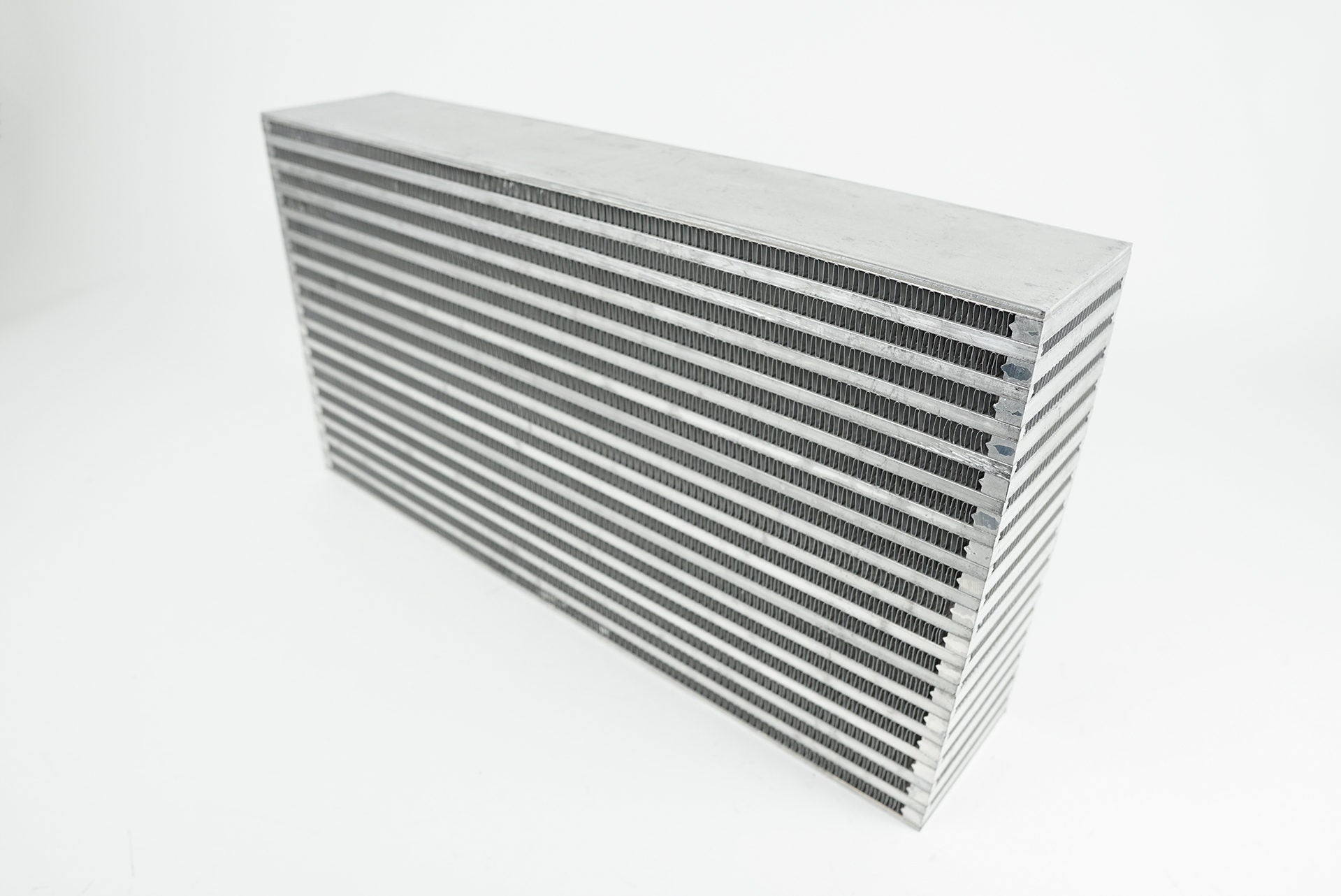

Intercooler Core - Horizontal Flow - 22 x 4.5 x 12 in Tall - Aluminum - Natural - Each
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 12" x 4.5" Horizontal Flow Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 1000
- Cross-flow
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

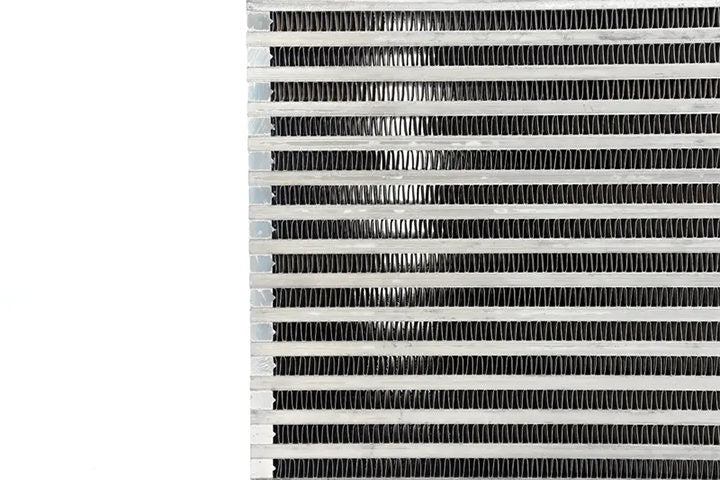

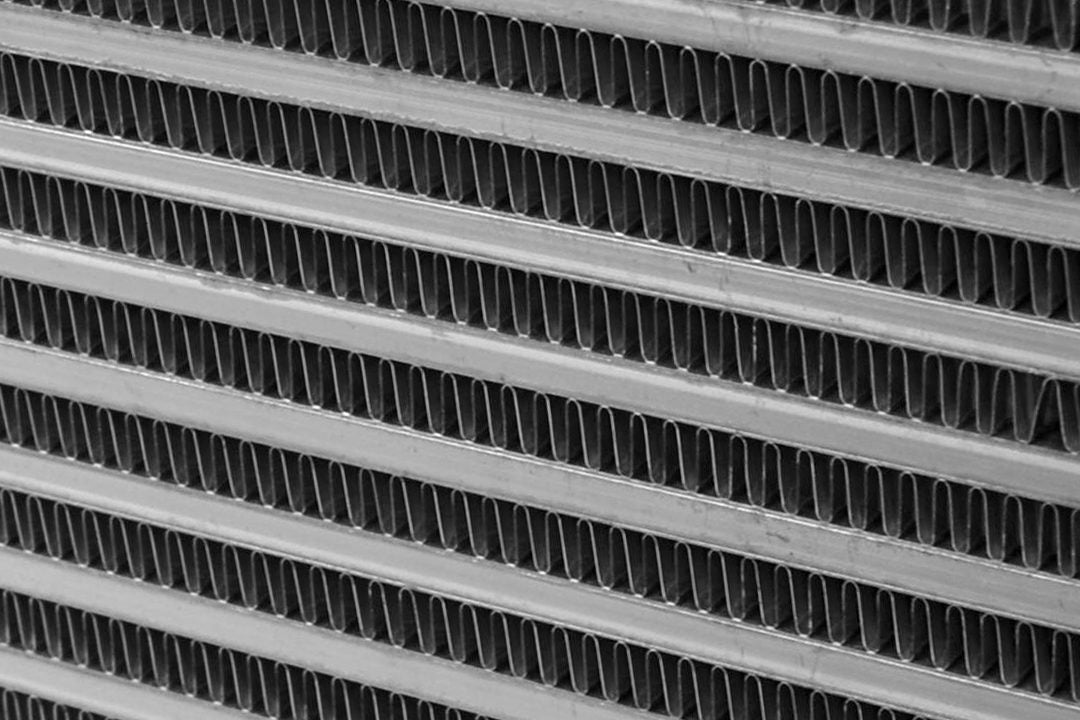

- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Dimensions: 22"x12"x4.5" (560mm x 300mm x 115mm)
