CSF

CSF 8131 - BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard

MSRP: $699.00
$649.00
( saved $50.00 )
Write a Review
  • CSF 8131 - BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard
  • CSF 8131 - BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard
  • CSF 8131 - BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard
  • CSF 8131 - BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Verify fitment with your vehicle
GO
Clear
Adding to cart… The item has been added
SKU:
CSF-8131
UPC:
710353081310
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

CSF - 8131

BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Silver

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your B58/B48 Powered BMW with a CSF Heat Exchangers.

The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.

  • Core Size: 524mm Length x 478mm Height x 69mm Wide
  • Replaces OEM Part Number: 17118741830
  • 68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)
  • 6.5mm Multi-Louvered Fin Height
  • Triple-Pass Flow Design

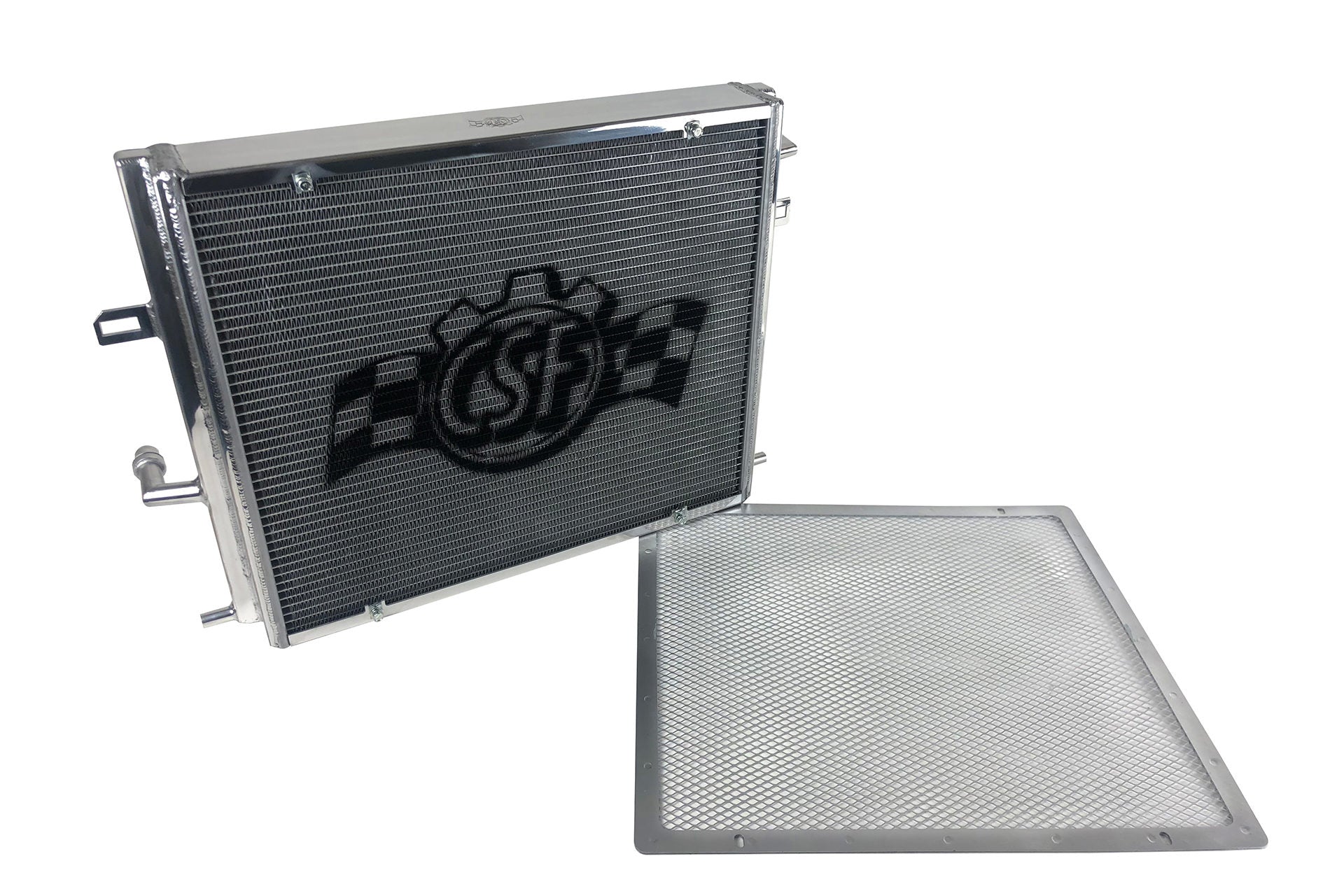

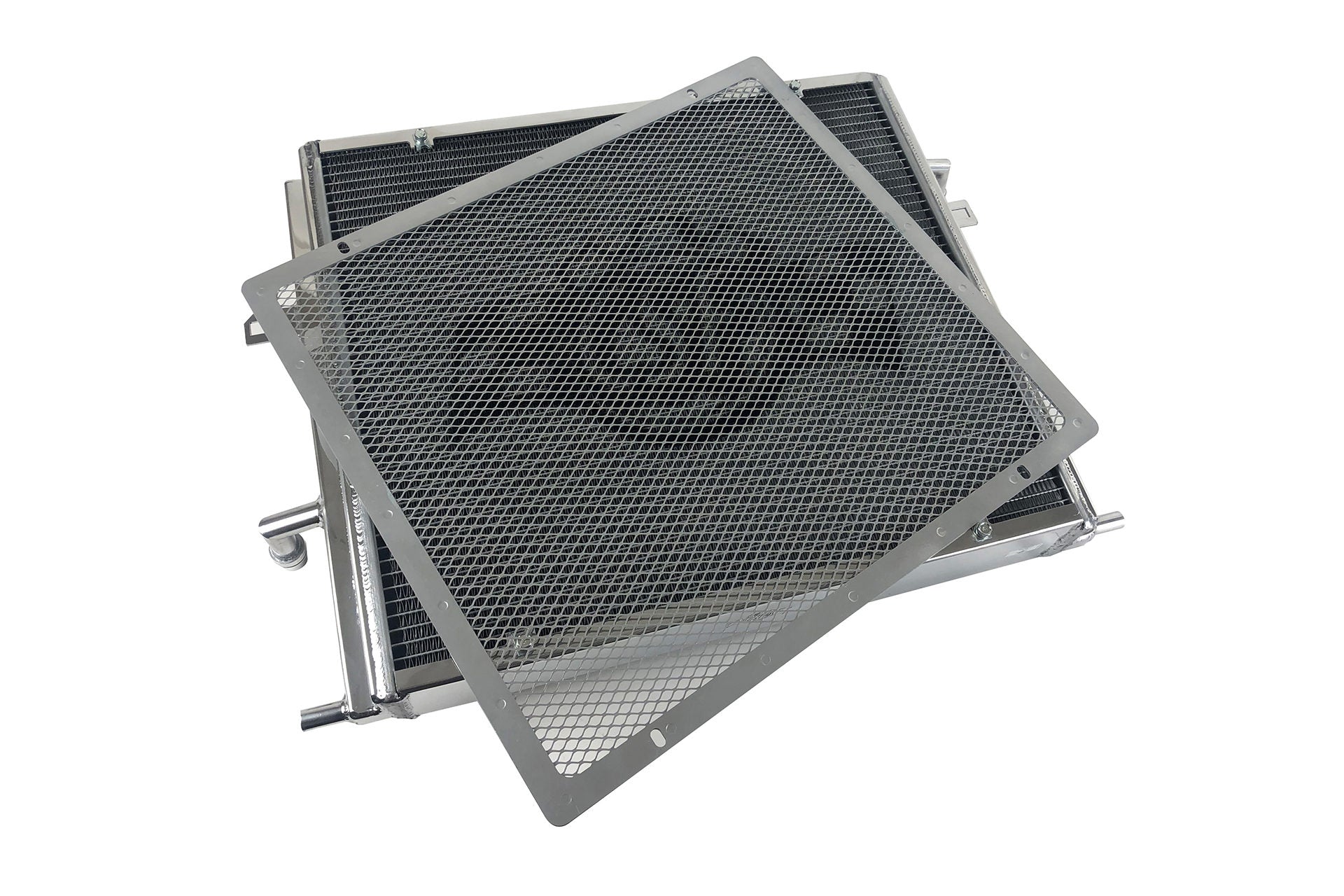

  • Included Detachable Rock Guard
  • OEM CNC Machined Mounting Location Pins and Brackets
  • Direct Plug-and-Play Design, Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings
  • No Modifications Needed to Install
  • 1-Hour "Mirror Finish" Hand Polish

ADD-ON: 8300C
Core Material: Aluminum
Finish/Color: Polished
Grade Type: Performance
Installation Type: Drop-In Fit Installation

Year
Make
Model
Submodel
Engine
2017 - 2021
BMW
230i
Base
2.0L
2017 - 2021
BMW
230i xDrive
Base
2.0L
2014 - 2018
BMW
320i
Base
2.0L
2016, 2018
BMW
330e
Base
2.0L
2017
BMW
330e
iPerformance
2.0L
2017 - 2018
BMW
330i
Base
2.0L
2017 - 2018
BMW
330i GT xDrive
Base
2.0L
2017 - 2019
BMW
330i xDrive
Base
2.0L
2016 - 2018
BMW
340i
Base
3.0L
2017 - 2019
BMW
340i GT xDrive
Base
3.0L
2016 - 2018
BMW
340i xDrive
Base
3.0L
2017 - 2020
BMW
430i
Base
2.0L
2017 - 2020
BMW
430i xDrive
Base
2.0L
2017 - 2020
BMW
430i xDrive Gran Coupe
Base
2.0L
2017 - 2020
BMW
440i
Base
3.0L
2017 - 2020
BMW
440i Gran Coupe
Base
3.0L
2017 - 2020
BMW
440i xDrive
Base
3.0L
2017 - 2020
BMW
440i xDrive Gran Coupe
Base
3.0L
2017 - 2021
BMW
M240i
Base
3.0L
2017 - 2021
BMW
M240i xDrive
Base
3.0L
