CSF 8055 - High Performance Bar & Plate Intercooler Core (Vertical Flow) - 27in L x 6in H x 6in W

CSF 8055 - High Performance Bar & Plate Intercooler Core (Vertical Flow) - 27in L x 6in H x 6in W

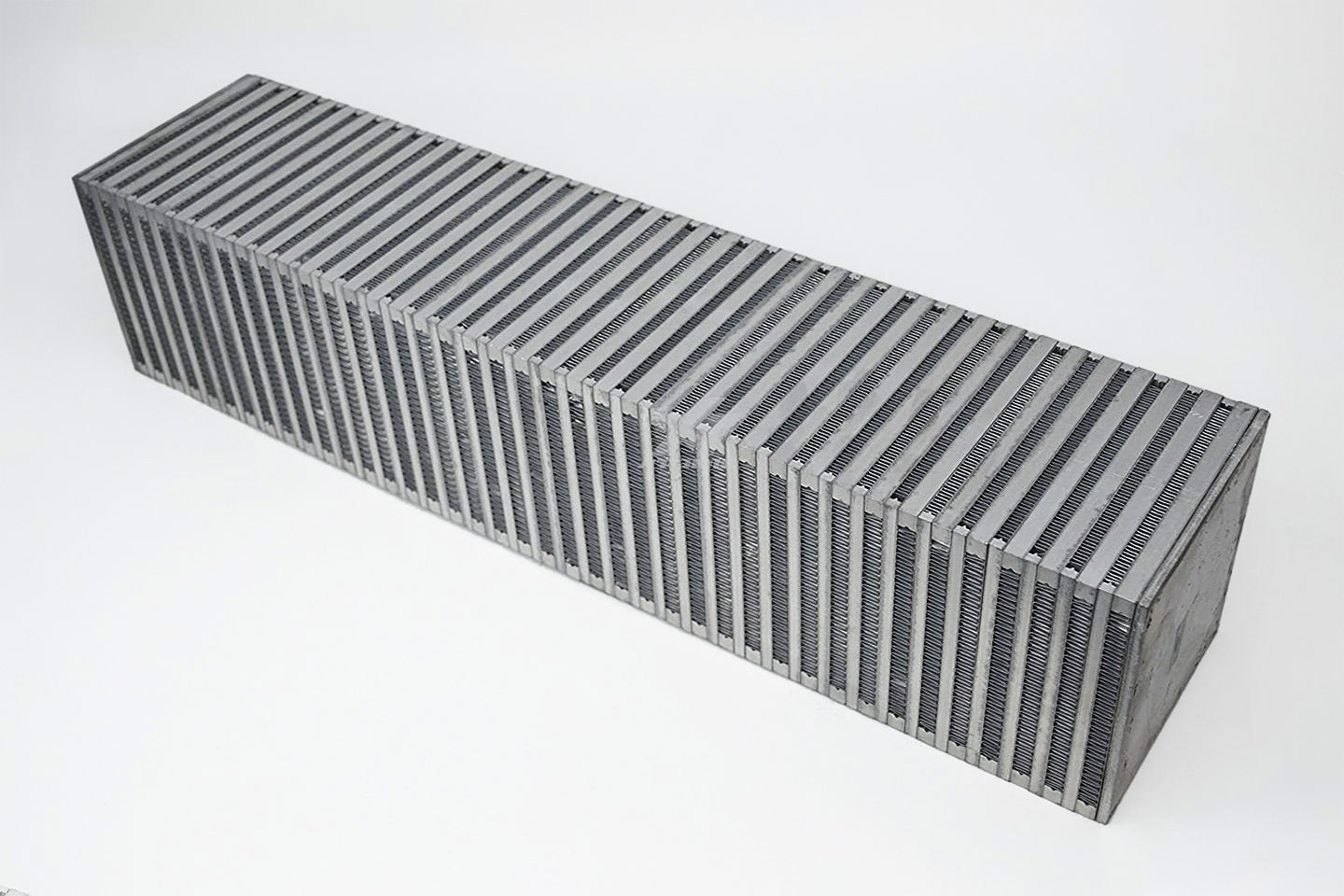

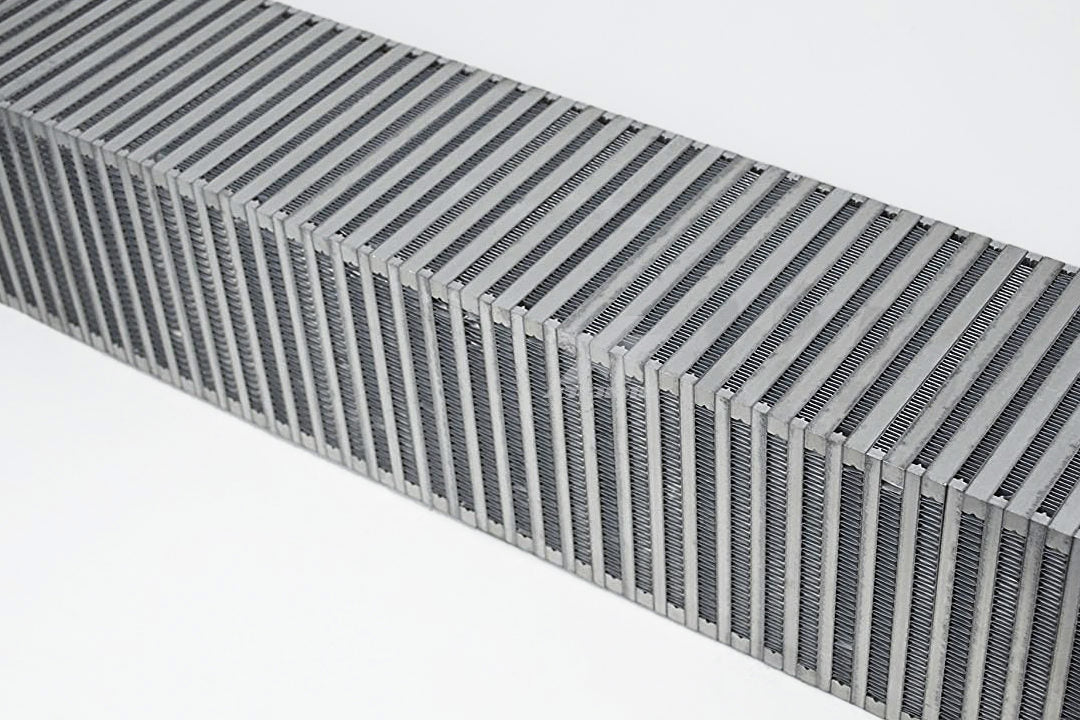

High-Performance Bar & Plate Intercooler Core 27x6x6 - Vertical Flow

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 27" x 6" x 6" Vertical Flow Core is rated for 1400 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.

• Heavy-Duty Bar & Plate Intercooler Cores
• Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
• Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
• Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

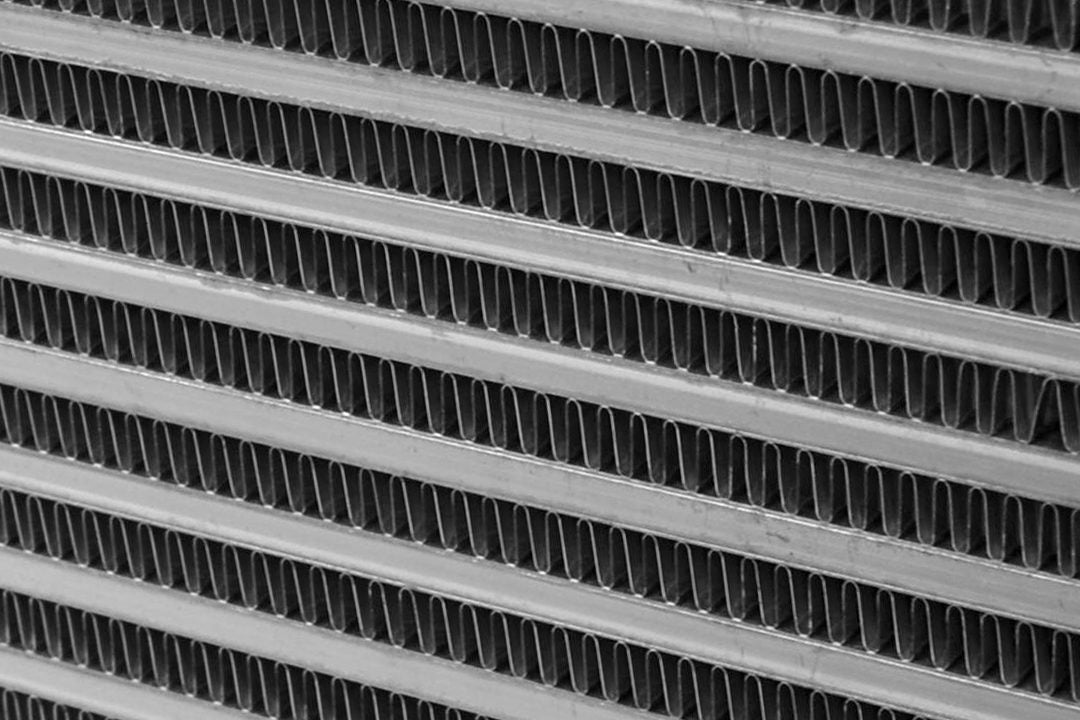

• Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
• Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
• Strict Quality Control and Quality Testing, Including Individual Pressure Testing
• Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
• Dimensions: 27"x6"x6" (685mm x 150mm x 150mm)
• HP Rating: 1400
• Vertical Flow
