COMP Cams K11-470-8 - Camshaft Kit CB 314H-R10

COMP Cams K11-470-8 - Camshaft Kit CB 314H-R10

COMP Cams | K11-470-8
SKU: COMP-K11-470-8
$1,665.99 USD
$1,832.59 USD $1,665.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams K11-470-8 - Camshaft Kit CB 314H-R10

Magnum 252/252 Hydraulic Roller Cam K-Kit for Chevrolet Big Block 396-454

Street/bracket racing. 10.5:1+ compression, 3500+ stall, 4.10 or lower gears. Headers, good intake and heads. Radical idle.

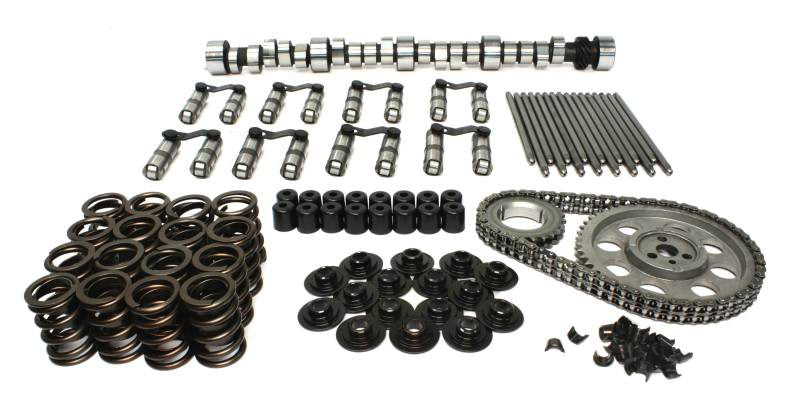

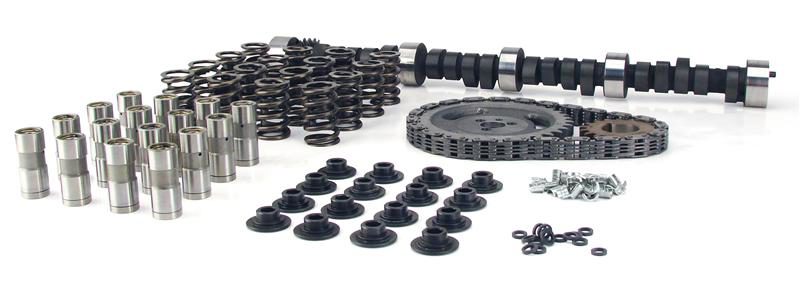

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.

Kit Type: K-Kit - Complete Kit
Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Hydraulic Roller
Basic Operating RPM Range: 3,500-6,500
Intake Duration at .050 Inch Lift: 252
Exhaust Duration at .050 inch Lift: 252
Advertised Intake Duration: 314
Advertised Exhaust Duration: 314
Lobe Separation: 110
Intake Valve Lift: 0.612
Exhaust Valve Lift: 0.612
Lifters Included: Yes
Valve Springs Included: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Lifter Type: Hydraulic Roller
Gaskets Included: No
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Amazon ASIN: B001GEX9UW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
