COMP Cams CK224-300-13 - Stage 1 LST Cam Kit for LT1 Camaro and Corvette w/ AFM Delete
COMP Cams CK224-300-13 - Stage 1 LST Cam Kit for LT1 Camaro and Corvette w/ AFM Delete
SKU: COMP-CK224-300-13
Regular price
$1,712.99 USD
Regular price
$1,884.29 USD
Sale price
$1,712.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams CK224-300-13 - Stage 1 LST Cam Kit for LT1 Camaro and Corvette w/ AFM Delete

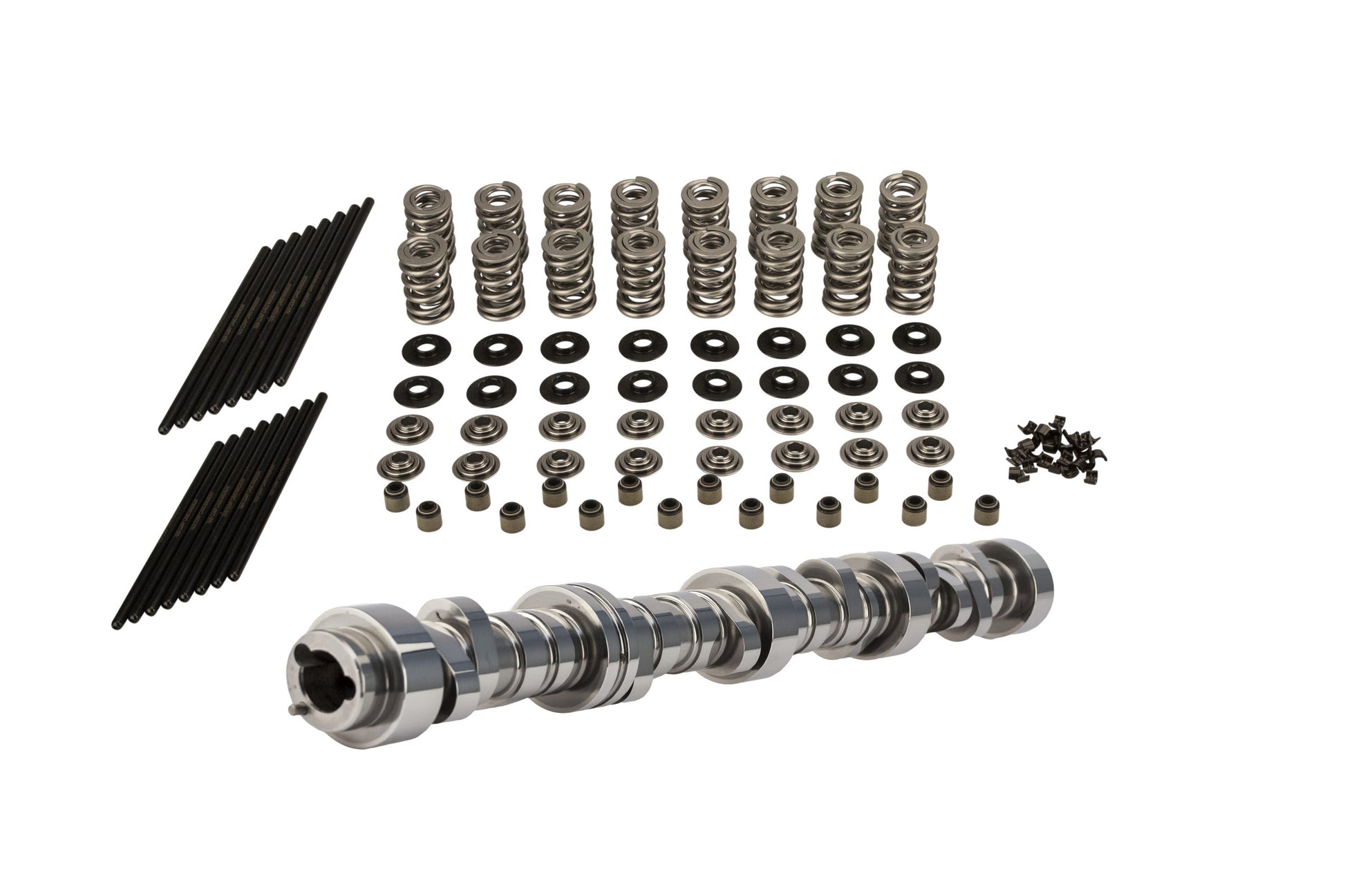

The Stage 1 LST Cam Kit for LT1 GEN V Camaro and C7 Corvette has a broad powerband with the best average torque and HP. Deletes AFM and includes pushrods, dual springs, retainers, locks, spring seats and seals.

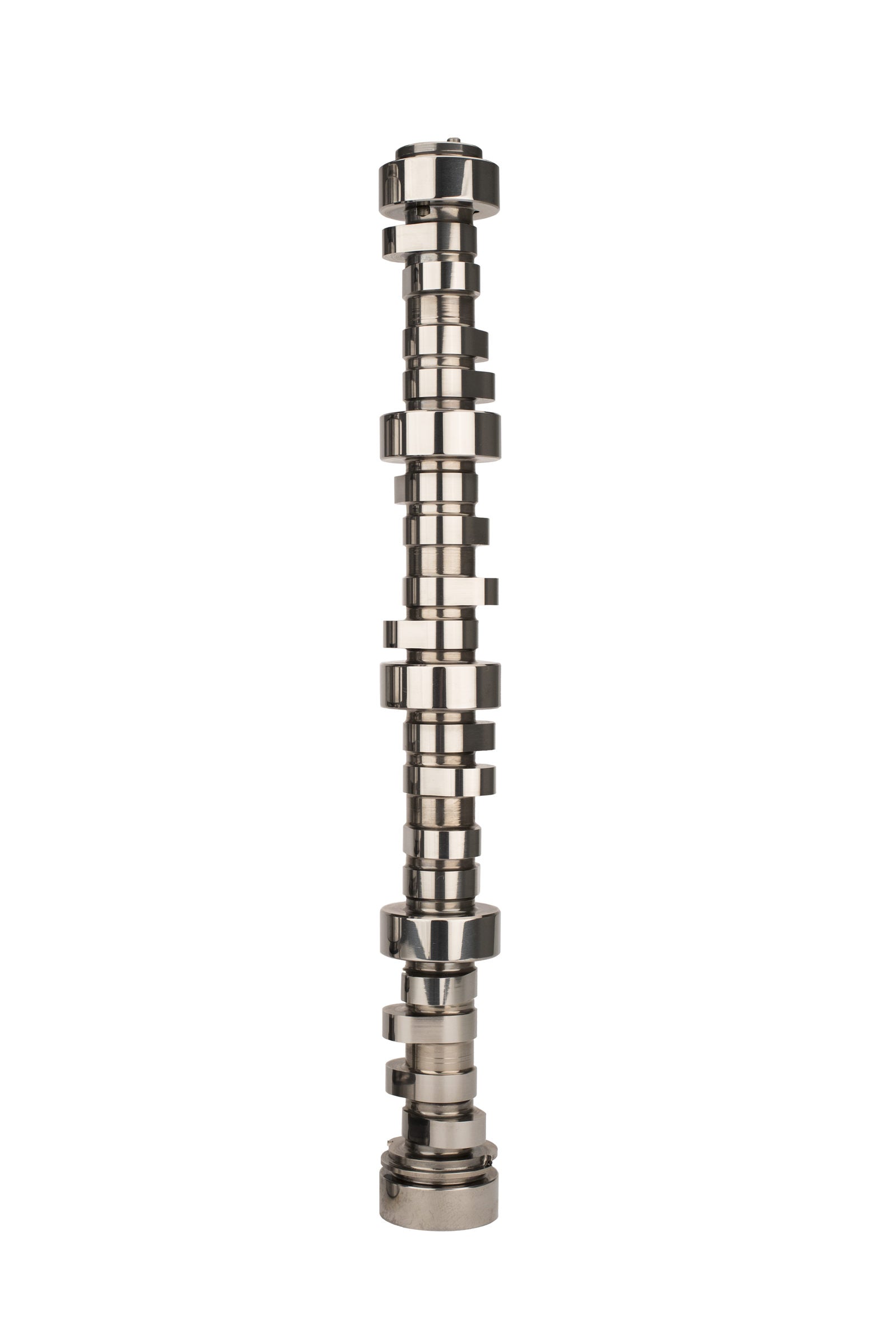

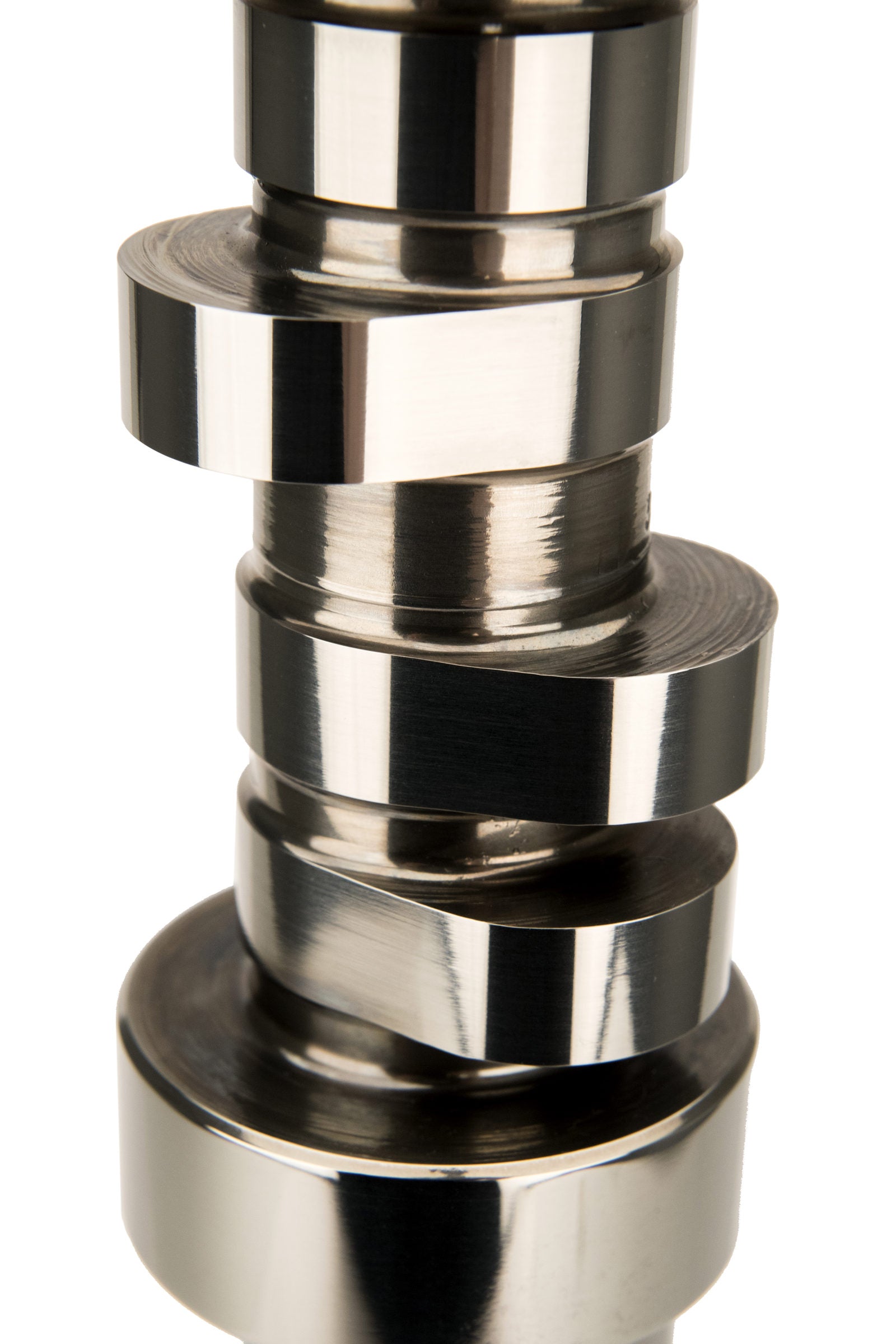

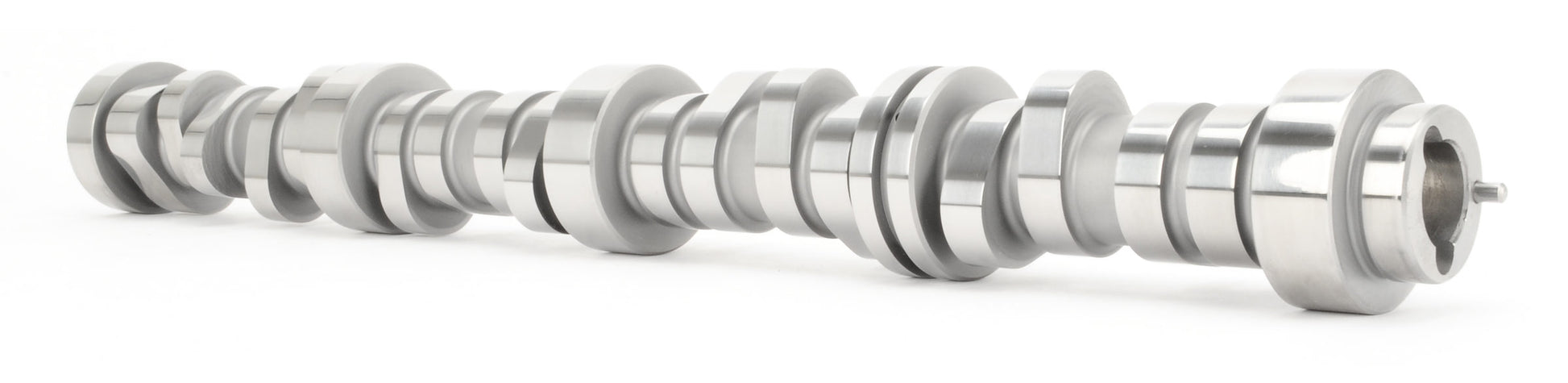

Stage 1 LST 227/238 Hydraulic Roller Cam
Kit Type: CK-Kit
Camshaft Series: Low Shock Technology
Usage: Street / Performance
Cam Type: Hydraulic Roller
Basic Operating RPM Range: 2,000-7,200
Intake Duration at .050 Inch Lift: 227
Exhaust Duration at .050 inch Lift: 238
Advertised Intake Duration: 282
Advertised Exhaust Duration: 287
Lobe Separation: 116.5
Intake Valve Lift: 0.65
Exhaust Valve Lift: 0.639
Lifters Included: No
Valve Springs Included: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller
Retainers Included: Yes
Locks Included: Yes
Pushrods Included: Yes
Gaskets Included: No
Engine Family: GM GEN V LT w/ VVT w/o AFM 2014-Present
Stage: 1
Timing Set Included: No
Valve Seals Included: Yes
Valve Spring Seats Included: Yes
Grind Number: 282LMH16
Recommended Upgraded Stock Rocker Arms: N/A
Recommended Max-Lift BSR Shaft Rocker System: N/A
Recommended Cam Install Kit for Camaro: 5624
Recommended Cam Install Kit for Corvette: 5626
Amazon ASIN: B07MM2JVT9
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 282LMH16
