COMP Cams - 946-16

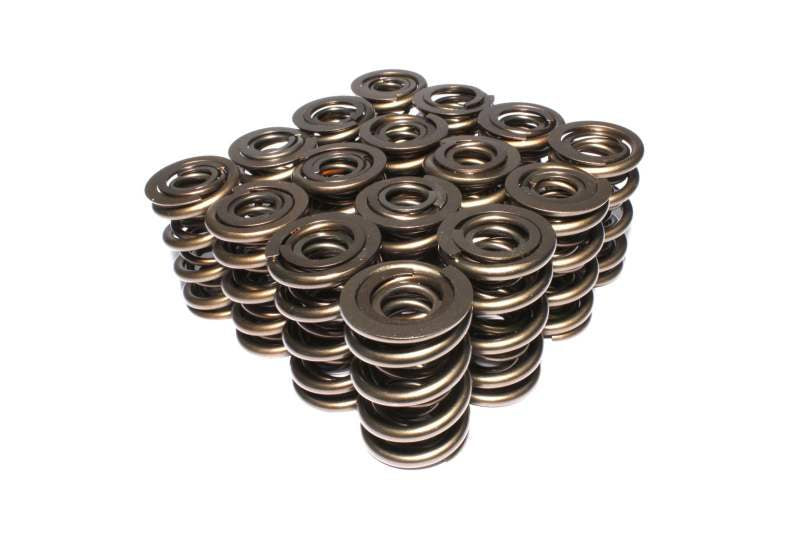

Valve Spring - Triple Spring - 689 lb/in Spring Rate - 1.130 in Coil Bind - 1.660 in OD - Set of 16
Engine Valve Spring Kit
Coil Bind Height: 1.13
Compatible Retainer: 739-16
Compatible Shims: 4756
Compatible Spring Cup (O.D. Locator): 4702-16
Damper: No
Inner Spring Inside Diameter: 0.863/0.627
Number of Springs: 3
Outer Spring Inside Diameter: 1.196
Outer Spring Outside Diameter: 1.66
Seat Height: 2
Seat Pressure: 285
Spring Rate: 689
Valve Spring Series: Race Extreme
Amazon ASIN: B00062YH7E
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
