COMP Cams 787-16 - Steel Retainers Std 7Deeg 269

COMP Cams 787-16 - Steel Retainers Std 7Deeg 269

COMP Cams | 787-16
SKU: COMP-787-16
$102.99 USD
$113.29 USD $102.99 USD
Sale Sold out
Shipping calculated at checkout.

31 in stock

COMP Cams 787-16 - Steel Retainers Std 7Deeg 269

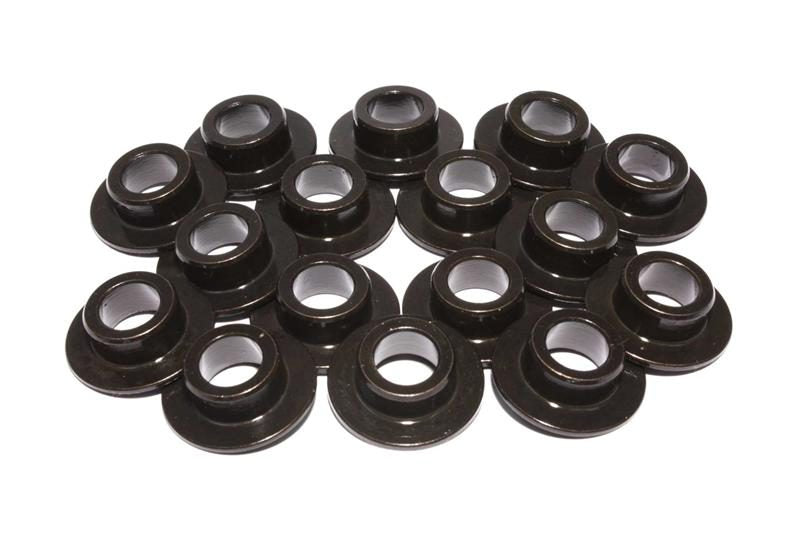

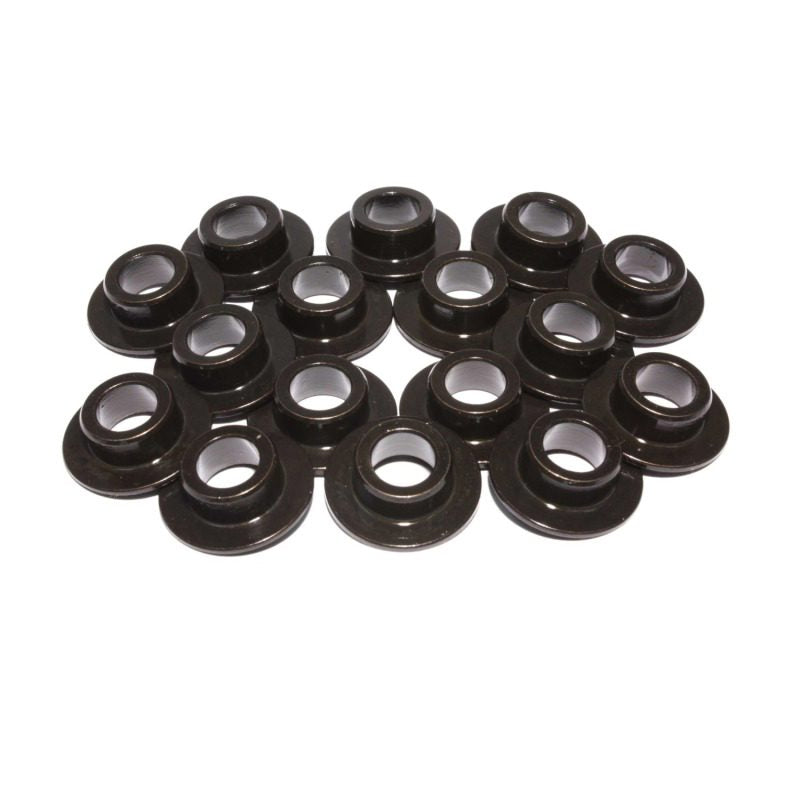

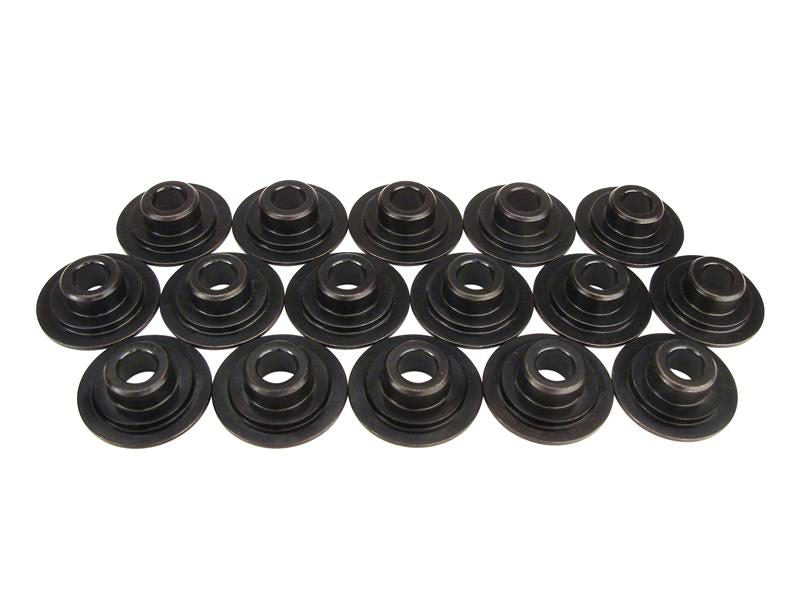

Valve Spring Retainer - 7 Degree - 0.640 in OD Step - 1.055 in Single Spring - Chromoly - Black Oxide - Set of 16

Precision machined from chromemoly steel then black oxided, these 7 degree retainers are designed specifically for 11/32" valve applications with our 26915/26918 Beehive valve springs.

Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams Steel Retainers are the perfect solution to this problem. COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead,

Compatible Lock: 648-16
Diameter 1: 1.03
Diameter 2: 0.64
Lock Angle: 7
Retainer Material: 4140 Chromemoly Steel
Valve Spring Diameter: 1.055
Valve Stem Size: 11/32
Amazon ASIN: B000CIOBK0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
