COMP Cams 76-801-9 - Camshaft Gm38 255HR12

COMP Cams 76-801-9 - Camshaft Gm38 255HR12

COMP Cams | 76-801-9
SKU: COMP-76-801-9
$590.99 USD
$650.09 USD $590.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 76-801-9 - Camshaft Gm38 255HR12

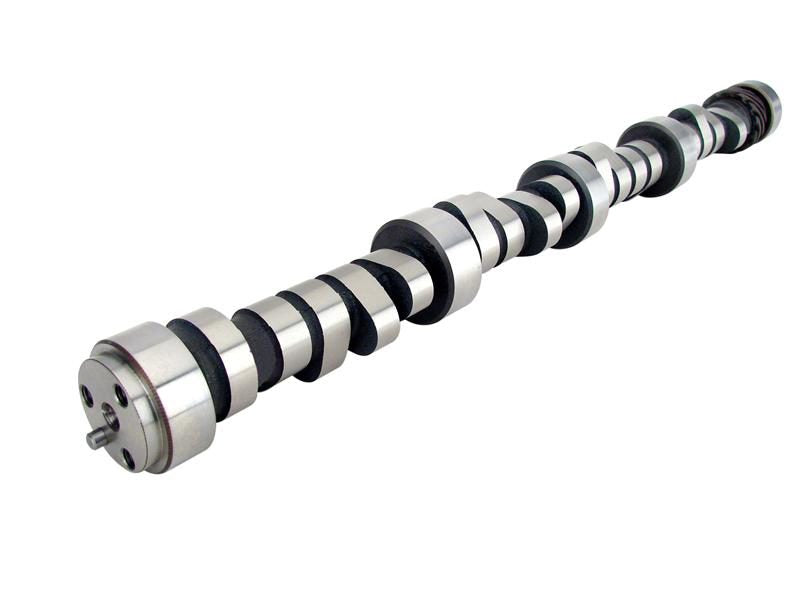

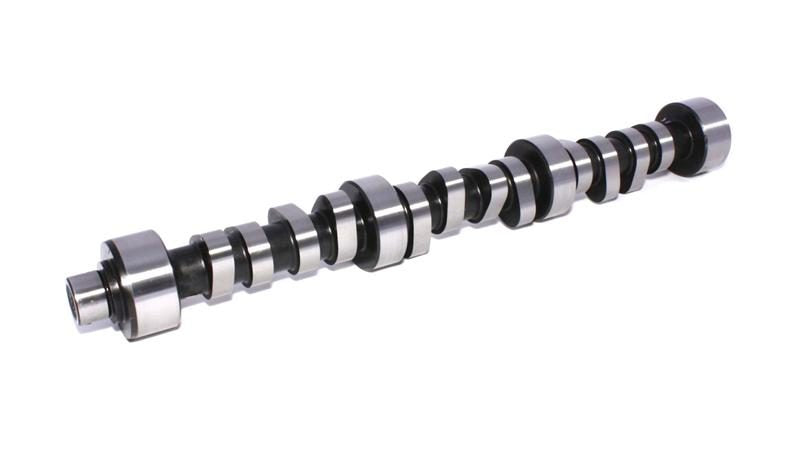

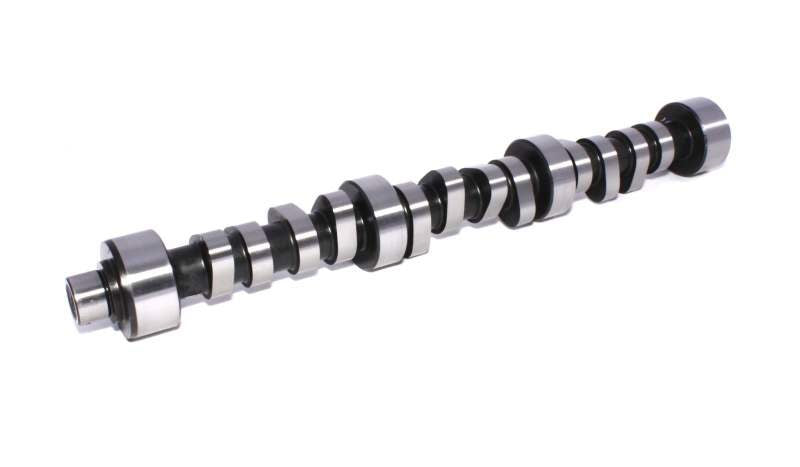

Xtreme Energy 201/205 Hydraulic Roller Cam for GM 3800/3.8L V6

Naturally aspirated performance cam. Best with intake improvements. Must replace valve springs.

Naturally Aspirated Performance Cam - Best with Intake Improvements - Must Replace Springs.

Lifter Type: Hydraulic Roller
Amazon ASIN: B000P59C4A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 255 HR12
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: 255 HR12
Basic Operating RPM Range: 1,000-5,500
Intake Duration at .050 Inch Lift: 201
Exhaust Duration at .050 inch Lift: 205
Advertised Intake Duration: 255
Advertised Exhaust Duration: 262
Lobe Separation: 112
Intake Valve Lift: 0.496
Exhaust Valve Lift: 0.48
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Billet Steel
Engine Family: GM 3800/3.8L 6 Cylinder (1996+)
Cam and Lifter Kit Upgrade: CL76-801-9
