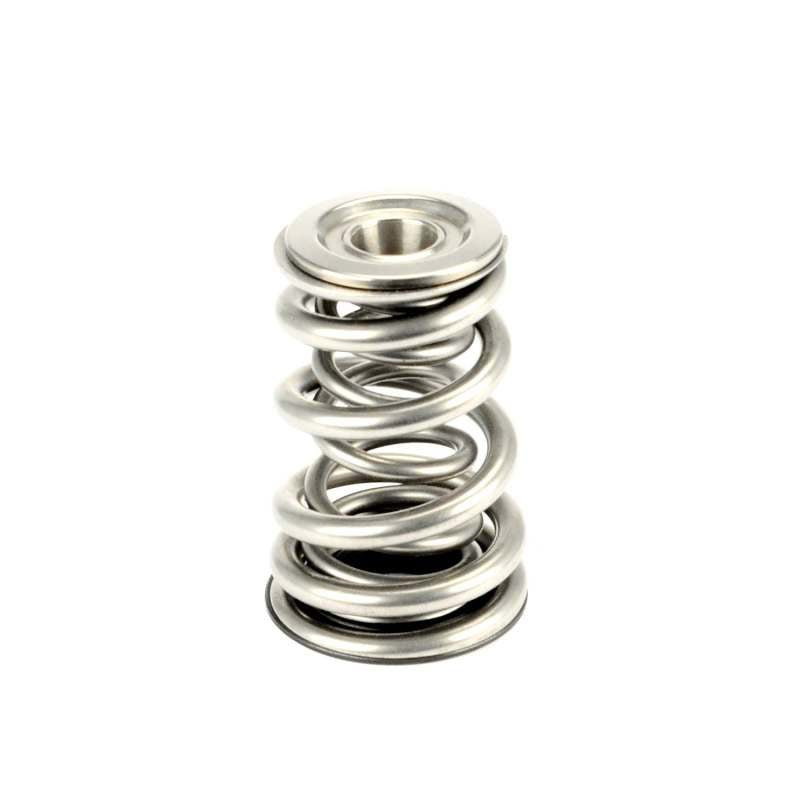

COMP Cams 7245-16 - Dual Conical Valve Springs .750/1.074

COMP Cams 7245-16 - Dual Conical Valve Springs .750/1.074

COMP Cams | 7245-16
SKU: COMP-7245-16
$715.99 USD
$787.59 USD $715.99 USD
Sale Sold out
Shipping calculated at checkout.

6 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 7245-16 - Dual Conical Valve Springs .750/1.074

Valve Spring - Conical - Dual Spring - 600 lb/in Spring Rate - 1.115 in Coil Bind - 1.657 in OD - Set of 16

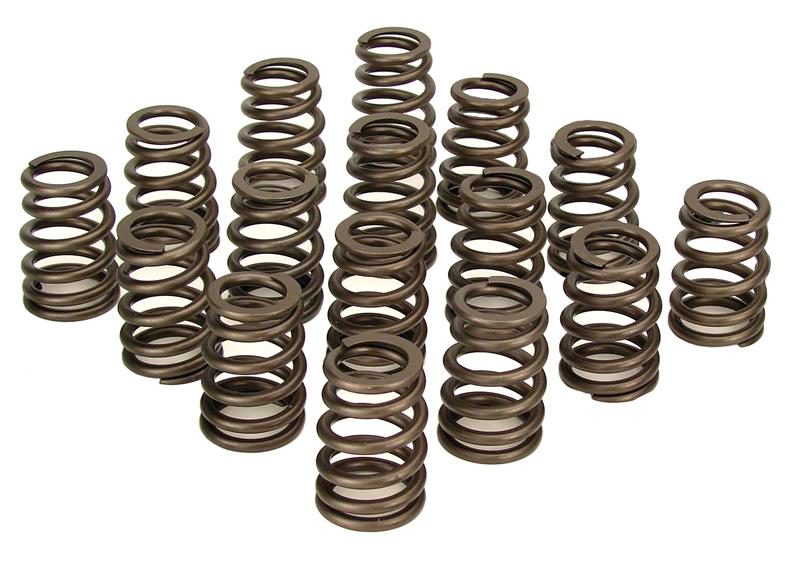

(16) Dual Conical Valve Springs

As opposed to dual cylindrical spring systems, COMP Cams Dual Conical Valve Springs require no interference fit to dampen spring surge. The self damping characteristic of conical geometry, along with the lower spring kinetic energy of the upper coils, provide a game-changing breakthrough in valve spring design. COMP Cams Dual Conical Valve Springs are constrained at the top and bottom with stepped retainers and spring seats to create separation. The result is that the springs naturally progressive nature can provide outstanding damping without rubbing friction or the associated heat and+D6566 surface damage. These springs are designed for circle track, road Race and drag racing Applications, as well as all-out, high-RPM street/strip hydraulic Roller valve train systems with optimized lifters.

Spring Rate: 600
Valve Spring Series: Race Endurance
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
Outer Top Spring Outside Diameter: 1.442
Amazon ASIN: B00N6LTDAI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
Seat Height: 2.05
Compatible Shims: 4756
Outer Top Spring Inside Diameter: 1.01
Outer Bottom Spring Outside Diameter: 1.657
Outer Bottom Spring Inside Diameter: 1.225
Number of Springs: 2
Inner Spring Inside Diameter: 0.646/0.861
Damper: No
Compatible Retainer: 716-16
Seat Pressure: 150
Compatible .570" Guide Diameter Spring Seats: 4669-16
Coil Bind Height: 1.115
