COMP Cams 7230-16 - Conical Valve Springs .660/.932
COMP Cams 7230-16 - Conical Valve Springs .660/.932
SKU: COMP-7230-16
Regular price
$426.99 USD
Regular price
$469.69 USD
Sale price
$426.99 USD
Shipping calculated at checkout.
4 in stock
Quantity
Couldn't load pickup availability

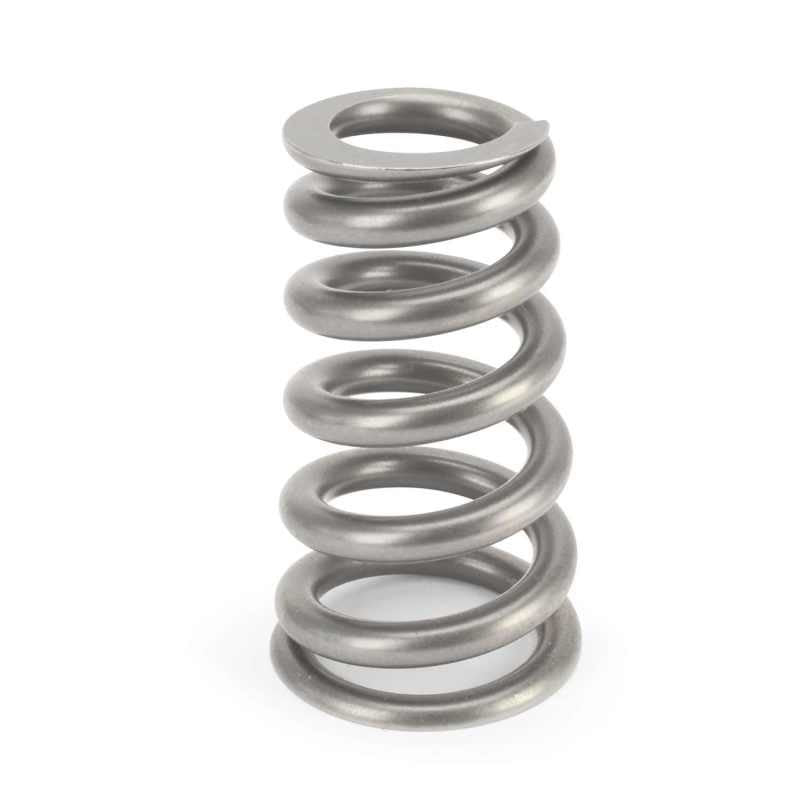

COMP Cams 7230-16 - Conical Valve Springs .660/.932

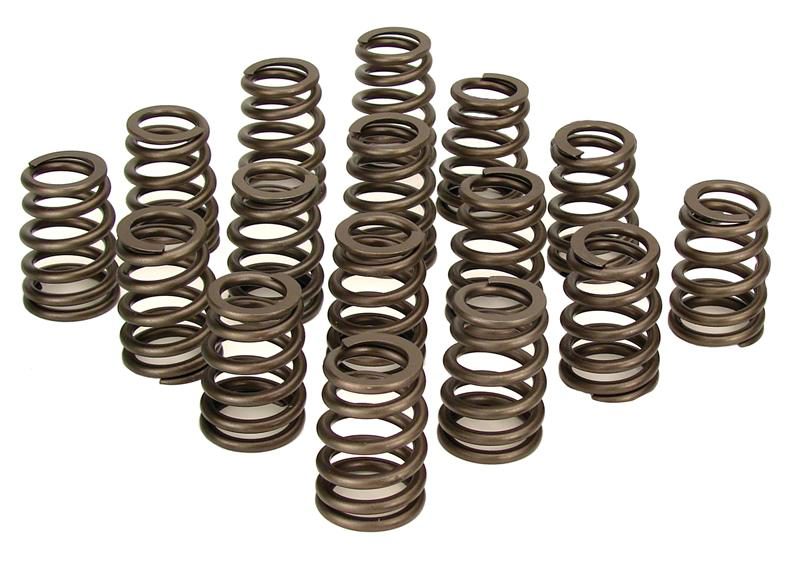

Valve Spring - Conical - Single Spring - 519 lb/in Spring Rate - 1.175 in Coil Bind - 1.060 in / 1.332 in OD - Set of 16
Conical Valve Springs 145 @ 1.900" / 495 @ 1.225"
Revolutionary Advancement In High Performance Spring Technology.
| 7230-16 | Outer Diameter and | Inner Diameter and | Seat Load | Open Load | Coil Bind | Rate and |
| Top | 1.060" | .660" | 145 @ 1.900" | 495 @ 1.225" | 1.185" | 520 |
| Bottom | 1.332" | .932" |
Coil Bind Height: 1.175
Compatible .570" Guide Diameter Spring Seats: 4677-16
Compatible Retainer: 788-16
Compatible Shims: 4754
Damper: No
Number of Springs: 1
Outer Bottom Spring Inside Diameter: 0.932
Outer Bottom Spring Outside Diameter: 1.332
Outer Top Spring Inside Diameter: 0.66
Outer Top Spring Outside Diameter: 1.06
Seat Height: 1.9
Seat Pressure: 145
Spring Rate: 519
Valve Spring Series: Race Sportsman
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
