COMP Cams 689-422-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-422-13 - Camshaft GM LS 358 VVT/AFM 27
SKU: COMP-689-422-13
Regular price
$515.95 USD
Regular price
$567.54 USD
Sale price
$515.95 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 689-422-13 - Camshaft GM LS 358 VVT/AFM 27

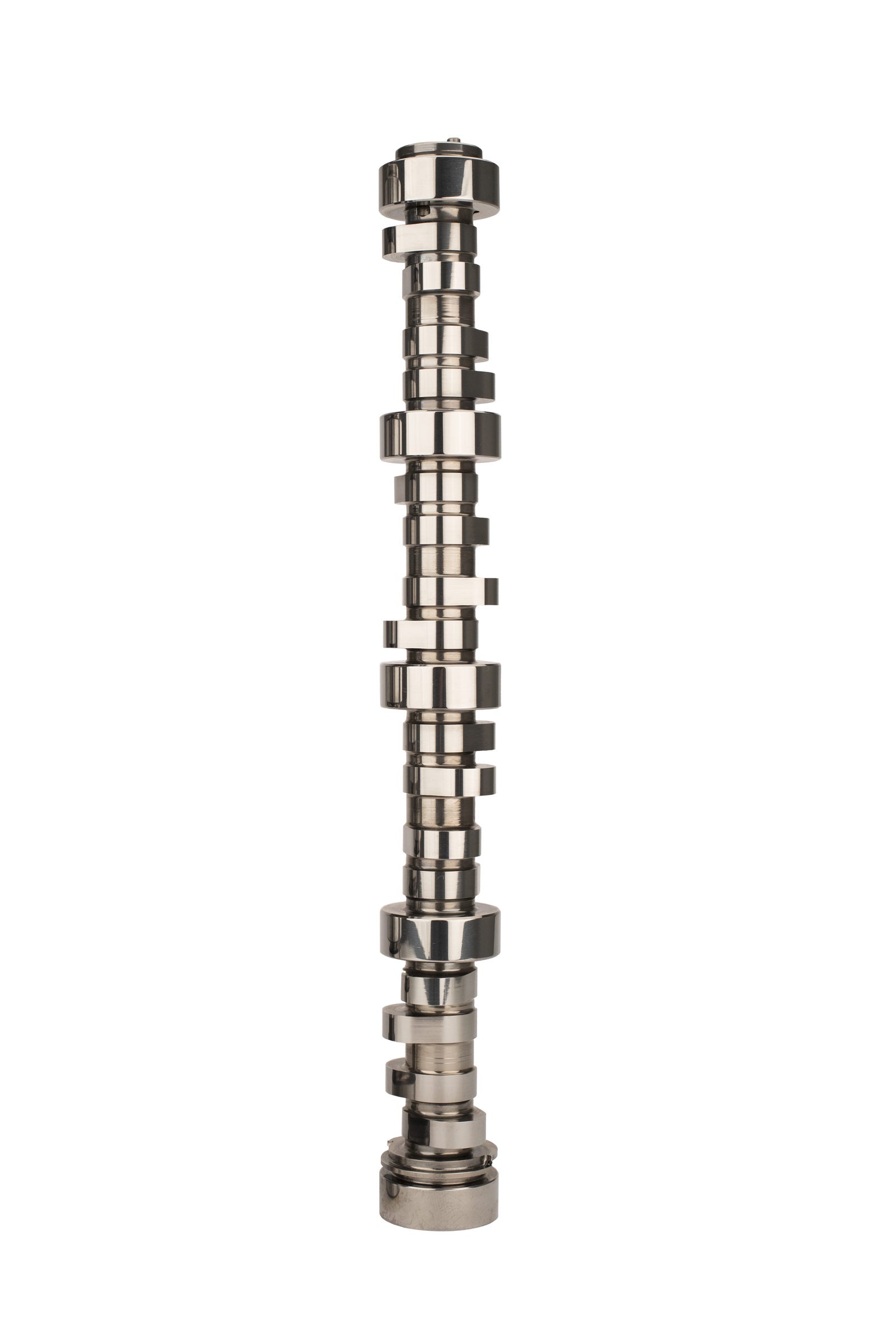

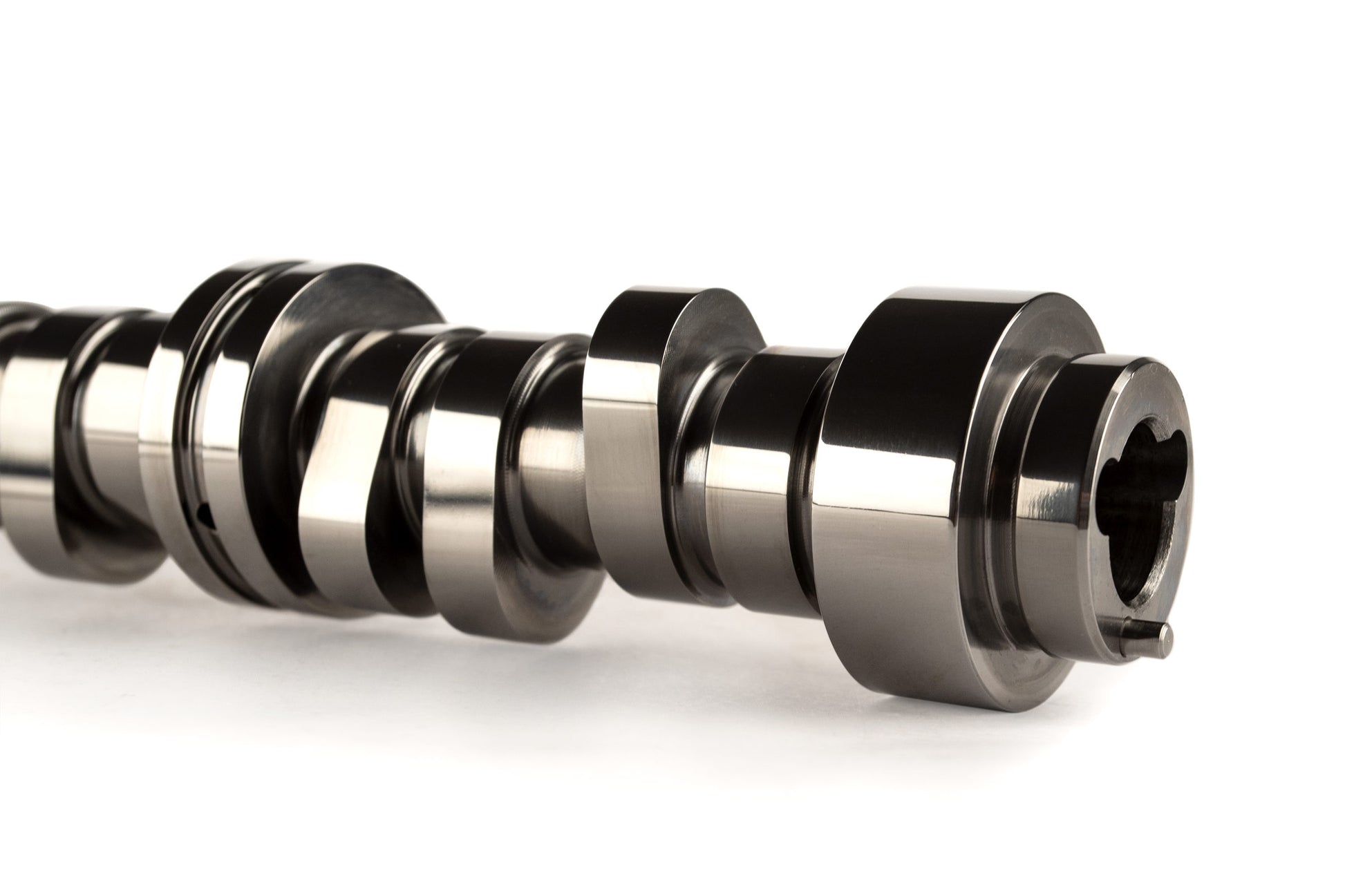

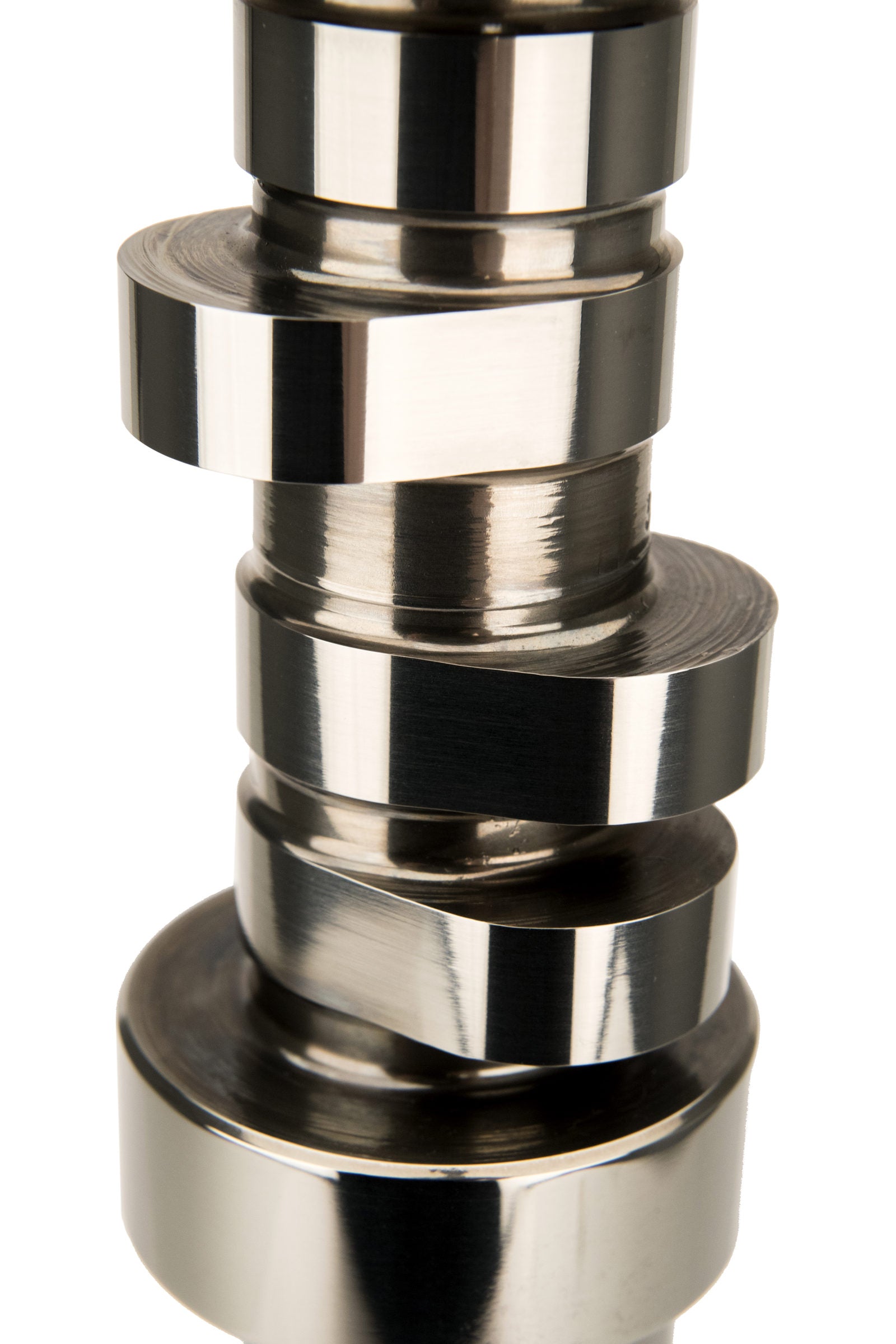

XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV
Great all around performance and best choice for mildly modified L99 Camaro applications with AFM enabled.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 270PIIHR15
Camshaft Series: XFI AFM
Grind Number: 270PIIHR15
Lobe Separation: 115
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Usage: Street/Performance
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 218
Intake Duration at .050 Inch Lift Deactivation Cylinders: 220
Advertised Exhaust Duration Deactivation Cylinders: 294
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Advertised Exhaust Duration Non-Deactivation Cylinders: 282
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 230
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 232
Advertised Intake Duration Non-Deactivation Cylinders: 270
Advertised Intake Duration Deactivation Cylinders: 282
Exhaust Valve Lift Deactivation Cylinders: 0.5
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
C.A.R.B. E.O.: N/A
Amazon ASIN: B0066SUNUM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
