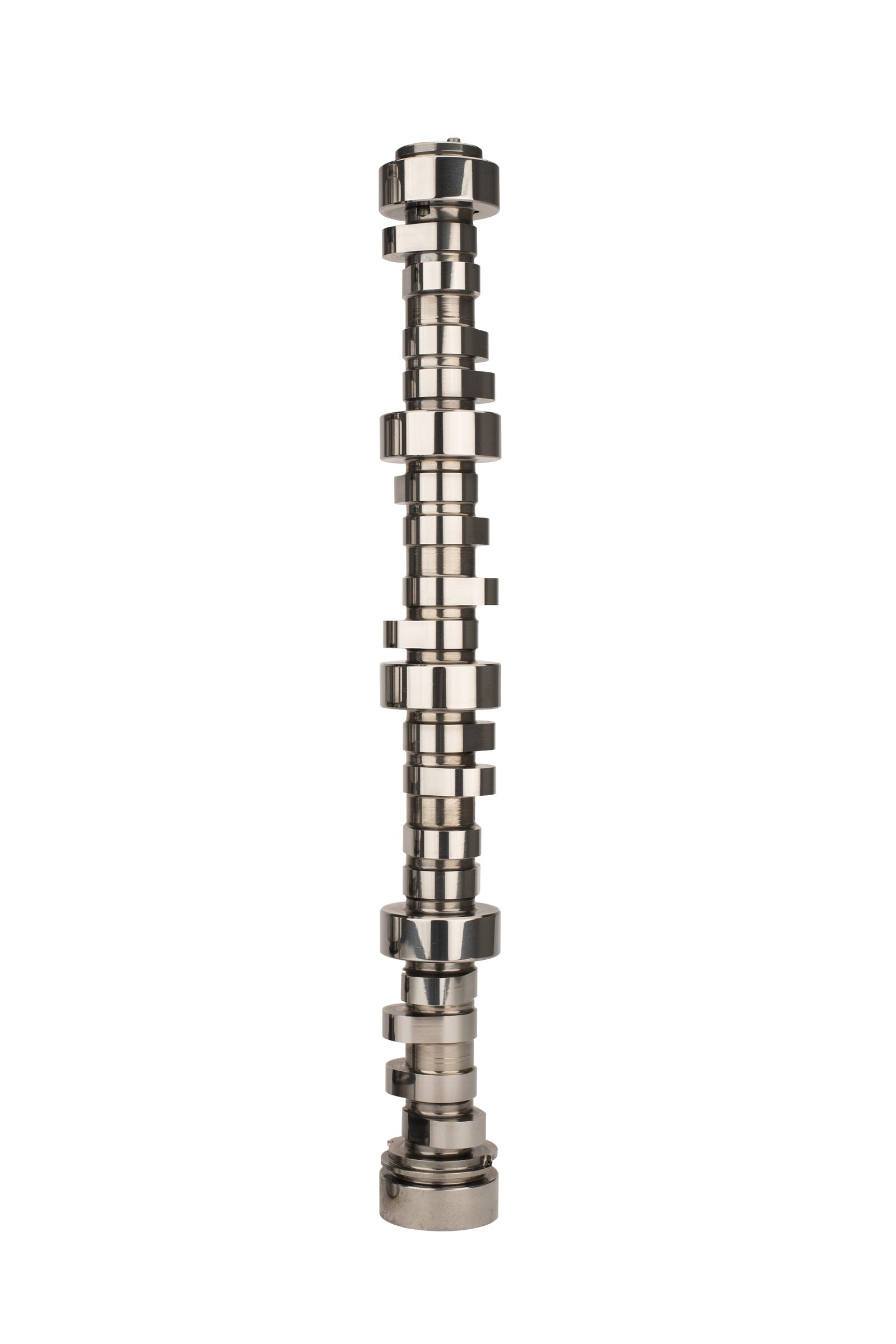

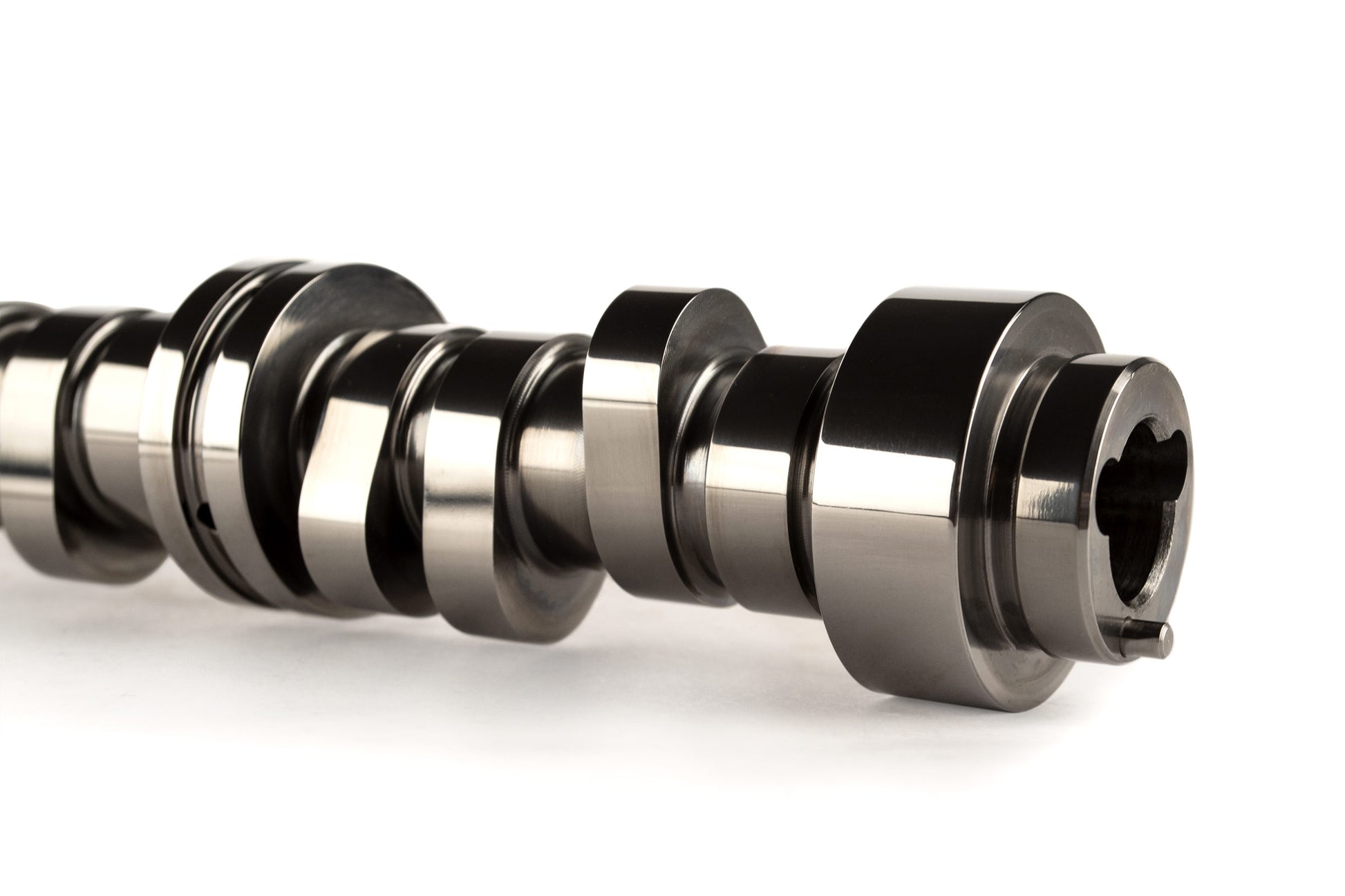

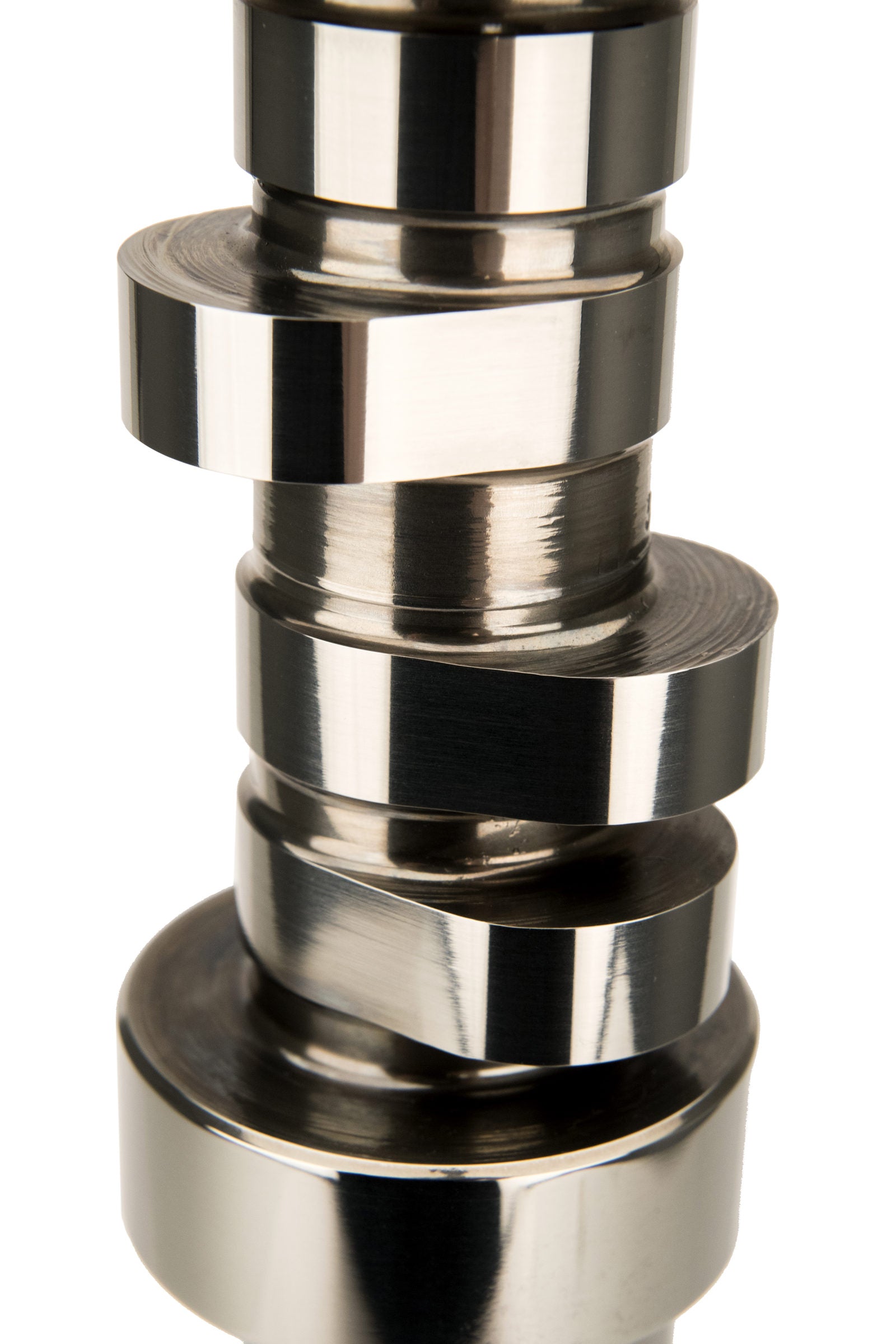

COMP Cams 689-421-13 - Camshaft GM LS 358 VVT/AFM 26
XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV
Excellent responsiveness and mid-range power w/ across the board gains. Best choice for heavy vehicles w/ stock gears.
XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam
Advertised Intake Duration Deactivation Cylinders: 278
C.A.R.B. E.O.: N/A
Amazon ASIN: B0066SUNFW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
Exhaust Valve Lift Deactivation Cylinders: 0.5
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 266PIIHR14
Camshaft Series: XFI AFM
Grind Number: 266PIIHR14
Lobe Separation: 114
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 214
Usage: Street/Performance
Camshaft Material: Billet Steel
Camshaft Gear Attachment: 1-Bolt
Intake Duration at .050 Inch Lift Deactivation Cylinders: 216
Advertised Exhaust Duration Deactivation Cylinders: 290
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Advertised Exhaust Duration Non-Deactivation Cylinders: 278
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 226
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 228
Advertised Intake Duration Non-Deactivation Cylinders: 266
