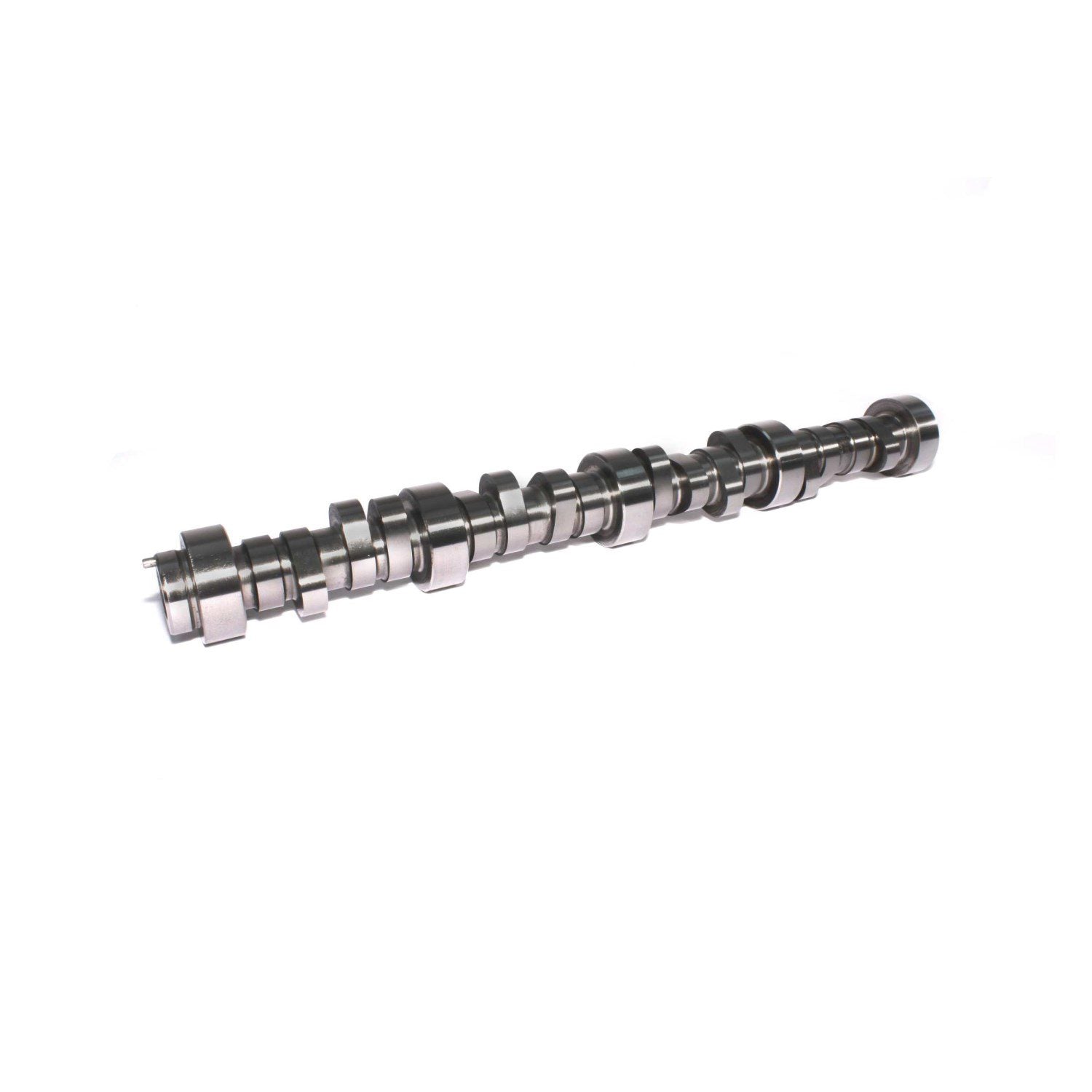

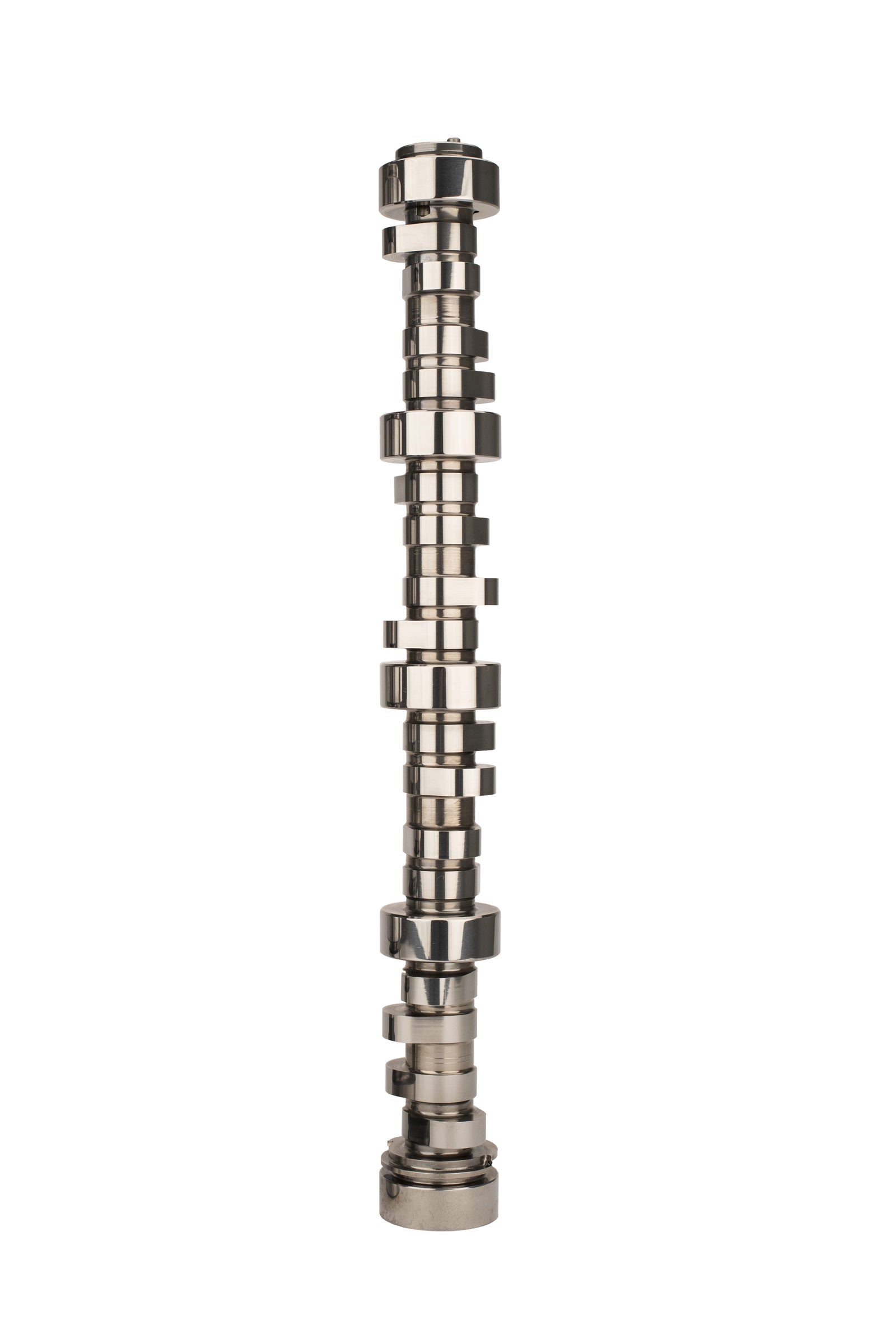

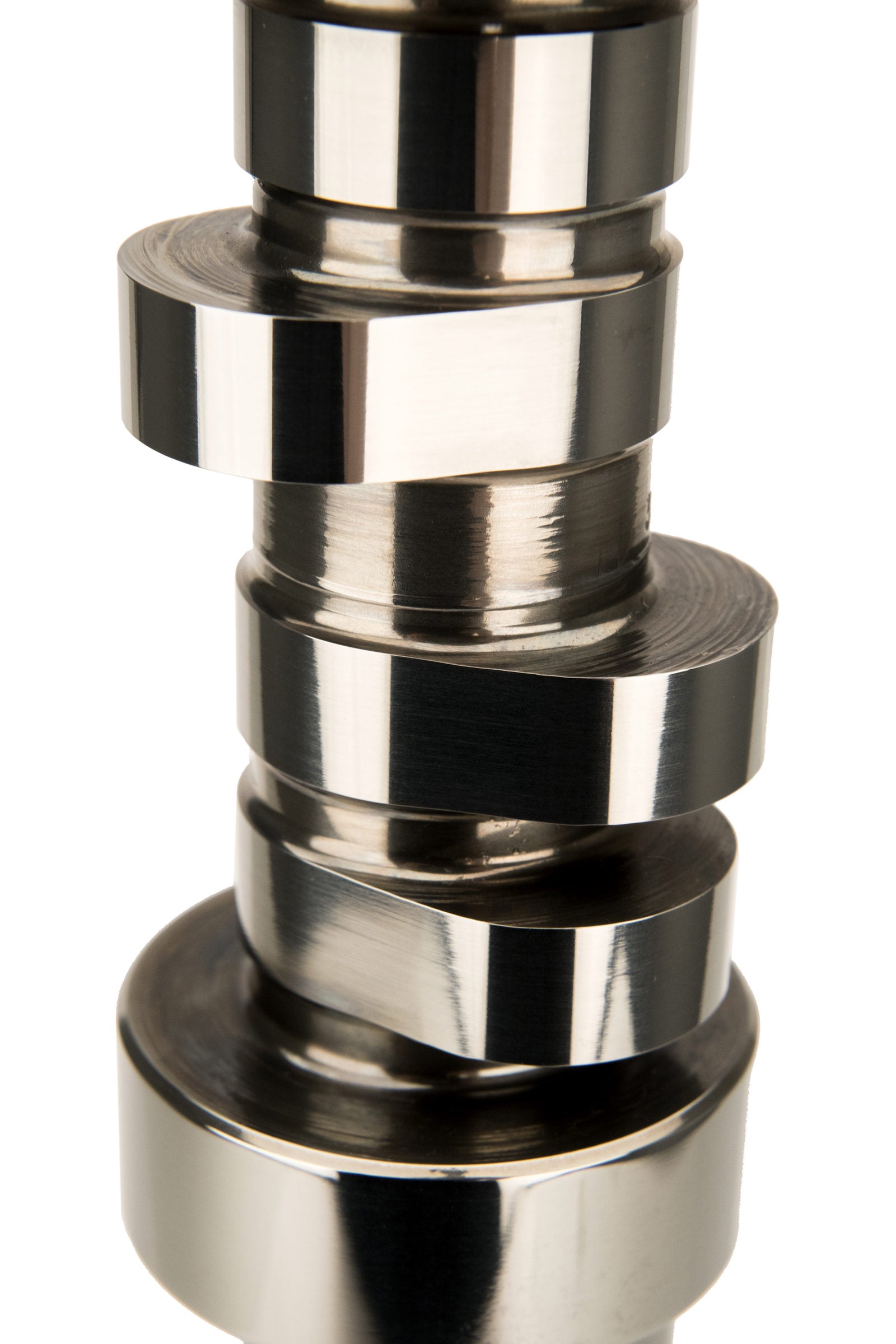

COMP Cams 646-431-13 - Camshaft GM Gen Iv LS2/LS3 AFM
COMP Cams 646-431-13 - Camshaft GM Gen Iv LS2/LS3 AFM
SKU: COMP-646-431-13
Regular price
$718.99 USD
Regular price
$790.89 USD
Sale price
$718.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 646-431-13 - Camshaft GM Gen Iv LS2/LS3 AFM
XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV
Great all around torque for trucks and other heavy applications, across the board improvements power over stock AFM cams.
XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam
Camshaft Series: XFI AFM
Cam Type: Hydraulic Roller
Grind Number: 262AFM15
Basic Operating RPM Range: 1,600-6,300
Lobe Separation: 115
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Lifter Type: Hydraulic Roller
Engine RPO Compatibility: LS4, L76, L77, LH6, LY5, LMG, LFA
Advertised Intake Duration Deactivation Cylinders: 275
Advertised Exhaust Duration Deactivation Cylinders: 286
Intake Duration at .050" Deactivation Cylinders: 212
Exhaust Duration at .050" Deactivation Cylinders: 224
Advertised Intake Duration Non-Deactivation Cylinders: 262
Advertised Exhaust Duration Non-Deactivation Cylinders: 274
Intake Duration at .050" Non-Deactivation Cylinders: 210
Exhaust Duration at .050" Non-Deactivation Cylinders: 222
Intake Valve Lift Deactivation Cylinders: 0.5
Exhaust Valve Lift Deactivation Cylinders: 0.5
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
AFM Delete Camshaft Core Prefix: 146-
Amazon ASIN: B0066ST5MO
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 262AFM15
