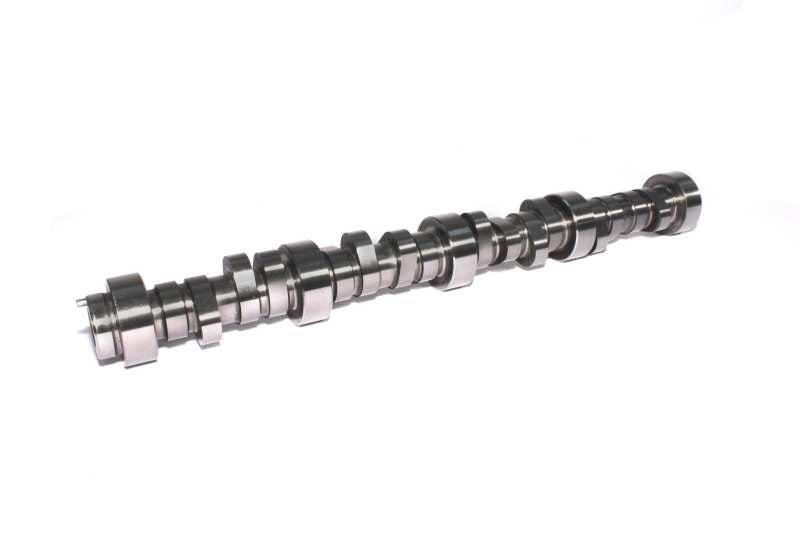

COMP Cams 646-201-13 - Camshaft GM Gen IV LS2/LS3 AFM LAFME264

COMP Cams 646-201-13 - Camshaft GM Gen IV LS2/LS3 AFM LAFME264

COMP Cams | 646-201-13
SKU: COMP-646-201-13
$718.99 USD
$790.89 USD $718.99 USD
Sale Sold out
Shipping calculated at checkout.

8 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 646-201-13 - Camshaft GM Gen IV LS2/LS3 AFM LAFME264

FSL 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV

50-state legal grind for GM L92 Gen IV singlebolt w/ AFM. Works with stock components and tune, can produce 47+ HP increase in peak power.

FSL Cams for the GM Gen III/IV three-bolt and GEN IV single-bolt applications can produce a 30 to 47 HP increase in peak power, without requiring a valve spring upgrade or tuning. The best part of these new FSL cams is the incredible power gains that come without the risk of non-compliance with emissions regulations.

Advertised Exhaust Duration Deactivation Cylinders: 273
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 222
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 224
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 210
Intake Duration at .050 Inch Lift Deactivation Cylinders: 212
Camshaft Series: FSL
Recommended Cam Install Kit: 5623
Grind Number: LAFME264
VVT Limiter Required?: No
Intake Valve Lift Non-Deactivation Cylinders: 0.541
Grind Number: LAFME264
Camshaft Material: Billet Steel
Lifters Included: No
Assembly Lubricant Included: No
Lobe Separation: 116
Valve Springs Required: 26906
Camshaft Gear Attachment: Single-Bolt
Engine Family: Gen IV AFM ONLY EO Camshafts
Cam Type: Hydraulic Roller
Lifter Type: Hydraulic Roller
Intake Valve Lift Deactivation Cylinders: 0.541
Basic Operating RPM Range: 1700-6900
Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
Exhaust Valve Lift Deactivation Cylinders: 0.541
Advertised Intake Duration Non-Deactivation Cylinders: 274
Advertised Intake Duration Deactivation Cylinders: 286
Advertised Exhaust Duration Non-Deactivation Cylinders: 264
