COMP Cams 54-471-11 - Camshaft LS1 289Lrr HR-114

COMP Cams 54-471-11 - Camshaft LS1 289Lrr HR-114

COMP Cams | 54-471-11
SKU: COMP-54-471-11
$413.99 USD
$455.39 USD $413.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 54-471-11 - Camshaft LS1 289Lrr HR-114

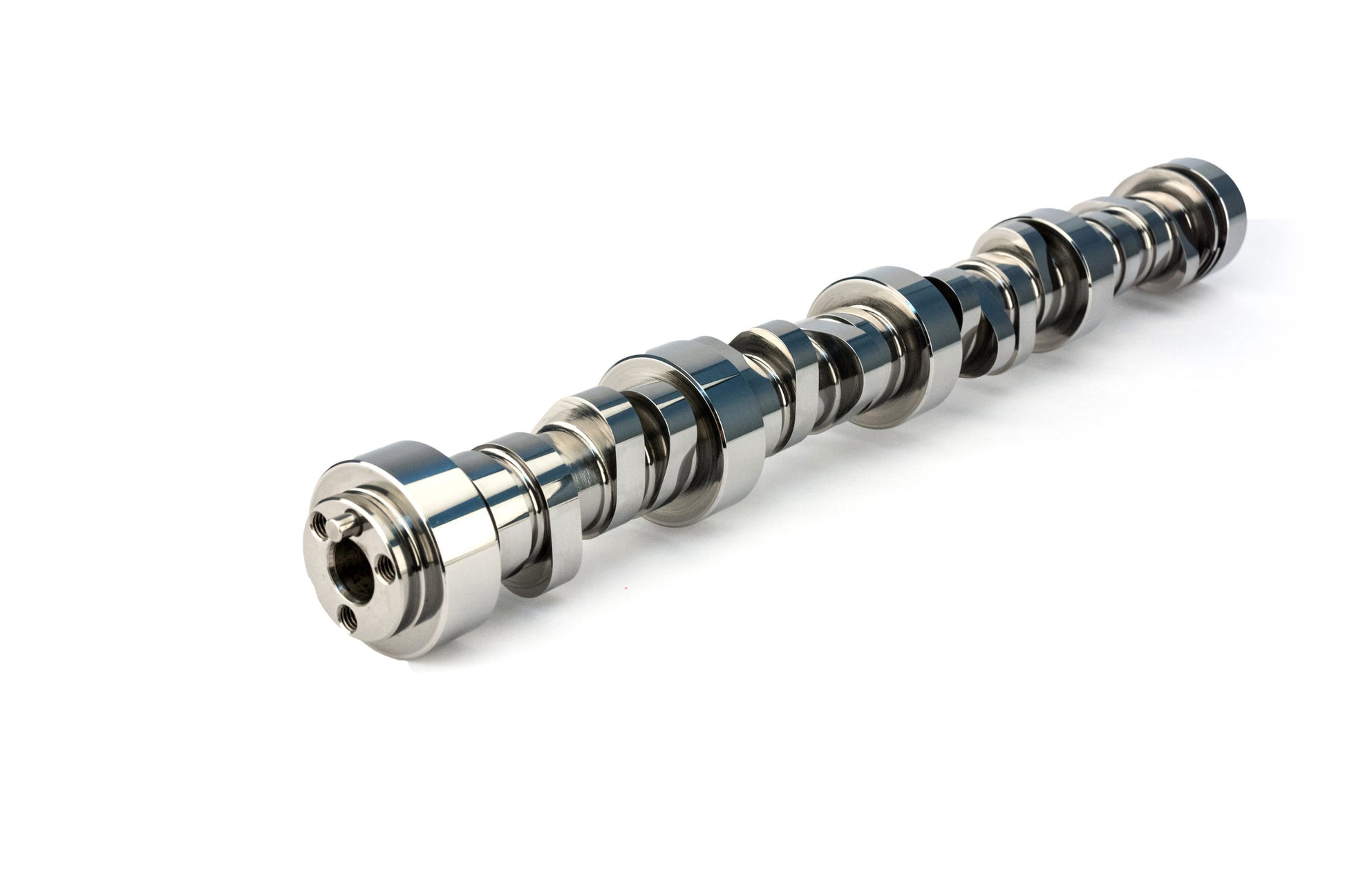

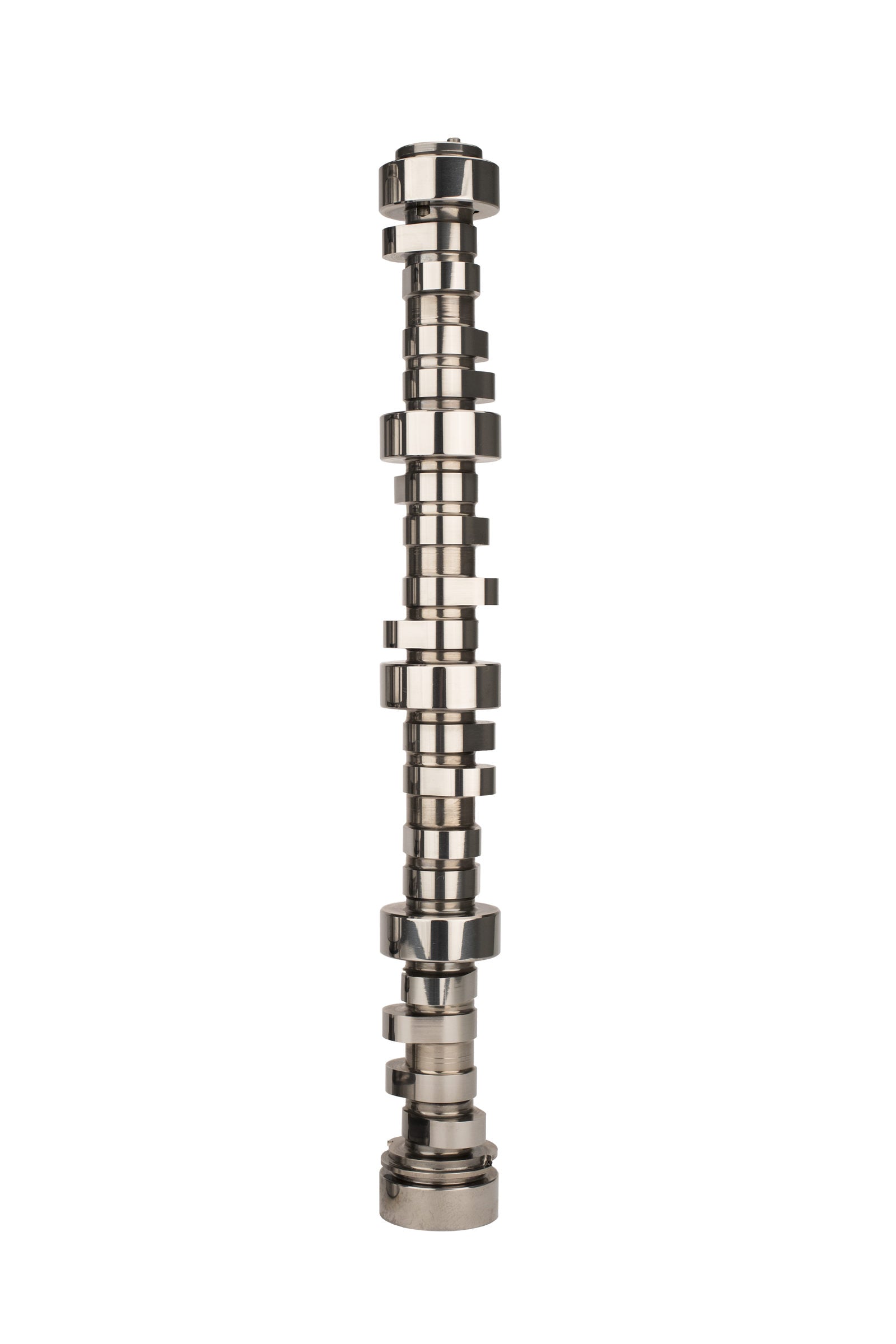

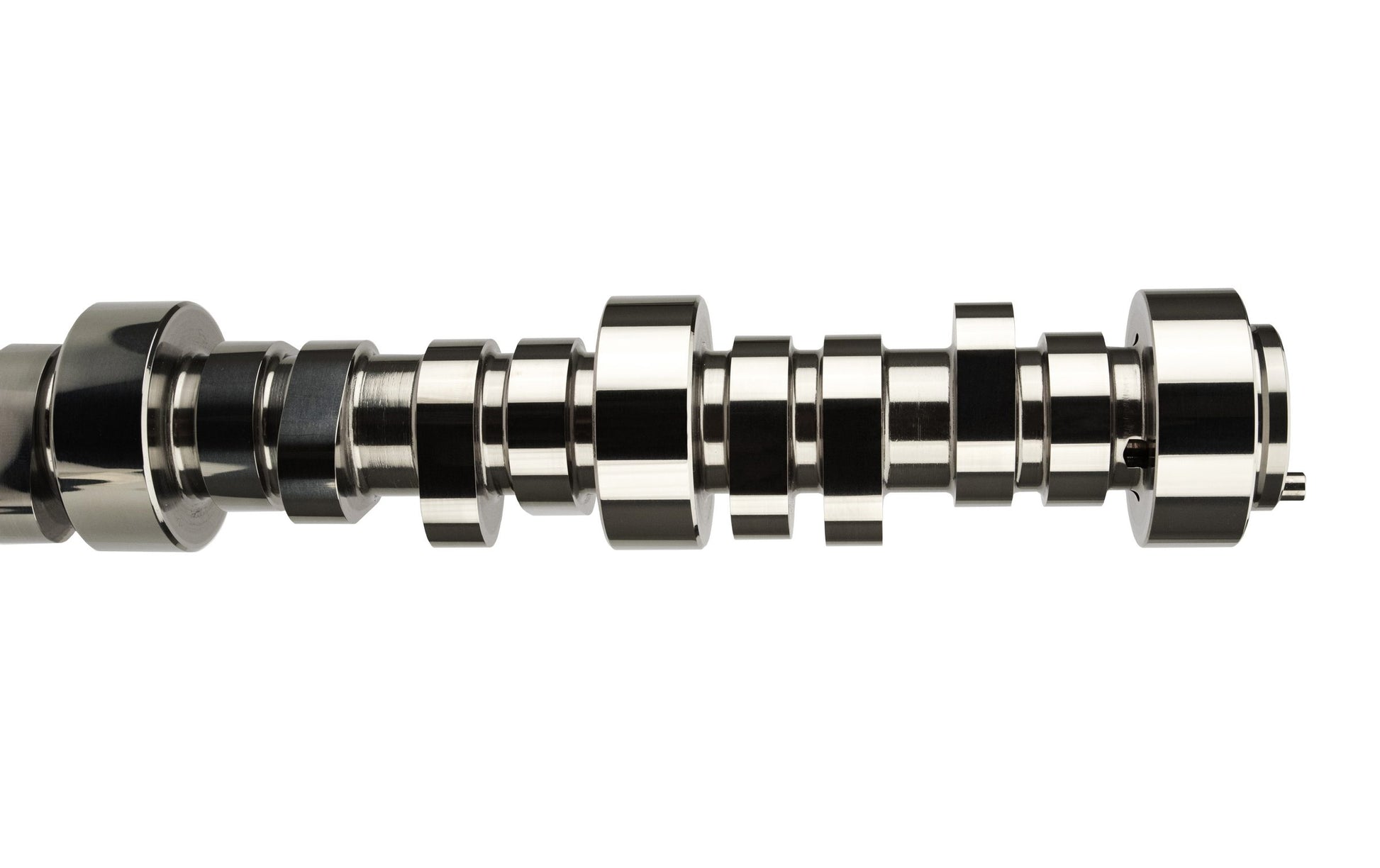

Camshaft - LSR Rectangular Port - Hydraulic Roller - Lift 0.624 / 0.624 in - Duration 289 / 305 - 114 LSA - 2400 / 7200 RPM - GM LS-Series - Each

Broad top end power range for high RPM, race only LS engines with aftermarket rectangular port heads and higher compression.

Hydraulic Roller: Broad top end power range for high rpm, Race only LS engines with aftermarket rectangular port cylinder heads and higher compression.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 289LRR HR14
Camshaft Series: LSR Rectangular Port All Out Power
Cam Type: Hydraulic Roller
Grind Number: 289LRR HR14
Basic Operating RPM Range: 2,400-7,200
Intake Duration at .050 Inch Lift: 239
Exhaust Duration at .050 inch Lift: 255
Advertised Intake Duration: 289
Advertised Exhaust Duration: 305
Lobe Separation: 114
Intake Valve Lift: 0.624
Exhaust Valve Lift: 0.624
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Amazon ASIN: B001P1Z990
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
