COMP Cams 54-470-11 - Camshaft LS1 285Lrr HR-113
COMP Cams 54-470-11 - Camshaft LS1 285Lrr HR-113
SKU: COMP-54-470-11
Regular price
$409.99 USD
Regular price
$450.99 USD
Sale price
$409.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability

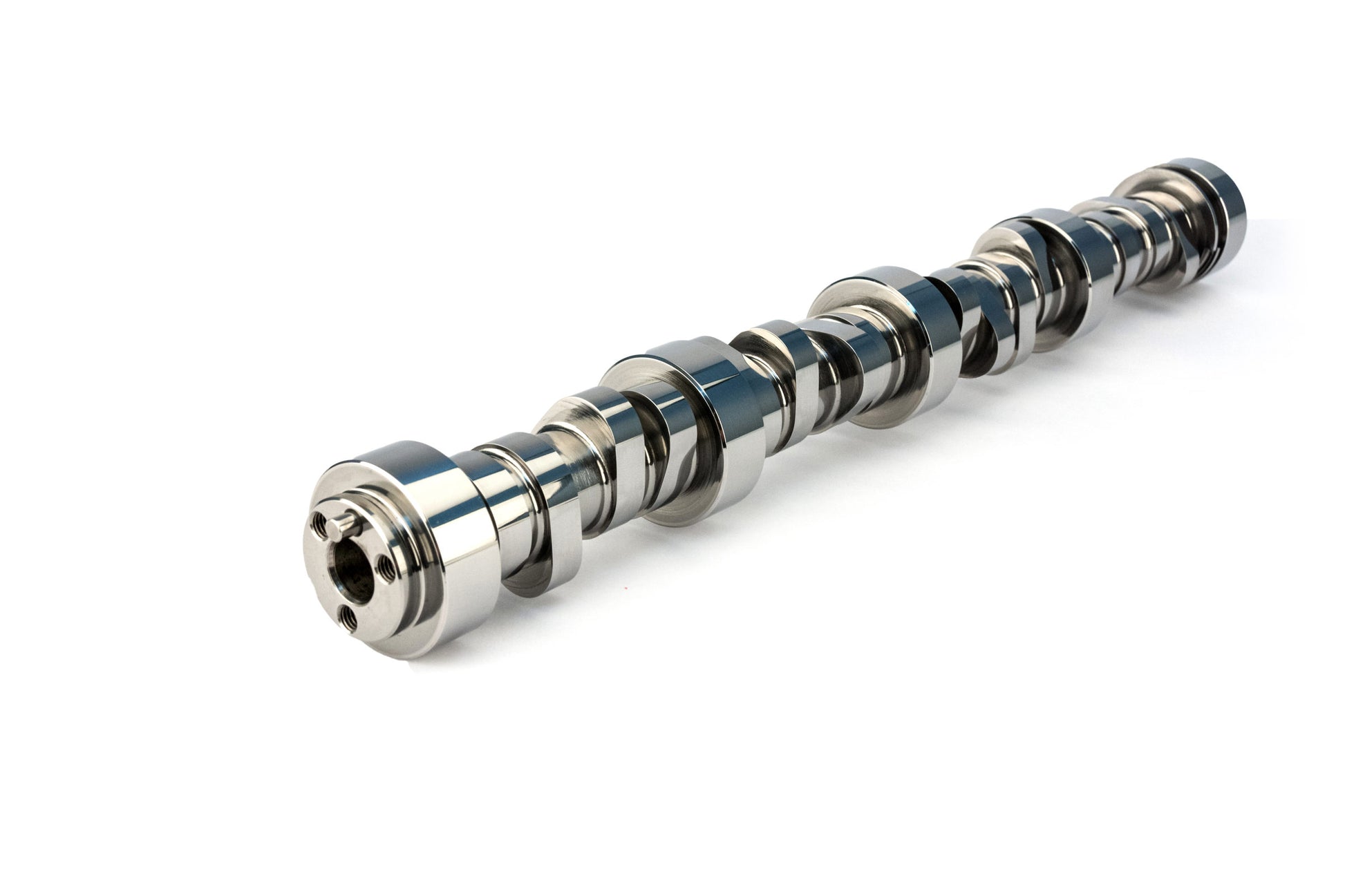

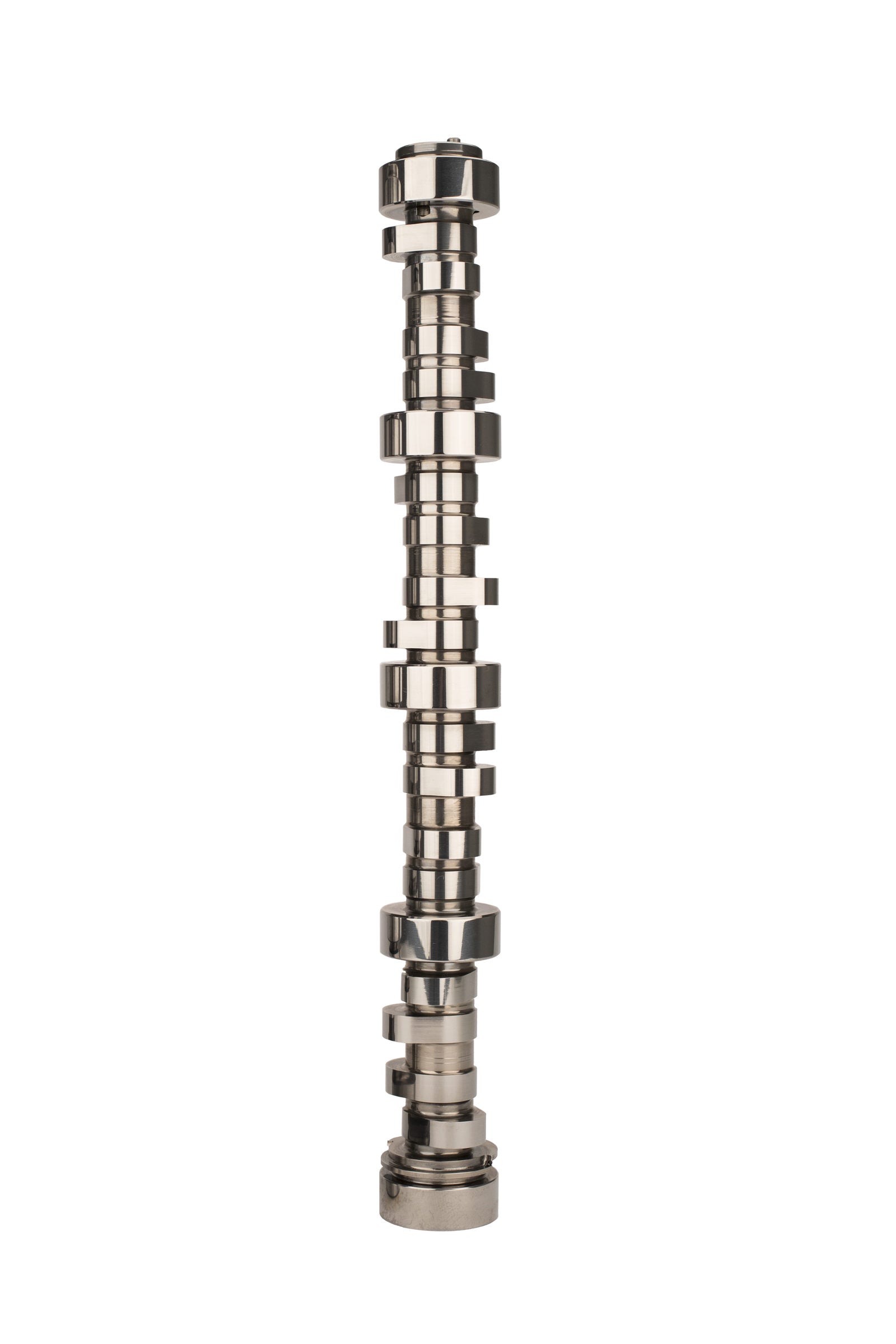

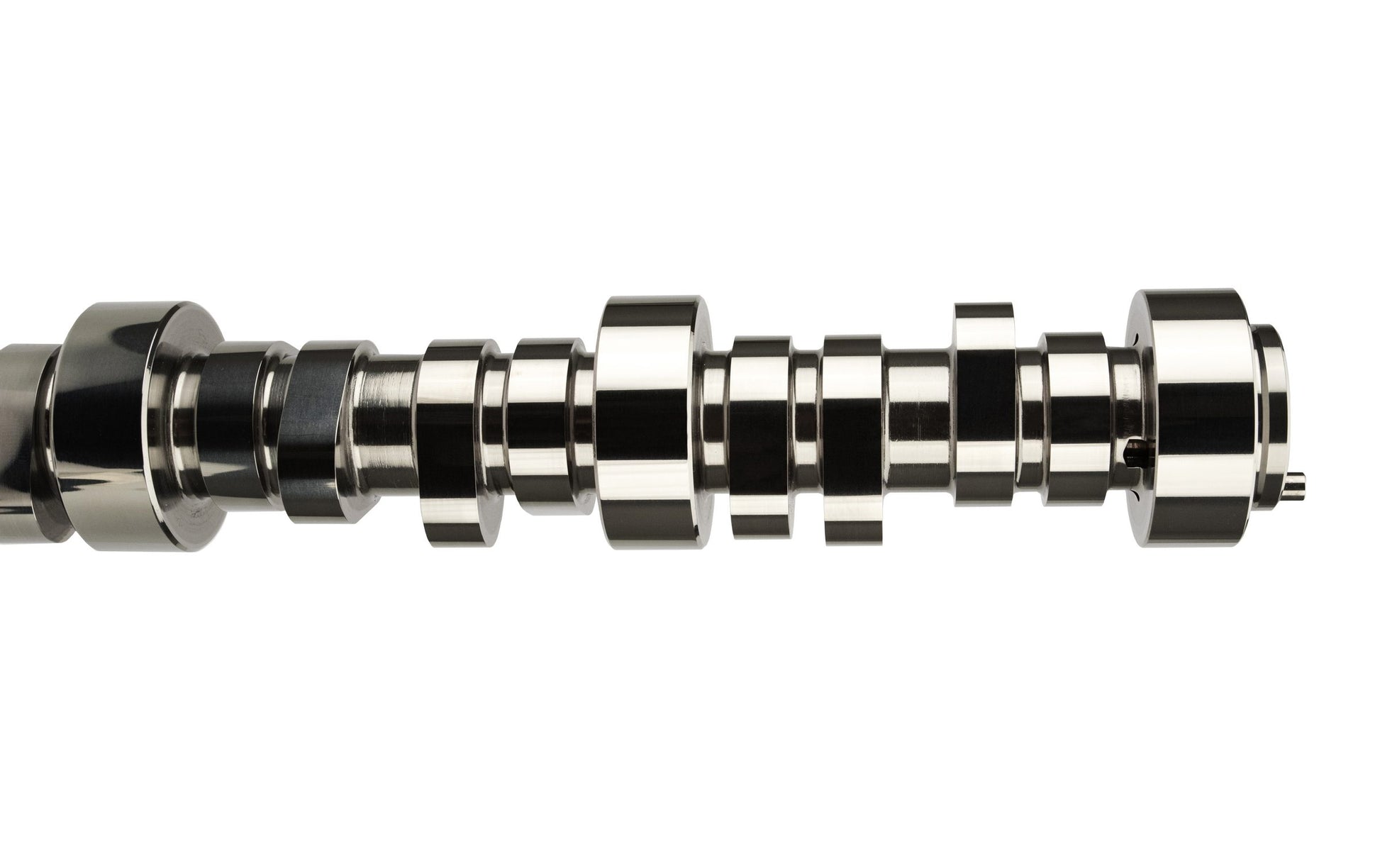

COMP Cams 54-470-11 - Camshaft LS1 285Lrr HR-113
Camshaft - LSR Rectangular Port - Hydraulic Roller - Lift 0.621 / 0.624 in - Duration 285 / 301 - 113 LSA - 2200 / 7200 RPM - GM LS-Series - Each
Hydraulic Roller: Very strong from mid-range to high end torque and horsepower for LS engines with rectangular port cylinder heads.
Camshaft Material: Billet Steel
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Lifter Type: Hydraulic Roller
Amazon ASIN: B001P265TW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 285LRR HR-13
Camshaft Series: LSR Rectangular Port All Out Power
Cam Type: Hydraulic Roller
Grind Number: 285LRR HR-13
Basic Operating RPM Range: 2,200-7,200
Intake Duration at .050 Inch Lift: 235
Exhaust Duration at .050 inch Lift: 251
Advertised Intake Duration: 285
Advertised Exhaust Duration: 301
Lobe Separation: 113
Intake Valve Lift: 0.621
Exhaust Valve Lift: 0.624
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
