COMP Cams 4873-16 - Spring Seats For LS 26925

COMP Cams 4873-16 - Spring Seats For LS 26925

COMP Cams | 4873-16
SKU: COMP-4873-16
$82.99 USD
$91.29 USD $82.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock

COMP Cams 4873-16 - Spring Seats For LS 26925

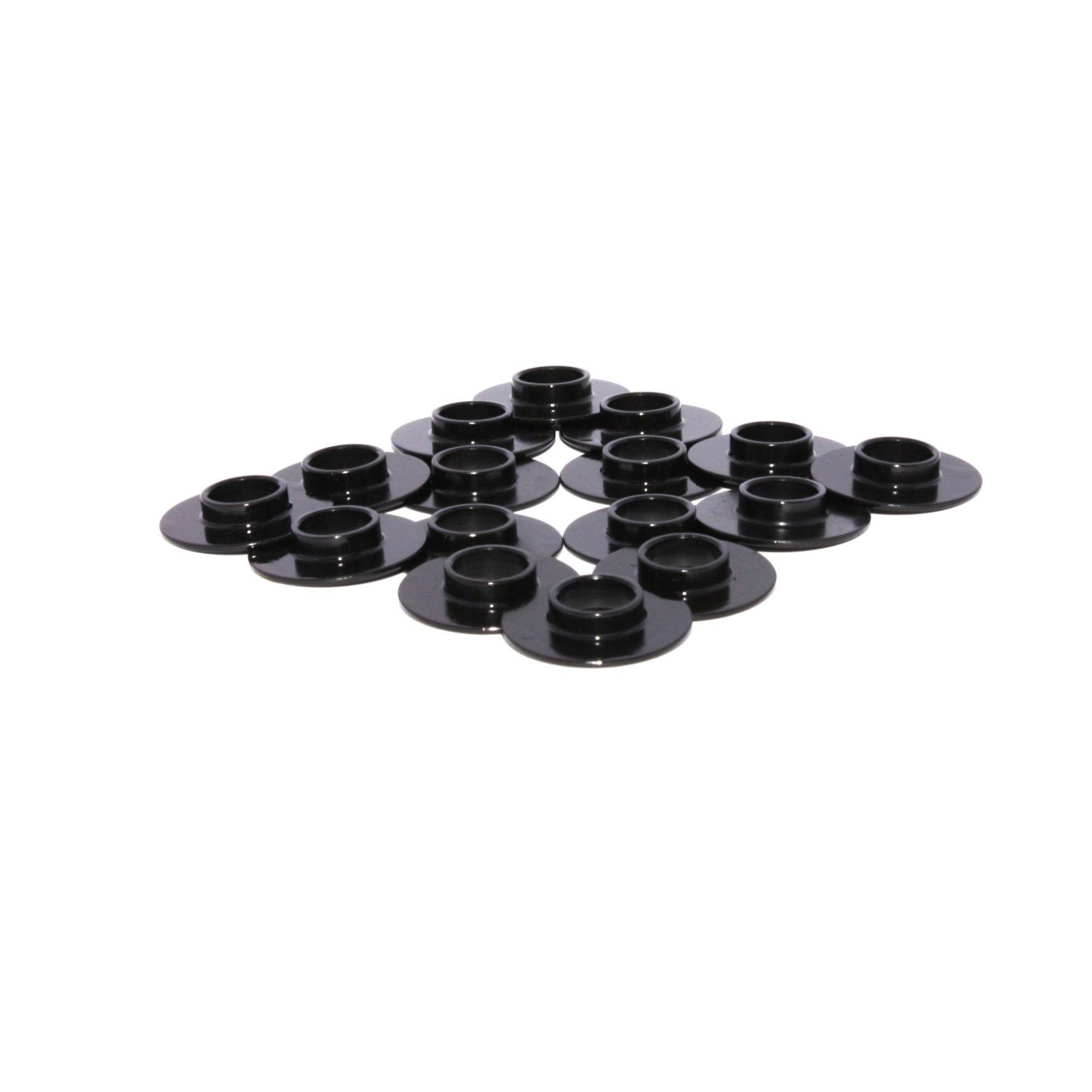

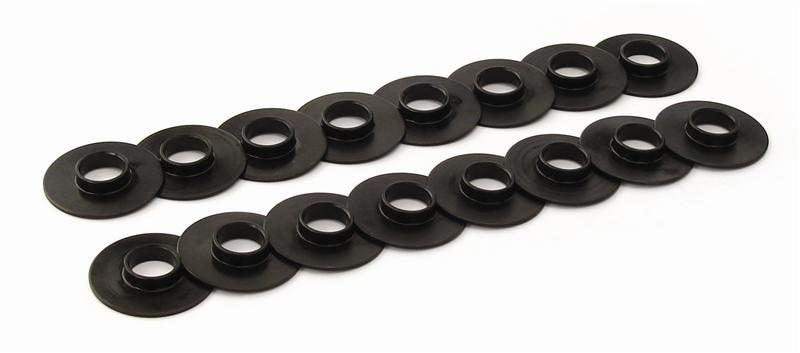

Valve Spring Locator - Inside - 0.060 in Thick - 1.300 in OD - 0.520 in ID - 0.670 in Spring ID - Steel - Set of 16

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4873 features a 1.300" OD and a .520" ID.

Older standard shims will not hold up to the extreme spring pressures and high RPM found in today's engines. COMP Cams offers a simple but effective solution to this problem and a thin, hardened Steel alloy seat which will not only protect the head and shim but will also locate and hold the spring in place. Adding to an already extensive line of locators, COMP engineers have created ones specifically for LS Applications.

Locator Inner Diameter: 0.52
Locator Outer Diameter: 1.3
Spring Inner Diameter: 0.67
Amazon ASIN: B009EQKV64
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Locator Thickness: .060"
Outside Diameter: 1.3
Inside Diameter: .520"
Spring Inside Diameter: 0.67
