COMP Cams 4811-8 - Guide Plates CB 3/8in Raised

COMP Cams 4811-8 - Guide Plates CB 3/8in Raised

COMP Cams | 4811-8
SKU: COMP-4811-8
$92.99 USD
$102.29 USD $92.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

COMP Cams 4811-8 - Guide Plates CB 3/8in Raised

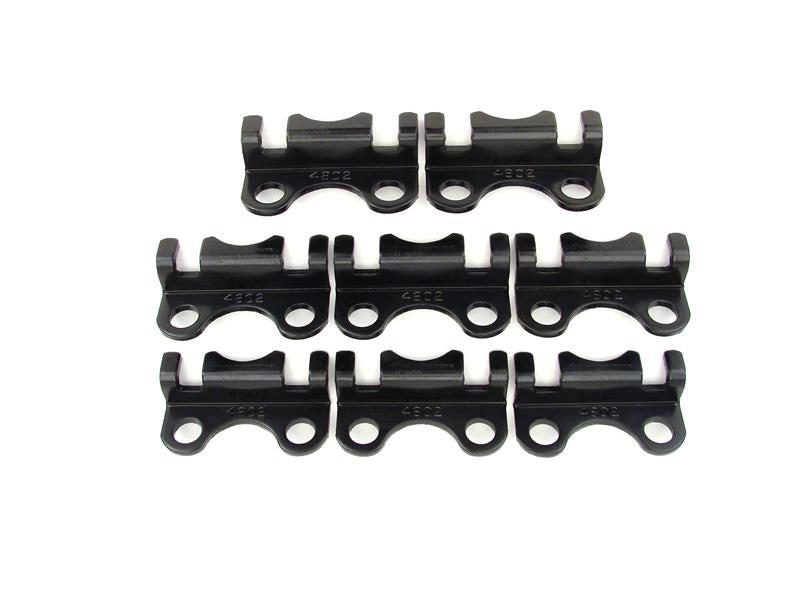

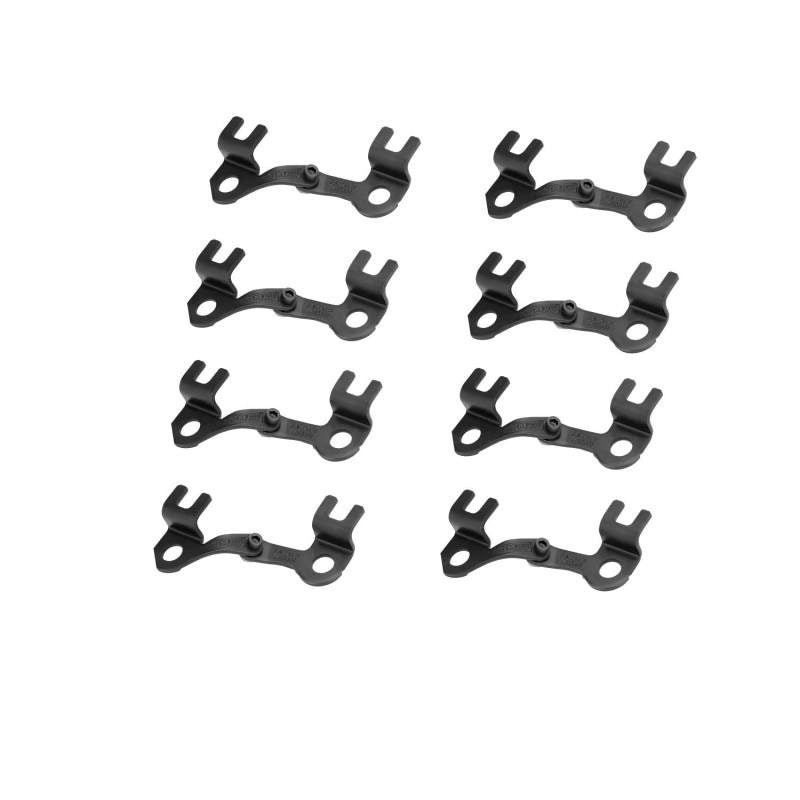

Pushrod Guide Plate - 3/8 in Pushrod - Raised - Adjustable - Steel - Black Oxide - Big Block Chevy - Set of 8

Hardened and black oxide coated for durability, this raised two-piece adjustable guide plate set is designed for Chevrolet 396-454 engines with 7/16" studs and 3/8" pushrods.

The innovative new guide plate design from COMP Cams compensates for the Chevrolet Big Block's splayed intake and exhaust valves, which are tilted in two axis. Perfect for use with aftermarket cylinder heads, Rocker arms and Pushrods, these adjustable guide plates eliminate misaligned Rocker arms and valve stem tips. A single fastener quickly locks the two halves of the guide plate together. And, if valve train parts are swapped, the guide plates can be easily readjusted to fit the new setup. They are available in sets of eight for 3/8" diameter pushrods. Precision die-stamped from premium heat-treated Steel material, the COMP Cams Two-Piece Adjustable Guide Plates are the quickest and most accurate way to align valve train components in Big Block Chevy engines. These performance guide plates work with all RHS® cylinder heads, as well as other popular performance aftermarket cylinder heads that feature relocated intake ports.

Adjustable: Yes
Engine Family: Chevrolet 396-454 Big Block
Pushrod Diameter: 3/8
Stud Diameter: 7/16
Type: Raised
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
