COMP Cams 4784-1 - ID Spring Seat 1.50 X 570 X 7
COMP Cams 4784-1 - ID Spring Seat 1.50 X 570 X 7
SKU: COMP-4784-1
21 in stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 4784-1 - ID Spring Seat 1.50 X 570 X 7

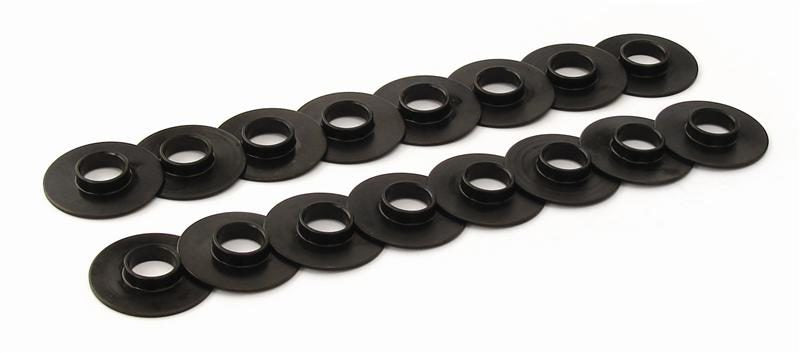

ID Spring Locator - 1.500" OD, .570" ID, .060" Thickness
Made from hardened steel, this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4783 features a 1.540" OD and a .640" ID.
The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.
