COMP Cams 4769-16 - Spring Seat Cups For 1.500in S
COMP Cams 4769-16 - Spring Seat Cups For 1.500in S
SKU: COMP-4769-16
5 in stock
Couldn't load pickup availability
COMP Cams 4769-16 - Spring Seat Cups For 1.500in S

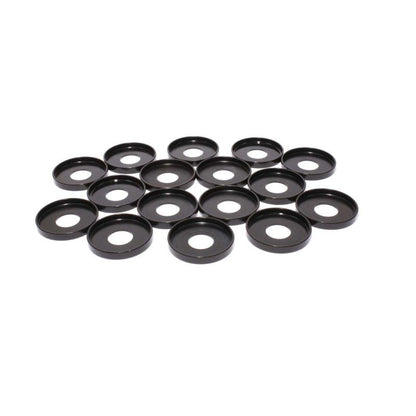

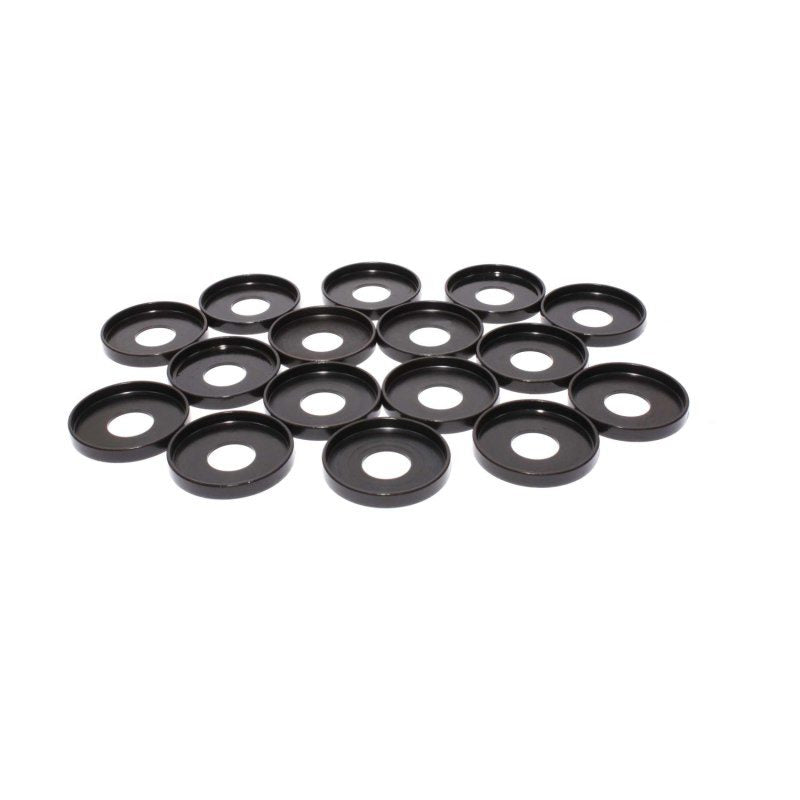

Valve Spring Locator - Outside - 0.060 in Thick - 1.635 in OD - 0.640 in ID - 1.500 in Spring OD - Steel - Set of 16
Constructed from hardened steel alloy, COMP's locator cups handle high RPM and extreme spring pressures while holding the spring. Our 4769 features a 1.635" OD with a .640" ID that works with our 901, 26956, 26957, and 26955 springs.

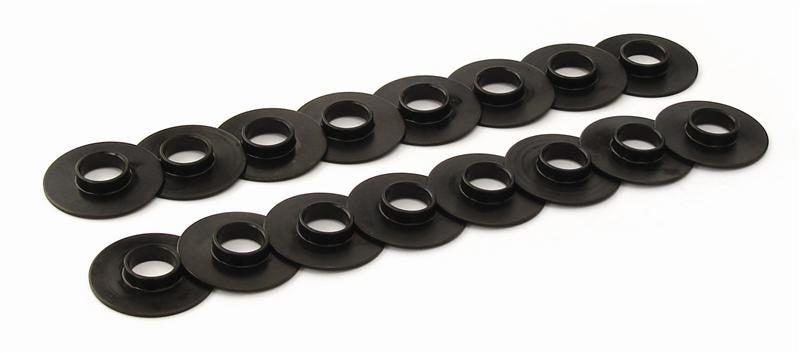

The old standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem and a thin, hardened Steel alloy seat which will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.
