COMP Cams 4712-1 - Spring Seat For GM LS1 1.400in

COMP Cams 4712-1 - Spring Seat For GM LS1 1.400in

COMP Cams | 4712-1
SKU: COMP-4712-1
$24.99 USD
$27.49 USD $24.99 USD
Sale Sold out
Shipping calculated at checkout.

54 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

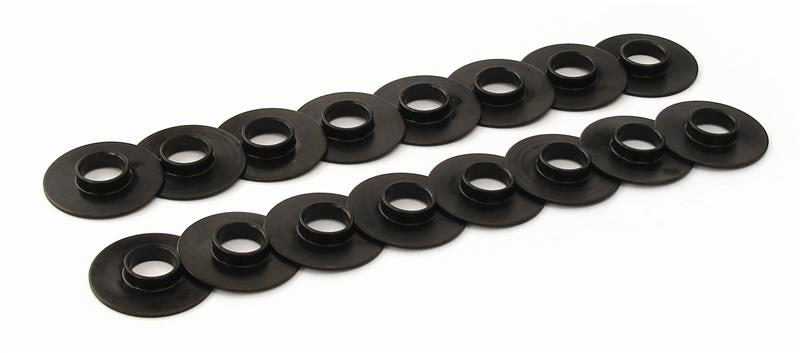

COMP Cams 4712-1 - Spring Seat For GM LS1 1.400in

ID Spring Locator - 1.400" OD, .520" ID, .060" Thickness

Made from hardened steel, this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4712 features a 1.400" OD and a .520" ID.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.

C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Inside Diameter: .520"
Outside Diameter: 1.4
Spring Inside Diameter: .690"
Locator Thickness: .060"
Locator Inner Diameter: 0.52
Locator Outer Diameter: 1.4
Spring Inner Diameter: 0.69
Amazon ASIN: B001G8OFP6
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
