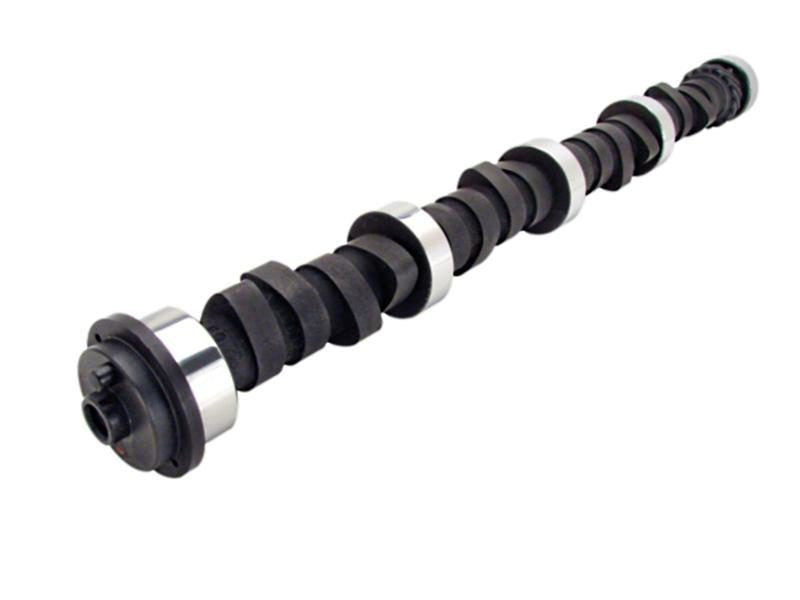

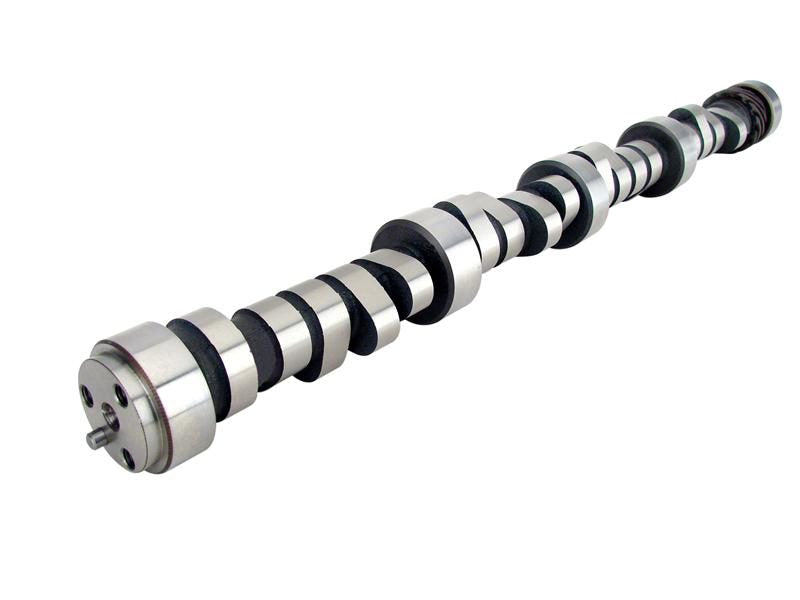

COMP Cams 42-224-4 - Camshaft OL XE274H-10

COMP Cams 42-224-4 - Camshaft OL XE274H-10

COMP Cams | 42-224-4
SKU: COMP-42-224-4
$316.99 USD
$348.69 USD $316.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

COMP Cams 42-224-4 - Camshaft OL XE274H-10

Camshaft - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.520 / 0.523 in - Duration 274 / 286 - 110 LSA - 1800 / 6000 RPM - Oldsmobile V8 - Each

Xtreme Energy 230/236 Hydraulic Flat Tappet Cam for Oldsmobile 260-455. High performance street. Very strong mid-range rough idle. Needs headers and a 2200+ stall.

Intake Duration at .050 Inch Lift: 230
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 274
Advertised Exhaust Duration: 286
Lobe Separation: 110
Intake Valve Lift: 0.52
Exhaust Valve Lift: 0.523
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Cam and Lifter Kit Upgrade: CL42-224-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK42-224-4
K-Kit Upgrade: K42-224-4
Engine Family: Oldsmobile 260-455 c.i. 8 Cylinder (1967-1990)
Amazon ASIN: B000V9HYJA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE274H
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE274H
Basic Operating RPM Range: 1,800-6,000
