COMP Cams 35-514-8 - Camshaft FW XE266HR-12

Name: COMP Cams 35-514-8 - Camshaft FW XE266HR-12
Brand: COMP Cams
SKU: COMP-35-514-8
Price: 597.99 USD
Availability: InStock

COMP Cams | 35-514-8
SKU: COMP-35-514-8

$597.99 USD

~~$657.79 USD~~ $597.99 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

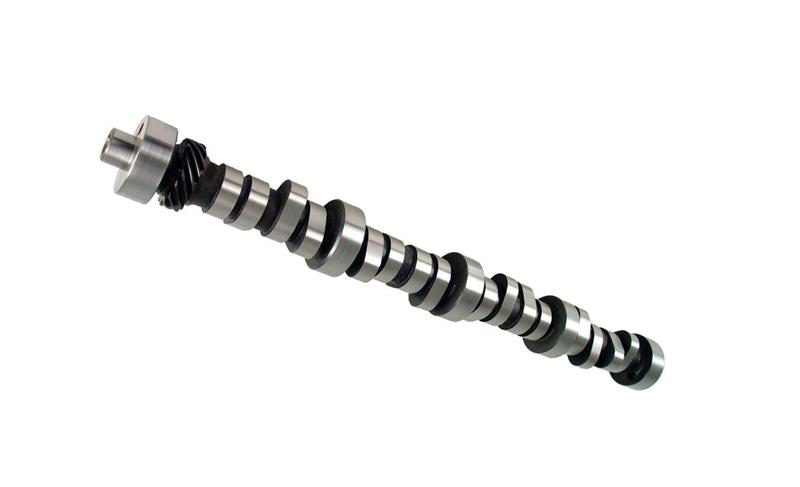

COMP Cams 35-514-8 - Camshaft FW XE266HR-12

Camshaft - Xtreme Energy - Hydraulic Roller - Lift 0.544 / 0.555 in - Duration 266 / 274 - 112 LSA - 1600 / 5600 RPM - Small Block Ford - Each

Mild modifications, 3.27-3.73 gears, mass air, larger throttle body.

Xtreme Energy Computer Controlled 216/224 Hydraulic Roller Cam

Camshaft Series: Xtreme Energy Computer Controlled

Usage: Street/Performance

Cam Type: Hydraulic Roller

Grind Number: XE266HR

Basic Operating RPM Range: 1,500-5,500

Intake Duration at .050 Inch Lift: 216

Exhaust Duration at .050 inch Lift: 224

Advertised Intake Duration: 266

Advertised Exhaust Duration: 274

Lobe Separation: 112

Intake Valve Lift: 0.544

Exhaust Valve Lift: 0.555

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: No

Camshaft Gear Attachment: 1-Bolt

Camshaft Material: Austempered Ductile Iron

SK-Kit Upgrade: SK35-514-8

Lifter Type: Hydraulic Roller

Cam and Lifter Kit Upgrade: CL35-514-8

Engine Family: Ford 5.0L (1985-2002)

K-Kit Upgrade: K35-514-8

Amazon ASIN: B000CIUC0I

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: XE266HR
