COMP Cams 35-314-8 - Camshaft FW 280H-R12

COMP Cams 35-314-8 - Camshaft FW 280H-R12

COMP Cams | 35-314-8
SKU: COMP-35-314-8
$536.99 USD
$590.69 USD $536.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

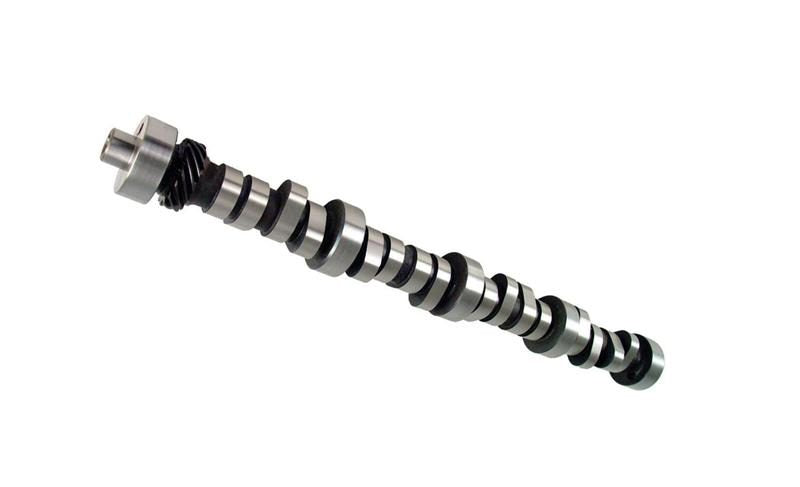

COMP Cams 35-314-8 - Camshaft FW 280H-R12

Magnum Computer Controlled 224/230 Hydraulic Roller Cam for Ford 5.0L

Needs injectors, larger mass air and throttle body, intake, heads, headers, gears and 2500+ stall or 5 speed.

Camshaft Series: Magnum Computer Controlled
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 280HR
Basic Operating RPM Range: 2,200-6,200
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 280
Advertised Exhaust Duration: 286
Lobe Separation: 112
Intake Valve Lift: 0.56
Exhaust Valve Lift: 0.598
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Ford 5.0L (1985-2002)
Cam and Lifter Kit Upgrade: CL35-314-8
K-Kit Upgrade: K35-314-8
Lifter Type: Hydraulic Roller
SK-Kit Upgrade: SK35-314-8
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 280HR
