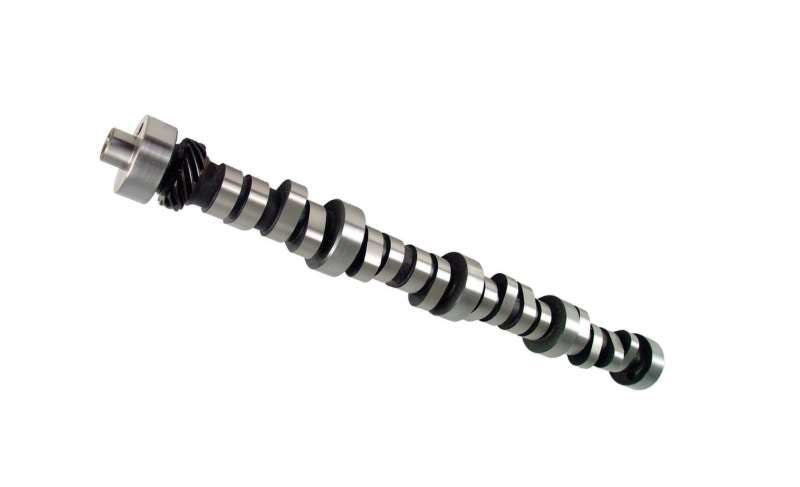

COMP Cams 35-312-8 - Camshaft FW 276H-R14
COMP Cams 35-312-8 - Camshaft FW 276H-R14
SKU: COMP-35-312-8
Regular price
$597.99 USD
Regular price
$657.79 USD
Sale price
$597.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
COMP Cams 35-312-8 - Camshaft FW 276H-R14
Camshaft - Magnum - Hydraulic Roller - Lift 0.544 / 0.560 in - Duration 276 / 280 - 114 LSA - 2000 / 6000 RPM - Small Block Ford - Each
Hydraulic Roller: Supercharged, works well with 5 speed, needs good intake with mass air and larger injectors, mild stall.
Camshaft Series: Magnum Computer Controlled
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 276HR
Basic Operating RPM Range: 2,000-6,000
Intake Duration at .050 Inch Lift: 220
Exhaust Duration at .050 inch Lift: 224
Advertised Intake Duration: 276
Advertised Exhaust Duration: 280
Lobe Separation: 114
Intake Valve Lift: 0.544
Exhaust Valve Lift: 0.56
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Austempered Ductile Iron
K-Kit Upgrade: K35-312-8
Cam and Lifter Kit Upgrade: CL35-312-8
SK-Kit Upgrade: SK35-312-8
Engine Family: Ford 5.0L (1985-2002)
Lifter Type: Hydraulic Roller
Amazon ASIN: B001O0FXVQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 276HR
