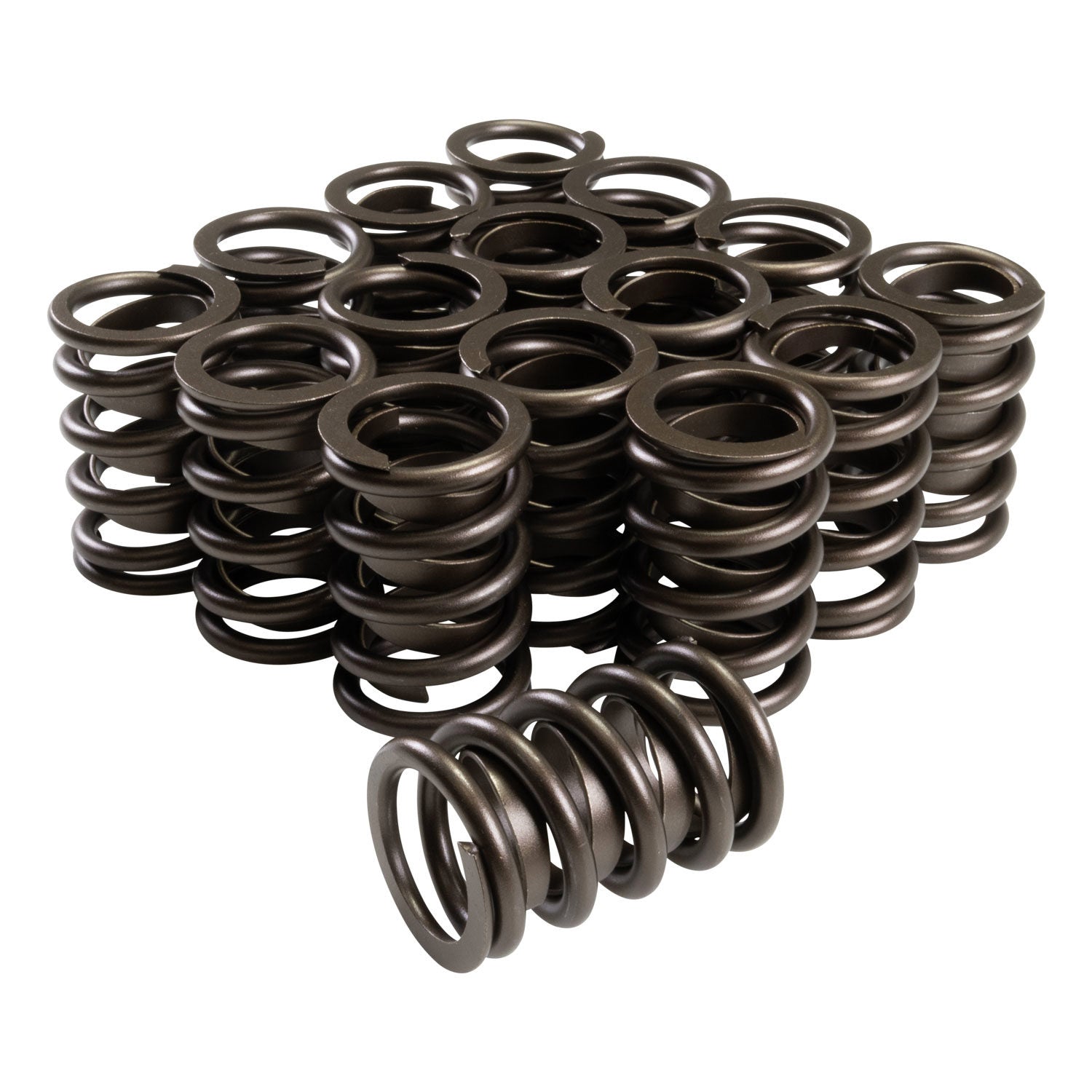

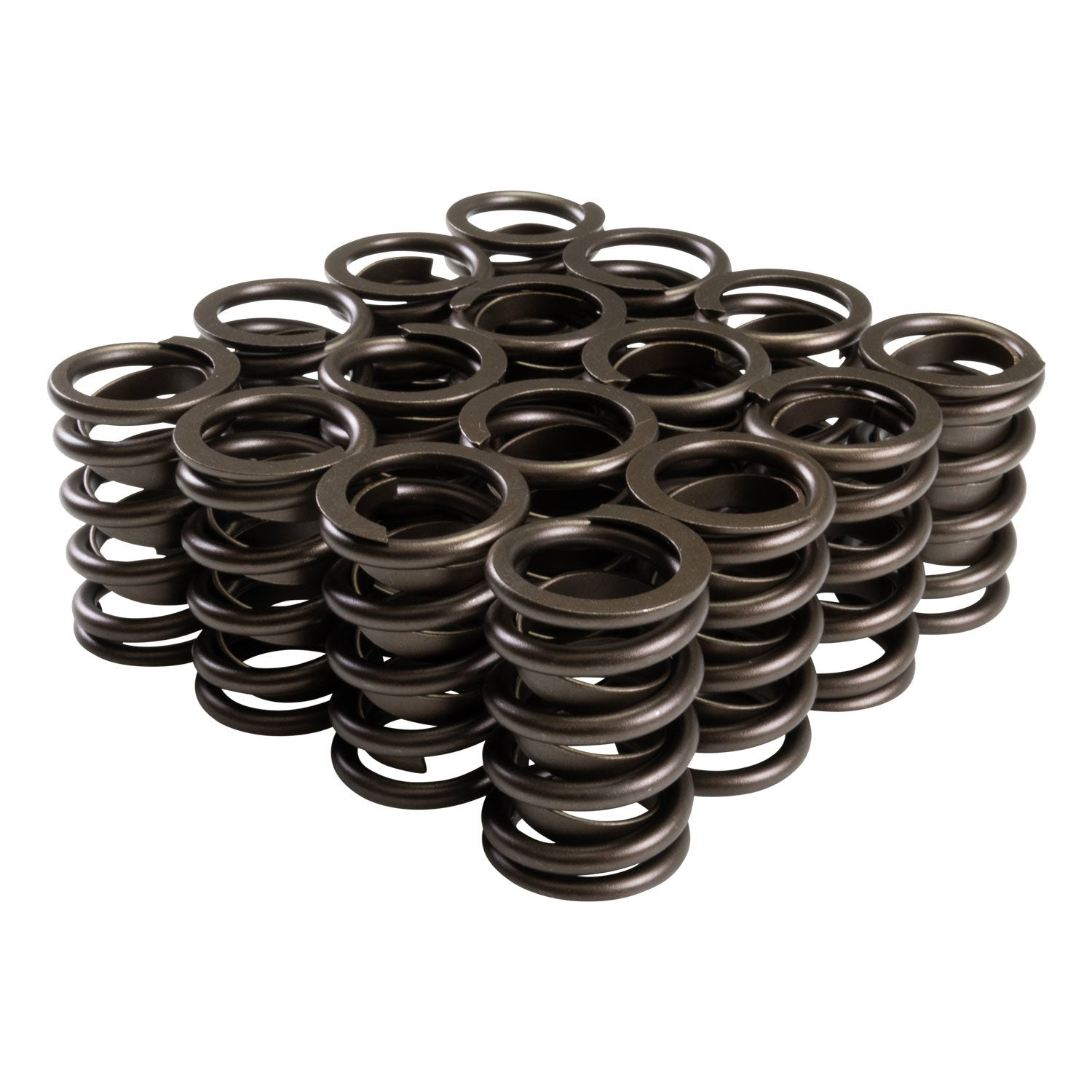

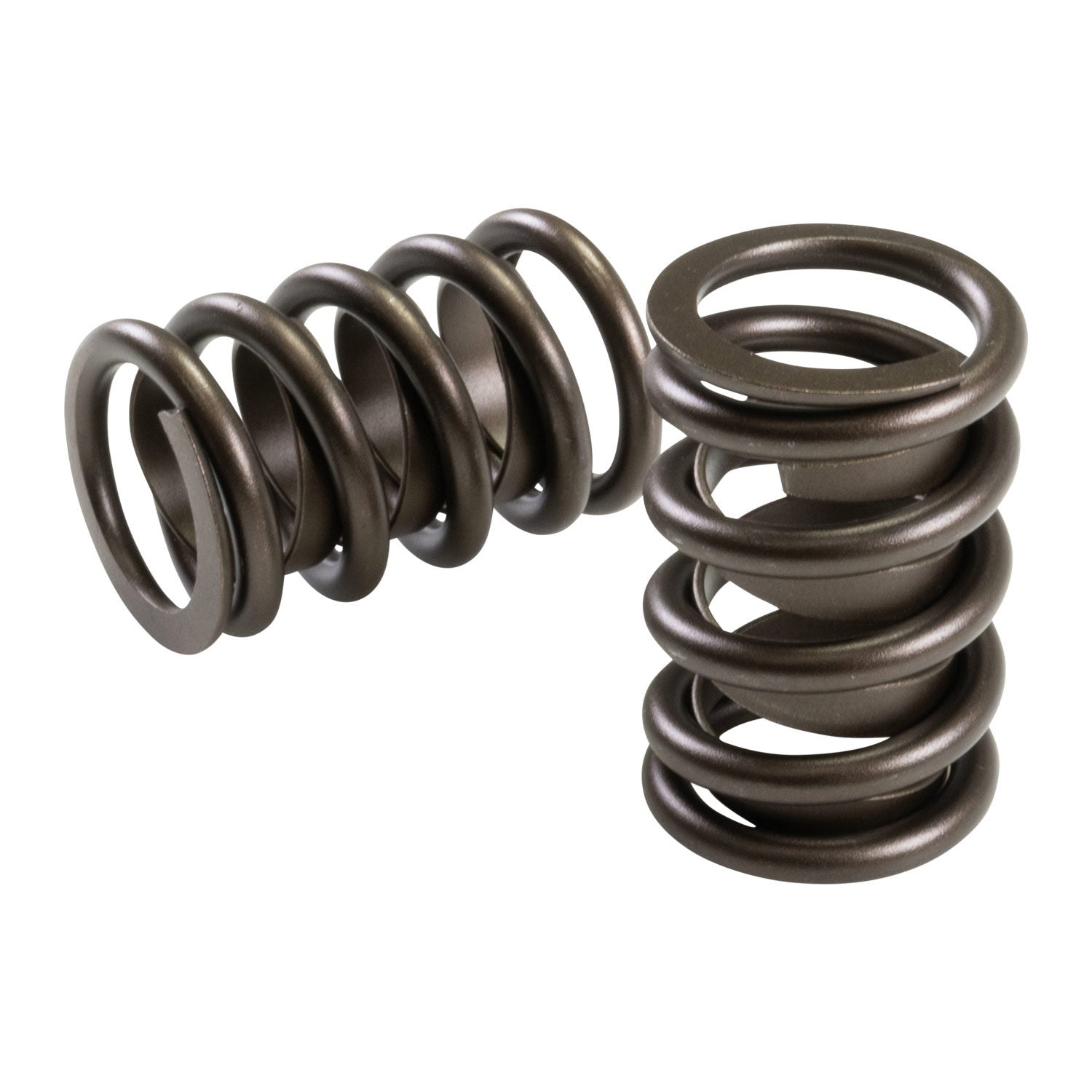

COMP Cams 26942-16 - Single Spring w/ Damper - 1.440in OD 1.750IH

COMP Cams 26942-16 - Single Spring w/ Damper - 1.440in OD 1.750IH

COMP Cams | 26942-16
SKU: COMP-26942-16
Regular price $123.99 USD
Regular price $136.39 USD Sale price $123.99 USD
Sale Sold out
Shipping calculated at checkout.

14 in stock

Quantity

COMP Cams 26942-16 - Single Spring w/ Damper - 1.440in OD 1.750IH

Valve Spring - Single Spring / Damper - 350 lb/in Spring Rate - 1.100 in Coil Bind - 1.440 in OD - Set of 16

Designed for both flat tappet and hydraulic roller cams, 26942 fits applications near a 1.750" installed height and a spring pocket of 1.440". A 350 lbs/in rate and 338 lbs of open load are suitable for many applications.

COMP Cams' new 26942 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket.The 26942 stands out as the optimal choice for a wide range of applications, accommodating hydraulic flat tappest and street hydraulic roller cams up to .600” lift, with an installed height of 1.750”. They seamlessly fit numerous spring pockets with a 1.440" outer diameter, offering versatility across many applications. Boasting an open load of over 330 pounds, these valve springs are geared toward early hydraulic roller street or flat tappet applications, but a 350 lbs/in rate means it's also suitable for many solid flat tappet applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs.

Seat Height: 1.9750
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Compatible Retainer: 708 Steel Retainers for 7° Locks and 3/8 Valves
Compatible Seats: 4704 Spring Seats for OD Locator
Compatible Shims: 4754 Spring Shims
Coil Bind Height: 1.1
Damper Spring Included: Yes
Inner Spring Inside Diameter: 0.94
Outer Spring Inside Diameter: 1.03
Outer Spring Outside Diameter: 1.44
Open Pressure: 321
Installed Pressure: 128
Installed Height: 1.75
Spring Load: 128
Spring Open Height: 1.2
Spring Rate: 350
Spring Type: Single Spring
Valve Spring Quantity: 16
Recommended Max Lift (in): 0.6
Valve Spring Finish: Raw
Related Products: 708 Steel Retainers for 7° Locks and 3/8 Valves 768 Steel Retainers for 7° Locks and 11/32 Valves 709 Steel Retainers for 10° Locks and All Valves 1739 Tool Steel Retainers for 7° Locks and 3/8 Valves 1738 Tool Steel Retainers for 7° Locks and 11/32 Valves 716 Lightweight Titanium Retainers for 10° Locks and All Valves 4704 Spring Seats for OD Locator 4754 Spring Shims
