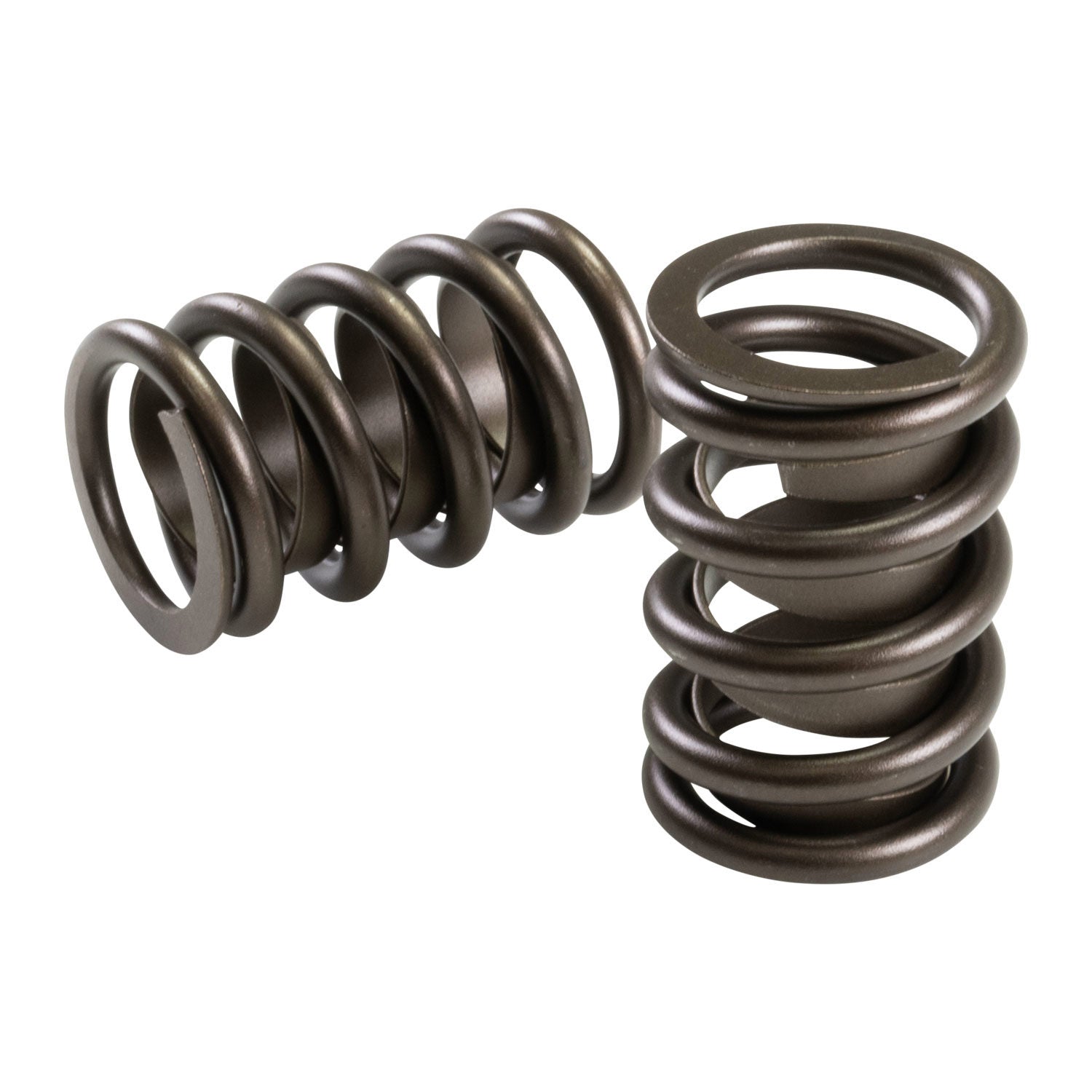

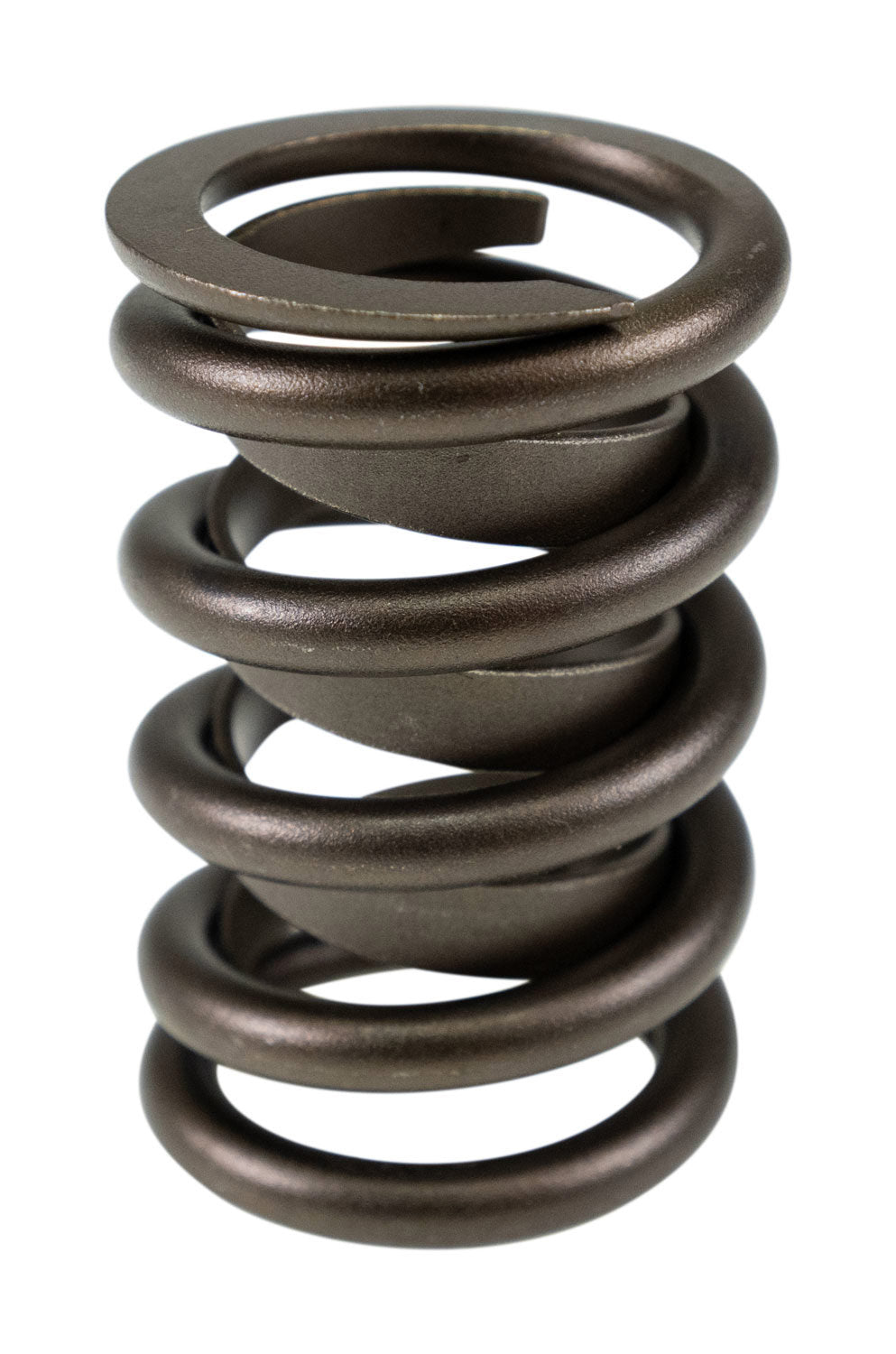

COMP Cams 26942-12 - Valve Springs 1.440in OD

COMP Cams 26942-12 - Valve Springs 1.440in OD

COMP Cams | 26942-12
SKU: COMP-26942-12
Regular price $100.99 USD
Regular price $111.09 USD Sale price $100.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 26942-12 - Valve Springs 1.440in OD

SET, SINGLE SPRING W/ DAMPER, 1.440 OD, 1.750 IH, .600 LIFT, 350 LBS/IN

Designed for both flat tappet and hydraulic roller cams, 26942 fits applications near a 1.750" installed height and a spring pocket of 1.440". A 350 lbs/in rate and 338 lbs of open load are suitable for many applications.

COMP Cams' new 26942 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26942 stands out as the optimal choice for a wide range of applications, accommodating hydraulic flat tappest and street hydraulic roller cams up to .600” lift, with an installed height of 1.750”. They seamlessly fit numerous spring pockets with a 1.440" outer diameter, offering versatility across many applications. Boasting an open load of over 330 pounds, these valve springs are geared toward early hydraulic roller street or flat tappet applications, but a 350 lbs/in rate means it's also suitable for many solid flat tappet applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs.

Coil Bind Height: 1.1
Damper Spring Included: Yes
Inner Spring Inside Diameter: 0.94
Outer Spring Inside Diameter: 1.03
Outer Spring Outside Diameter: 1.44
Installed Height: 1.75
Installed Pressure: 128
Open Pressure: 321
Spring Load: 128
Spring Open Height: 1.2
Spring Rate: 350
Spring Type: Single Spring
Valve Spring Quantity: 12
Number of Springs per Valve: 1
Valve Spring Finish: Raw
Recommended Max Lift (in): 0.6
Related Products: 708 Steel Retainers for 7° Locks and 3/8 Valves 768 Steel Retainers for 7° Locks and 11/32 Valves 709 Steel Retainers for 10° Locks and All Valves 1739 Tool Steel Retainers for 7° Locks and 3/8 Valves 1738 Tool Steel Retainers for 7° Locks and 11/32 Valves 716 Lightweight Titanium Retainers for 10° Locks and All Valves 4704 Spring Seats for OD Locator 4754 Spring Shims
