COMP Cams 26906TS-KIT - Kit, Valve Spring- Beehive 1.28In O.D. Ls6 Plus-W/ Light Weight Tool Steel Retainers

COMP Cams 26906TS-KIT - Kit, Valve Spring- Beehive 1.28In O.D. Ls6 Plus-W/ Light Weight Tool Steel Retainers

COMP Cams | 26906TS-KIT
SKU: COMP-26906TS-KIT
$581.95 USD
$640.14 USD $581.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 26906TS-KIT - Kit, Valve Spring- Beehive 1.28In O.D. Ls6 Plus-W/ Light Weight Tool Steel Retainers

LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers, 0.580" Max Lift

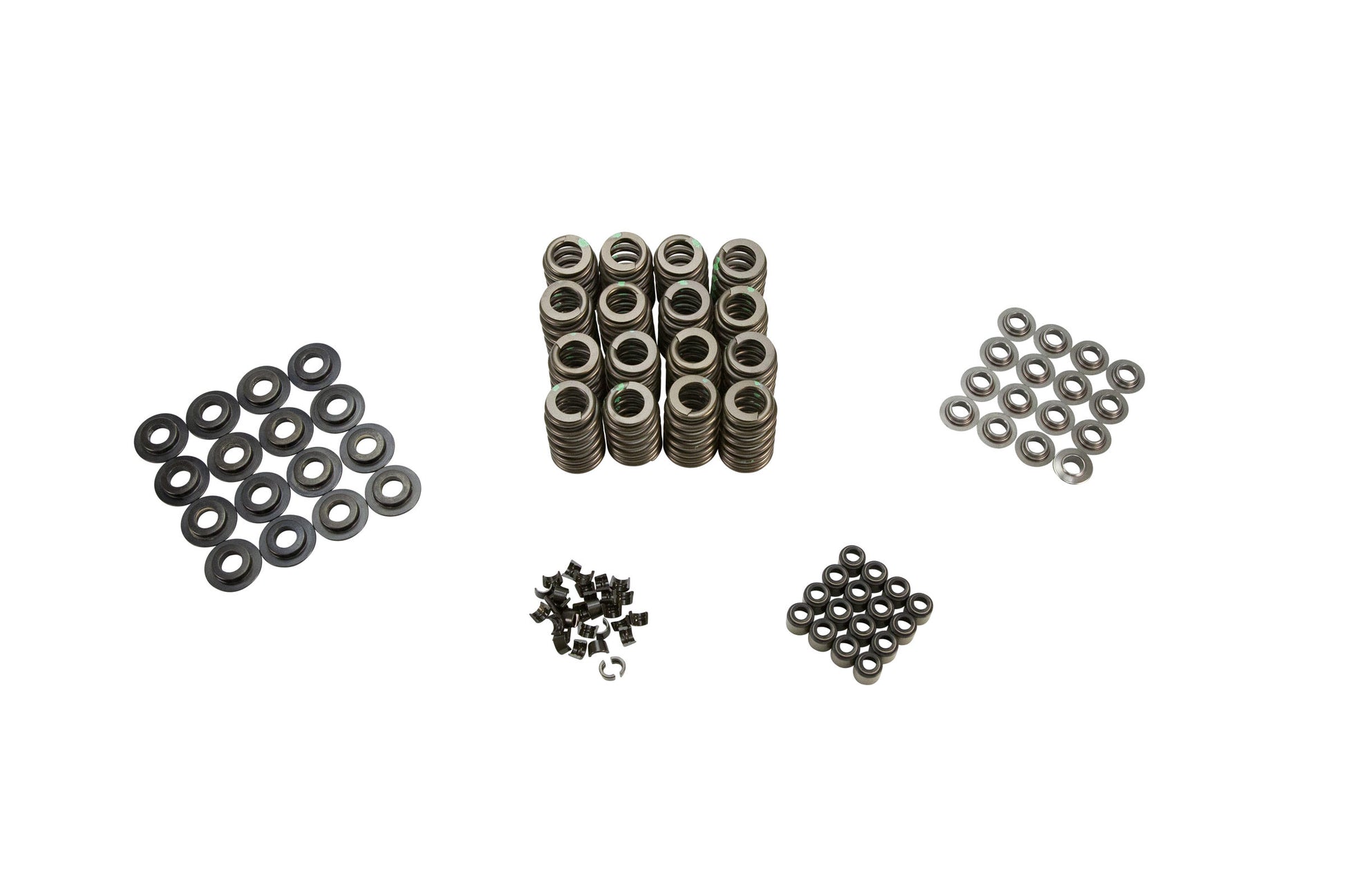

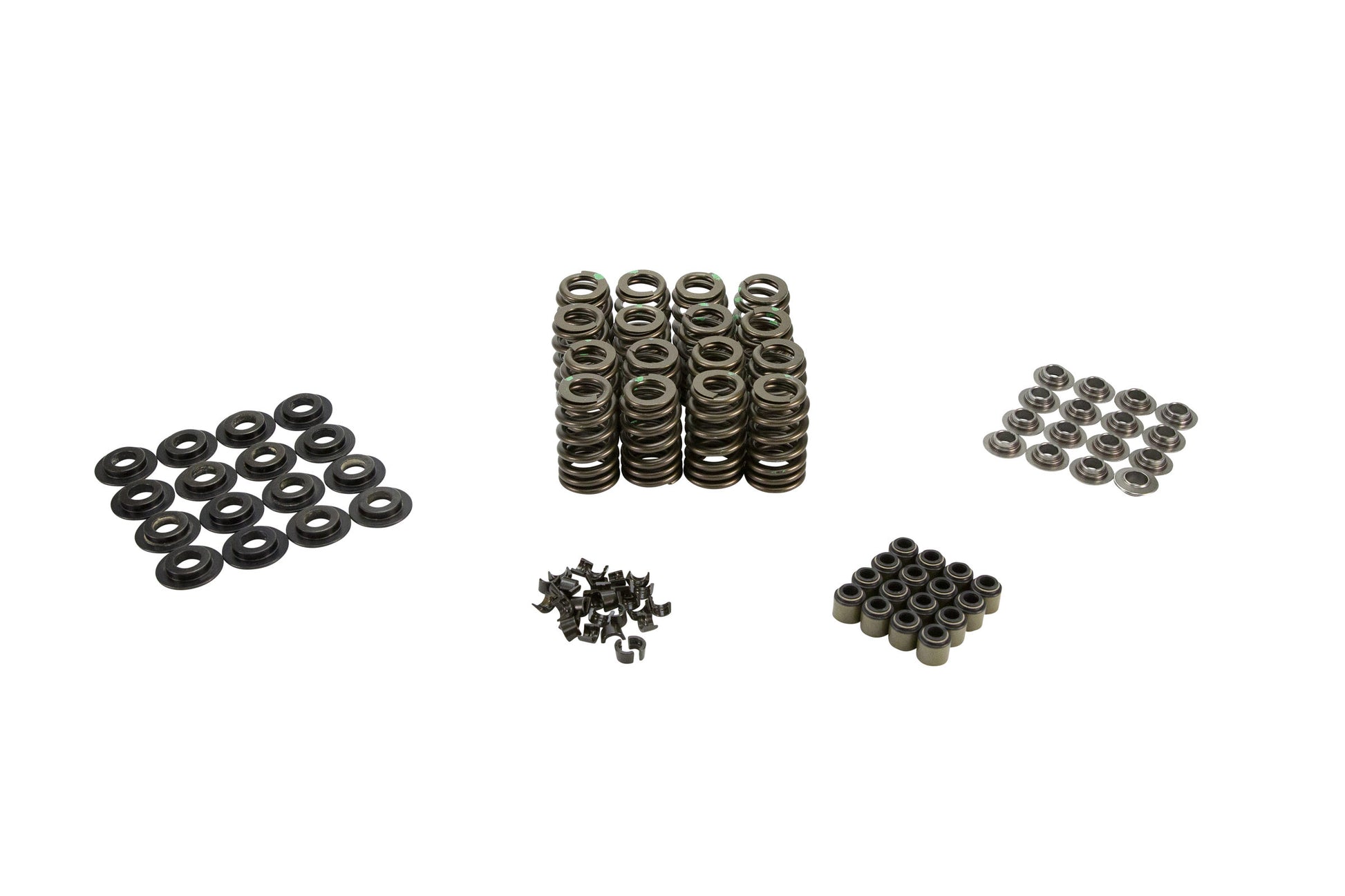

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift.

The COMP Cams 0.575" Lift Beehive LS6+ Valve Spring Kit Features:

  • 4% higher load and .030" higher lift capacity than Blue GM LS6 Springs
  • Includes springs, Tool Steel retainers, valve locks, Seals, and spring seats
Valve Seal Outer Diameter: 0.600
Includes Valve Seals: Yes
Valve Seal Type: Steel Jacketed Viton
Includes Spring Seats: Yes
Includes Locks: Yes
Retainer Material: Tool Steel
Includes Retainers: Yes
Max Lift: 0.580
Valve Spring Type: Beehive
Seat Pressure: 92
Seat Height: 1.800
Coil Bind Height: 1.181
Engine Fitment: GM LS Cathedral and Rectangle Port Applications
Compatible Shims: 4753
Spring Top Outside Diameter: 1.077
Spring Top Inside Diameter: 0.655
Spring Bottom Outside Diameter: 1.282
Spring Bottom Inside Diameter: 0.860
Locator Thickness: 0.0600
Locator Outer Diameter: 1.300
Locator Inner Diameter: 0.510
